Overview

Representing another Payment Administration Center, 'Other Payment Administration Centers' is intended to provide a source and destination for ITS information flows between payment administration functions. This interface allows reconciliation of toll charges and other payments across different agencies by allowing the exchange of information about clients who have incurred charges in jurisdictions other than their own (billing) customer service center. This interface enables apportioning charges and 'reciprocity' between participating customer service centers.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Other Payment Administration Centers	payment coordination	Payment Administration Center
Other Payment Administration Centers	toll coordination	Payment Administration Center
Other Payment Administration Centers	user account coordination	Payment Administration Center
Payment Administration Center	payment coordination	Other Payment Administration Centers
Payment Administration Center	toll coordination	Other Payment Administration Centers
Payment Administration Center	user account coordination	Other Payment Administration Centers

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 3	Moderate	High	Moderate	ST11: Low Emissions Zone Fee Collection
Class 3	Moderate	High	Moderate	TI05: Integrated Multi-Modal Electronic Payment
Class 3	Moderate	High	Moderate	TI05.1: Account-based Implementation
Class 3	Moderate	High	Moderate	TI05.2: Card-based Implementation
Class 3	Moderate	High	Moderate	TI05.3: Pay-as-you-go Implementation
Class 3	Moderate	High	Moderate	TI05.4: Account-based, personal transport and shared use Implementation
Class 3	Moderate	High	Moderate	TI05.5: Account-based with all modes Implementation
Class 3	Moderate	High	Moderate	TM11: Road Use Charging
Class 3	Moderate	High	Moderate	TM11.1: Road Use Charging Implementation
Class 2	Moderate	Moderate	Moderate	TM10: Electronic Toll Collection
Class 2	Moderate	Moderate	Moderate	TM10.1: Electronic Toll Collection Implementation

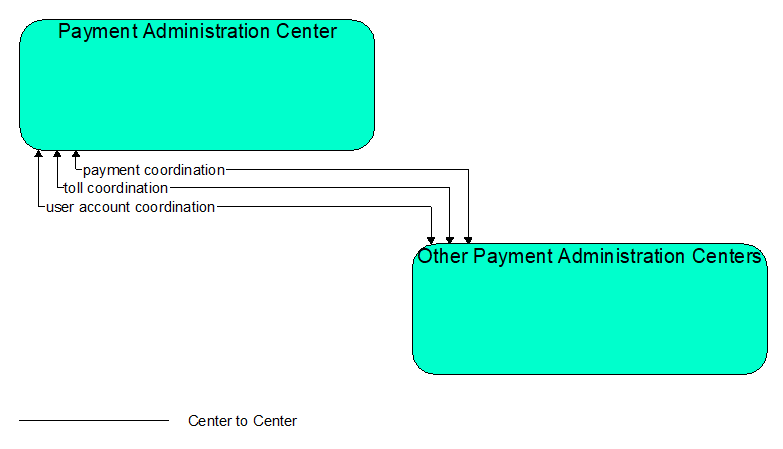

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
