Parent Service Package: SU10
< < SU09.1 : SU10.1 : SU11.1 > >

SU10.1: Center Maintenance Implementation

This 'implementation' is a holistic view of the SU10 service package, including all Physical Objects, Functional Objects, and Triples associated with the service package. It distinguishes between items that are fundamental to the service and items that are optional. Your specific implementation is likely to include the fundamental items and selected optional items, based on your specific project requirements.

Relevant Regions:

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Center Developer	Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Center Developer	Service Monitor System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Center Developer	Support Maintenance Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Service Monitor System Developer	Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Service Monitor System Developer	Service Monitor System	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Support Maintenance Equipment Developer	Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Support Maintenance Equipment Developer	Support Maintenance Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Center Installer	Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Center Owner	Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Center Owner	Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Service Monitor System Installer	Service Monitor System	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Service Monitor System Owner	Service Monitor System Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Service Monitor System Owner	Service Monitor System Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Support Maintenance Equipment Installer	Support Maintenance Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Support Maintenance Equipment Owner	Support Maintenance Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Support Maintenance Equipment Owner	Support Maintenance Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Center Maintainer	Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Center Manager	Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Center Manager	Center Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Center Owner	Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Center Owner	Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Center Owner	Service Monitor System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Center Owner	Service Monitor System Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Center Owner	Service Monitor System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Center Owner	Service Monitor System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Center Owner	Support Maintenance Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Center Owner	Support Maintenance Equipment Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Center Owner	Support Maintenance Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Center Owner	Support Maintenance Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Center Personnel	Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Center Supplier	Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Service Monitor System Maintainer	Service Monitor System	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Service Monitor System Manager	Service Monitor System	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Service Monitor System Manager	Service Monitor System Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Service Monitor System Operator	Service Monitor System	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Service Monitor System Owner	Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Service Monitor System Owner	Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Service Monitor System Owner	Center Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Service Monitor System Owner	Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Service Monitor System Owner	Service Monitor System Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Service Monitor System Owner	Service Monitor System Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Service Monitor System Supplier	Service Monitor System Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Support Maintenance Equipment Maintainer	Support Maintenance Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Support Maintenance Equipment Manager	Support Maintenance Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Support Maintenance Equipment Manager	Support Maintenance Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Support Maintenance Equipment Owner	Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Support Maintenance Equipment Owner	Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Support Maintenance Equipment Owner	Center Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Support Maintenance Equipment Owner	Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Support Maintenance Equipment Owner	Support Maintenance Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Support Maintenance Equipment Owner	Support Maintenance Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Support Maintenance Equipment Supplier	Support Maintenance Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Support Maintenance Personnel	Support Maintenance Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Center	Center System Executive	10.5.1.3	Provide Center System Maintenance Operator Interface
	Center System Executive	10.5.1.5	Manage Center Systems Configuration
	Center System Monitoring and Diagnostics	10.5.1.3	Provide Center System Maintenance Operator Interface
	Center System Monitoring and Diagnostics	10.5.1.6	Monitor Center Systems Device Diagnostics
Service Monitor System	SM Device Management	10.5.4	Provide Device Support Services Operator Interface
Service Monitor System	SM Device Management	10.5.5	Monitor System Activities
Support Maintenance Equipment	SME IT Maintenance	10.5.2	Support Information Technology Maintenance

Physical

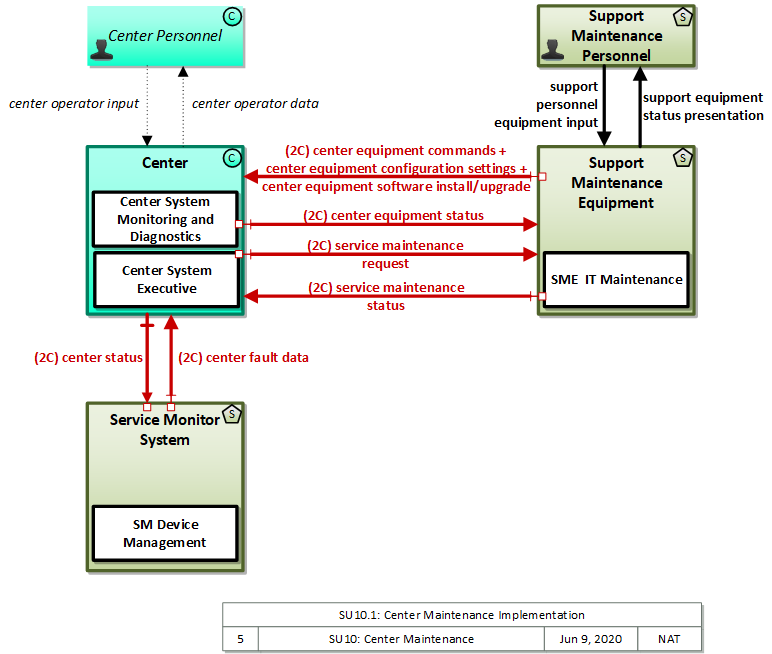

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Center	Center	This general physical object is used to model core capabilities that are common to any center.
Center Personnel	Center	'Center Personnel' represent system operators and other personnel that work within a transportation center. This interface supports modeling of general human interactions that are common to any center.
Service Monitor System	Support	The 'Service Monitor System' represents one or more center-based systems that provide monitoring, management and control services necessary to other applications and/or devices operating within the Connected Vehicle Environment. These support services enable other applications to provide transportation services.
Support Maintenance Equipment	Support	'Support Maintenance Equipment' represents the equipment used by IT personnel and technicians to locally or remotely troubleshoot, initialize, reprogram, and test IT assets that support ITS operations. It also manages service activities for IT assets, accepting service requests and providing service status as maintenance activities and repairs are scheduled and performed. It may include a workstation, laptop, trouble-ticket or other maintenance tracking software, specialized diagnostics tools, or any other general purpose or specialized equipment that is interfaced remotely or locally to support maintenance, repair, and upgrade.
Support Maintenance Personnel	Support	'Support Maintenance Personnel' represents technicians and IT personnel that support maintenance of information technology assets that support ITS.

Includes Functional Objects:

Functional Object	Description	Physical Object
Center System Executive	'Center System Executive' provides the operating system and executive functions that manage computer resources, user accounts, and installed applications. It provides security features and manages software installation and upgrade.	Center
Center System Monitoring and Diagnostics	'Center System Monitoring and Diagnostics' includes background self-tests, diagnostics, watchdog timers, and other hardware and software that monitors the operating condition of the center. The status of the center equipment and diagnostic information is provided to center operations personnel and maintenance personnel that may be operating remotely from the center.	Center
SM Device Management	'SM Device Management' provides the functions necessary to manage devices, including network management, operational status monitoring, and application performance monitoring.	Service Monitor System
SME IT Maintenance	'SME IT Maintenance' provides maintenance, diagnostics, and troubleshooting capabilities for information technology equipment that supports back office operations for intelligent transportation systems. It provides the capability to control and configure this equipment to support on-site installation, repair, and maintenance and remote software configuration and upgrade. It also provides service desk capabilities for IT assets, receiving service requests and providing service status updates as the requests are addressed and issues are resolved.	Support Maintenance Equipment

Includes Information Flows:

Information Flow	Description
center equipment commands	System-level control commands issued to center equipment such as reset and remote diagnostics.
center equipment configuration settings	Control settings and parameters that are used to configure center equipment.
center equipment software install/upgrade	This flow supports installation and update of software residing in centers. It supports download and installation of center software, including executable code and associated support files.
center equipment status	Reports from center equipment (computers, networks, video walls, etc.) which indicate current operational status.
center fault data	Fault information that can be used to identify centers that require initialization, reconfiguration, or repair. This flow identifies the center, the nature of the fault, and associated error codes and diagnostic data.
center operator data	Data presented to a center operator. This flow represents general status output and other data that broadly applies to transportation centers.
center operator input	Input from a center operator. This flow represents operator input that broadly applies to transportation centers.
center status	Represents the interactive monitoring of system operations by the Service Monitor. It includes device housekeeping/heartbeat monitoring and network monitoring information, the status of installed applications, and the configuration of managed devices.
service maintenance request	Identification of central system service requiring repair and known information about the associated faults.
service maintenance status	Current status of central system maintenance actions.
support equipment status presentation	Presentation of operational status of support system equipment (computers, networks, etc.) to maintenance personnel.
support personnel equipment input	User input from support system maintenance personnel that supports querying, controlling, and configuring support system equipment.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal

Associated Objective Categories

Objective Category

Associated Objectives and Performance Measures

Objective	Performance Measure

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement

Related Sources

Document Name	Version	Publication Date
None

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Center
Service Monitor System
Support Maintenance Equipment

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Center	Center Personnel	center operator data	High	High	High
Center	Center Personnel	center operator data	Direct interactions between personnel and systems in a backoffice environment are effectively protected by physical means, so long as the interaction is in a dedicated facility. If this interaction is virtual (i.e. ,the center is not directly in front of the Center Personnel, like in a cloud-based system) then the user's input requires some degree of obfuscation depending on sensitivity of information. Given that this could include information about compromised or ineffectual systems, including security systems, the potential for damage is high. Thus, HIGH.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Center	Service Monitor System	center status	High	High	High
Center	Service Monitor System	center status	System operational status information could be used to either initiate or confirm attacks, leading to significant downtime of related C-ITS systems.	System status information needs the greatest possible correctness, as if it is incorrect then inappropriate actions may be triggered that, for large backoffice and core systems, have widespread repurcussions.	Monitoring of system operational status has the highest possible needs for availability, as without an understanding of system state it is difficult to impossible to manage the system.
Center	Support Maintenance Equipment	center equipment status	Moderate	Moderate	Moderate
Center	Support Maintenance Equipment	center equipment status	The operational state of center systems, if known to an attacker or individual with criminal intent, could be used to facilitate the commission of a crime. Individual centers may be more or less important in this context; for example knowing whether a traffic management center is operating is probably more relevant to the criminal than knowing if a weather information center is operating, though the latter could still be useful info. Instances of this flow that are local minimize this risk however, so for these local flows Confidentiality is considered LOW.	If incorrect or changed, could lead to inappropriate maintenance activity, which has a significant cost in itself and contributes negatively to system operational status.	This must be timely to support operational uptime requirements. Lack of monitoring will lead to less uptime, which will impact security, mobility and in some cases, safety.
Center	Support Maintenance Equipment	service maintenance request	Moderate	Moderate	Moderate
Center	Support Maintenance Equipment	service maintenance request	Device operational status information should be known only by those entities that need to know for operations and maintenance. Allowing others to read this information may enable abuse of those systems, 3rd party monitoring of system status when that may not be desireable, and reverse engineering of this and similar information flows.	If this data is incorrect or unavailable then maintenance assets may not be appropriately assigned, systems may not be repaired on time, resulting in inefficient use of maintenance assets and higher overall downtime.	If this data is incorrect or unavailable then maintenance assets may not be appropriately assigned, systems may not be repaired on time, resulting in inefficient use of maintenance assets and higher overall downtime.
Center Personnel	Center	center operator input	High	High	High
Center Personnel	Center	center operator input	Direct interactions between personnel and systems in a backoffice environment are effectively protected by physical means, so long as the interaction is in a dedicated facility. If this interaction is virtual (i.e. ,the center is not directly in front of the Center Personnel, like in a cloud-based system) then the user's input requires some degree of obfuscation depending on sensitivity of information. Given that this could include information about compromised or ineffectual systems, including security systems, the potential for damage is high. Thus, HIGH.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Service Monitor System	Center	center fault data	Moderate	Moderate	Moderate
Service Monitor System	Center	center fault data	Device status information should not be viewable by third parties, as those with criminal intent may use this information toward their own ends.	If incorrect or changed, could lead to inappropriate maintenance activity, which has a significant cost in itself and contributes negatively to system operational status. Scope is small, but impact significant if this occurs with many instances.	A delay in reporting this may cause a delay in necessary maintenance. Considered higher availability requirement than the source flow (RSE status) because this information aggregates many instances of the source.
Support Maintenance Equipment	Center	center equipment commands	Moderate	High	High
Support Maintenance Equipment	Center	center equipment commands	Commands could be sensitive and should include authentication data, thus should be MODERATE.	Commands to Centers must be authenticated as having come from a source entitled to issue that command, or roadway equipment may be comprimised. Similarly, commands and configuration must be guaranteed to be correct; not manipulated midstream or corrupted, or the center may be mis-configured or compromised. Considered HIGH as opposed to MODERATE because the operational scope of a Center is typically quite large compared to a Field device.	Without the ability to locally diagnose, operate, update and configure Center Equipment, the equipment is effectively out of control and would have to be taken out of service.
Support Maintenance Equipment	Center	center equipment configuration settings	Moderate	High	High
Support Maintenance Equipment	Center	center equipment configuration settings	Commands could be sensitive and should include authentication data, thus should be MODERATE.	Center system control, configuration and update need to be correct or the center may be misconfigured, which for some applications could have severe safety impacts. If the center has no safety-related functions, or little impact on regional mobility, this could be MODERATE.	Without the ability to locally diagnose, operate, update and configure Center system Equipment, the Center is effectively out of control and would have to be taken out of service.
Support Maintenance Equipment	Center	center equipment software install/upgrade	Moderate	High	Moderate
Support Maintenance Equipment	Center	center equipment software install/upgrade	Equipment software is sensitive and should include authentication data, thus should be MODERATE.	Software updates to Center components must be authenticated as having come from a source entitled to provide that software, or roadway equipment may be comprimised. Similarly, such software must be guaranteed to being the intent of the originator; not manipulated midstream or corrupted, or the roadway equipment may be mis-configured or compromised.	The ability to remotely update and configure software is inherent to their successful operation. If this link is down it either suggests or will prompt field maintenance activity, which has a non-trivial cost and resource impact.
Support Maintenance Equipment	Center	service maintenance status	Moderate	Moderate	Moderate
Support Maintenance Equipment	Center	service maintenance status	Device operational status information should be known only by those entities that need to know for operations and maintenance. Allowing others to read this information may enable abuse of those systems, 3rd party monitoring of system status when that may not be desireable, and reverse engineering of this and similar information flows.	If this data is incorrect or unavailable then maintenance assets may not be appropriately assigned, systems may not be repaired on time, resulting in inefficient use of maintenance assets and higher overall downtime.	If this data is incorrect or unavailable then maintenance assets may not be appropriately assigned, systems may not be repaired on time, resulting in inefficient use of maintenance assets and higher overall downtime.
Support Maintenance Equipment	Support Maintenance Personnel	support equipment status presentation	Moderate	Moderate	High
Support Maintenance Equipment	Support Maintenance Personnel	support equipment status presentation	System maintenance flows should have some protection from casual viewing, as otherwise imposters could gain illicit control over field equipment	If incorrect or changed, could lead to inappropriate maintenance activity, which has a significant cost in itself and contributes negatively to system operational status.	This must be timely to support operational uptime requirements. Lack of monitoring will lead to less uptime, which will impact security, mobility and in some cases, safety.
Support Maintenance Personnel	Support Maintenance Equipment	support personnel equipment input	Moderate	Moderate	High
Support Maintenance Personnel	Support Maintenance Equipment	support personnel equipment input	System support flows should have some protection from casual viewing, as otherwise imposters could gain illicit control over support equipment or the equipment managed by the support equipment.	System support flows are the primary interface between support personnel and support equipment, and must present accurate data or inappropriate support actions may be taken.	System support flows are the primary interface between support personnel and support equipment, and must present accurate data or inappropriate support actions may be taken.

Standards

Currently, there are no standards associated with the physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

System Requirements

No System Requirements
