Kind: Subsystem

Class: Center

Type: System

Center

Triples

Source Flow Destination
Authorizing Center permission request received Center
Center permission request Authorizing Center
Center permission update request Authorizing Center
Center center operator data Center Personnel
Center equipment control commands Connected Vehicle Roadside Equipment
Center RSE application information Connected Vehicle Roadside Equipment
Center RSE application install/upgrade Connected Vehicle Roadside Equipment
Center field equipment commands Field
Center field equipment configuration settings Field
Center field equipment software install/upgrade Field
Center permission application receipt ITS Object
Center equipment maintenance request Maint and Constr Management Center
Center map update notification Map Update System
Center pathway update notifications Map Update System
Center parking maneuver status Parking Management Center
Center vehicle operating status Parking Management Center
Center vehicle parking leave status Personal Information Device
Center personnel device commands Personnel Device
Center personnel device configuration settings Personnel Device
Center personnel device software install/upgrade Personnel Device
Center secure center operator data Remote Access Device
Center remote operator data Remote Vehicle Operator
Center center status Service Monitor System
Center center equipment status Support Maintenance Equipment
Center service maintenance request Support Maintenance Equipment
Center vehicle automation commands Vehicle
Center vehicle commands Vehicle
Center Personnel center operator input Center
Connected Vehicle Roadside Equipment RSE application status Center
Field field equipment status Center
ITS Object device identification Center
ITS Object permission application Center
Location and Time Data Source location and time Center
Maint and Constr Management Center equipment maintenance status Center
Maint and Constr Management Center special vehicle restricted use information Center
Map Update System intersection geometry Center
Map Update System map updates Center
Map Update System pathway map updates Center
Network Time Source time Center
Parking Management Center parking area information Center
Parking Management Center parking maneuver request Center
Personal Information Device vehicle summons Center
Personnel Device personnel device status Center
Remote Access Device secure center operator input Center
Remote Vehicle Operator remote operator input Center
Service Monitor System center fault data Center
Service Monitor System field equipment fault data Center
Service Monitor System personnel device fault data Center
Service Monitor System RSE fault data Center
Service Monitor System time local form Center
Support Maintenance Equipment center equipment commands Center
Support Maintenance Equipment center equipment configuration settings Center
Support Maintenance Equipment center equipment software install/upgrade Center
Support Maintenance Equipment service maintenance status Center
Traffic Management Center road network conditions Center
Traffic Management Center traffic image meta data Center
Traffic Management Center traffic images Center
Vehicle vehicle operating status Center
Vehicle vehicle video monitoring Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 High High High SU02: Core Authorization
Class 5 High High High SU02.1: Core Authorization Implementation
Class 5 Low Low High SU05: Location and Time
Class 5 Low Low High SU05.1: Location Distribution Implementation
Class 5 High High High SU10: Center Maintenance
Class 5 High High High SU10.1: Center Maintenance Implementation
Class 4 High High Moderate SU01: Connected Vehicle System Monitoring and Management
Class 4 High High Moderate SU01.1: Connected Vehicle System Monitoring and Management Implementation
Class 4 High High Moderate SU13: Personnel Device Maintenance
Class 4 High High Moderate SU13.1: Personnel Device Maintenance Implementation
Class 3 Low High Moderate SU04: Map Management
Class 3 Low High Moderate SU04.1: Wide Area Wireless Implementation
Class 3 Low High Moderate SU04.2: C-ITS Supported Implementation
Class 3 Moderate High Moderate SU11: Field Equipment Maintenance
Class 3 Moderate High Moderate SU11.1: Field Equipment Maintenance Implementation
Class 2 Moderate Moderate Moderate MC05: Roadway Maintenance and Construction
Class 2 Moderate Moderate Moderate MC05.1: General Roadway Maintenance Implementation
Class 2 Moderate Moderate Moderate MC05.2: ITS Equipment Maintenance Implementation
Class 2 Moderate Moderate Moderate SU14: Remote Access
Class 2 Moderate Moderate Moderate SU14.1: Remote Access Implementation
Class 1 Not Applicable Low Moderate SU05.3: Time Distribution Implementation



Interfaces Diagram

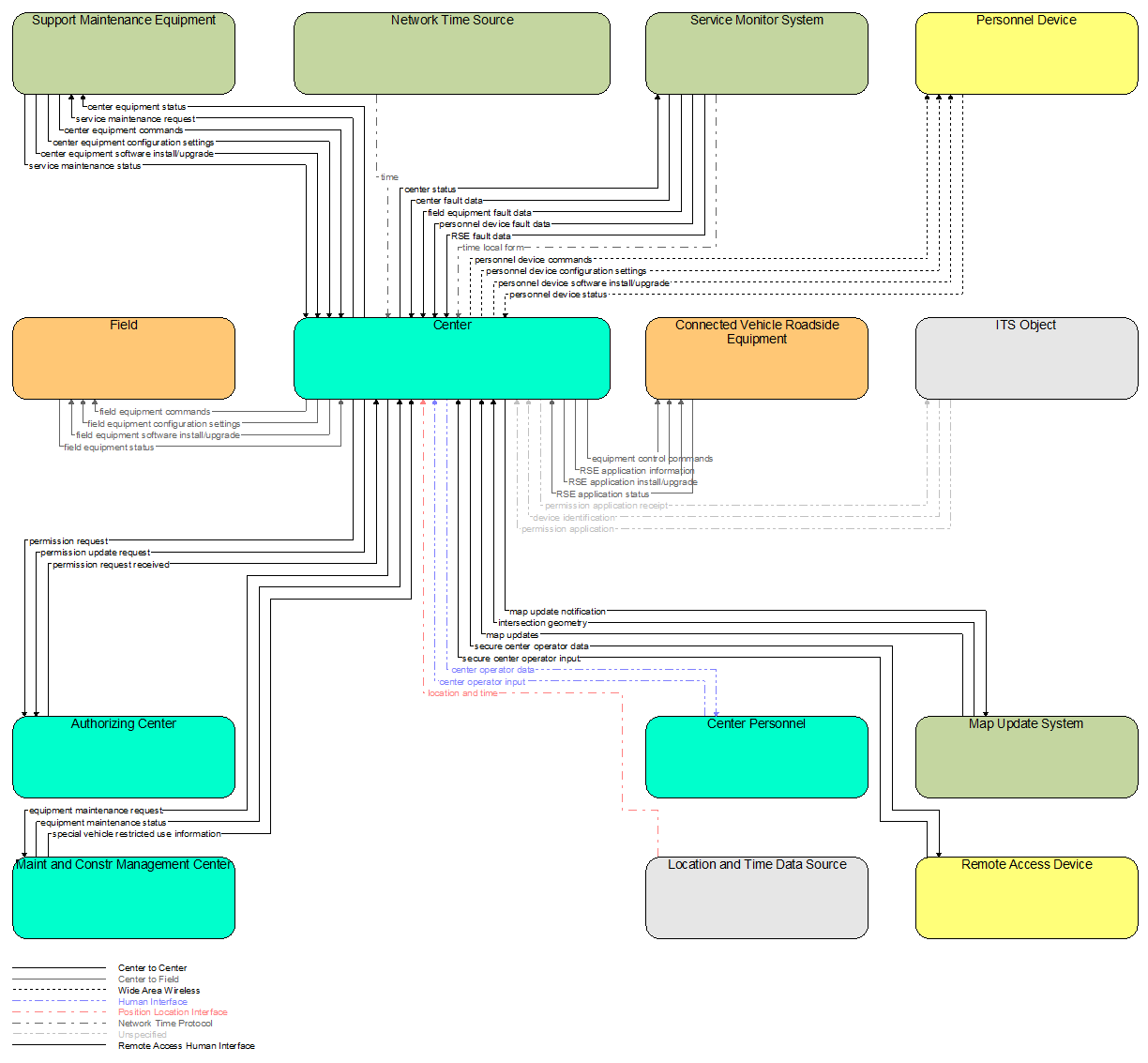

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
