Kind: Subsystem

Class: Personal

Type: System

Personal Information Device

Overview

The 'Personal Information Device' provides the capability for travelers to receive formatted traveler information wherever they are. Capabilities include traveler information, trip planning, and route guidance. Frequently a smart phone, the Personal Information Device provides travelers with the capability to receive route planning and other personally focused transportation services from the infrastructure in the field, at home, at work, or while en-route. Personal Information Devices may operate independently or may be linked with vehicle on-board equipment. This subsystem also supports safety related services with the capability to broadcast safety messages and initiate a distress signal or request for help.



This physical object is included in the following Service Packages:

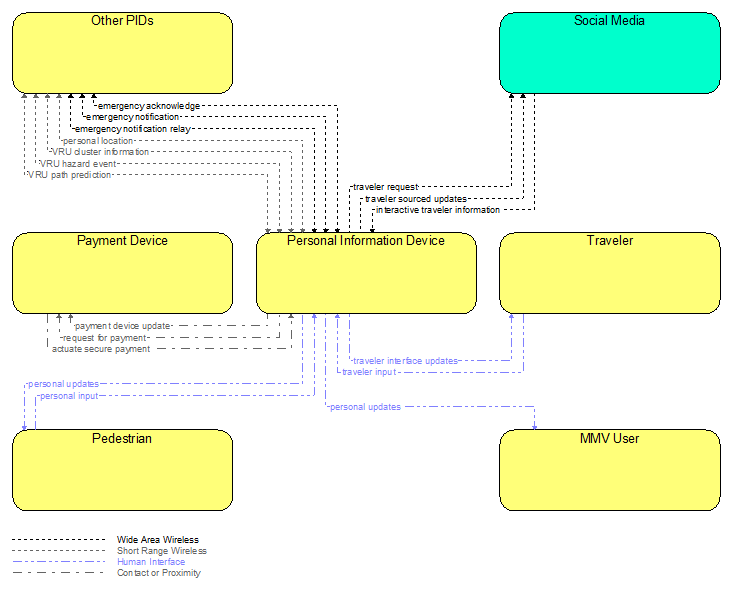

Triples

Source Flow Destination
Border and Port Administration Center expedited traveler registration status Personal Information Device
Center vehicle parking leave status Personal Information Device
Connected Vehicle Roadside Equipment arriving train information Personal Information Device
Connected Vehicle Roadside Equipment detected unequipped vehicles and VRUs Personal Information Device
Connected Vehicle Roadside Equipment intersection geometry Personal Information Device
Connected Vehicle Roadside Equipment intersection safety warning Personal Information Device
Connected Vehicle Roadside Equipment intersection status Personal Information Device
Connected Vehicle Roadside Equipment local METR information for users Personal Information Device
Connected Vehicle Roadside Equipment local traveler information Personal Information Device
Connected Vehicle Roadside Equipment personal crossing safety information Personal Information Device
Connected Vehicle Roadside Equipment rail crossing warning Personal Information Device
Connected Vehicle Roadside Equipment transit stop guidance Personal Information Device
Emergency Management Center emergency acknowledge Personal Information Device
Emergency Management Center vehicle security status changes Personal Information Device
Emergency Vehicle OBE local METR information for users Personal Information Device
Light Vehicle OBE shared vehicle access acknowledgment Personal Information Device
Maint and Constr Vehicle OBE local METR information for users Personal Information Device
METR Distribution Center METR information for users Personal Information Device
Micromobility Vehicle OBE MMV identification Personal Information Device
Micromobility Vehicle OBE MMV profile Personal Information Device
Multi-Access Edge Computing arriving train information Personal Information Device
Multi-Access Edge Computing detected unequipped vehicles and VRUs Personal Information Device
Multi-Access Edge Computing intersection geometry Personal Information Device
Multi-Access Edge Computing intersection safety warning Personal Information Device
Multi-Access Edge Computing intersection status Personal Information Device
Multi-Access Edge Computing personal crossing safety information Personal Information Device
Multi-Access Edge Computing rail crossing warning Personal Information Device
Other PIDs emergency acknowledge Personal Information Device
Other PIDs emergency notification Personal Information Device
Other PIDs emergency notification relay Personal Information Device
Other PIDs personal location Personal Information Device
Other PIDs VRU cluster information Personal Information Device
Other PIDs VRU hazard event Personal Information Device
Other PIDs VRU path prediction Personal Information Device
Parking Management Center registered secureIDs Personal Information Device
Parking Management Center traveler payment request Personal Information Device
Parking Management Center user account reports Personal Information Device
Pathway Communications Unit communications signature Personal Information Device
Pathway Equipment pathway equipment state Personal Information Device
Pathway Equipment pathway equipment status Personal Information Device
Pathway Equipment pathway signage information Personal Information Device
Payment Administration Center access violation notification Personal Information Device
Payment Administration Center registered secureIDs Personal Information Device
Payment Administration Center traveler payment request Personal Information Device
Payment Administration Center user account reports Personal Information Device
Payment Device actuate secure payment Personal Information Device
Pedestrian personal input Personal Information Device
Personal Information Device expedited traveler registration Border and Port Administration Center
Personal Information Device vehicle summons Center
Personal Information Device personal location Connected Vehicle Roadside Equipment
Personal Information Device personal signal service request Connected Vehicle Roadside Equipment
Personal Information Device transit user information Connected Vehicle Roadside Equipment
Personal Information Device emergency notification Emergency Management Center
Personal Information Device stolen vehicle notification Emergency Management Center
Personal Information Device user account setup Emergency Management Center
Personal Information Device vehicle security status thresholds Emergency Management Center
Personal Information Device shared vehicle access enable Light Vehicle OBE
Personal Information Device METR discrepancy report METR Discrepancy Handling System
Personal Information Device METR discrepancy report METR System
Personal Information Device personal updates MMV User
Personal Information Device personal location Multi-Access Edge Computing
Personal Information Device personal signal service request Multi-Access Edge Computing
Personal Information Device emergency acknowledge Other PIDs
Personal Information Device emergency notification Other PIDs
Personal Information Device emergency notification relay Other PIDs
Personal Information Device personal location Other PIDs
Personal Information Device VRU cluster information Other PIDs
Personal Information Device VRU hazard event Other PIDs
Personal Information Device VRU path prediction Other PIDs
Personal Information Device actuate secure payment Parking Management Center
Personal Information Device traveler payment information Parking Management Center
Personal Information Device user account setup Parking Management Center
Personal Information Device communications signature Pathway Communications Unit
Personal Information Device actuate secure payment Payment Administration Center
Personal Information Device payment device token information Payment Administration Center
Personal Information Device traveler payment information Payment Administration Center
Personal Information Device user account setup Payment Administration Center
Personal Information Device payment device update Payment Device
Personal Information Device request for payment Payment Device
Personal Information Device personal updates Pedestrian
Personal Information Device safety device control Personal Safety Device
Personal Information Device shared use confirmation Shared Use Transportation Center
Personal Information Device shared use request Shared Use Transportation Center
Personal Information Device shared vehicle access request Shared Use Transportation Center
Personal Information Device user account setup Shared Use Transportation Center
Personal Information Device user profile Shared Use Transportation Center
Personal Information Device traveler request Social Media
Personal Information Device traveler sourced updates Social Media
Personal Information Device actuate secure payment Transit Management Center
Personal Information Device transfer request Transit Management Center
Personal Information Device transit information user request Transit Management Center
Personal Information Device transit stop request Transit Management Center
Personal Information Device traveler payment information Transit Management Center
Personal Information Device trip confirmation Transit Management Center
Personal Information Device user account setup Transit Management Center
Personal Information Device personal location Transit Vehicle OBE
Personal Information Device transfer request Transit Vehicle OBE
Personal Information Device transit stop request Transit Vehicle OBE
Personal Information Device transit user information Transit Vehicle OBE
Personal Information Device cv trip request Transportation Information Center
Personal Information Device emergency traveler information request Transportation Information Center
Personal Information Device evacuation assistance request Transportation Information Center
Personal Information Device freight traveler information preferences Transportation Information Center
Personal Information Device personal location Transportation Information Center
Personal Information Device personal signal service request Transportation Information Center
Personal Information Device shelter request Transportation Information Center
Personal Information Device transit stop request Transportation Information Center
Personal Information Device transit user information Transportation Information Center
Personal Information Device travel services request Transportation Information Center
Personal Information Device traveler request Transportation Information Center
Personal Information Device traveler sourced updates Transportation Information Center
Personal Information Device trip confirmation Transportation Information Center
Personal Information Device trip feedback Transportation Information Center
Personal Information Device trip request Transportation Information Center
Personal Information Device trip status Transportation Information Center
Personal Information Device user account setup Transportation Information Center
Personal Information Device user profile Transportation Information Center
Personal Information Device wayfinding feedback Transportation Information Center
Personal Information Device wayfinding request Transportation Information Center
Personal Information Device traveler interface updates Traveler
Personal Information Device personal location Vehicle
Personal Information Device vehicle summons Vehicle
Personal Safety Device safety device inputs Personal Information Device
Shared Use Transportation Center shared use response Personal Information Device
Shared Use Transportation Center shared vehicle information Personal Information Device
Social Media interactive traveler information Personal Information Device
Transit Management Center personal transit information Personal Information Device
Transit Management Center registered secureIDs Personal Information Device
Transit Management Center transfer status Personal Information Device
Transit Management Center traveler payment request Personal Information Device
Transit Management Center trip plan Personal Information Device
Transit Management Center user account reports Personal Information Device
Transit Vehicle OBE transfer status Personal Information Device
Transit Vehicle OBE transit vehicle information Personal Information Device
Transit Vehicle OBE vehicle path prediction Personal Information Device
Transportation Information Center arriving train information Personal Information Device
Transportation Information Center border crossing status information Personal Information Device
Transportation Information Center broadcast traveler information Personal Information Device
Transportation Information Center emergency traveler information Personal Information Device
Transportation Information Center evacuation assistance information Personal Information Device
Transportation Information Center freight-specific traveler information Personal Information Device
Transportation Information Center guidance updates Personal Information Device
Transportation Information Center interactive traveler information Personal Information Device
Transportation Information Center intersection status Personal Information Device
Transportation Information Center lane closure information Personal Information Device
Transportation Information Center parking availability Personal Information Device
Transportation Information Center parking plan Personal Information Device
Transportation Information Center personal crossing safety information Personal Information Device
Transportation Information Center rail crossing warning Personal Information Device
Transportation Information Center road closure information Personal Information Device
Transportation Information Center road weather advisories Personal Information Device
Transportation Information Center shelter recommendations Personal Information Device
Transportation Information Center transit stop guidance Personal Information Device
Transportation Information Center travel services information Personal Information Device
Transportation Information Center traveler alerts Personal Information Device
Transportation Information Center trip plan Personal Information Device
Transportation Information Center wayfinding information Personal Information Device
Transportation Information Center wayfinding plan Personal Information Device
Traveler traveler input Personal Information Device
Vehicle vehicle location and motion Personal Information Device
Vehicle vehicle parking leave status Personal Information Device

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 High High High PM03: Parking Electronic Payment
Class 5 High High High PM03.2: Direct Payment Using WAW Implementation
Class 5 High High High PT04: Transit Fare Collection Management
Class 5 High High High PT04.3: Direct Payment Implementation
Class 5 High High High TI05: Integrated Multi-Modal Electronic Payment
Class 5 High High High TI05.1: Account-based Implementation
Class 5 High High High TI05.4: Account-based, personal transport and shared use Implementation
Class 5 High High High TI05.5: Account-based with all modes Implementation
Class 5 High High High TI06: Shared Use Mobility and Dynamic Ridesharing
Class 5 High High High TI06.1: Shared Use Mobility Implementation
Class 5 High High High TI06.2: Dynamic Ridesharing Implementation
Class 5 High High High TI09: Travel Services Information and Reservation
Class 5 High High High TI09.1: Travel Services Information and Reservation Implementation
Class 5 High High High TM11: Road Use Charging
Class 5 High High High TM11.1: Road Use Charging Implementation
Class 4 High High Moderate PM03.1: Local Point of Sale Implementation
Class 4 High High Moderate PM03.3: C-ITS Based Payment Implementation
Class 4 High High Moderate PM06: Loading Zone Management
Class 4 High High Moderate PM06.2: Loading Zone Reservations Implementation
Class 4 High High Moderate PS15: Stolen Vehicle Recovery
Class 4 High High Moderate PS15.1: Stolen Vehicle Recovery Implementation
Class 4 High High Moderate PT04.1: Vehicle Point-of-Sale Implementation
Class 4 High High Moderate PT04.2: Stop-Based Point-of-Sale Implementation
Class 4 High Moderate Moderate PT15: Transit Stop Request
Class 4 High Moderate Moderate PT15.1: Wide Area Wireless Implementation
Class 4 High Moderate Moderate PT15.2: C-ITS Communications Implementation
Class 4 High Moderate Moderate PT18: Low Speed Automated Driving for Predefined Routes
Class 4 High High Moderate ST06: HOV/HOT Lane Management
Class 4 High High Moderate ST06.3: HOT Lanes Implementation
Class 4 High High Moderate ST06.4: C-ITS Supported HOT Lanes Implementation
Class 4 High High Moderate ST11: Low Emissions Zone Fee Collection
Class 4 High High Moderate TI05.3: Pay-as-you-go Implementation
Class 4 High High Moderate TM10: Electronic Toll Collection
Class 4 High High Moderate TM10.1: Electronic Toll Collection Implementation
Class 3 Moderate High Moderate PS04: Mayday Notification
Class 3 Moderate High Moderate PS04.1: Mayday Notification Implementation
Class 3 Moderate High Moderate PS14: Disaster Traveler Information
Class 3 Moderate High Moderate PS14.1: Disaster Traveler Information Implementation
Class 3 Moderate High Moderate PT11: Transit Pedestrian Indication
Class 3 Moderate High Moderate PT11.1: Transit Pedestrian Indication Implementation
Class 3 Not Applicable High Moderate PT12: Transit Vehicle at Station/Stop Warnings
Class 3 Not Applicable High Moderate PT12.1: Wide Area Wireless Implementation
Class 3 Not Applicable High Moderate PT12.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate PT16: Route ID for the Visually Impaired
Class 3 Moderate High Moderate PT16.2: C-ITS Communications Implementation
Class 3 Low High Moderate TM14: Advanced Railroad Grade Crossing
Class 3 Low High Moderate TM14.2: C-ITS Communications Implementation
Class 3 Low High Moderate VS12: Vulnerable Road User Safety
Class 3 Not Applicable High Moderate VS12.1: Wide Area Wireless Communications Implementation
Class 3 Low High Moderate VS12.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate VS20: Vulnerable Road User Clustering
Class 3 Moderate High Moderate VS20.1: Vulnerable Road User Clustering Implementation
Class 2 Moderate Moderate Moderate CF05: Commercial Vehicle Parking
Class 2 Moderate Moderate Moderate CF05.1: Pre-Trip Parking Planning Implementation
Class 2 Moderate Moderate Moderate CF05.2: En-Route Parking Information Implementation
Class 2 Moderate Moderate Moderate CF09: Freight-Specific Dynamic Travel Planning
Class 2 Moderate Moderate Moderate CF09.1: Freight-Specific Dynamic Travel Planning Implementation
Class 2 Moderate Moderate Moderate CF20: International Border Registration
Class 2 Moderate Moderate Moderate CF20.1: International Border Registration Implementation
Class 2 Moderate Moderate Moderate MC12: One-Way Convoy Driving
Class 2 Moderate Moderate Moderate MC12.1: One-Way Convoy Driving Implementation
Class 2 Moderate Moderate Moderate PM01: Parking Space Management
Class 2 Moderate Moderate Moderate PM01.1: Infrastructure-Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM01.2: C-ITS Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM02: Smart Park and Ride System
Class 2 Moderate Moderate Moderate PM02.1: Infrastructure-Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM02.2: C-ITS Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM05: Parking Reservations
Class 2 Moderate Moderate Moderate PM05.1: Parking Reservations Implementation
Class 2 Moderate Moderate Moderate PM07: Automated Parking
Class 2 Moderate Moderate Moderate PT03: Dynamic Transit Operations
Class 2 Moderate Moderate Moderate PT03.1: Dynamic Transit Operations Implementation
Class 2 Moderate Moderate Moderate PT08: Transit Traveler Information
Class 2 Moderate Moderate Moderate PT08.1: Transit Traveler Information Implementation
Class 2 Moderate Moderate Moderate PT16.1: Wide Area Wireless Implementation
Class 2 Moderate Moderate Moderate PT17: Transit Connection Protection
Class 2 Moderate Moderate Moderate PT17.1: Transit Connection Protection Implementation
Class 2 Moderate Moderate Moderate TI02: Personalized Traveler Information
Class 2 Moderate Moderate Moderate TI02.1: Personalized Traveler Information Implementation
Class 2 Moderate Moderate Moderate TI03: En-Route Guidance
Class 2 Moderate Moderate Moderate TI03.1: En-Route Guidance Implementation
Class 2 Moderate Moderate Moderate TI04: Trip Planning and Payment
Class 2 Moderate Moderate Moderate TI04.1: Trip Planning and Payment Implementation
Class 2 Moderate Moderate Moderate TI08: Personal Wayfinding
Class 2 Moderate Moderate Moderate TI08.1: Personal Devices Implementation
Class 2 Moderate Moderate Moderate TM23: Border Management Systems
Class 2 Moderate Moderate Moderate TM23.1: Wide Area Wireless Communications Implementation
Class 2 Moderate Moderate Moderate TM23.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate VS19: Management of Electronic Traffic Regulations (METR)
Class 2 Moderate Moderate Moderate VS19.1: Wide Area Wireless Communications Implementation
Class 2 Moderate Moderate Moderate VS19.2: C-ITS Communications Implementation
Class 1 Low Low Moderate PS10: Wide-Area Alert
Class 1 Low Low Moderate PS10.1: Wide Area Alert Implementation
Class 1 Not Applicable Low Low TI01: Broadcast Traveler Information
Class 1 Not Applicable Low Low TI01.1: Wide Area Broadcast Implementation
Class 1 Not Applicable Low Low TI01.2: C-ITS Local Broadcast Implementation
Class 1 Not Applicable Low Low TI08.2: Micromobility Vehicles Implementation
Class 1 Low Low Moderate WX03: Spot Weather Impact Warning
Class 1 Low Low Moderate WX03.1: Wide Area Wireless Communications Implementation



This interfaces diagram had many interfaces and so was broken up into a Subsystem and Terminator interfaces diagram.

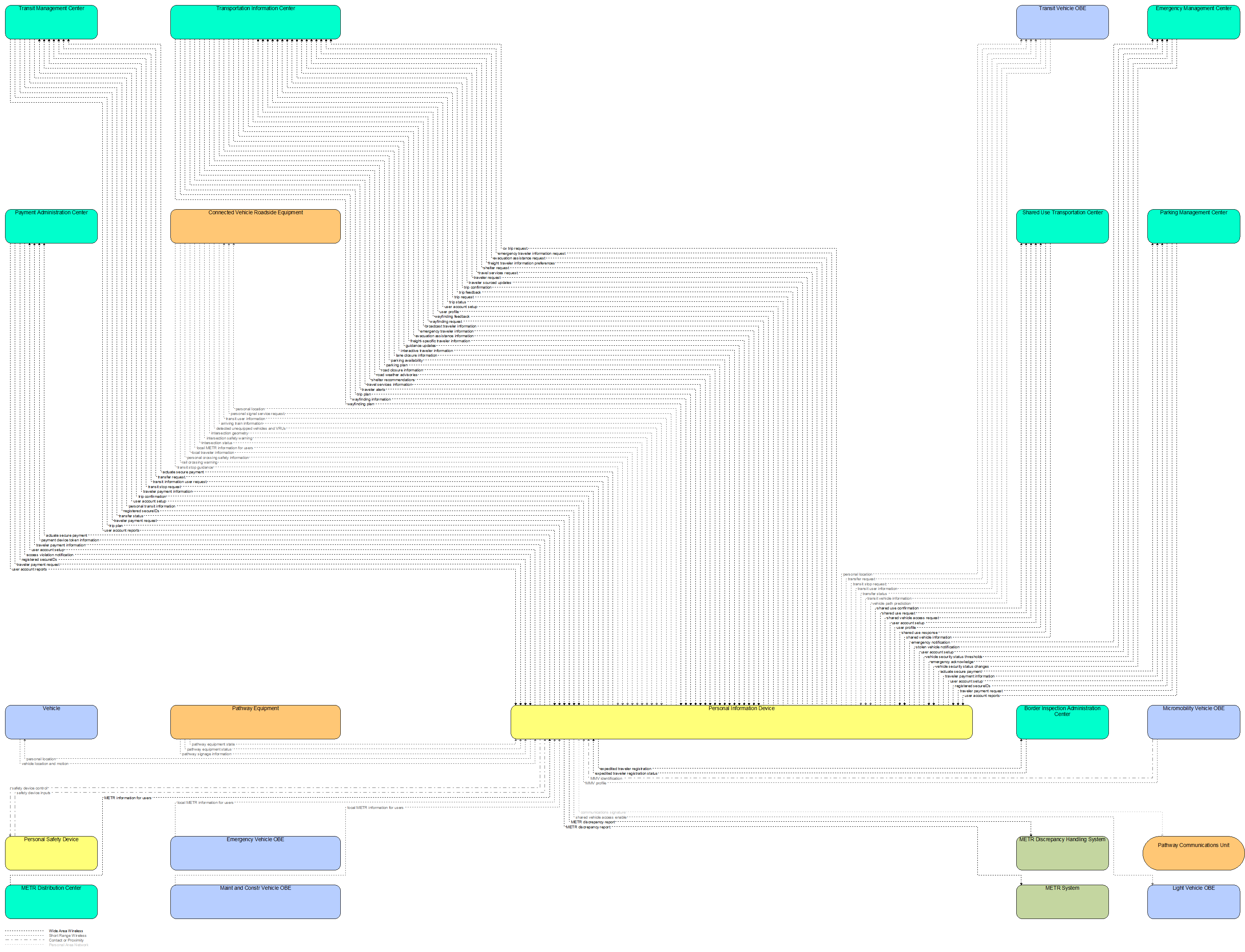

Subsystem Interfaces Diagram

Interfaces diagram


Terminator Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
