Kind: Subsystem

Class: Field

Type: System

Connected Vehicle Roadside Equipment

Overview

'Connected Vehicle Roadside Equipment' (CV RSE) represents the Connected Vehicle roadside devices (i.e., Roadside Units (RSUs)) equipped with short range wireless (SRW) communications technology, as well as any other supporting equipment that leverage the RSU and are not described by other objects (e.g., a local roadside processor). CVRSE are used to send messages to, and receive messages from, nearby vehicles and personal devices equipped with compatible communications technology. Communications with adjacent field equipment and back office centers that monitor and control the RSE are also supported. This device operates from a fixed position and may be permanently deployed or a portable device that is located temporarily in the vicinity of a traffic incident, road construction, or a special event. It includes a processor, data storage, and communications capabilities that support secure communications with passing vehicles, other field equipment, and centers.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Border Inspection System vehicle signage local data Connected Vehicle Roadside Equipment
Center equipment control commands Connected Vehicle Roadside Equipment
Center RSE application information Connected Vehicle Roadside Equipment
Center RSE application install/upgrade Connected Vehicle Roadside Equipment
Commercial Vehicle OBE local signal priority request Connected Vehicle Roadside Equipment
Connected Vehicle Roadside Equipment local situation data Archived Data System
Connected Vehicle Roadside Equipment local border wait times Border Inspection System
Connected Vehicle Roadside Equipment RSE application status Center
Connected Vehicle Roadside Equipment signal priority status Commercial Vehicle OBE
Connected Vehicle Roadside Equipment incident scene safety application status Emergency Management Center
Connected Vehicle Roadside Equipment barrier system status Emergency Vehicle OBE
Connected Vehicle Roadside Equipment incident scene warning notification Emergency Vehicle OBE
Connected Vehicle Roadside Equipment signal priority status Emergency Vehicle OBE
Connected Vehicle Roadside Equipment controlled zone application status Emissions Management Center
Connected Vehicle Roadside Equipment emissions monitoring application status Emissions Management Center
Connected Vehicle Roadside Equipment emissions situation data Emissions Management Center
Connected Vehicle Roadside Equipment lane violation notification Enforcement Center
Connected Vehicle Roadside Equipment RSE status Field Maintenance Equipment
Connected Vehicle Roadside Equipment barrier system control ITS Roadway Equipment
Connected Vehicle Roadside Equipment detected obstacles ITS Roadway Equipment
Connected Vehicle Roadside Equipment detected unequipped vehicles and VRUs ITS Roadway Equipment
Connected Vehicle Roadside Equipment environmental situation data ITS Roadway Equipment
Connected Vehicle Roadside Equipment incident scene warning notification ITS Roadway Equipment
Connected Vehicle Roadside Equipment intersection infringement info ITS Roadway Equipment
Connected Vehicle Roadside Equipment intersection status monitoring ITS Roadway Equipment
Connected Vehicle Roadside Equipment personal location information ITS Roadway Equipment
Connected Vehicle Roadside Equipment restricted lanes application status ITS Roadway Equipment
Connected Vehicle Roadside Equipment roadway dynamic signage data ITS Roadway Equipment
Connected Vehicle Roadside Equipment signal preemption request ITS Roadway Equipment
Connected Vehicle Roadside Equipment signal priority service request ITS Roadway Equipment
Connected Vehicle Roadside Equipment signal service request ITS Roadway Equipment
Connected Vehicle Roadside Equipment traffic situation data ITS Roadway Equipment
Connected Vehicle Roadside Equipment vehicle entries and exits ITS Roadway Equipment
Connected Vehicle Roadside Equipment vehicle occupancy ITS Roadway Equipment
Connected Vehicle Roadside Equipment vehicle reported emissions ITS Roadway Equipment
Connected Vehicle Roadside Equipment work zone warning notification ITS Roadway Equipment
Connected Vehicle Roadside Equipment wrong way vehicle detected ITS Roadway Equipment
Connected Vehicle Roadside Equipment vehicle occupancy ITS Roadway Payment Equipment
Connected Vehicle Roadside Equipment asset locations Maint and Constr Management Center
Connected Vehicle Roadside Equipment environmental monitoring application status Maint and Constr Management Center
Connected Vehicle Roadside Equipment environmental situation data Maint and Constr Management Center
Connected Vehicle Roadside Equipment infrastructure situation data Maint and Constr Management Center
Connected Vehicle Roadside Equipment speed warning application status Maint and Constr Management Center
Connected Vehicle Roadside Equipment vehicle signage application status Maint and Constr Management Center
Connected Vehicle Roadside Equipment work zone safety application status Maint and Constr Management Center
Connected Vehicle Roadside Equipment barrier system status Maint and Constr Vehicle OBE
Connected Vehicle Roadside Equipment signal priority status Maint and Constr Vehicle OBE
Connected Vehicle Roadside Equipment work zone warning notification Maint and Constr Vehicle OBE
Connected Vehicle Roadside Equipment vehicle location data for mapping Map Update System
Connected Vehicle Roadside Equipment METR application status METR Regulation System
Connected Vehicle Roadside Equipment METR application status METR System
Connected Vehicle Roadside Equipment personal crossing safety information Micromobility Vehicle OBE
Connected Vehicle Roadside Equipment detected unequipped vehicles and VRUs Other Connected Vehicle Roadside Equipment
Connected Vehicle Roadside Equipment RSE application information Other Connected Vehicle Roadside Equipment
Connected Vehicle Roadside Equipment wrong way vehicle detected Other Connected Vehicle Roadside Equipment
Connected Vehicle Roadside Equipment parking management application status Parking Management Center
Connected Vehicle Roadside Equipment intersection geometry Personal
Connected Vehicle Roadside Equipment location correction Personal
Connected Vehicle Roadside Equipment arriving train information Personal Information Device
Connected Vehicle Roadside Equipment detected unequipped vehicles and VRUs Personal Information Device
Connected Vehicle Roadside Equipment intersection geometry Personal Information Device
Connected Vehicle Roadside Equipment intersection safety warning Personal Information Device
Connected Vehicle Roadside Equipment intersection status Personal Information Device
Connected Vehicle Roadside Equipment local METR information for users Personal Information Device
Connected Vehicle Roadside Equipment local traveler information Personal Information Device
Connected Vehicle Roadside Equipment personal crossing safety information Personal Information Device
Connected Vehicle Roadside Equipment rail crossing warning Personal Information Device
Connected Vehicle Roadside Equipment transit stop guidance Personal Information Device
Connected Vehicle Roadside Equipment personnel safety warning Personnel Device
Connected Vehicle Roadside Equipment RSE status Service Monitor System
Connected Vehicle Roadside Equipment automated lane status Traffic Management Center
Connected Vehicle Roadside Equipment controlled zone application status Traffic Management Center
Connected Vehicle Roadside Equipment cooperative cruise control application status Traffic Management Center
Connected Vehicle Roadside Equipment environmental monitoring application status Traffic Management Center
Connected Vehicle Roadside Equipment environmental situation data Traffic Management Center
Connected Vehicle Roadside Equipment infrastructure restriction warning status Traffic Management Center
Connected Vehicle Roadside Equipment intersection management application status Traffic Management Center
Connected Vehicle Roadside Equipment intersection safety application status Traffic Management Center
Connected Vehicle Roadside Equipment lighting management application status Traffic Management Center
Connected Vehicle Roadside Equipment local border wait times Traffic Management Center
Connected Vehicle Roadside Equipment queue warning application status Traffic Management Center
Connected Vehicle Roadside Equipment rail crossing application status Traffic Management Center
Connected Vehicle Roadside Equipment restricted lanes application status Traffic Management Center
Connected Vehicle Roadside Equipment road closure application status Traffic Management Center
Connected Vehicle Roadside Equipment road weather advisory status Traffic Management Center
Connected Vehicle Roadside Equipment speed management application status Traffic Management Center
Connected Vehicle Roadside Equipment speed warning application status Traffic Management Center
Connected Vehicle Roadside Equipment stop sign gap assist RSE status Traffic Management Center
Connected Vehicle Roadside Equipment traffic metering application status Traffic Management Center
Connected Vehicle Roadside Equipment traffic monitoring application status Traffic Management Center
Connected Vehicle Roadside Equipment traffic situation data Traffic Management Center
Connected Vehicle Roadside Equipment vehicle signage application status Traffic Management Center
Connected Vehicle Roadside Equipment transit user guidance application status Transit Management Center
Connected Vehicle Roadside Equipment signal priority status Transit Vehicle OBE
Connected Vehicle Roadside Equipment transit stop request Transit Vehicle OBE
Connected Vehicle Roadside Equipment environmental situation data Transportation Information Center
Connected Vehicle Roadside Equipment road weather advisory status Transportation Information Center
Connected Vehicle Roadside Equipment traffic situation data Transportation Information Center
Connected Vehicle Roadside Equipment traveler information application status Transportation Information Center
Connected Vehicle Roadside Equipment transit vehicle information Traveler Support Equipment
Connected Vehicle Roadside Equipment access permission Vehicle
Connected Vehicle Roadside Equipment access violation notification Vehicle
Connected Vehicle Roadside Equipment arriving train information Vehicle
Connected Vehicle Roadside Equipment automated vehicle control parameters Vehicle
Connected Vehicle Roadside Equipment cooperative adaptive cruise control parameters Vehicle
Connected Vehicle Roadside Equipment detected obstacles Vehicle
Connected Vehicle Roadside Equipment detected unequipped vehicles and VRUs Vehicle
Connected Vehicle Roadside Equipment infrastructure restriction warning notification Vehicle
Connected Vehicle Roadside Equipment infrastructure safety warning notification Vehicle
Connected Vehicle Roadside Equipment intersection geometry Vehicle
Connected Vehicle Roadside Equipment intersection safety warning Vehicle
Connected Vehicle Roadside Equipment intersection status Vehicle
Connected Vehicle Roadside Equipment lane closure information Vehicle
Connected Vehicle Roadside Equipment local METR information for users Vehicle
Connected Vehicle Roadside Equipment local traveler information Vehicle
Connected Vehicle Roadside Equipment location correction Vehicle
Connected Vehicle Roadside Equipment low emissions zone parameters Vehicle
Connected Vehicle Roadside Equipment map updates Vehicle
Connected Vehicle Roadside Equipment parking availability Vehicle
Connected Vehicle Roadside Equipment parking facility geometry Vehicle
Connected Vehicle Roadside Equipment proxied personal location Vehicle
Connected Vehicle Roadside Equipment queue warning information Vehicle
Connected Vehicle Roadside Equipment rail crossing warning Vehicle
Connected Vehicle Roadside Equipment reduced speed notification Vehicle
Connected Vehicle Roadside Equipment restricted lanes information Vehicle
Connected Vehicle Roadside Equipment road closure information Vehicle
Connected Vehicle Roadside Equipment road weather advisories Vehicle
Connected Vehicle Roadside Equipment roadway geometry Vehicle
Connected Vehicle Roadside Equipment speed management information Vehicle
Connected Vehicle Roadside Equipment traffic gap information Vehicle
Connected Vehicle Roadside Equipment vehicle cluster coordination Vehicle
Connected Vehicle Roadside Equipment vehicle signage data Vehicle
Connected Vehicle Roadside Equipment vehicle situation data parameters Vehicle
Connected Vehicle Roadside Equipment wrong way vehicle detected Vehicle
Connected Vehicle Roadside Equipment rail crossing blockage notification Wayside Equipment
Connected Vehicle Roadside Equipment rail crossing operational status Wayside Equipment
Emergency Management Center incident scene safety application info Connected Vehicle Roadside Equipment
Emergency Vehicle OBE barrier system control Connected Vehicle Roadside Equipment
Emergency Vehicle OBE incident scene warning notification Connected Vehicle Roadside Equipment
Emergency Vehicle OBE local signal preemption request Connected Vehicle Roadside Equipment
Emissions Management Center controlled zone application info Connected Vehicle Roadside Equipment
Emissions Management Center emissions monitoring application information Connected Vehicle Roadside Equipment
Field asset ID Connected Vehicle Roadside Equipment
Field Maintenance Equipment equipment control commands Connected Vehicle Roadside Equipment
Field Maintenance Equipment RSE application install/upgrade Connected Vehicle Roadside Equipment
Field Maintenance Equipment RSE configuration settings Connected Vehicle Roadside Equipment
ITS Roadway Equipment arriving train information Connected Vehicle Roadside Equipment
ITS Roadway Equipment barrier system status Connected Vehicle Roadside Equipment
ITS Roadway Equipment conflict monitor status Connected Vehicle Roadside Equipment
ITS Roadway Equipment detected obstacles Connected Vehicle Roadside Equipment
ITS Roadway Equipment detected unequipped vehicles and VRUs Connected Vehicle Roadside Equipment
ITS Roadway Equipment environmental sensor data Connected Vehicle Roadside Equipment
ITS Roadway Equipment field equipment status for METR Connected Vehicle Roadside Equipment
ITS Roadway Equipment incident scene warning notification Connected Vehicle Roadside Equipment
ITS Roadway Equipment infrastructure restriction warning Connected Vehicle Roadside Equipment
ITS Roadway Equipment intersection control status Connected Vehicle Roadside Equipment
ITS Roadway Equipment mixed use crossing status Connected Vehicle Roadside Equipment
ITS Roadway Equipment reduced speed warning info Connected Vehicle Roadside Equipment
ITS Roadway Equipment roadway dynamic signage status Connected Vehicle Roadside Equipment
ITS Roadway Equipment track status Connected Vehicle Roadside Equipment
ITS Roadway Equipment traffic gap information Connected Vehicle Roadside Equipment
ITS Roadway Equipment vehicle entries and exits Connected Vehicle Roadside Equipment
ITS Roadway Equipment vehicle signage local data Connected Vehicle Roadside Equipment
ITS Roadway Equipment work zone warning notification Connected Vehicle Roadside Equipment
ITS Roadway Equipment wrong way vehicle detected Connected Vehicle Roadside Equipment
Location and Time Data Source location and time Connected Vehicle Roadside Equipment
Maint and Constr Management Center environmental monitoring application info Connected Vehicle Roadside Equipment
Maint and Constr Management Center infrastructure safety warning Connected Vehicle Roadside Equipment
Maint and Constr Management Center speed warning application info Connected Vehicle Roadside Equipment
Maint and Constr Management Center vehicle signage application info Connected Vehicle Roadside Equipment
Maint and Constr Management Center work zone safety application info Connected Vehicle Roadside Equipment
Maint and Constr Vehicle OBE barrier system control Connected Vehicle Roadside Equipment
Maint and Constr Vehicle OBE local signal priority request Connected Vehicle Roadside Equipment
Maint and Constr Vehicle OBE work zone warning notification Connected Vehicle Roadside Equipment
Map Update System intersection geometry Connected Vehicle Roadside Equipment
Map Update System map updates Connected Vehicle Roadside Equipment
Map Update System parking facility geometry Connected Vehicle Roadside Equipment
Map Update System roadway geometry Connected Vehicle Roadside Equipment
METR Regulation System METR application information Connected Vehicle Roadside Equipment
METR System METR application information Connected Vehicle Roadside Equipment
Micromobility Vehicle OBE personal location Connected Vehicle Roadside Equipment
Micromobility Vehicle OBE personal signal service request Connected Vehicle Roadside Equipment
Network Time Source time Connected Vehicle Roadside Equipment
Other Connected Vehicle Roadside Equipment detected unequipped vehicles and VRUs Connected Vehicle Roadside Equipment
Other Connected Vehicle Roadside Equipment RSE application information Connected Vehicle Roadside Equipment
Other Connected Vehicle Roadside Equipment wrong way vehicle detected Connected Vehicle Roadside Equipment
Other Vehicles vehicle location and motion Connected Vehicle Roadside Equipment
Parking Area Equipment vehicle signage local data Connected Vehicle Roadside Equipment
Parking Management Center parking management application info Connected Vehicle Roadside Equipment
Personal Information Device personal location Connected Vehicle Roadside Equipment
Personal Information Device personal signal service request Connected Vehicle Roadside Equipment
Personal Information Device transit user information Connected Vehicle Roadside Equipment
Personnel Device personnel location Connected Vehicle Roadside Equipment
Position Corrections Source position corrections Connected Vehicle Roadside Equipment
Service Monitor System time local form Connected Vehicle Roadside Equipment
Traffic Management Center automated lane control data Connected Vehicle Roadside Equipment
Traffic Management Center controlled zone application info Connected Vehicle Roadside Equipment
Traffic Management Center cooperative cruise control application data Connected Vehicle Roadside Equipment
Traffic Management Center environmental monitoring application info Connected Vehicle Roadside Equipment
Traffic Management Center infrastructure restriction warning info Connected Vehicle Roadside Equipment
Traffic Management Center intersection management application info Connected Vehicle Roadside Equipment
Traffic Management Center intersection safety application info Connected Vehicle Roadside Equipment
Traffic Management Center lighting management application info Connected Vehicle Roadside Equipment
Traffic Management Center queue warning application information Connected Vehicle Roadside Equipment
Traffic Management Center rail crossing application info Connected Vehicle Roadside Equipment
Traffic Management Center restricted lanes application info Connected Vehicle Roadside Equipment
Traffic Management Center road closure application info Connected Vehicle Roadside Equipment
Traffic Management Center road weather advisory info Connected Vehicle Roadside Equipment
Traffic Management Center situation data collection parameters Connected Vehicle Roadside Equipment
Traffic Management Center speed management application information Connected Vehicle Roadside Equipment
Traffic Management Center speed warning application info Connected Vehicle Roadside Equipment
Traffic Management Center stop sign gap assist info Connected Vehicle Roadside Equipment
Traffic Management Center traffic metering application info Connected Vehicle Roadside Equipment
Traffic Management Center traffic monitoring application info Connected Vehicle Roadside Equipment
Traffic Management Center vehicle signage application info Connected Vehicle Roadside Equipment
Transit Management Center transit user guidance application info Connected Vehicle Roadside Equipment
Transit Vehicle OBE local signal priority request Connected Vehicle Roadside Equipment
Transit Vehicle OBE transit vehicle information Connected Vehicle Roadside Equipment
Transit Vehicle OBE vehicle path prediction Connected Vehicle Roadside Equipment
Transportation Information Center road weather advisory info Connected Vehicle Roadside Equipment
Transportation Information Center traveler information application info Connected Vehicle Roadside Equipment
Traveler Support Equipment transit stop request Connected Vehicle Roadside Equipment
Traveler Support Equipment transit traveler information Connected Vehicle Roadside Equipment
Vehicle access request Connected Vehicle Roadside Equipment
Vehicle automated vehicle control status Connected Vehicle Roadside Equipment
Vehicle cooperative adaptive cruise control status Connected Vehicle Roadside Equipment
Vehicle detected obstacles Connected Vehicle Roadside Equipment
Vehicle detected unequipped vehicles and VRUs Connected Vehicle Roadside Equipment
Vehicle intersection infringement info Connected Vehicle Roadside Equipment
Vehicle vehicle cluster coordination Connected Vehicle Roadside Equipment
Vehicle vehicle control event Connected Vehicle Roadside Equipment
Vehicle vehicle environmental data Connected Vehicle Roadside Equipment
Vehicle vehicle location and motion Connected Vehicle Roadside Equipment
Vehicle vehicle location and motion for surveillance Connected Vehicle Roadside Equipment
Vehicle vehicle platoon coordination Connected Vehicle Roadside Equipment
Vehicle vehicle profile Connected Vehicle Roadside Equipment
Vehicle vehicle reported emissions Connected Vehicle Roadside Equipment
Vehicle vehicle situation data Connected Vehicle Roadside Equipment
Vehicle wrong way vehicle detected Connected Vehicle Roadside Equipment
Wayside Equipment arriving train information Connected Vehicle Roadside Equipment
Wayside Equipment track status Connected Vehicle Roadside Equipment

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Moderate Moderate High MC09: Infrastructure Monitoring
Class 5 Moderate Moderate High PT09: Transit Signal Priority
Class 5 High High High SU01: Connected Vehicle System Monitoring and Management
Class 5 Low High High SU05: Location and Time
Class 5 Moderate High High TM14: Advanced Railroad Grade Crossing
Class 5 Moderate High High VS06: Stop Sign Gap Assist
Class 4 High High Moderate PT15: Transit Stop Request
Class 3 Moderate High Moderate CVO10: Road Weather Information for Freight Carriers
Class 3 Moderate High Moderate MC07: Work Zone Safety Monitoring
Class 3 Moderate High Moderate PS03: Emergency Vehicle Preemption
Class 3 Moderate High Moderate PS03.4: C-ITS Field Control
Class 3 Moderate High Moderate PS03.5: C-ITS Center Control
Class 3 Moderate High Moderate PS07: Incident Scene Safety Monitoring
Class 3 Moderate High Moderate PS09: Transportation Infrastructure Protection
Class 3 Moderate High Moderate PT10: Intermittent Bus Lanes
Class 3 Moderate High Moderate PT10.2: Short Range Communications
Class 3 Moderate High Moderate ST07: Eco-Lanes Management
Class 3 Moderate High Moderate ST08: Eco-Approach and Departure at Signalized Intersections
Class 3 Moderate High Moderate ST08.2: C-ITS Short Range Communications
Class 3 Moderate High Moderate SU04: Map Management
Class 3 Moderate High Moderate TM04: Connected Vehicle Traffic Signal System
Class 3 Moderate High Moderate TM04.1: Pre-Timed (Fixed Time) Control
Class 3 Moderate High Moderate TM04.2: Fully Traffic Responsive
Class 3 Moderate High Moderate TM04.3: Field Master Controlled
Class 3 Moderate High Moderate TM19: Roadway Closure Management
Class 3 Not Applicable High Moderate VS03: Situational Awareness
Class 3 Moderate High Moderate VS07: Road Weather Motorist Alert and Warning
Class 3 Moderate High Moderate VS12: Vulnerable Road User Safety
Class 3 Moderate High Moderate VS13: Intersection Safety Warning and Collision Avoidance
Class 3 Moderate High Moderate VS15: Infrastructure Enhanced Cooperative Adaptive Cruise Control
Class 3 Moderate High Moderate VS17: Automated Vehicle Operations
Class 3 Moderate High Moderate VS18: Management of Electronic Traffic Regulations (METR)
Class 3 Moderate High Moderate WX03: Spot Weather Impact Warning
Class 2 Moderate Moderate Moderate CVO06: Freight Signal Priority
Class 2 Moderate Moderate Moderate MC06: Work Zone Management
Class 2 Moderate Moderate Moderate MC10: Asset Tracking
Class 2 Moderate Moderate Moderate MC10.2: Active RFID Technologies
Class 2 Moderate Moderate Moderate MC11: Maintenance and Construction Signal Priority
Class 2 Moderate Moderate Moderate PM01: Parking Space Management
Class 2 Moderate Moderate Moderate PM01.2: C-ITS Based Monitoring
Class 2 Moderate Moderate Moderate PM02: Smart Park and Ride System
Class 2 Moderate Moderate Moderate PM02.2: C-ITS Based Monitoring
Class 2 Moderate Moderate Moderate PT09.4: C-ITS Field Control
Class 2 Moderate Moderate Moderate PT09.5: C-ITS Center Control
Class 2 Moderate Moderate Moderate PT12: Transit Vehicle at Station/Stop Warnings
Class 2 Moderate Moderate Moderate PT16: Route ID for the Visually Impaired
Class 2 Moderate Moderate Moderate ST01: Emissions Monitoring
Class 2 Moderate Moderate Moderate ST02: Eco-Traffic Signal Timing
Class 2 Moderate Moderate Moderate ST03: Eco-Traffic Metering
Class 2 Moderate Moderate Moderate ST04: Roadside Lighting
Class 2 Moderate Moderate Moderate ST06: HOV/HOT Lane Management
Class 2 Moderate Moderate Moderate ST09: Connected Eco-Driving
Class 2 Moderate Moderate Moderate ST10: Low Emissions Zone Management
Class 2 Moderate Moderate Low TI01: Broadcast Traveler Information
Class 2 Moderate Moderate Low TI01.2: C-ITS Local Broadcast
Class 2 Moderate Moderate Moderate TI07: In-Vehicle Signage
Class 2 Moderate Moderate Moderate TM02: Vehicle-Based Traffic Surveillance
Class 2 Moderate Moderate Moderate TM02.2: C-ITS Communications
Class 2 Moderate Moderate Moderate TM21: Speed Harmonization
Class 2 Moderate Moderate Moderate TM22: Dynamic Lane Management and Shoulder Use
Class 2 Moderate Moderate Moderate TM24: Tunnel Management
Class 2 Moderate Moderate Moderate VS05: Curve Speed Warning
Class 2 Moderate Moderate Moderate VS08: Queue Warning
Class 2 Moderate Moderate Moderate VS08.3: C-ITS Queue Warning
Class 2 Moderate Moderate Moderate VS09: Reduced Speed Zone Warning / Lane Closure
Class 2 Moderate Moderate Moderate VS09.3: C-ITS Reduced Speed Warning
Class 2 Moderate Moderate Moderate VS10: Restricted Lane Warnings
Class 2 Moderate Moderate Moderate WX01: Weather Data Collection
Class 2 Moderate Moderate Moderate WX01.3: C-ITS Vehicle Reported
Class 1 Low Moderate Low DM01: ITS Data Warehouse
Class 1 Low Moderate Low DM01.1: Traffic Data Mart
Class 1 Low Moderate Low DM01.3: Comprehensive Transportation Data Warehouse
Class 1 Low Moderate Moderate MC10.5: Asset Tracking Based Infrastructure Warnings
Class 1 Low Moderate Moderate TM16: Reversible Lane Management
Class 1 Low Moderate Moderate TM17: Speed Warning and Enforcement
Class 1 Low Moderate Moderate TM23: Border Management Systems
Class 1 Not Applicable Moderate Moderate TM25: Wrong Way Vehicle Detection and Warning
Class 1 Low Moderate Moderate VS11: Oversize Vehicle Warning



This interfaces diagram had many interfaces and so was broken up into a Subsystem and Terminator interfaces diagram.

Subsystem Interfaces Diagram

Interfaces diagram

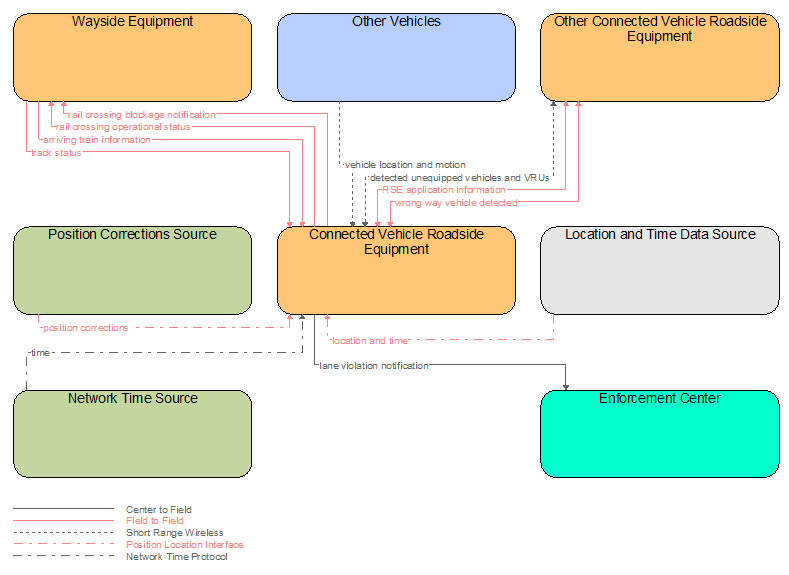

Terminator Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

NameTitle
CTI 4001 RSU Roadside Unit (RSU) Standard
