Kind: Subsystem

Class: Field

Type: System

ITS Roadway Payment Equipment

Overview

'ITS Roadway Payment Equipment' represents the roadway components of a toll collection system. It provides the capability for vehicle operators to pay tolls without stopping their vehicles. It supports use of locally determined pricing structures and includes the capability to implement various variable pricing policies. Typically, transactions are accompanied by feedback to the customer and a record of the transactions is provided to a back office system (e.g., the Payment Administration Center).



This physical object is included in the following Service Packages:

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Moderate Moderate High ST06: HOV/HOT Lane Management
Class 5 Moderate Moderate High ST06.3: HOT Lanes Implementation
Class 5 Moderate Moderate High ST06.4: C-ITS Supported HOT Lanes Implementation
Class 5 High High High ST11: Low Emissions Zone Fee Collection
Class 5 Moderate Moderate High TI05: Integrated Multi-Modal Electronic Payment
Class 5 Moderate Moderate High TI05.1: Account-based Implementation
Class 5 Moderate Moderate High TI05.2: Card-based Implementation
Class 5 Moderate Moderate High TI05.3: Pay-as-you-go Implementation
Class 5 Moderate Moderate High TI05.4: Account-based, personal transport and shared use Implementation
Class 5 Moderate Moderate High TI05.5: Account-based with all modes Implementation
Class 5 Moderate Moderate High TM10: Electronic Toll Collection
Class 5 Moderate Moderate High TM10.1: Electronic Toll Collection Implementation
Class 5 High High High TM11: Road Use Charging
Class 5 High High High TM11.1: Road Use Charging Implementation

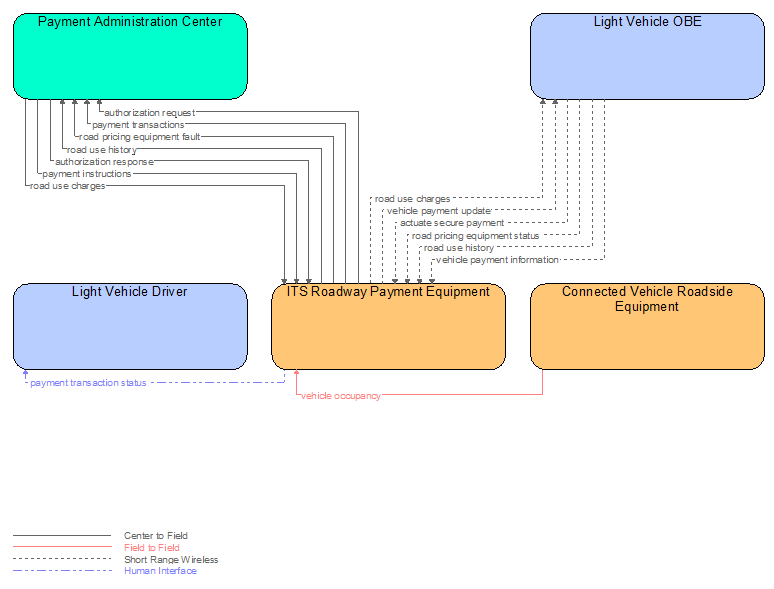

Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

NameTitle
NEMA TS 8 Cyber and Physical Security Cyber and Physical Security for Intelligent Transportation Systems
