Light Vehicle OBE

Overview

The 'Light Vehicle OBE' includes traveler-oriented capabilities that apply to passenger cars, trucks, and motorcycles that are used for personal travel. The rules vary by jurisdiction, but generally light vehicles are restricted in their weight and the maximum number of passengers they can carry. In ARC-IT, the Light Vehicle OBE represents vehicles that are operated as personal vehicles that are not part of a vehicle fleet and are not used commercially; thus, the choice between the various vehicle subsystems should be based more on how the vehicle is used than how much the vehicle weighs. See also the 'Vehicle' subsystem that includes the general safety and information services that apply to all types of vehicles, including light vehicles.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Basic Vehicle host vehicle status Light Vehicle OBE
Border Inspection System traveler border clearance status Light Vehicle OBE
Electric Charging Station current charging status Light Vehicle OBE
Emergency Management Center stolen vehicle signal activation Light Vehicle OBE
Emergency Management Center vehicle control override Light Vehicle OBE
ITS Roadway Payment Equipment road use charges Light Vehicle OBE
ITS Roadway Payment Equipment vehicle payment update Light Vehicle OBE
Light Vehicle Driver light vehicle driver input Light Vehicle OBE
Light Vehicle OBE vehicle control Basic Vehicle
Light Vehicle OBE traveler credentials Border Inspection System
Light Vehicle OBE actuate secure payment Electric Charging Station
Light Vehicle OBE vehicle charging profile Electric Charging Station
Light Vehicle OBE vehicle security status Emergency Management Center
Light Vehicle OBE stolen vehicle signal Emergency Vehicle OBE
Light Vehicle OBE actuate secure payment ITS Roadway Payment Equipment
Light Vehicle OBE road pricing equipment status ITS Roadway Payment Equipment
Light Vehicle OBE road use history ITS Roadway Payment Equipment
Light Vehicle OBE vehicle payment information ITS Roadway Payment Equipment
Light Vehicle OBE light vehicle driver updates Light Vehicle Driver
Light Vehicle OBE actuate secure payment Parking Area Equipment
Light Vehicle OBE vehicle payment information Parking Area Equipment
Light Vehicle OBE actuate secure payment Payment Administration Center
Light Vehicle OBE road pricing equipment status Payment Administration Center
Light Vehicle OBE road use history Payment Administration Center
Light Vehicle OBE user account setup Payment Administration Center
Light Vehicle OBE vehicle payment information Payment Administration Center
Light Vehicle OBE payment device update Payment Device
Light Vehicle OBE request for payment Payment Device
Light Vehicle OBE shared vehicle access acknowledgment Personal Information Device
Light Vehicle OBE shared vehicle access acknowledgment Shared Use Transportation Center
Light Vehicle OBE emergency traveler information request Transportation Information Center
Light Vehicle OBE evacuation assistance request Transportation Information Center
Light Vehicle OBE shelter request Transportation Information Center
Light Vehicle OBE travel services request Transportation Information Center
Light Vehicle OBE traveler request Transportation Information Center
Light Vehicle OBE traveler sourced updates Transportation Information Center
Light Vehicle OBE trip confirmation Transportation Information Center
Light Vehicle OBE trip feedback Transportation Information Center
Light Vehicle OBE trip request Transportation Information Center
Light Vehicle OBE trip status Transportation Information Center
Light Vehicle OBE user account setup Transportation Information Center
Light Vehicle OBE user profile Transportation Information Center
Parking Area Equipment vehicle payment update Light Vehicle OBE
Payment Administration Center access violation notification Light Vehicle OBE
Payment Administration Center registered secureIDs Light Vehicle OBE
Payment Administration Center road use charges Light Vehicle OBE
Payment Administration Center user account reports Light Vehicle OBE
Payment Administration Center vehicle payment update Light Vehicle OBE
Payment Device actuate secure payment Light Vehicle OBE
Payment Device payment device information Light Vehicle OBE
Personal Information Device shared vehicle access enable Light Vehicle OBE
Shared Use Transportation Center shared vehicle access enable Light Vehicle OBE
Transportation Information Center border crossing status information Light Vehicle OBE
Transportation Information Center electric charging services inventory Light Vehicle OBE
Transportation Information Center emergency traveler information Light Vehicle OBE
Transportation Information Center evacuation assistance information Light Vehicle OBE
Transportation Information Center guidance updates Light Vehicle OBE
Transportation Information Center interactive traveler information Light Vehicle OBE
Transportation Information Center parking availability Light Vehicle OBE
Transportation Information Center parking plan Light Vehicle OBE
Transportation Information Center shelter recommendations Light Vehicle OBE
Transportation Information Center travel services information Light Vehicle OBE
Transportation Information Center traveler alerts Light Vehicle OBE
Transportation Information Center trip plan Light Vehicle OBE
Traveler Card border card data Light Vehicle OBE

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 High High High PM03: Parking Electronic Payment
Class 5 High High High PM03.3: C-ITS Based Payment Implementation
Class 5 Moderate Moderate High ST05: Electric Charging Stations Management
Class 5 Moderate Moderate High ST05.1: Electric Charging Stations Management Implementation
Class 5 High High High ST06: HOV/HOT Lane Management
Class 5 High High High ST06.3: HOT Lanes Implementation
Class 5 High High High ST06.4: C-ITS Supported HOT Lanes Implementation
Class 5 High High High ST11: Low Emissions Zone Fee Collection
Class 5 High High High ST11.1: Low Emissions Zone Fee Collection Implementation
Class 5 High High High TI05: Integrated Multi-Modal Electronic Payment
Class 5 High High High TI05.1: Account-based Implementation
Class 5 Moderate Moderate High TI05.2: Card-based Implementation
Class 5 Moderate Moderate High TI05.3: Pay-as-you-go Implementation
Class 5 High High High TI05.4: Account-based, personal transport and shared use Implementation
Class 5 High High High TI05.5: Account-based with all modes Implementation
Class 5 Moderate Moderate High TI09: Travel Services Information and Reservation
Class 5 Moderate Moderate High TI09.1: Travel Services Information and Reservation Implementation
Class 5 High High High TM10: Electronic Toll Collection
Class 5 High High High TM10.1: Electronic Toll Collection Implementation
Class 5 High High High TM11: Road Use Charging
Class 5 High High High TM11.1: Road Use Charging Implementation
Class 5 High High High TM23: Border Management Systems
Class 5 High High High TM23.1: Wide Area Wireless Communications Implementation
Class 5 High High High TM23.2: C-ITS Communications Implementation
Class 4 High High Moderate PS15: Stolen Vehicle Recovery
Class 4 High High Moderate PS15.1: Stolen Vehicle Recovery Implementation
Class 4 High High Moderate TI06: Shared Use Mobility and Dynamic Ridesharing
Class 4 High High Moderate TI06.2: Dynamic Ridesharing Implementation
Class 3 Moderate High Moderate PS14: Disaster Traveler Information
Class 3 Moderate High Moderate PS14.1: Disaster Traveler Information Implementation
Class 2 Moderate Moderate Moderate MC12: One-Way Convoy Driving
Class 2 Moderate Moderate Moderate MC12.1: One-Way Convoy Driving Implementation
Class 2 Moderate Moderate Moderate PM01: Parking Space Management
Class 2 Moderate Moderate Moderate PM01.1: Infrastructure-Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM01.2: C-ITS Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM01.3: WAW-Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM02: Smart Park and Ride System
Class 2 Moderate Moderate Moderate PM02.1: Infrastructure-Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM02.2: C-ITS Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM02.3: WAW-Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM05: Parking Reservations
Class 2 Moderate Moderate Moderate PM05.1: Parking Reservations Implementation
Class 2 Moderate Moderate Moderate TI02: Personalized Traveler Information
Class 2 Moderate Moderate Moderate TI02.1: Personalized Traveler Information Implementation
Class 2 Moderate Moderate Moderate TI03: En-Route Guidance
Class 2 Moderate Moderate Moderate TI03.1: En-Route Guidance Implementation
Class 2 Moderate Moderate Moderate TI04: Trip Planning and Payment
Class 2 Moderate Moderate Moderate TI04.1: Trip Planning and Payment Implementation
Class 2 Moderate Moderate Moderate TI06.1: Shared Use Mobility Implementation
Class 1 Low Low Moderate PS10: Wide-Area Alert
Class 1 Low Low Moderate PS10.1: Wide Area Alert Implementation

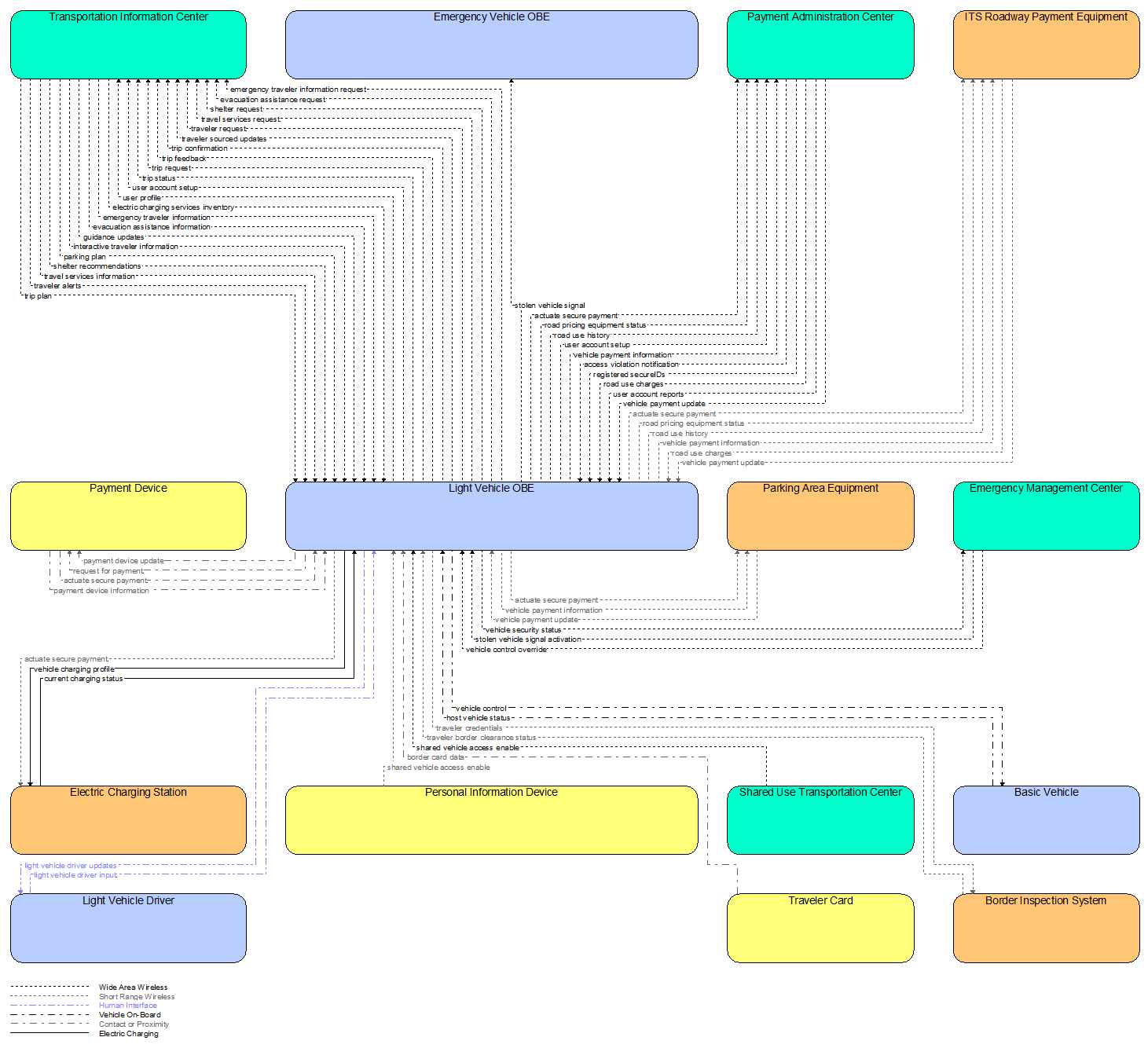

Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

NameTitle
SAE J3361 Antenna requirements V2X Antenna Coverage and Test Requirements for US FHWA Class 1 and Class 3-13 Class Vehicles
SAE J5001 OBU Standard Onboard Unit Standard for Connected Vehicles
