Payment Device

Overview
Triples
Security
Interfaces Diagram
Standards

Overview

The 'Payment Device' enables the electronic transfer of funds from the user of a service (I.e. a traveler) to the provider of the service. Potential implementations include smart cards that support payment for products and services, including transportation services and general purpose devices like smart phones that support a broad array of services, including electronic payment. In addition to user account information, the payment device may also hold and update associated user information such as personal profiles, preferences, and trip histories.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Light Vehicle OBE	payment device update	Payment Device
Light Vehicle OBE	request for payment	Payment Device
Parking Area Equipment	payment device update	Payment Device
Parking Area Equipment	request for payment	Payment Device
Payment Device	actuate secure payment	Electric Charging Station
Payment Device	actuate secure payment	Light Vehicle OBE
Payment Device	payment device information	Light Vehicle OBE
Payment Device	actuate secure payment	Parking Area Equipment
Payment Device	payment device information	Parking Area Equipment
Payment Device	actuate secure payment	Personal Information Device
Payment Device	actuate secure payment	Transit Vehicle OBE
Payment Device	payment device information	Transit Vehicle OBE
Payment Device	actuate secure payment	Traveler Support Equipment
Payment Device	payment device information	Traveler Support Equipment
Personal Information Device	payment device update	Payment Device
Personal Information Device	request for payment	Payment Device
Transit Vehicle OBE	payment device update	Payment Device
Transit Vehicle OBE	request for payment	Payment Device
Traveler Support Equipment	payment device update	Payment Device
Traveler Support Equipment	request for payment	Payment Device

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 5	Moderate	Moderate	High	PM03: Parking Electronic Payment
Class 5	Moderate	Moderate	High	PM03.1: Local Point of Sale Implementation
Class 5	Moderate	Moderate	High	PM03.3: C-ITS Based Payment Implementation
Class 5	Moderate	Moderate	High	PT04: Transit Fare Collection Management
Class 5	Moderate	Moderate	High	PT04.1: Vehicle Point-of-Sale Implementation
Class 5	Moderate	Moderate	High	PT04.2: Stop-Based Point-of-Sale Implementation
Class 5	Moderate	Moderate	High	ST05: Electric Charging Stations Management
Class 5	Moderate	Moderate	High	ST05.1: Electric Charging Stations Management Implementation
Class 5	Moderate	Moderate	High	ST06: HOV/HOT Lane Management
Class 5	Moderate	Moderate	High	ST06.3: HOT Lanes Implementation
Class 5	Moderate	Moderate	High	ST06.4: C-ITS Supported HOT Lanes Implementation
Class 5	Moderate	Moderate	High	ST11: Low Emissions Zone Fee Collection
Class 5	Moderate	Moderate	High	TI05: Integrated Multi-Modal Electronic Payment
Class 5	Moderate	Moderate	High	TI05.1: Account-based Implementation
Class 5	Moderate	Moderate	High	TI05.2: Card-based Implementation
Class 5	Moderate	Moderate	High	TI05.3: Pay-as-you-go Implementation
Class 5	Moderate	Moderate	High	TI05.4: Account-based, personal transport and shared use Implementation
Class 5	Moderate	Moderate	High	TI05.5: Account-based with all modes Implementation
Class 5	Moderate	Moderate	High	TI06: Shared Use Mobility and Dynamic Ridesharing
Class 5	Moderate	Moderate	High	TI06.1: Shared Use Mobility Implementation
Class 5	Moderate	Moderate	High	TI06.2: Dynamic Ridesharing Implementation
Class 5	Moderate	Moderate	High	TI09: Travel Services Information and Reservation
Class 5	Moderate	Moderate	High	TI09.1: Travel Services Information and Reservation Implementation
Class 5	Moderate	Moderate	High	TM10: Electronic Toll Collection
Class 5	Moderate	Moderate	High	TM10.1: Electronic Toll Collection Implementation
Class 5	Moderate	Moderate	High	TM11: Road Use Charging
Class 5	Moderate	Moderate	High	TM11.1: Road Use Charging Implementation

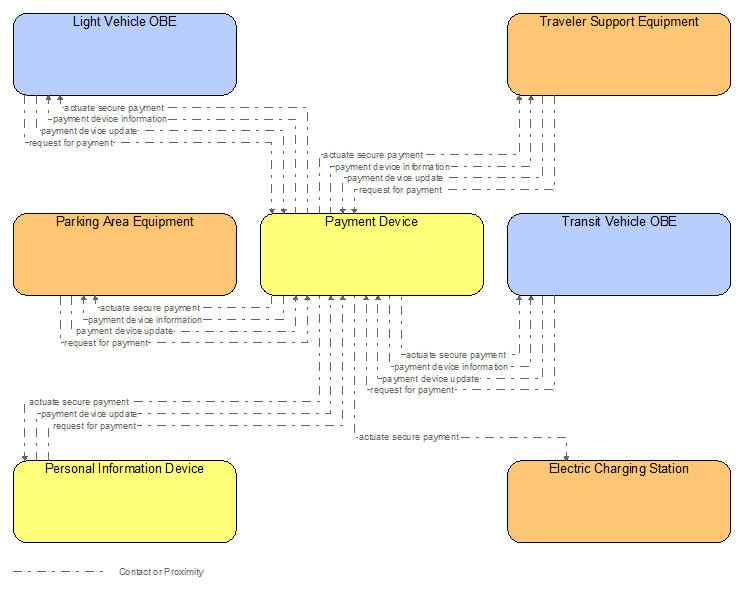

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
