Emergency Vehicle OBE

Overview

The 'Emergency Vehicle On-Board Equipment' (OBE) resides in an emergency vehicle and provides the processing, storage, and communications functions that support public safety-related connected vehicle applications. It represents a range of vehicles including those operated by police, fire, and emergency medical services. In addition, it represents other incident response vehicles including towing and recovery vehicles and freeway service patrols. It includes two-way communications to support coordinated response to emergencies. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including emergency vehicles. The Emergency Vehicle OBE supplements these general capabilities with capabilities that are specific to emergency vehicles.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Basic Emergency Vehicle host emergency vehicle status Emergency Vehicle OBE
Care Facility care facility status Emergency Vehicle OBE
Care Facility medical records Emergency Vehicle OBE
Commercial Vehicle OBE hazmat notification Emergency Vehicle OBE
Connected Vehicle Roadside Equipment barrier system status Emergency Vehicle OBE
Connected Vehicle Roadside Equipment incident scene warning notification Emergency Vehicle OBE
Connected Vehicle Roadside Equipment signal priority status Emergency Vehicle OBE
Emergency Management Center barrier system status Emergency Vehicle OBE
Emergency Management Center decision support information Emergency Vehicle OBE
Emergency Management Center emergency dispatch requests Emergency Vehicle OBE
Emergency Management Center incident scene warning device control Emergency Vehicle OBE
Emergency Management Center occupant information Emergency Vehicle OBE
Emergency Management Center road weather advisories for emergency response Emergency Vehicle OBE
Emergency Management Center suggested route Emergency Vehicle OBE
Emergency Personnel emergency personnel input Emergency Vehicle OBE
Emergency Personnel personnel monitoring Emergency Vehicle OBE
Emergency Vehicle OBE care facility status request Care Facility
Emergency Vehicle OBE medical records request Care Facility
Emergency Vehicle OBE patient status Care Facility
Emergency Vehicle OBE barrier system control Connected Vehicle Roadside Equipment
Emergency Vehicle OBE incident scene warning notification Connected Vehicle Roadside Equipment
Emergency Vehicle OBE signal preemption request Connected Vehicle Roadside Equipment
Emergency Vehicle OBE driver information Driver
Emergency Vehicle OBE barrier system control Emergency Management Center
Emergency Vehicle OBE emergency dispatch response Emergency Management Center
Emergency Vehicle OBE emergency vehicle tracking data Emergency Management Center
Emergency Vehicle OBE incident scene images Emergency Management Center
Emergency Vehicle OBE incident scene status Emergency Management Center
Emergency Vehicle OBE incident scene warning status Emergency Management Center
Emergency Vehicle OBE patient transport status Emergency Management Center
Emergency Vehicle OBE road closure notification Emergency Management Center
Emergency Vehicle OBE emergency personnel information presentation Emergency Personnel
Emergency Vehicle OBE incident scene warning Emergency Personnel
Emergency Vehicle OBE container seal interrogation Freight Equipment
Emergency Vehicle OBE local signal preemption request ITS Roadway Equipment
Emergency Vehicle OBE barrier system control Multi-Access Edge Computing
Emergency Vehicle OBE incident scene warning notification Multi-Access Edge Computing
Emergency Vehicle OBE signal preemption request Multi-Access Edge Computing
Emergency Vehicle OBE decision support information Other EV OBEs
Emergency Vehicle OBE incident scene images Other EV OBEs
Emergency Vehicle OBE incident scene status Other EV OBEs
Emergency Vehicle OBE incident scene warning notification Other EV OBEs
Emergency Vehicle OBE local METR information for users Personal Information Device
Emergency Vehicle OBE decision support information Personnel Device
Emergency Vehicle OBE incident scene images Personnel Device
Emergency Vehicle OBE incident scene status Personnel Device
Emergency Vehicle OBE personnel safety warning Personnel Device
Emergency Vehicle OBE emergency vehicle tracking data Traffic Management Center
Emergency Vehicle OBE service patrol dispatch response Traffic Management Center
Emergency Vehicle OBE service patrol incident status Traffic Management Center
Emergency Vehicle OBE signal preemption request Transportation Information Center
Emergency Vehicle OBE special vehicle alert Transportation Information Center
Emergency Vehicle OBE local METR information for users Vehicle
Emergency Vehicle OBE special vehicle alert Vehicle
Emergency Vehicle OBE vehicle maneuver coordination Vehicle
Emergency Vehicle OBE vehicle signage data Vehicle
Freight Equipment container manifest Emergency Vehicle OBE
Freight Equipment container seal status Emergency Vehicle OBE
Light Vehicle OBE stolen vehicle signal Emergency Vehicle OBE
Location and Time Data Source location and time Emergency Vehicle OBE
METR Regulation System METR management information Emergency Vehicle OBE
METR System METR management information Emergency Vehicle OBE
Multi-Access Edge Computing barrier system status Emergency Vehicle OBE
Multi-Access Edge Computing incident scene warning notification Emergency Vehicle OBE
Multi-Access Edge Computing signal priority status Emergency Vehicle OBE
Other EV OBEs decision support information Emergency Vehicle OBE
Other EV OBEs incident scene images Emergency Vehicle OBE
Other EV OBEs incident scene status Emergency Vehicle OBE
Other EV OBEs incident scene warning notification Emergency Vehicle OBE
Personnel Device decision support information Emergency Vehicle OBE
Personnel Device incident scene images Emergency Vehicle OBE
Personnel Device incident scene status Emergency Vehicle OBE
Personnel Device personnel location Emergency Vehicle OBE
Traffic Management Center service patrol dispatch request Emergency Vehicle OBE
Transportation Information Center signal priority status Emergency Vehicle OBE
Vehicle vehicle collision information Emergency Vehicle OBE

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Moderate High High PS01: Emergency Call-Taking and Dispatch
Class 5 Moderate High High PS01.2: Public Safety Dispatch and Routing Implementation
Class 5 High High High PS02: Emergency Response
Class 5 High High High PS02.1: Emergency Response Implementation
Class 5 Moderate Moderate High PS05: Vehicle Emergency Response
Class 5 Moderate Moderate High PS05.1: Vehicle Emergency Response Implementation
Class 5 High High High PS06: Incident Scene Pre-Arrival Staging Guidance for Emergency Responders
Class 5 High High High PS06.1: Incident Scene Pre-Arrival Staging Guidance for Emergency Responders Implementation
Class 3 Moderate High Moderate PS03: Emergency Vehicle Preemption
Class 3 Moderate High Moderate PS03.4: C-ITS Field Control Implementation
Class 3 Moderate High Moderate PS03.5: C-ITS Center Control Implementation
Class 3 Low High Moderate PS03.6: Wide Area Wireless Implementation
Class 3 Low High Moderate PS03.7: MEC Supported Implementation
Class 3 Moderate High Moderate PS07: Incident Scene Safety Monitoring
Class 3 Moderate High Moderate PS07.1: Sensor-Based Safety Monitoring Implementation
Class 3 Moderate High Moderate PS07.2: C-ITS Based Safety Monitoring Implementation
Class 3 Moderate High Moderate PS07.3: MEC-Based Safety Monitoring Implementation
Class 3 Moderate High Moderate PS09: Transportation Infrastructure Protection
Class 3 Moderate High Moderate PS09.2: Barrier and Safeguard Systems Connected ITS Implementation
Class 3 Moderate High Moderate PS09.3: Barrier and Safeguard Systems Wide-Area Wireless Implementation
Class 3 Moderate High Moderate PS15: Stolen Vehicle Recovery
Class 3 Moderate High Moderate PS15.1: Stolen Vehicle Recovery Implementation
Class 3 Moderate High Moderate TM19: Roadway Closure Management
Class 3 Moderate High Moderate TM19.1: Wide Area Wireless Implementation
Class 3 Moderate High Moderate TM19.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate VS04: Special Vehicle Alert
Class 3 Not Applicable High Moderate VS04.1: C-ITS Special Vehicle Alert Implementation
Class 3 Moderate High Moderate VS04.2: Commercial WAW Emergency Vehicle Alert Implementation
Class 3 Low High Low VS04.3: Emergency Vehicle Maneuver Coordination Implementation
Class 3 Low High Low VS16: Vehicle Cooperative Maneuvers
Class 3 Low High Low VS16.3: Class D Prescriptive Merge Implementation
Class 3 Moderate High Moderate VS19: Management of Electronic Traffic Regulations (METR)
Class 3 Moderate High Moderate VS19.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate CF15: Fleet and Freight Security
Class 2 Moderate Moderate Moderate CF15.1: Fleet and Freight Security Implementation
Class 2 Moderate Moderate Moderate PS03.1: Traditional Field Control Implementation
Class 2 Moderate Moderate Moderate PS03.2: Traditional TMC Control Implementation
Class 2 Moderate Moderate Moderate PS03.3: Center Control Implementation
Class 2 Moderate Moderate Moderate PS08: Roadway Service Patrols
Class 2 Moderate Moderate Moderate PS08.1: Roadway Service Patrols Implementation
Class 2 Moderate Moderate Moderate PS09.1: Transportation Infrastructure Security and Safety Monitoring Implementation
Class 2 Moderate Moderate Moderate VS19.1: Wide Area Wireless Communications Implementation
Class 1 Low Moderate Moderate TI07: In-Vehicle Signage
Class 1 Low Moderate Moderate TI07.1: Wide Area Wireless Implementation
Class 1 Low Moderate Moderate TI07.2: C-ITS Communications Implementation

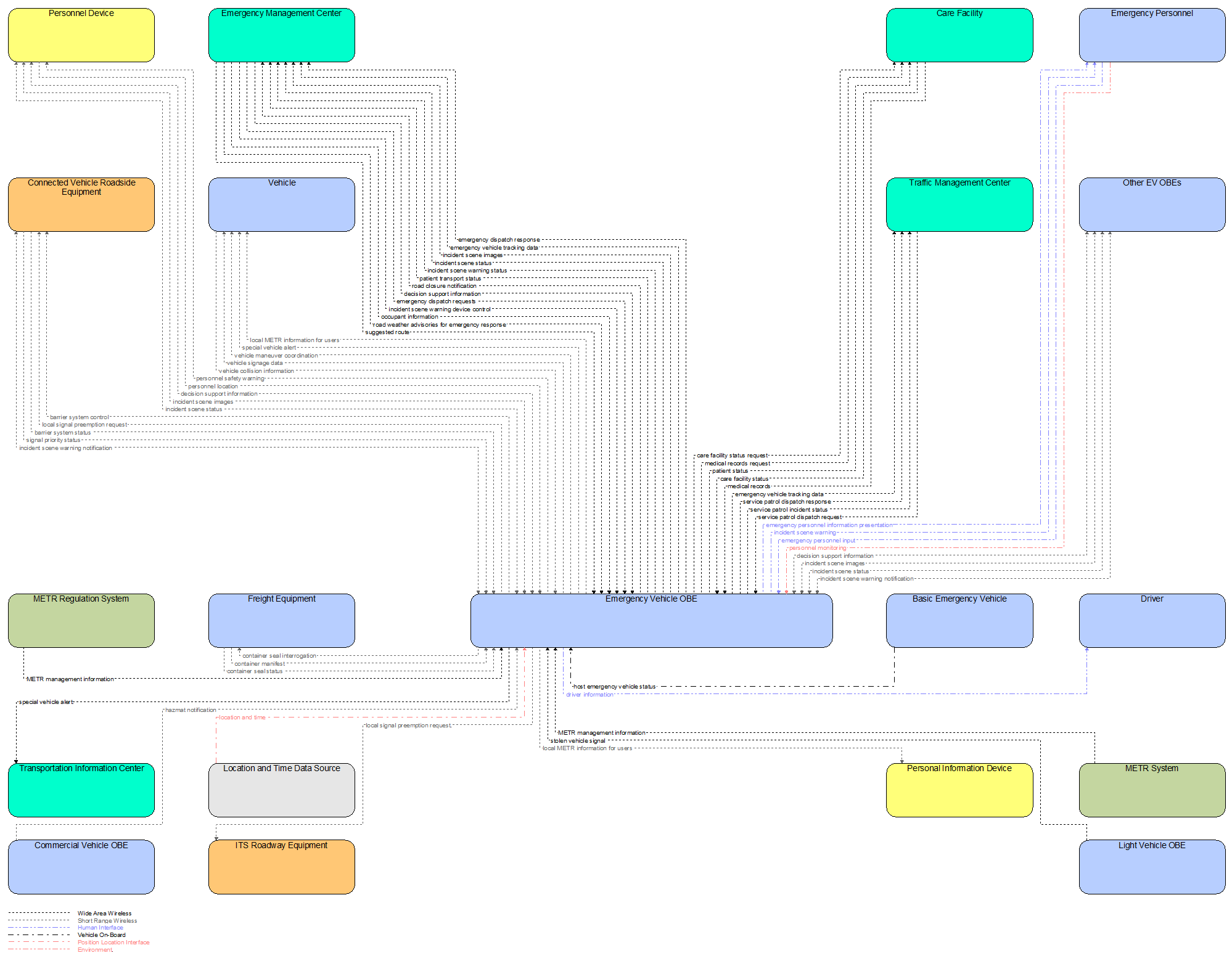

Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

NameTitle
SAE J3361 Antenna requirements V2X Antenna Coverage and Test Requirements for US FHWA Class 1 and Class 3-13 Class Vehicles
SAE J5001 OBU Standard Onboard Unit Standard for Connected Vehicles
