VS04: Special Vehicle Alert

This service package alerts the driver about the location of and the movement of public safety vehicles responding to an incident, slow moving vehicles, oversized vehicles, and other special vehicles that may require special attention from the driver. These public safety, commercial, maintenance, and transit vehicles share their current status and location with surrounding vehicles so that other drivers in the vicinity can avoid interfering with their actions and avoid collisions. Either direct communication between vehicles or a 3rd party back office service may be used to provide this data to nearby vehicles.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise

Development Stage Roles and Relationships

Installation Stage Roles and Relationships

Operations and Maintenance Stage Roles and Relationships
(hide)

Source Destination Role/Relationship
Basic Vehicle MaintainerBasic Vehicle Maintains
Basic Vehicle ManagerBasic Vehicle Manages
Basic Vehicle ManagerDriver System Usage Agreement
Basic Vehicle OwnerBasic Vehicle Maintainer System Maintenance Agreement
Basic Vehicle OwnerBasic Vehicle Manager Operations Agreement
Basic Vehicle OwnerDriver Application Usage Agreement
Basic Vehicle OwnerDriver Vehicle Operating Agreement
Basic Vehicle OwnerVehicle Maintainer Maintenance Data Exchange Agreement
Basic Vehicle OwnerVehicle Owner Expectation of Data Provision
Basic Vehicle OwnerVehicle User Service Usage Agreement
Basic Vehicle SupplierBasic Vehicle Owner Warranty
Commercial Vehicle DriverCommercial Vehicle OBE Operates
Commercial Vehicle OBE MaintainerCommercial Vehicle OBE Maintains
Commercial Vehicle OBE ManagerCommercial Vehicle Driver System Usage Agreement
Commercial Vehicle OBE ManagerCommercial Vehicle OBE Manages
Commercial Vehicle OBE OwnerCommercial Vehicle OBE Maintainer System Maintenance Agreement
Commercial Vehicle OBE OwnerCommercial Vehicle OBE Manager Operations Agreement
Commercial Vehicle OBE OwnerDriver Application Usage Agreement
Commercial Vehicle OBE OwnerDriver Vehicle Operating Agreement
Commercial Vehicle OBE OwnerVehicle Maintainer Maintenance Data Exchange Agreement
Commercial Vehicle OBE OwnerVehicle Owner Expectation of Data Provision
Commercial Vehicle OBE OwnerVehicle User Service Usage Agreement
Commercial Vehicle OBE SupplierCommercial Vehicle OBE Owner Warranty
DriverBasic Vehicle Operates
DriverVehicle Operates
Emergency Management Center MaintainerEmergency Management Center Maintains
Emergency Management Center ManagerEmergency Management Center Manages
Emergency Management Center ManagerEmergency Personnel System Usage Agreement
Emergency Management Center OwnerEmergency Management Center Maintainer System Maintenance Agreement
Emergency Management Center OwnerEmergency Management Center Manager Operations Agreement
Emergency Management Center OwnerTransportation Information Center Maintainer Maintenance Data Exchange Agreement
Emergency Management Center OwnerTransportation Information Center Owner Information Provision Agreement
Emergency Management Center OwnerTransportation Information Center User Service Usage Agreement
Emergency Management Center SupplierEmergency Management Center Owner Warranty
Emergency PersonnelEmergency Management Center Operates
Emergency PersonnelEmergency Vehicle OBE Operates
Emergency Vehicle OBE MaintainerEmergency Vehicle OBE Maintains
Emergency Vehicle OBE ManagerEmergency Personnel System Usage Agreement
Emergency Vehicle OBE ManagerEmergency Vehicle OBE Manages
Emergency Vehicle OBE OwnerDriver Application Usage Agreement
Emergency Vehicle OBE OwnerDriver Vehicle Operating Agreement
Emergency Vehicle OBE OwnerEmergency Management Center Maintainer Maintenance Data Exchange Agreement
Emergency Vehicle OBE OwnerEmergency Management Center Owner Expectation of Data Provision
Emergency Vehicle OBE OwnerEmergency Management Center User Service Usage Agreement
Emergency Vehicle OBE OwnerEmergency Personnel Application Usage Agreement
Emergency Vehicle OBE OwnerEmergency Personnel Vehicle Operating Agreement
Emergency Vehicle OBE OwnerEmergency Vehicle OBE Maintainer System Maintenance Agreement
Emergency Vehicle OBE OwnerEmergency Vehicle OBE Manager Operations Agreement
Emergency Vehicle OBE OwnerTransportation Information Center Maintainer Maintenance Data Exchange Agreement
Emergency Vehicle OBE OwnerTransportation Information Center Owner Expectation of Data Provision
Emergency Vehicle OBE OwnerTransportation Information Center User Service Usage Agreement
Emergency Vehicle OBE OwnerVehicle Maintainer Maintenance Data Exchange Agreement
Emergency Vehicle OBE OwnerVehicle Owner Expectation of Data Provision
Emergency Vehicle OBE OwnerVehicle User Service Usage Agreement
Emergency Vehicle OBE SupplierEmergency Vehicle OBE Owner Warranty
Maint and Constr Vehicle OBE MaintainerMaint and Constr Vehicle OBE Maintains
Maint and Constr Vehicle OBE ManagerMaint and Constr Vehicle OBE Manages
Maint and Constr Vehicle OBE ManagerMaint and Constr Vehicle Operator System Usage Agreement
Maint and Constr Vehicle OBE OwnerDriver Application Usage Agreement
Maint and Constr Vehicle OBE OwnerDriver Vehicle Operating Agreement
Maint and Constr Vehicle OBE OwnerMaint and Constr Vehicle OBE Maintainer System Maintenance Agreement
Maint and Constr Vehicle OBE OwnerMaint and Constr Vehicle OBE Manager Operations Agreement
Maint and Constr Vehicle OBE OwnerVehicle Maintainer Maintenance Data Exchange Agreement
Maint and Constr Vehicle OBE OwnerVehicle Owner Expectation of Data Provision
Maint and Constr Vehicle OBE OwnerVehicle User Service Usage Agreement
Maint and Constr Vehicle OBE SupplierMaint and Constr Vehicle OBE Owner Warranty
Maint and Constr Vehicle OperatorMaint and Constr Vehicle OBE Operates
Other Transportation Information Centers MaintainerOther Transportation Information Centers Maintains
Other Transportation Information Centers ManagerOther Transportation Information Centers Manages
Other Transportation Information Centers OwnerOther Transportation Information Centers Maintainer System Maintenance Agreement
Other Transportation Information Centers OwnerOther Transportation Information Centers Manager Operations Agreement
Other Transportation Information Centers OwnerTransportation Information Center Maintainer Maintenance Data Exchange Agreement
Other Transportation Information Centers OwnerTransportation Information Center Owner Information Exchange Agreement
Other Transportation Information Centers OwnerTransportation Information Center User Service Usage Agreement
Other Transportation Information Centers SupplierOther Transportation Information Centers Owner Warranty
Transit Vehicle OBE MaintainerTransit Vehicle OBE Maintains
Transit Vehicle OBE ManagerTransit Vehicle OBE Manages
Transit Vehicle OBE ManagerTransit Vehicle Operator System Usage Agreement
Transit Vehicle OBE OwnerDriver Application Usage Agreement
Transit Vehicle OBE OwnerDriver Vehicle Operating Agreement
Transit Vehicle OBE OwnerTransit Vehicle OBE Maintainer System Maintenance Agreement
Transit Vehicle OBE OwnerTransit Vehicle OBE Manager Operations Agreement
Transit Vehicle OBE OwnerVehicle Maintainer Maintenance Data Exchange Agreement
Transit Vehicle OBE OwnerVehicle Owner Expectation of Data Provision
Transit Vehicle OBE OwnerVehicle User Service Usage Agreement
Transit Vehicle OBE SupplierTransit Vehicle OBE Owner Warranty
Transit Vehicle OperatorTransit Vehicle OBE Operates
Transportation Information Center MaintainerTransportation Information Center Maintains
Transportation Information Center ManagerTransportation Information Center Manages
Transportation Information Center OwnerDriver Application Usage Agreement
Transportation Information Center OwnerOther Transportation Information Centers Maintainer Maintenance Data Exchange Agreement
Transportation Information Center OwnerOther Transportation Information Centers Owner Information Exchange Agreement
Transportation Information Center OwnerOther Transportation Information Centers User Service Usage Agreement
Transportation Information Center OwnerTransportation Information Center Maintainer System Maintenance Agreement
Transportation Information Center OwnerTransportation Information Center Manager Operations Agreement
Transportation Information Center OwnerVehicle Maintainer Maintenance Data Exchange Agreement
Transportation Information Center OwnerVehicle Owner Information Provision Agreement
Transportation Information Center OwnerVehicle User Service Usage Agreement
Transportation Information Center SupplierTransportation Information Center Owner Warranty
Vehicle Characteristics MaintainerVehicle Characteristics Maintains
Vehicle Characteristics ManagerVehicle Characteristics Manages
Vehicle Characteristics OwnerVehicle Characteristics Maintainer System Maintenance Agreement
Vehicle Characteristics OwnerVehicle Characteristics Manager Operations Agreement
Vehicle Characteristics SupplierVehicle Characteristics Owner Warranty
Vehicle MaintainerVehicle Maintains
Vehicle ManagerDriver System Usage Agreement
Vehicle ManagerVehicle Manages
Vehicle OwnerBasic Vehicle Maintainer Maintenance Data Exchange Agreement
Vehicle OwnerBasic Vehicle Owner Expectation of Data Provision
Vehicle OwnerBasic Vehicle User Service Usage Agreement
Vehicle OwnerDriver Application Usage Agreement
Vehicle OwnerDriver Vehicle Operating Agreement
Vehicle OwnerVehicle Maintainer System Maintenance Agreement
Vehicle OwnerVehicle Manager Operations Agreement
Vehicle SupplierVehicle Owner Warranty

Functional

This service package includes the following Functional View PSpecs:

Physical Object Functional Object PSpec Number PSpec Name
Commercial Vehicle OBE CV On-Board Special Vehicle Safety 2.4.2 Collect On-board Commercial Vehicle Sensor Data
2.4.3 Analyze Commercial Vehicle On-board Data
2.4.4 Provide Commercial Vehicle Driver Interface
2.4.7 Manage CV On-board Data
Emergency Management Center Emergency Routing 5.2 Provide Operator Interface for Emergency Data
5.3.6 Maintain Vehicle Status
5.3.7 Provide Emergency Vehicle Route
5.5 Update Emergency Display Map Data
5.7.1 Assess System Status For Disasters
5.7.3 Assess System Status For Evacuation
Emergency Vehicle OBE EV On-Board En Route Support 5.3.3 Provide Emergency Vehicle Location
5.3.5 Provide Emergency Personnel Interface
5.3.9 Process Mobile Emergency Requests
EV V2V Safety 5.3.3 Provide Emergency Vehicle Location
5.3.5 Provide Emergency Personnel Interface
Maint and Constr Vehicle OBE MCV Vehicle Safety Monitoring 9.1.2 Collect M&C Vehicle Data On-Board
9.3.1.2 Operate WZ Devices On-Board
9.3.1.4 Monitor Crew Movement On-Board
9.3.2.1 Status Work Zone Activity
9.3.4.3 Detect Work Zone Intrusion On-Board
9.3.4.4 Provide On-Board Work Zone Intrusion Alert
Transit Vehicle OBE Transit Vehicle V2V Safety 4.1.1 Process On-Board Systems Data
4.1.2 Determine Transit Vehicle Service Status
4.1.3 Provide Transit Vehicle Location Data
Transportation Information Center TIC Traffic Control Dissemination 6.2.2 Collect Traffic Data
6.5.1 Provide Broadcast Data Interface
Vehicle Vehicle Basic Safety Communication 3.1.1 Produce Collision and Crash Avoidance Data
3.1.3 Process Vehicle On-board Data
3.1.4 Communicate with Remote Vehicles
3.1.6 Provide Vehicle Acceleration and Deceleration Inputs
3.2.3.2 Manage Platoon Following
3.2.3.3 Process Data for Vehicle Actuators
3.2.3.5.1 Process General Vehicle Sensor Data
3.2.4 Process Sensor Data for Automatic Vehicle Operations
6.7.1.3 Process Vehicle Location Data
6.7.1.4 Update Vehicle Navigable Map Database
6.7.3.2 Provide Driver Information Interface
Vehicle Control Automation 3.2.3.3 Process Data for Vehicle Actuators
3.2.3.4.1 Provide Servo Control
3.2.3.4.2 Provide Vehicle Control Data Interface
Vehicle Control Warning 3.1.1 Produce Collision and Crash Avoidance Data
3.1.3 Process Vehicle On-board Data
3.2.3.3 Process Data for Vehicle Actuators
3.2.3.5.1 Process General Vehicle Sensor Data
6.7.3.2 Provide Driver Information Interface

Physical

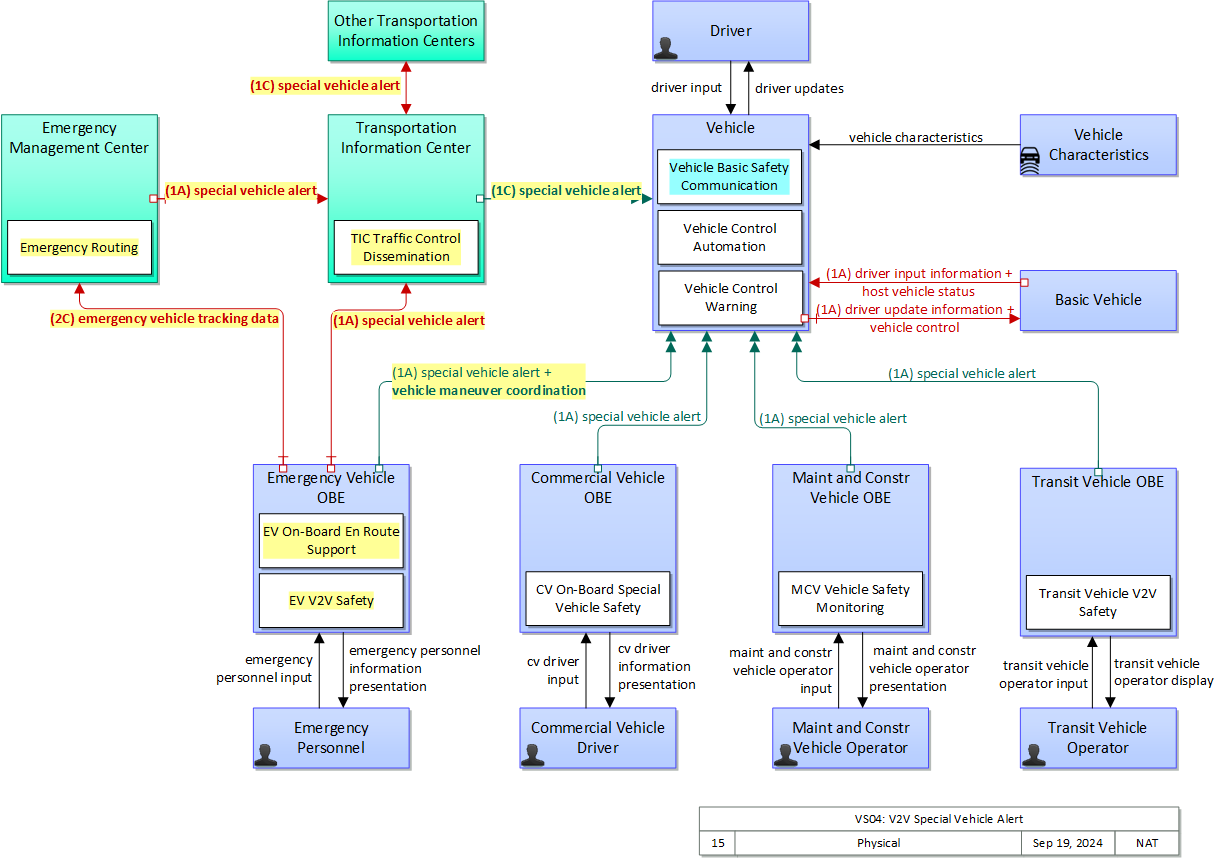

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram


Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object Class Description
Basic Vehicle Vehicle 'Basic Vehicle' represents a complete operating vehicle. It includes the vehicle platform that interfaces with and hosts ITS electronics and all of the driver convenience and entertainment systems, and other non-ITS electronics on-board the vehicle. Interfaces represent both internal on-board interfaces between ITS equipment and other vehicle systems and other passive and active external interfaces or views of the vehicle that support vehicle/traffic monitoring and management. External interfaces may also represent equipment that is carried into the vehicle (e.g., a smartphone that is brought into the vehicle). Internal interfaces are often implemented through a vehicle databus, which is also included in this object. Note that 'Vehicle' represents the general functions and interfaces that are associated with personal automobiles as well as commercial vehicles, emergency vehicles, transit vehicles, and other specialized vehicles.
Commercial Vehicle Driver Vehicle The 'Commercial Vehicle Driver' represents the people that operate vehicles transporting goods, including both long haul trucks and local pick-up and delivery vans. This physical object is complementary to the Driver physical object in that it represents those interactions which are unique to Commercial Vehicle Operations. Information flowing from the Commercial Vehicle Driver includes those system inputs specific to Commercial Vehicle Operations.
Commercial Vehicle OBE Vehicle The Commercial Vehicle On-Board Equipment (OBE) resides in a commercial vehicle and provides the sensory, processing, storage, and communications functions necessary to support safe and efficient commercial vehicle operations. It provides two-way communications between the commercial vehicle drivers, their fleet managers, attached freight equipment, and roadside officials. A separate 'Vehicle OBE' physical object supports vehicle safety and driver information capabilities that apply to all vehicles, including commercial vehicles. The Commercial Vehicle OBE supplements these general ITS capabilities with capabilities that are specific to commercial vehicles.
Driver Vehicle The 'Driver' represents the person that operates a vehicle on the roadway. Included are operators of private, transit, commercial, and emergency vehicles where the interactions are not particular to the type of vehicle (e.g., interactions supporting vehicle safety applications). The Driver originates driver requests and receives driver information that reflects the interactions which might be useful to all drivers, regardless of vehicle classification. Information and interactions which are unique to drivers of a specific vehicle type (e.g., fleet interactions with transit, commercial, or emergency vehicle drivers) are covered by separate objects.
Emergency Management Center Center The 'Emergency Management Center' represents systems that support incident management, disaster response and evacuation, security monitoring, and other security and public safety-oriented ITS applications. It includes the functions associated with fixed and mobile public safety communications centers including public safety call taker and dispatch centers operated by police (including transit police), fire, and emergency medical services. It includes the functions associated with Emergency Operations Centers that are activated at local, regional, state, and federal levels for emergencies and the portable and transportable systems that support Incident Command System operations at an incident. This Center also represents systems associated with towing and recovery, freeway service patrols, HAZMAT response teams, and mayday service providers. It manages sensor and surveillance equipment used to enhance transportation security of the roadway infrastructure (including bridges, tunnels, interchanges, and other key roadway segments) and the public transportation system (including transit vehicles, public areas such as transit stops and stations, facilities such as transit yards, and transit infrastructure such as rail, bridges, tunnels, or bus guideways). It provides security/surveillance services to improve traveler security in public areas not a part of the public transportation system. It monitors alerts, advisories, and other threat information and prepares for and responds to identified emergencies. It coordinates emergency response involving multiple agencies with peer centers. It stores, coordinates, and utilizes emergency response and evacuation plans to facilitate this coordinated response. Emergency situation information including damage assessments, response status, evacuation information, and resource information are shared The Emergency Management Center also provides a focal point for coordination of the emergency and evacuation information that is provided to the traveling public, including wide-area alerts when immediate public notification is warranted. It tracks and manages emergency vehicle fleets using real-time road network status and routing information from the other centers to aid in selecting the emergency vehicle(s) and routes, and works with other relevant centers to tailor traffic control to support emergency vehicle ingress and egress, implementation of special traffic restrictions and closures, evacuation traffic control plans, and other special strategies that adapt the transportation system to better meet the unique demands of an emergency.
Emergency Personnel Vehicle 'Emergency Personnel' represents personnel that are responsible for police, fire, emergency medical services, towing, service patrols, and other special response team (e.g., hazardous material clean-up) activities at an incident site. These personnel are associated with the Emergency Vehicle during dispatch to the incident site, but often work independently of the Emergency Vehicle while providing their incident response services.
Emergency Vehicle OBE Vehicle The 'Emergency Vehicle On-Board Equipment' (OBE) resides in an emergency vehicle and provides the processing, storage, and communications functions that support public safety-related connected vehicle applications. It represents a range of vehicles including those operated by police, fire, and emergency medical services. In addition, it represents other incident response vehicles including towing and recovery vehicles and freeway service patrols. It includes two-way communications to support coordinated response to emergencies. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including emergency vehicles. The Emergency Vehicle OBE supplements these general capabilities with capabilities that are specific to emergency vehicles.
Maint and Constr Vehicle OBE Vehicle The 'Maint and Constr Vehicle OBE' resides in a maintenance, construction, or other specialized service vehicle or equipment and provides the processing, storage, and communications functions necessary to support highway maintenance and construction. All types of maintenance and construction vehicles are covered, including heavy equipment, supervisory vehicles, unmanned remote controlled field maintenance robots, and sensory platforms that may be wheeled or low altitude aerial vehicles (e.g. drones, balloons). The MCV OBE provides two-way communications between drivers/operators and dispatchers and maintains and communicates current location and status information. A wide range of operational status is monitored, measured, and made available, depending on the specific type of vehicle or equipment. A snow plow for example, would monitor whether the plow is up or down and material usage information. The Maint and Constr Vehicle OBE may also contain capabilities to monitor vehicle systems to support maintenance of the vehicle itself. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including maintenance and construction vehicles. The Maint and Constr Vehicle OBE supplements these general capabilities with capabilities that are specific to maintenance and construction vehicles.
Maint and Constr Vehicle Operator Vehicle The operator of maintenance, construction, or other specialized service vehicles or equipment. Represents the maintenance and construction vehicle operators. The operator provides input specific to maintenance and construction vehicle operations, including the status of maintenance actions. Information provided to the operator includes dispatch requests and maintenance and construction actions to be performed.
Other Transportation Information Centers Center Representing another Transportation Information Center, this object is intended to provide a source and destination for ITS information flows between peer information and service provider functions. It enables cooperative information sharing between providers as conditions warrant.
Transit Vehicle OBE Vehicle The 'Transit Vehicle On-Board Equipment' (OBE) resides in a transit vehicle and provides the sensory, processing, storage, and communications functions necessary to support safe and efficient movement of passengers. The types of transit vehicles containing this physical object include buses, paratransit vehicles, light rail vehicles, other vehicles designed to carry passengers, and supervisory vehicles. It collects ridership levels and supports electronic fare collection. It supports a traffic signal prioritization function that communicates with the roadside physical object to improve on-schedule performance. Automated vehicle location enhances the information available to the transit operator enabling more efficient operations. On-board sensors support transit vehicle maintenance. The physical object supports on-board security and safety monitoring. This monitoring includes transit user or vehicle operator activated alarms (silent or audible), as well as surveillance and sensor equipment. The surveillance equipment includes video (e.g. CCTV cameras), audio systems and/or event recorder systems. It also furnishes travelers with real-time travel information, continuously updated schedules, transfer options, routes, and fares. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including transit vehicles. The Transit Vehicle OBE supplements these general capabilities with capabilities that are specific to transit vehicles.
Transit Vehicle Operator Vehicle The 'Transit Vehicle Operator' represents the person that receives and provides additional information that is specific to operating the ITS functions in all types of transit vehicles. The information received by the operator would include status of on-board systems. Additional information received depends upon the type of transit vehicle. In the case of fixed route transit vehicles, the Transit Vehicle Operator would receive operator instructions that might include actions to take to correct schedule deviations. In the case of flexible fixed routes and demand response routes the information would also include dynamic routing or passenger pickup information.
Transportation Information Center Center The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.
Vehicle Vehicle This 'Vehicle' physical object is used to model core capabilities that are common to more than one type of Vehicle. It provides the vehicle-based general sensory, processing, storage, and communications functions that support efficient, safe, and convenient travel. Many of these capabilities (e.g., see the Vehicle Safety service packages) apply to all vehicle types including personal vehicles, commercial vehicles, emergency vehicles, transit vehicles, and maintenance vehicles. From this perspective, the Vehicle includes the common interfaces and functions that apply to all motorized vehicles. The radio(s) supporting V2V and V2I communications are a key component of the Vehicle. Both one-way and two-way communications options support a spectrum of information services from basic broadcast to advanced personalized information services. Advanced sensors, processors, enhanced driver interfaces, and actuators complement the driver information services so that, in addition to making informed mode and route selections, the driver travels these routes in a safer and more consistent manner. This physical object supports all six levels of driving automation as defined in SAE J3016. Initial collision avoidance functions provide 'vigilant co-pilot' driver warning capabilities. More advanced functions assume limited control of the vehicle to maintain lane position and safe headways. In the most advanced implementations, this Physical Object supports full automation of all aspects of the driving task, aided by communications with other vehicles in the vicinity and in coordination with supporting infrastructure subsystems.
Vehicle Characteristics Vehicle 'Vehicle Characteristics' represents the external view of individual vehicles of any class from cars and light trucks up to large commercial vehicles and down to micromobility vehicles (MMVs). It includes vehicle physical characteristics such as height, width, length, weight, and other properties (e.g., magnetic properties, number of axles) of individual vehicles that can be sensed and measured or classified. This physical object represents the physical properties of vehicles that can be sensed by vehicle-based or infrastructure-based sensors to support vehicle automation and traffic sensor systems. The analog properties provided by this terminator represent the sensor inputs that are used to detect and assess vehicle(s) within the sensor's range to support safe AV operation and/or responsive and safe traffic management.

Includes Functional Objects:

Functional Object Description Physical Object
CV On-Board Special Vehicle Safety 'CV On-Board Special Vehicle Safety' alerts vehicles in the vicinity of a commercial vehicle that is oversized, slow, or performs maneuvers that may impact surrounding vehicles. Commercial Vehicle OBE
Emergency Routing 'Emergency Routing' supports routing of emergency vehicles and enlists support from the Traffic Management Center to facilitate travel along these routes. Routes may be determined based on real-time traffic information and road conditions or routes may be provided by the Traffic Management Center on request. Vehicles are tracked and routes are based on current vehicle location. It may coordinate with the Traffic Management Center to provide preemption or otherwise adapt the traffic control strategy along the selected route. It may also coordinate with Transportation Information Centers to notify other drivers of public safety vehicles that are enroute. Emergency Management Center
EV On-Board En Route Support 'EV On-Board En Route Support' provides communications functions to responding emergency vehicles that reduce response times and improve safety of responding public safety personnel and the general public. It supports traffic signal preemption via short range communication directly with signal control equipment. Emergency Vehicle OBE
EV V2V Safety 'EV V2V Safety' sends alert messages and exchanges lane change and merge intent with surrounding connected vehicles to improve awareness of the emergency vehicle and enable it to perform lane change and merge maneuvers in a more automated fashion. Emergency Vehicle OBE
MCV Vehicle Safety Monitoring 'MCV Vehicle Safety Monitoring' detects vehicle intrusions in the vicinity of the vehicle and warns crew workers and drivers of imminent encroachment. Crew movements are also monitored so that the crew can be warned of movement beyond the designated safe zone. It can be used for stationary work zones or in mobile applications where a safe zone is maintained around the moving vehicle. Maint and Constr Vehicle OBE
TIC Traffic Control Dissemination 'TIC Traffic Control Dissemination' disseminates intersection status, lane control information, special vehicle alerts, and other traffic control related information that is real-time or near real-time in nature and relevant to vehicles in a relatively local area on the road network. It collects traffic control information from Traffic Management and other Center(s) and disseminates the relevant information to vehicles and other mobile devices. Transportation Information Center
Transit Vehicle V2V Safety 'Transit Vehicle V2V Safety' exchanges current vehicle location and motion information with other vehicles in the vicinity, uses that information to predict vehicle paths, and notifies the driver when the potential for an impending collision is detected. Information from on-board sensors (e.g., radars and image processing) are used to augment the V2V communications, if available. In addition to notifying the driver, control information can also be provided to support automated control functions that can avoid the collision. This object is similar to the 'Vehicle Basic V2V Safety', but it accounts for crash scenarios that are unique to transit vehicles (e.g., Vehicle Turning Right in Front of Bus). It is also stop-aware since stop locations pose specific crash threats for transit vehicles. Finally, the detection and control algorithms, filters, and timing account for bus performance and risk profiles associated with remote vehicles that are unique to transit. Transit Vehicle OBE
Vehicle Basic Safety Communication 'Vehicle Basic Safety Communication' exchanges current vehicle characteristics, location, and motion (including past and intended maneuver) information with other vehicles in the vicinity, uses that information to calculate vehicle paths, and warns the driver when the potential for an impending collision is detected. If available, map data is used to filter and interpret the relative location and motion of vehicles in the vicinity. Information from on-board sensors (e.g., radars and image processing) are also used, if available, in combination with the V2V communications to detect non-equipped vehicles and corroborate connected vehicle data. This object represents a broad range of implementations ranging from basic Vehicle Awareness Devices that only broadcast vehicle location and motion and provide no driver warnings to advanced integrated safety systems that coordinate maneuvers and may, in addition to warning the driver, provide collision warning information to support automated control functions that can support control intervention. Vehicle
Vehicle Control Automation 'Vehicle Control Automation' provides lateral and/or longitudinal control of a vehicle to allow 'hands off' and/or 'feet off' driving, automating the steering, accelerator, and brake control functions. It builds on the sensors included in 'Vehicle Safety Monitoring' and 'Vehicle Control Warning' and uses the information about the area surrounding the vehicle to safely control the vehicle. It covers the range of incremental control capabilities from driver assistance systems that take over steering or acceleration/deceleration in limited scenarios with direct monitoring by the driver to full automation where all aspects of driving are automated under all roadway and environmental conditions. Vehicle
Vehicle Control Warning 'Vehicle Control Warning' monitors areas around the vehicle and provides warnings to a driver so the driver can take action to recover and maintain safe control of the vehicle. It includes lateral warning systems that warn of lane departures and obstacles or vehicles to the sides of the vehicle and longitudinal warning systems that monitor areas in the vehicle path and provide warnings when headways are insufficient or obstacles are detected in front of or behind the vehicle. It includes on-board sensors, including radars and imaging systems, and the driver information system that provides the visual, audible, and/or haptic warnings to the driver. Vehicle

Includes Information Flows:

Information Flow Description
cv driver information presentation Presentation of information to the commercial vehicle driver that includes current status of on-board systems.
cv driver input This flow represents the tactile or auditory interface with ITS equipment containing the commercial vehicle driver and vehicle information. This flow contains inquiries to the commercial vehicle managing system, interaction with on-board equipment including setup, configuration, and initiation of self tests, and entry of carrier, driver, vehicle, and route information.
driver input Driver input to the vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands.
driver input information Driver input received from the driver-vehicle interface equipment via the vehicle bus. It includes configuration data, settings and preferences, interactive requests, and control commands for the connected vehicle on-board equipment.
driver update information Information provided to the driver-vehicle interface to inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. The flow includes the information to be presented to the driver and associated metadata that supports processing, prioritization, and presentation by the DVI as visual displays, audible information and warnings, and/or haptic feedback.
driver updates Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment.
emergency personnel information presentation Presentation of information to emergency personnel in the field including dispatch information, incident information, current road network conditions, device status, and other supporting information.
emergency personnel input User input from emergency personnel in the field including dispatch coordination, incident status information, and remote device control requests.
emergency vehicle tracking data The current location and operating status of the emergency vehicle.
host vehicle status Information provided to the ITS on-board equipment from other systems on the vehicle platform. This includes the current status of the powertrain, steering, and braking systems, and status of other safety and convenience systems. In implementations where GPS is not integrated into the Vehicle On-Board Equipment, the host vehicle is also the source for data describing the vehicle's location in three dimensions (latitude, longitude, elevation) and accurate time that can be used for time synchronization across the ITS environment.
maint and constr vehicle operator input User input from field personnel including current maintenance and construction status information as well as on-board device control.
maint and constr vehicle operator presentation Information presented to maintenance and construction field personnel including vehicle routing and traffic information, road restrictions, environmental information, decision support information, maintenance schedules, dispatch instructions, maintenance personnel assignments, vehicle maintenance information, work zone status information, and corrective actions.
special vehicle alert Notification that a vehicle is in the vicinity that requires special attention from drivers. In this context, 'special vehicle' refers to any type of vehicle that uses lights or placards to alert drivers including public safety vehicles, oversize vehicles, slow vehicles, and service vehicles that stop and back up frequently.
transit vehicle operator display Visual, audible, and tactile outputs to the transit vehicle operator including vehicle surveillance information, alarm information, vehicle system status, information from the operations center, and information indicating the status of all other on-board ITS services.
transit vehicle operator input Transit vehicle operator inputs to on-board ITS equipment, including tactile and verbal inputs. Includes authentication information, on-board system control, emergency requests, and fare transaction data.
vehicle characteristics The physical or visible characteristics of individual vehicles that can be used to detect, classify, and monitor vehicles and imaged to uniquely identify vehicles.
vehicle control Control commands issued to vehicle actuators that control steering, throttle, and braking and other related commands that support safe transition between manual and automated vehicle control. This flow can also deploy restraints and other safety systems when a collision is unavoidable.
vehicle maneuver coordination Statements of intent, permission and status of a lane change or merge operation by a connected vehicle

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor Goal
B. Increase the safety of the transportation system for motorized and nonmotorized users; Reduce fatalities and injuries
C. Increase the security of the transportation system for motorized and nonmotorized users; Improve security

Associated Objective Categories

Objective Category
Emergency/Incident Management: Incident Duration
Safety: Vehicle Crashes and Fatalities

Associated Objectives and Performance Measures

Objective Performance Measure
Reduce crashes at intersections Number of crashes and fatalities at signalized intersections
Reduce crashes at intersections Number of crashes and fatalities at unsignalized intersections
Reduce crashes at intersections Number of crashes and fatalities related to red-light running
Reduce crashes due to driver errors and limitations Number of crashes and fatalities related to driver inattention and distraction
Reduce crashes due to driver errors and limitations Number of crashes and fatalities related to driving while intoxicated
Reduce crashes due to unsafe drivers, vehicles and cargo on the transportation system Number of crashes and fatalities due to commercial vehicle safety violations
Reduce mean time for needed responders to arrive on-scene after notification by X percent over Y years. Mean time for needed responders to arrive on-scene after notification.
Reduce secondary crashes Number of secondary crashes
Reduce the number of motorcyclist fatalities by X percent by year Y. Number of motorcyclist fatalities
Reduce the rate fatalities in the region by X percent by year Y. Rate of fatalities (rate per vehicle miles travelled (VMT))
Reduce the rate of severe injuries in the region by X percent by year Y. Rate of serious injuries (rate per VMT)
Reduce the total number of crashes in the region by X percent by year Y. Total crashes per X VMT.
Reduce the total number of fatalities and severe injuries in the region by X percent by year Y. Total fatalities per X VMT.
Reduce the total number of fatalities and severe injuries in the region by X percent by year Y. Total severe injuries per X VMT.
Reduce the total number of fatalities in the region by X percent by year Y. Number of fatalities
Reduce the total number of severe injuries in the region by X percent by year Y. Number of serious injuries


Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need Functional Object Requirement
01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions. CV On-Board Special Vehicle Safety 01 The commercial vehicle shall the vehicle’s location, speed and direction to other vehicles in the area.
Emergency Routing 16 The center shall provide special vehicle alert information to a third party provider so that vehicles can be warned that are in the vicinity of the dispatched emergency vehicle.
EV On-Board En Route Support 09 The emergency vehicle shall send the vehicle's location, speed and direction to a third party provider for distribution to vehicles in the vicinity.
EV V2V Safety 03 The emergency vehicle shall send the vehicle's location, speed and direction to other vehicles in the area, alerting vehicles in the vicinity.
MCV Vehicle Safety Monitoring 07 The maintenance and construction vehicle shall the vehicle’s location, speed and direction to other vehicles in the area.
TIC Traffic Control Dissemination 08 The center shall notify vehicles in the vicinity when an emergency vehicle issues a special vehicle alert
Transit Vehicle V2V Safety 01 The transit vehicle shall exchange current vehicle location and motion information with other vehicles in the vicinity.
02 The transit vehicle shall provide to other vehicles an indication of its intent to leave a transit stop.
Vehicle Basic Safety Communication 03 The vehicle shall provide its location with road-level accuracy to on-board applications.
06 The vehicle shall exchange location and motion information with roadside equipment and nearby vehicles.
Vehicle Control Warning 06 The vehicle shall receive emergency vehicle location information.
07 The vehicle shall notify the Driver of the presence of emergency vehicles nearby that may affect the host vehicle.
02 The Connected Vehicle needs to be able to provide warnings to the driver or control actions to the vehicle based upon warnings received from nearby special vehicles. Vehicle Basic Safety Communication 01 The vehicle shall collect location and motion data from the vehicle platform.
Vehicle Control Automation 13 The vehicle shall be capable of performing control actions based upon warnings received from nearby special vehicles.
Vehicle Control Warning 08 The vehicle shall provide warnings to the driver based upon warnings received from nearby special vehicles.
10 The Vehicle shall provide its location with lane-level accuracy to on-board warning applications.

Related Sources

Document Name Version Publication Date
ITS User Services Document 1/1/2005
CO-UMP Emergency Vehicle Warning 5/31/2021
SAE J3067- Candidate Improvements to Dedicated Short Range Communications (DSRC) Message Set Dictionary (SAE J2735)Using Systems Engineering Methods 8/15/2014


Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object Confidentiality Integrity Availability Security Class
Basic Vehicle
Commercial Vehicle OBE Not Applicable High Moderate Class 3
Emergency Management Center Moderate High Moderate Class 3
Emergency Vehicle OBE Moderate High Moderate Class 3
Maint and Constr Vehicle OBE Not Applicable High Moderate Class 3
Other Transportation Information Centers Moderate High Moderate Class 3
Transit Vehicle OBE Not Applicable High Moderate Class 3
Transportation Information Center Moderate High Moderate Class 3
Vehicle Low Low Moderate Class 1
Vehicle Characteristics



In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source Destination Information Flow Confidentiality Integrity Availability
Basis Basis Basis
Basic Vehicle Vehicle driver input information Moderate High High
Internal vehicle flow that if reverse engineered could enable third party vehicle control. Largely a competitive question, could be set LOW if manufacturer and operator are not concerned with this type of compromise. Includes vehicle control commands, which must be timely and accurate to support safe vehicle operation. Includes vehicle control commands, which must be timely and accurate to support safe vehicle operation.
Basic Vehicle Vehicle host vehicle status Low Moderate High
Unlikely that this includes any information that could be used against the originator. This can be MODERATE or HIGH, depending on the application: This is used later on to determine whether a vehicle is likely going to violate a red light or infringe a work zone. This needs to be correct in order for the application to work correctly. Since this monitors the health and safety of the vehicle and that information is eventually reported to the driver, it should be available at all times as it directly affects vehicle and operator safety.
Commercial Vehicle Driver Commercial Vehicle OBE cv driver input Moderate Moderate Moderate
Commercial Vehicle Operations human interfaces should not be casually viewable for competitive and physical security reasons. Data should be correct as it relates to CVO, however there is generally another mechanism to double-check this data, which is why it is MODERATE and not HIGH. Flow should be available as it relates to CVO, however there is generally another mechanism through which this data might be received, which is why it is MODERATE and not HIGH.
Commercial Vehicle OBE Commercial Vehicle Driver cv driver information presentation Low Moderate Moderate
This data is informing the driver of operational information that is relevant to the operation of the vehicle. It should not contain anything sensitive, and does not matter if another person can observe it. Data should be correct as it relates to CVO, however there is generally another mechanism to double-check this data, which is why it is MODERATE and not HIGH. Flow should be available as it relates to CVO, however there is generally another mechanism through which this data might be received, which is why it is MODERATE and not HIGH.
Commercial Vehicle OBE Vehicle special vehicle alert Not Applicable High Moderate
This flow is effectively broadcast and intended for all, so no need to obfuscate its contents. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message.
Driver Vehicle driver input Moderate High High
Data included in this flow may include origin and destination information, which should be protected from other's viewing as it may compromise the driver's privacy. Commands from from the driver to the vehicle must be correct or the vehicle may behave in an unpredictable and possibly unsafe manner Commands must always be able to be given or the driver has no control.
Emergency Management Center Transportation Information Center special vehicle alert Moderate High Moderate
This flow is related to a flow that is effectively broadcast and intended for all, but since this flow goes between centers, an observer could learn of the locations of emergency vehicles on a broad scale by monitoring, increasing the awareness of a potentially nefarious actor. Thus, should probably be protected at some level. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message.
Emergency Personnel Emergency Vehicle OBE emergency personnel input Moderate Moderate Moderate
Some of the information, such as incident status information, is sensitive, and should be protected. The system must know that these requests came from actual Emergency Personal. Additionally, incorrect information here may lead to the system responding incorrectly to the incident These messages are important for the system to operate properly. Additionally, the system must know if messages are not received so that it can act accordingly.
Emergency Vehicle OBE Emergency Management Center emergency vehicle tracking data Moderate Moderate Moderate
Emergency Vehicles give obvious visual and audio indicators about their location and operating status. Knowing the location of every single emergency vehicle within a city could be extremely useful information to a criminal. Additionally, although this is observable data, it is transmitted on a regional level, which means that someone who is able to intercept it would be able to read the location of all emergency vehicles, not just the ones they could directly observed. A sufficiently motivated criminal can however get this information by other means. Incorrect data here could lead to incorrect decisions being made about the closure of lanes, or incorrect information being shared with the emergency vehicles. There should be other indicators that would contradict incorrect information transmitted here. This information may be used to determine which emergency vehicle is dispatched, and having this information available could lead to a quicker response from the emergency vehicle. However, the system would still be able to operate properly if only most messages make it through.
Emergency Vehicle OBE Emergency Personnel emergency personnel information presentation Moderate Moderate Moderate
Some of this information, such as incident information, is sensitive and should be protected. This information could affect how the Emergency Personnel respond to the event, and should be as accurate as possible. This information needs to be available for the Emergency Personnel in order for them to respond accurately to the system. If they do not acknowledge this information, dispatch needs to know, so they can attempt to contact the Emergency Personnel via another channel, such as radio.
Emergency Vehicle OBE Transportation Information Center special vehicle alert Moderate High Moderate
This flow is related to a flow that is effectively broadcast and intended for all, but since this flow goes to a center, an observer could learn of the locations of the emergency vehicle acting as source from a remote location, which may contribute to a nefarious actor's situtational awareness. Thus, should probably be protected at some level. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message.
Emergency Vehicle OBE Vehicle special vehicle alert Not Applicable High Moderate
This flow is effectively broadcast and intended for all, so no need to obfuscate its contents. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message.
Emergency Vehicle OBE Vehicle vehicle maneuver coordination Low High Low
Data contained within this flow is intended to alert other nearby vehicles to a desired or impending movement by the source vehicle. The data does include identifiers indicating the sending vehicle, which needs to be recognized and protected as appropriate. It may be impractical to encrypt this data to meet performance requirements, and in any event no more than one vehicle would be identified and only in the field environment, so mass collection of this information would be difficult. This flow is core to automated vehicle merge and lane change operations; flaws in the data could result in a crash, and so integrity should be ensured to the highest practical level. L4/5 ADS will operate more smoothly if this flow works, but as the vehicle fleet will include L0 vehicles for the foreseeable future, any ADS must use other methods to ensure safe operation anyway. May be MODERATE in ADS-dedicated facilities.
Maint and Constr Vehicle OBE Maint and Constr Vehicle Operator maint and constr vehicle operator presentation Moderate High High
System maintenance flows should have some protection from casual viewing, as otherwise imposters could gain illicit control over the MCV. System maintenance flows are the primary interface between field personnel and field equipment, and must present accurate data or inappropriate maintenance actions may be taken. System maintenance flows are the primary interface between field personnel and field equipment, and must present accurate data or inappropriate maintenance actions may be taken.
Maint and Constr Vehicle OBE Vehicle special vehicle alert Not Applicable High Moderate
This flow is effectively broadcast and intended for all, so no need to obfuscate its contents. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message.
Maint and Constr Vehicle Operator Maint and Constr Vehicle OBE maint and constr vehicle operator input Not Applicable Moderate High
Observation of control or status information is unlikely to have any value to a third party; actions of field personnel should be observable anyway. Any driver/operator interaction with vehicle systems needs some assurance of correctness; corruption of this information could lead to unexpected vehicle behavior which poses a limited safety risk. Without direct local control of vehicle systems the vehicle is essentially uncontrolled.
Other Transportation Information Centers Transportation Information Center special vehicle alert Moderate High Moderate
This flow is related to a flow that is effectively broadcast and intended for all, but since this flow goes between centers, an observer could learn of the locations of emergency vehicles on a broad scale by monitoring, increasing the awareness of a potentially nefarious actor. Thus, should probably be protected at some level. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message.
Transit Vehicle OBE Transit Vehicle Operator transit vehicle operator display Low Moderate Low
This should not include any sensitive information. It would be possible for a person standing behind the driver to observe the information transmitted. Some minimal guarantee of data integrity is necessary for all C-ITS flows. This entire application should not directly affect the drivers driving habits. The operator should still be slowing and stopping at yellow or red lights, along with observing all other driving regulations. DISC: Original V2I analysis classified this as LOW. Even if the operator is not made aware of the signal preemption, the system should still operate correctly. The operator should be using the traffic lights to influence their decision about whether or not to stop, not the display.
Transit Vehicle OBE Vehicle special vehicle alert Not Applicable High Moderate
This flow is effectively broadcast and intended for all, so no need to obfuscate its contents. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message.
Transit Vehicle Operator Transit Vehicle OBE transit vehicle operator input Low Moderate Low
This information is transmitted through systems on board the Transit Vehicle. Even if the vehicle were compromised and these communications monitored, most of this information is directly observable. Some minimal guarantee of data integrity is necessary for all C-ITS flows. If this is compromised, it could result in an incorrect signal priority request, which has minimal impact. DISC: Original V2I analysis classified this as LOW. A delay in reporting this may result in a signal priority request not going through, which has minimal impact.
Transportation Information Center Other Transportation Information Centers special vehicle alert Moderate High Moderate
This flow is related to a flow that is effectively broadcast and intended for all, but since this flow goes between centers, an observer could learn of the locations of emergency vehicles on a broad scale by monitoring, increasing the awareness of a potentially nefarious actor. Thus, should probably be protected at some level. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message.
Transportation Information Center Vehicle special vehicle alert Not Applicable High Moderate
This flow is effectively broadcast and intended for all, so no need to obfuscate its contents. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message. The recipient must be sure that the originator is legitimate, as many of these alerts demand action by the recipient (pull over, make way, etc.). Since this power could easily be abused, it should be difficult to forge. Since this power is also often tied to emergency vehicle (life-saving) activity, it should not be interfered with. Availability is MODERATE because other mechanism (sirens, flashing lights) exist to provide the same message.
Vehicle Basic Vehicle driver update information Low Moderate Moderate
This information is all presented to the vehicle operator. Encrypting this information may make it harder to reverse engineer vehicle systems, and may defeat criminal tracking tools when the vehicle has already been compromised. Unless those scenarios are of concern to the operator or manufacturer, this can safely be set LOW. Any information presented to the operator of a vehicle should be both accurate and timely. By definition this includes safety information, but given that the driver has other means of learning about most threats, it seems difficult to justify HIGH. If HIGH is warranted, it should apply to both availability and integrity. Any information presented to the operator of a vehicle should be both accurate and timely. By definition this includes safety information, but given that the driver has other means of learning about most threats, it seems difficult to justify HIGH. If HIGH is warranted, it should apply to both availability and integrity.
Vehicle Basic Vehicle vehicle control Moderate High High
Internal vehicle flow that if reverse engineered could enable third party vehicle control. Largely a competitive question, could be set LOW if manufacturer and operator are not concerned with this type of compromise. Includes vehicle control commands, which must be timely and accurate to support safe vehicle operation. Includes vehicle control commands, which must be timely and accurate to support safe vehicle operation.
Vehicle Driver driver updates Not Applicable Moderate Moderate
This data is informing the driver about the safety of a nearby area. It should not contain anything sensitive, and does not matter if another person can observe it. This is the information that is presented to the driver. If they receive incorrect information, they may act in an unsafe manner. However, there are other indicators that would alert them to any hazards, such as an oncoming vehicle or crossing safety lights. If this information is not made available to the driver, then the system has not operated correctly.
Vehicle Characteristics Vehicle vehicle characteristics

Standards

Currently, there are no standards associated with the physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.





System Requirements

System Requirement Need
001 The system shall send the vehicle's location, speed and direction to other vehicles in the area, alerting vehicles in the vicinity. 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
002 The system shall provide special vehicle alert information to a third party provider so that vehicles can be warned that are in the vicinity of the dispatched emergency vehicle. 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
003 The system shall send the vehicle’s location, speed and direction to other vehicles in the area. 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
004 The system shall the vehicle’s location, speed and direction to other vehicles in the area. 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
005 The system shall notify vehicles in the vicinity when an emergency vehicle issues a special vehicle alert 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
006 The system shall exchange current vehicle location and motion information with other vehicles in the vicinity 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
007 The system shall provide to other vehicles an indication of its intent to leave a transit stop. 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
008 The system shall collect location and motion data from the vehicle platform. 02 The Connected Vehicle needs to be able to provide warnings to the driver or control actions to the vehicle based upon warnings received from nearby special vehicles.
009 The system shall provide its location with road-level accuracy to on-board applications. 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
010 The system shall exchange location and motion information with roadside equipment and nearby vehicles. 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
011 The system shall perform control actions based upon warnings received from nearby special vehicles. 02 The Connected Vehicle needs to be able to provide warnings to the driver or control actions to the vehicle based upon warnings received from nearby special vehicles.
012 The system shall receive emergency vehicle location information. 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
013 The system shall notify the Driver of the presence of emergency vehicles nearby that may affect the host vehicle. 01 The Driver needs to receive warnings of nearby special vehicles (which can include emergency vehicles, maintenance vehicles, or oversize commercial vehicles) if those special vehicles are approaching the Driver’s Vehicle in order to allow the driver to take appropriate actions.
014 The system shall provide warnings to the driver based upon warnings received from nearby special vehicles. 02 The Connected Vehicle needs to be able to provide warnings to the driver or control actions to the vehicle based upon warnings received from nearby special vehicles.
015 The system shall provide its location with lane-level accuracy to on-board warning applications. 02 The Connected Vehicle needs to be able to provide warnings to the driver or control actions to the vehicle based upon warnings received from nearby special vehicles.


Implementations


VS04.1 C-ITS Special Vehicle Alert Implementation

The special vehicle alerts are provided via direct V2V communications between the special vehicle and surrounding vehicles.

C-ITS Special Vehicle Alert Implementation Flows

Information FlowDescriptionInclusion Status
cv driver input This flow represents the tactile or auditory interface with ITS equipment containing the commercial vehicle driver and vehicle information. This flow contains inquiries to the commercial vehicle managing system, interaction with on-board equipment includi At Least One
driver input Driver input to the vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands. Optional
driver update information Information provided to the driver-vehicle interface to inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. The flow includes the information to be presented to the driver and associated me At Least One
driver updates Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. At Least One
maint and constr vehicle operator input User input from field personnel including current maintenance and construction status information as well as on-board device control. At Least One
vehicle characteristics The physical or visible characteristics of individual vehicles that can be used to detect, classify, and monitor vehicles and imaged to uniquely identify vehicles. Optional


C-ITS Special Vehicle Alert Implementation Functional Objects

Functional Object
CV On-Board Special Vehicle Safety
EV V2V Safety
MCV Vehicle Safety Monitoring
Transit Vehicle V2V Safety
Vehicle Basic Safety Communication
Vehicle Control Automation
Vehicle Control Warning


Back to Implementation List

VS04.2 Commercial WAW Emergency Vehicle Alert Implementation

The special vehicle alerts are provided by a third party provider that uses wide-area wireless communication to provide special vehicle alerts to vehicles in the vicinity.

Commercial WAW Emergency Vehicle Alert Implementation Flows

Information FlowDescriptionInclusion Status
driver input Driver input to the vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands. Optional
driver update information Information provided to the driver-vehicle interface to inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. The flow includes the information to be presented to the driver and associated me At Least One
driver updates Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. At Least One
vehicle characteristics The physical or visible characteristics of individual vehicles that can be used to detect, classify, and monitor vehicles and imaged to uniquely identify vehicles. Optional


Commercial WAW Emergency Vehicle Alert Implementation Functional Objects

Functional Object
Emergency Routing
EV On-Board En Route Support
TIC Traffic Control Dissemination
Vehicle Basic Safety Communication
Vehicle Control Automation
Vehicle Control Warning


Back to Implementation List

VS04.3 Emergency Vehicle Maneuver Coordination Implementation

This advanced implementation uses V2V communication to notify equipped vehicles when an emergency vehicle is making a maneuver in their vicinity. The vehicle uses this information to warn the driver and/or directly modify vehicle control actions depending on the level of control automation available in the vehicle.

Emergency Vehicle Maneuver Coordination Implementation Flows

Information FlowDescriptionInclusion Status
driver input Driver input to the vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands. Optional
driver update information Information provided to the driver-vehicle interface to inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. The flow includes the information to be presented to the driver and associated me At Least One
driver updates Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. At Least One
vehicle characteristics The physical or visible characteristics of individual vehicles that can be used to detect, classify, and monitor vehicles and imaged to uniquely identify vehicles. Optional


Emergency Vehicle Maneuver Coordination Implementation Functional Objects

Functional Object
Emergency Routing
EV On-Board En Route Support
Vehicle Basic Safety Communication
Vehicle Control Automation
Vehicle Control Warning


Back to Implementation List
