Kind: Subsystem

Class: Vehicle

Type: System

Maint and Constr Vehicle OBE

Overview

The 'Maint and Constr Vehicle OBE' resides in a maintenance, construction, or other specialized service vehicle or equipment and provides the processing, storage, and communications functions necessary to support highway maintenance and construction. All types of maintenance and construction vehicles are covered, including heavy equipment, supervisory vehicles, unmanned remote controlled field maintenance robots, and sensory platforms that may be wheeled or low altitude aerial vehicles (e.g. drones, balloons). The MCV OBE provides two-way communications between drivers/operators and dispatchers and maintains and communicates current location and status information. A wide range of operational status is monitored, measured, and made available, depending on the specific type of vehicle or equipment. A snow plow for example, would monitor whether the plow is up or down and material usage information. The Maint and Constr Vehicle OBE may also contain capabilities to monitor vehicle systems to support maintenance of the vehicle itself. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including maintenance and construction vehicles. The Maint and Constr Vehicle OBE supplements these general capabilities with capabilities that are specific to maintenance and construction vehicles.



This physical object is included in the following Service Packages:

Triples

Source Flow Destination
Basic Maint and Constr Vehicle maint and constr material information Maint and Constr Vehicle OBE
Basic Maint and Constr Vehicle maint and constr vehicle measures Maint and Constr Vehicle OBE
Connected Vehicle Roadside Equipment barrier system status Maint and Constr Vehicle OBE
Connected Vehicle Roadside Equipment signal priority status Maint and Constr Vehicle OBE
Connected Vehicle Roadside Equipment work zone warning notification Maint and Constr Vehicle OBE
Field asset ID Maint and Constr Vehicle OBE
ITS Roadway Equipment environmental sensor data Maint and Constr Vehicle OBE
ITS Roadway Equipment infrastructure monitoring sensor data Maint and Constr Vehicle OBE
ITS Roadway Equipment roadway dynamic signage status Maint and Constr Vehicle OBE
ITS Roadway Equipment traffic detector data Maint and Constr Vehicle OBE
ITS Roadway Equipment traffic image meta data Maint and Constr Vehicle OBE
ITS Roadway Equipment traffic images Maint and Constr Vehicle OBE
Location and Time Data Source location and time Maint and Constr Vehicle OBE
Maint and Constr Field Personnel personnel monitoring Maint and Constr Vehicle OBE
Maint and Constr Management Center asset location safety warning Maint and Constr Vehicle OBE
Maint and Constr Management Center barrier system status Maint and Constr Vehicle OBE
Maint and Constr Management Center environmental sensor control Maint and Constr Vehicle OBE
Maint and Constr Management Center maint and constr dispatch information Maint and Constr Vehicle OBE
Maint and Constr Management Center maint and constr vehicle system control Maint and Constr Vehicle OBE
Maint and Constr Management Center work zone warning device control Maint and Constr Vehicle OBE
Maint and Constr Vehicle OBE maint and constr vehicle control Basic Maint and Constr Vehicle
Maint and Constr Vehicle OBE barrier system control Connected Vehicle Roadside Equipment
Maint and Constr Vehicle OBE signal priority request Connected Vehicle Roadside Equipment
Maint and Constr Vehicle OBE work zone warning notification Connected Vehicle Roadside Equipment
Maint and Constr Vehicle OBE driver information Driver
Maint and Constr Vehicle OBE maint and constr vehicle conditions Equipment Repair Facility
Maint and Constr Vehicle OBE environmental sensor control ITS Roadway Equipment
Maint and Constr Vehicle OBE environmental sensor data ITS Roadway Equipment
Maint and Constr Vehicle OBE infrastructure monitoring sensor control ITS Roadway Equipment
Maint and Constr Vehicle OBE local signal priority request ITS Roadway Equipment
Maint and Constr Vehicle OBE roadway dynamic signage data ITS Roadway Equipment
Maint and Constr Vehicle OBE traffic detector control ITS Roadway Equipment
Maint and Constr Vehicle OBE video surveillance control ITS Roadway Equipment
Maint and Constr Vehicle OBE work zone warning Maint and Constr Field Personnel
Maint and Constr Vehicle OBE asset locations Maint and Constr Management Center
Maint and Constr Vehicle OBE barrier system control Maint and Constr Management Center
Maint and Constr Vehicle OBE environmental sensor data Maint and Constr Management Center
Maint and Constr Vehicle OBE infrastructure conditions data Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr dispatch status Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr vehicle conditions Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr vehicle location data Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr vehicle operational data Maint and Constr Management Center
Maint and Constr Vehicle OBE work zone status Maint and Constr Management Center
Maint and Constr Vehicle OBE work zone warning status Maint and Constr Management Center
Maint and Constr Vehicle OBE maint and constr vehicle condition presentation Maint and Constr Vehicle Operator
Maint and Constr Vehicle OBE maint and constr vehicle operator presentation Maint and Constr Vehicle Operator
Maint and Constr Vehicle OBE signal priority request Multi-Access Edge Computing
Maint and Constr Vehicle OBE work zone warning notification Multi-Access Edge Computing
Maint and Constr Vehicle OBE maint and constr vehicle status coordination Other MCV OBEs
Maint and Constr Vehicle OBE work zone warning notification Other MCV OBEs
Maint and Constr Vehicle OBE local METR information for users Personal Information Device
Maint and Constr Vehicle OBE asset locations Personnel Device
Maint and Constr Vehicle OBE personnel safety warning Personnel Device
Maint and Constr Vehicle OBE remote vehicle status Personnel Device
Maint and Constr Vehicle OBE signal priority request Transportation Information Center
Maint and Constr Vehicle OBE local METR information for users Vehicle
Maint and Constr Vehicle OBE special vehicle alert Vehicle
Maint and Constr Vehicle OBE vehicle signage data Vehicle
Maint and Constr Vehicle Operator driver environmental input Maint and Constr Vehicle OBE
Maint and Constr Vehicle Operator maint and constr vehicle operator input Maint and Constr Vehicle OBE
METR Regulation System METR management information Maint and Constr Vehicle OBE
METR System METR management information Maint and Constr Vehicle OBE
Multi-Access Edge Computing signal priority status Maint and Constr Vehicle OBE
Multi-Access Edge Computing work zone warning notification Maint and Constr Vehicle OBE
Other MCV OBEs maint and constr vehicle status coordination Maint and Constr Vehicle OBE
Other MCV OBEs work zone warning notification Maint and Constr Vehicle OBE
Personnel Device personnel location Maint and Constr Vehicle OBE
Personnel Device remote vehicle control commands Maint and Constr Vehicle OBE
Roadway Environment environmental conditions Maint and Constr Vehicle OBE
Transportation Information Center signal priority status Maint and Constr Vehicle OBE

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Moderate Moderate High MC01: Maintenance and Construction Vehicle and Equipment Tracking
Class 5 Moderate Moderate High MC01.1: Maintenance and Construction Vehicle and Equipment Tracking Implementation
Class 4 High High Moderate MC09: Infrastructure Monitoring
Class 4 High High Moderate MC09.1: Sensor-Based Monitoring Implementation
Class 3 Moderate High Moderate MC07: Work Zone Safety Monitoring
Class 3 Moderate High Moderate MC07.1: Sensor-Based Safety Monitoring Implementation
Class 3 Moderate High Moderate MC07.2: C-ITS Based Safety Monitoring Implementation
Class 3 Moderate High Moderate MC07.3: MEC-Based Safety Monitoring Implementation
Class 3 Moderate High Moderate TM19: Roadway Closure Management
Class 3 Moderate High Moderate TM19.1: Wide Area Wireless Implementation
Class 3 Moderate High Moderate TM19.2: C-ITS Communications Implementation
Class 3 Not Applicable High Moderate VS04: Special Vehicle Alert
Class 3 Not Applicable High Moderate VS04.1: C-ITS Special Vehicle Alert Implementation
Class 3 Moderate High Moderate VS19: Management of Electronic Traffic Regulations (METR)
Class 3 Moderate High Moderate VS19.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate MC02: Maintenance and Construction Vehicle Maintenance
Class 2 Moderate Moderate Moderate MC02.1: Maintenance and Construction Vehicle Maintenance Implementation
Class 2 Moderate Moderate Moderate MC04: Winter Maintenance
Class 2 Moderate Moderate Moderate MC04.1: Winter Maintenance Implementation
Class 2 Moderate Moderate Moderate MC05: Roadway Maintenance and Construction
Class 2 Moderate Moderate Moderate MC05.1: General Roadway Maintenance Implementation
Class 2 Moderate Moderate Moderate MC05.2: ITS Equipment Maintenance Implementation
Class 2 Moderate Moderate Moderate MC06: Work Zone Management
Class 2 Moderate Moderate Moderate MC06.1: Wide Area Wireless Implementation
Class 2 Moderate Moderate Moderate MC06.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate MC10: Asset Tracking
Class 2 Moderate Moderate Moderate MC10.2: Active RFID Technologies Implementation
Class 2 Moderate Moderate Moderate MC10.3: Active RFID Technologies and Remote Control Implementation
Class 2 Moderate Moderate Moderate MC10.4: Active RFID Technologies and Automated Vehicle Collection Implementation
Class 2 Moderate Moderate Moderate MC11: Maintenance and Construction Signal Priority
Class 2 Moderate Moderate Moderate MC11.1: Traditional Field Control Implementation
Class 2 Moderate Moderate Moderate MC11.2: Traditional TMC Control Implementation
Class 2 Moderate Moderate Moderate MC11.3: Center Control Implementation
Class 2 Moderate Moderate Moderate MC11.4: C-ITS Field Control Implementation
Class 2 Moderate Moderate Moderate MC11.5: C-ITS Center Control Implementation
Class 2 Moderate Moderate Moderate MC12: One-Way Convoy Driving
Class 2 Moderate Moderate Moderate MC12.1: One-Way Convoy Driving Implementation
Class 2 Moderate Moderate Moderate VS19.1: Wide Area Wireless Communications Implementation
Class 2 Moderate Moderate Moderate WX01: Weather Data Collection
Class 2 Moderate Moderate Moderate WX01.2: Maint and Constr Vehicle Reported Implementation
Class 1 Low Low Moderate MC10.5: Asset Tracking Based Infrastructure Warnings Implementation
Class 1 Low Moderate Low MC11.6: Wide Area Wireless Implementation
Class 1 Low Moderate Low MC11.7: MEC Supported Implementation
Class 1 Low Moderate Moderate TI07: In-Vehicle Signage
Class 1 Low Moderate Moderate TI07.1: Wide Area Wireless Implementation
Class 1 Low Moderate Moderate TI07.2: C-ITS Communications Implementation

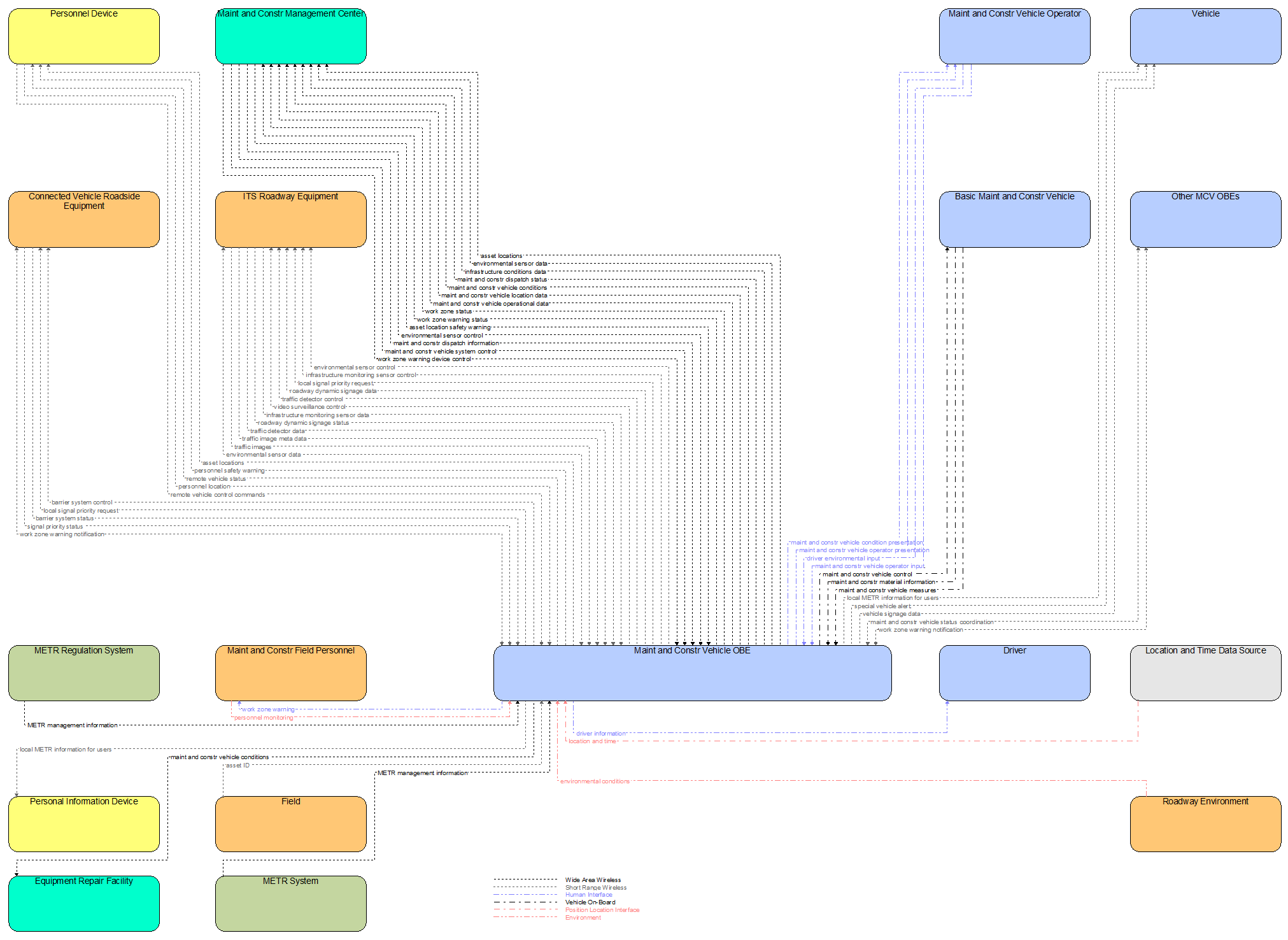

Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

NameTitle
SAE J3361 Antenna requirements V2X Antenna Coverage and Test Requirements for US FHWA Class 1 and Class 3-13 Class Vehicles
SAE J5001 OBU Standard Onboard Unit Standard for Connected Vehicles
