Kind: Terminator
Class: Vehicle
Type: System
Basic Vehicle
Overview
'Basic Vehicle' represents a complete operating vehicle. It includes the vehicle platform that interfaces with and hosts ITS electronics and all of the driver convenience and entertainment systems, and other non-ITS electronics on-board the vehicle. Interfaces represent both internal on-board interfaces between ITS equipment and other vehicle systems and other passive and active external interfaces or views of the vehicle that support vehicle/traffic monitoring and management. External interfaces may also represent equipment that is carried into the vehicle (e.g., a smartphone that is brought into the vehicle). Internal interfaces are often implemented through a vehicle databus, which is also included in this object. Note that 'Vehicle' represents the general functions and interfaces that are associated with personal automobiles as well as commercial vehicles, emergency vehicles, transit vehicles, and other specialized vehicles.
This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.
This physical object is included in the following Service Packages:
- MC06: Work Zone Management
- MC07: Work Zone Safety Monitoring
- PS04: Mayday Notification
- PS05: Vehicle Emergency Response
- PS07: Incident Scene Safety Monitoring
- PS10: Wide-Area Alert
- PS15: Stolen Vehicle Recovery
- PT10: Intermittent Bus Lanes
- PT12: Transit Vehicle at Station/Stop Warnings
- ST01: Emissions Monitoring
- ST05: Electric Charging Stations Management
- SU05: Location and Time
- SU12: Vehicle Maintenance
- TM01: Infrastructure-Based Traffic Surveillance
- TM02: Vehicle-Based Traffic Surveillance
- TM06: Traffic Information Dissemination
- TM19: Roadway Closure Management
- VS01: Autonomous Vehicle Safety Systems
- VS02: V2V Basic Safety
- VS03: Situational Awareness
- VS04: Special Vehicle Alert
- VS05: Curve Speed Warning
- VS06: Stop Sign Gap Assist
- VS07: Road Weather Motorist Alert and Warning
- VS08: Queue Warning
- VS09: Reduced Speed Zone Warning / Lane Closure
- VS10: Restricted Lane Warnings
- VS11: Oversize Vehicle Warning
- VS12: Vulnerable Road User Safety
- VS13: Intersection Safety Warning and Collision Avoidance
- VS14: Cooperative Adaptive Cruise Control
- VS15: Infrastructure Enhanced Cooperative Adaptive Cruise Control
- VS16: Maneuver Coordination
- VS17: Automated Vehicle Operations
Triples
Security
This physical object has the following security levels for the associated service packages.
| Physical Object Security | ||||
|---|---|---|---|---|
| Security Class | Confidentiality | Integrity | Availability | Service Package |
| Class 1 | Not Applicable | Low | Low | MC06: Work Zone Management |
| Class 1 | Not Applicable | Low | Low | PS10: Wide-Area Alert |
| Class 1 | Not Applicable | Moderate | Low | TM01: Infrastructure-Based Traffic Surveillance |
| Class 1 | Not Applicable | Moderate | Low | TM01.3: Bluetooth Signature Monitoring |
| Class 1 | Not Applicable | Low | Low | TM06: Traffic Information Dissemination |
| Class 1 | Not Applicable | Low | Low | TM06.2: Advisory Radio |
| Class 1 | Not Applicable | Low | Low | TM19: Roadway Closure Management |

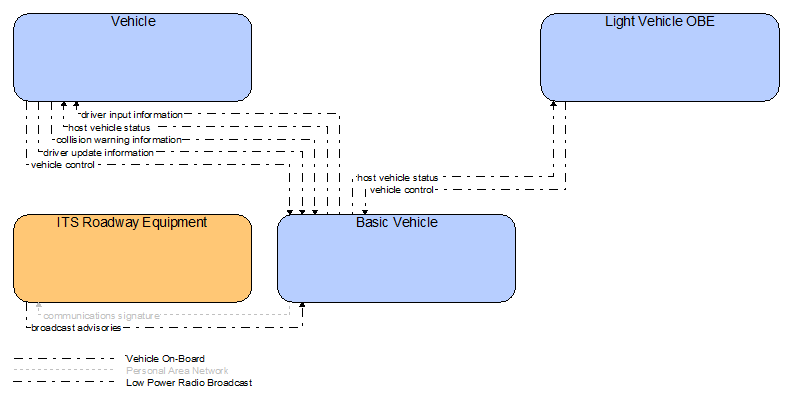

Interfaces Diagram
Standards
Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
