Kind: Subsystem

Class: Center

Type: System

Traffic Management Center

Overview

The 'Traffic Management Center' monitors and controls traffic and the road network. It represents centers that manage a broad range of transportation facilities including freeway systems, rural and suburban highway systems, and urban and suburban traffic control systems. It communicates with ITS Roadway Equipment and Connected Vehicle Roadside Equipment (RSE) to monitor and manage traffic flow and monitor the condition of the roadway, surrounding environmental conditions, and field equipment status. It manages traffic and transportation resources to support allied agencies in responding to, and recovering from, incidents ranging from minor traffic incidents through major disasters.



This physical object is included in the following Service Packages:

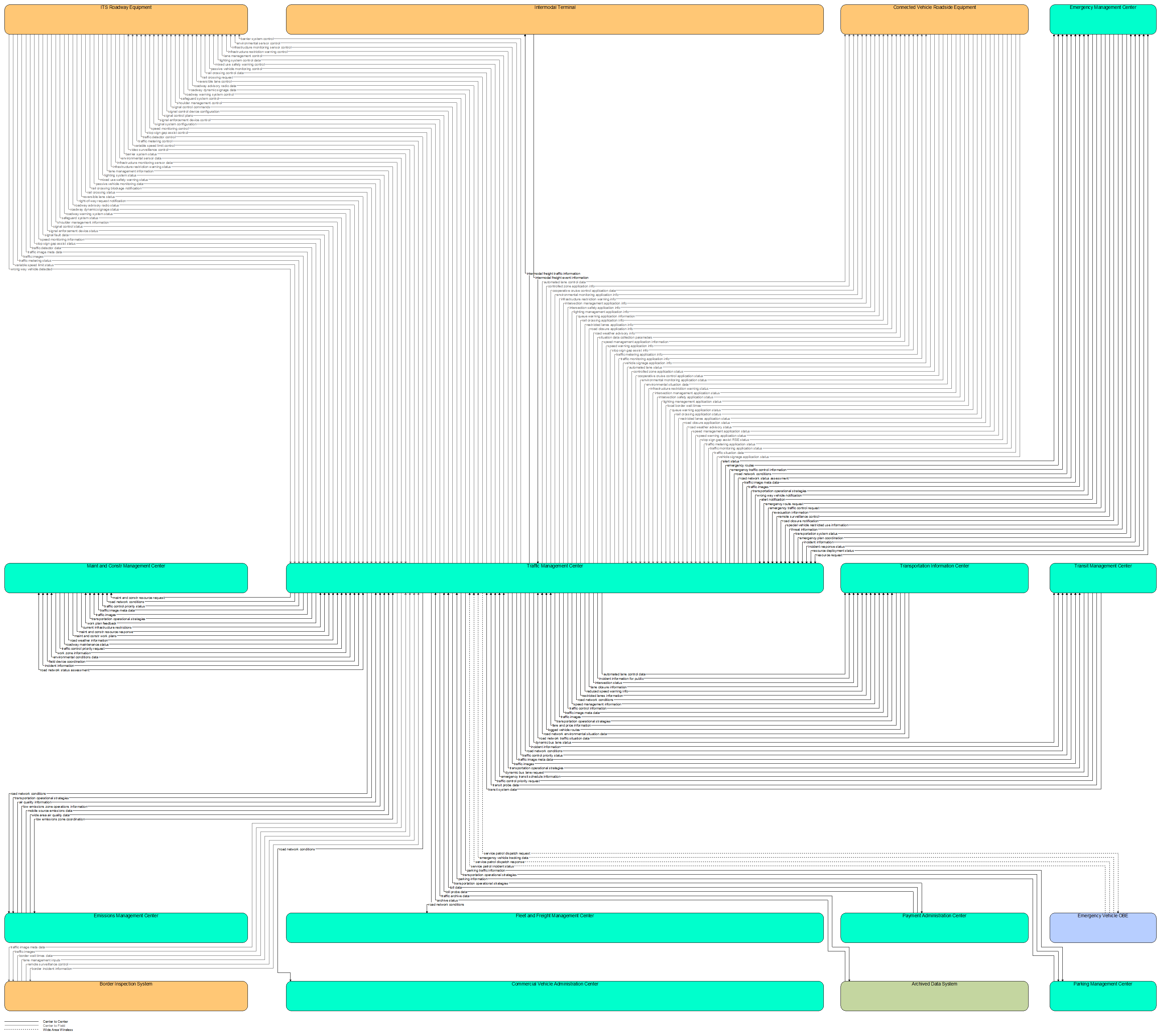

Triples

Source Flow Destination
Alerting and Advisory System alerts and advisories Traffic Management Center
Alternate Mode Transportation Center alternate mode information Traffic Management Center
Archived Data System archive status Traffic Management Center
Border Inspection System border incident information Traffic Management Center
Border Inspection System border wait times data Traffic Management Center
Border Inspection System lane management inputs Traffic Management Center
Border Inspection System remote surveillance control Traffic Management Center
Connected Vehicle Roadside Equipment automated lane status Traffic Management Center
Connected Vehicle Roadside Equipment controlled zone application status Traffic Management Center
Connected Vehicle Roadside Equipment cooperative cruise control application status Traffic Management Center
Connected Vehicle Roadside Equipment environmental monitoring application status Traffic Management Center
Connected Vehicle Roadside Equipment environmental situation data Traffic Management Center
Connected Vehicle Roadside Equipment infrastructure restriction warning status Traffic Management Center
Connected Vehicle Roadside Equipment intersection management application status Traffic Management Center
Connected Vehicle Roadside Equipment intersection safety application status Traffic Management Center
Connected Vehicle Roadside Equipment lighting management application status Traffic Management Center
Connected Vehicle Roadside Equipment local border wait times Traffic Management Center
Connected Vehicle Roadside Equipment queue warning application status Traffic Management Center
Connected Vehicle Roadside Equipment rail crossing application status Traffic Management Center
Connected Vehicle Roadside Equipment restricted lanes application status Traffic Management Center
Connected Vehicle Roadside Equipment road closure application status Traffic Management Center
Connected Vehicle Roadside Equipment road weather advisory status Traffic Management Center
Connected Vehicle Roadside Equipment speed management application status Traffic Management Center
Connected Vehicle Roadside Equipment speed warning application status Traffic Management Center
Connected Vehicle Roadside Equipment stop sign gap assist RSE status Traffic Management Center
Connected Vehicle Roadside Equipment traffic metering application status Traffic Management Center
Connected Vehicle Roadside Equipment traffic monitoring application status Traffic Management Center
Connected Vehicle Roadside Equipment traffic situation data Traffic Management Center
Connected Vehicle Roadside Equipment vehicle signage application status Traffic Management Center
Emergency Management Center alert notification Traffic Management Center
Emergency Management Center emergency plan coordination Traffic Management Center
Emergency Management Center emergency route request Traffic Management Center
Emergency Management Center emergency traffic control request Traffic Management Center
Emergency Management Center evacuation information Traffic Management Center
Emergency Management Center incident information Traffic Management Center
Emergency Management Center incident response status Traffic Management Center
Emergency Management Center remote surveillance control Traffic Management Center
Emergency Management Center resource deployment status Traffic Management Center
Emergency Management Center resource request Traffic Management Center
Emergency Management Center road closure notification Traffic Management Center
Emergency Management Center special vehicle restricted use information Traffic Management Center
Emergency Management Center threat information Traffic Management Center
Emergency Management Center transportation system status Traffic Management Center
Emergency Vehicle OBE emergency vehicle tracking data Traffic Management Center
Emergency Vehicle OBE service patrol dispatch response Traffic Management Center
Emergency Vehicle OBE service patrol incident status Traffic Management Center
Emissions Management Center air quality information Traffic Management Center
Emissions Management Center low emissions zone coordination Traffic Management Center
Emissions Management Center low emissions zone operations information Traffic Management Center
Emissions Management Center mobile source emissions data Traffic Management Center
Emissions Management Center wide area air quality data Traffic Management Center
Event Promoter System event plans Traffic Management Center
Intermodal Terminal intermodal freight event information Traffic Management Center
ITS Roadway Equipment barrier system status Traffic Management Center
ITS Roadway Equipment environmental sensor data Traffic Management Center
ITS Roadway Equipment high resolution traffic signal data Traffic Management Center
ITS Roadway Equipment infrastructure monitoring sensor data Traffic Management Center
ITS Roadway Equipment infrastructure restriction warning status Traffic Management Center
ITS Roadway Equipment lane management information Traffic Management Center
ITS Roadway Equipment lighting system status Traffic Management Center
ITS Roadway Equipment mixed use safety warning status Traffic Management Center
ITS Roadway Equipment passive vehicle monitoring data Traffic Management Center
ITS Roadway Equipment rail crossing blockage notification Traffic Management Center
ITS Roadway Equipment rail crossing status Traffic Management Center
ITS Roadway Equipment reversible lane status Traffic Management Center
ITS Roadway Equipment right-of-way request notification Traffic Management Center
ITS Roadway Equipment roadway advisory radio status Traffic Management Center
ITS Roadway Equipment roadway dynamic signage status Traffic Management Center
ITS Roadway Equipment roadway warning system status Traffic Management Center
ITS Roadway Equipment safeguard system status Traffic Management Center
ITS Roadway Equipment shoulder management information Traffic Management Center
ITS Roadway Equipment signal control status Traffic Management Center
ITS Roadway Equipment signal enforcement device status Traffic Management Center
ITS Roadway Equipment signal fault data Traffic Management Center
ITS Roadway Equipment speed monitoring information Traffic Management Center
ITS Roadway Equipment stop sign gap assist status Traffic Management Center
ITS Roadway Equipment traffic detector data Traffic Management Center
ITS Roadway Equipment traffic image meta data Traffic Management Center
ITS Roadway Equipment traffic images Traffic Management Center
ITS Roadway Equipment traffic metering status Traffic Management Center
ITS Roadway Equipment variable speed limit status Traffic Management Center
ITS Roadway Equipment wrong way vehicle detected Traffic Management Center
Maint and Constr Management Center current infrastructure restrictions Traffic Management Center
Maint and Constr Management Center environmental conditions data Traffic Management Center
Maint and Constr Management Center field device coordination Traffic Management Center
Maint and Constr Management Center incident information Traffic Management Center
Maint and Constr Management Center maint and constr resource response Traffic Management Center
Maint and Constr Management Center maint and constr work plans Traffic Management Center
Maint and Constr Management Center road network status assessment Traffic Management Center
Maint and Constr Management Center road weather information Traffic Management Center
Maint and Constr Management Center roadway maintenance status Traffic Management Center
Maint and Constr Management Center traffic control priority request Traffic Management Center
Maint and Constr Management Center work zone information Traffic Management Center
Media external reports Traffic Management Center
Multi-Access Edge Computing intersection management application status Traffic Management Center
Multi-Access Edge Computing intersection safety application status Traffic Management Center
Multi-Access Edge Computing rail crossing application status Traffic Management Center
Multi-Access Edge Computing restricted lanes application status Traffic Management Center
Multi-Access Edge Computing road closure application status Traffic Management Center
Multi-Access Edge Computing traffic situation data Traffic Management Center
Multi-Access Edge Computing vehicle signage application status Traffic Management Center
Multimodal Crossing Equipment lane management inputs Traffic Management Center
Multimodal Crossing Equipment multimodal crossing status Traffic Management Center
Other Traffic Management Centers ATSPM coordination Traffic Management Center
Other Traffic Management Centers device control request Traffic Management Center
Other Traffic Management Centers device data Traffic Management Center
Other Traffic Management Centers device status Traffic Management Center
Other Traffic Management Centers emergency traffic coordination Traffic Management Center
Other Traffic Management Centers incident information Traffic Management Center
Other Traffic Management Centers road network conditions Traffic Management Center
Other Traffic Management Centers traffic image meta data Traffic Management Center
Other Traffic Management Centers traffic images Traffic Management Center
Other Traffic Management Centers transportation operational strategies Traffic Management Center
Parking Management Center parking information Traffic Management Center
Payment Administration Center toll data Traffic Management Center
Payment Administration Center toll probe data Traffic Management Center
Rail Operations Center railroad advisories Traffic Management Center
Rail Operations Center railroad schedules Traffic Management Center
Social Media traveler sourced updates Traffic Management Center
Surface Transportation Weather Service environmental conditions data status Traffic Management Center
Surface Transportation Weather Service qualified environmental conditions data Traffic Management Center
Surface Transportation Weather Service roadway micro forecast Traffic Management Center
Surface Transportation Weather Service transportation weather information Traffic Management Center
Traffic Management Center threat information Alerting and Advisory System
Traffic Management Center performance metrics Archived Data System
Traffic Management Center traffic archive data Archived Data System
Traffic Management Center border incident information Border Inspection System
Traffic Management Center traffic image meta data Border Inspection System
Traffic Management Center traffic images Border Inspection System
Traffic Management Center road network conditions Center
Traffic Management Center traffic image meta data Center
Traffic Management Center traffic images Center
Traffic Management Center road network conditions Commercial Vehicle Administration Center
Traffic Management Center automated lane control data Connected Vehicle Roadside Equipment
Traffic Management Center controlled zone application info Connected Vehicle Roadside Equipment
Traffic Management Center cooperative cruise control application data Connected Vehicle Roadside Equipment
Traffic Management Center environmental monitoring application info Connected Vehicle Roadside Equipment
Traffic Management Center infrastructure restriction warning info Connected Vehicle Roadside Equipment
Traffic Management Center intersection management application info Connected Vehicle Roadside Equipment
Traffic Management Center intersection safety application info Connected Vehicle Roadside Equipment
Traffic Management Center lighting management application info Connected Vehicle Roadside Equipment
Traffic Management Center queue warning application information Connected Vehicle Roadside Equipment
Traffic Management Center rail crossing application info Connected Vehicle Roadside Equipment
Traffic Management Center restricted lanes application info Connected Vehicle Roadside Equipment
Traffic Management Center road closure application info Connected Vehicle Roadside Equipment
Traffic Management Center road weather advisory info Connected Vehicle Roadside Equipment
Traffic Management Center situation data collection parameters Connected Vehicle Roadside Equipment
Traffic Management Center speed management application information Connected Vehicle Roadside Equipment
Traffic Management Center speed warning application info Connected Vehicle Roadside Equipment
Traffic Management Center stop sign gap assist info Connected Vehicle Roadside Equipment
Traffic Management Center traffic metering application info Connected Vehicle Roadside Equipment
Traffic Management Center traffic monitoring application info Connected Vehicle Roadside Equipment
Traffic Management Center vehicle signage application info Connected Vehicle Roadside Equipment
Traffic Management Center alert status Emergency Management Center
Traffic Management Center emergency plan coordination Emergency Management Center
Traffic Management Center emergency routes Emergency Management Center
Traffic Management Center emergency traffic control information Emergency Management Center
Traffic Management Center incident information Emergency Management Center
Traffic Management Center incident response status Emergency Management Center
Traffic Management Center resource deployment status Emergency Management Center
Traffic Management Center resource request Emergency Management Center
Traffic Management Center road network conditions Emergency Management Center
Traffic Management Center road network status assessment Emergency Management Center
Traffic Management Center traffic image meta data Emergency Management Center
Traffic Management Center traffic images Emergency Management Center
Traffic Management Center transportation operational strategies Emergency Management Center
Traffic Management Center wrong way vehicle notification Emergency Management Center
Traffic Management Center service patrol dispatch request Emergency Vehicle OBE
Traffic Management Center low emissions zone coordination Emissions Management Center
Traffic Management Center road network conditions Emissions Management Center
Traffic Management Center transportation operational strategies Emissions Management Center
Traffic Management Center current lane restrictions Enforcement Center
Traffic Management Center lane violation notification Enforcement Center
Traffic Management Center request for enforcement Enforcement Center
Traffic Management Center event confirmation Event Promoter System
Traffic Management Center transportation operational strategies Event Promoter System
Traffic Management Center road network conditions Fleet and Freight Management Center
Traffic Management Center intermodal freight traffic information Intermodal Terminal
Traffic Management Center barrier system control ITS Roadway Equipment
Traffic Management Center environmental sensor control ITS Roadway Equipment
Traffic Management Center infrastructure monitoring sensor control ITS Roadway Equipment
Traffic Management Center infrastructure restriction warning control ITS Roadway Equipment
Traffic Management Center lane management control ITS Roadway Equipment
Traffic Management Center lighting system control data ITS Roadway Equipment
Traffic Management Center mixed use safety warning control ITS Roadway Equipment
Traffic Management Center passive vehicle monitoring control ITS Roadway Equipment
Traffic Management Center rail crossing control data ITS Roadway Equipment
Traffic Management Center rail crossing request ITS Roadway Equipment
Traffic Management Center reversible lane control ITS Roadway Equipment
Traffic Management Center roadway advisory radio data ITS Roadway Equipment
Traffic Management Center roadway dynamic signage data ITS Roadway Equipment
Traffic Management Center roadway warning system control ITS Roadway Equipment
Traffic Management Center safeguard system control ITS Roadway Equipment
Traffic Management Center shoulder management control ITS Roadway Equipment
Traffic Management Center signal control commands ITS Roadway Equipment
Traffic Management Center signal control device configuration ITS Roadway Equipment
Traffic Management Center signal control plans ITS Roadway Equipment
Traffic Management Center signal enforcement device control ITS Roadway Equipment
Traffic Management Center signal preemption request ITS Roadway Equipment
Traffic Management Center signal priority service request ITS Roadway Equipment
Traffic Management Center signal system configuration ITS Roadway Equipment
Traffic Management Center speed monitoring control ITS Roadway Equipment
Traffic Management Center stop sign gap assist control ITS Roadway Equipment
Traffic Management Center traffic detector control ITS Roadway Equipment
Traffic Management Center traffic metering control ITS Roadway Equipment
Traffic Management Center traffic signal data logger configuration ITS Roadway Equipment
Traffic Management Center variable speed limit control ITS Roadway Equipment
Traffic Management Center video surveillance control ITS Roadway Equipment
Traffic Management Center environmental conditions data Maint and Constr Management Center
Traffic Management Center field device coordination Maint and Constr Management Center
Traffic Management Center incident information Maint and Constr Management Center
Traffic Management Center maint and constr resource request Maint and Constr Management Center
Traffic Management Center road network conditions Maint and Constr Management Center
Traffic Management Center road network status assessment Maint and Constr Management Center
Traffic Management Center traffic control priority status Maint and Constr Management Center
Traffic Management Center traffic image meta data Maint and Constr Management Center
Traffic Management Center traffic images Maint and Constr Management Center
Traffic Management Center transportation operational strategies Maint and Constr Management Center
Traffic Management Center work plan feedback Maint and Constr Management Center
Traffic Management Center traffic image meta data Media
Traffic Management Center traffic images Media
Traffic Management Center traffic information for media Media
Traffic Management Center intersection management application info Multi-Access Edge Computing
Traffic Management Center intersection safety application info Multi-Access Edge Computing
Traffic Management Center rail crossing application info Multi-Access Edge Computing
Traffic Management Center restricted lanes application info Multi-Access Edge Computing
Traffic Management Center road closure application info Multi-Access Edge Computing
Traffic Management Center vehicle signage application info Multi-Access Edge Computing
Traffic Management Center multimodal crossing inhibit Multimodal Crossing Equipment
Traffic Management Center ATSPM coordination Other Traffic Management Centers
Traffic Management Center device control request Other Traffic Management Centers
Traffic Management Center device data Other Traffic Management Centers
Traffic Management Center device status Other Traffic Management Centers
Traffic Management Center emergency traffic coordination Other Traffic Management Centers
Traffic Management Center incident information Other Traffic Management Centers
Traffic Management Center road network conditions Other Traffic Management Centers
Traffic Management Center traffic image meta data Other Traffic Management Centers
Traffic Management Center traffic images Other Traffic Management Centers
Traffic Management Center transportation operational strategies Other Traffic Management Centers
Traffic Management Center parking traffic information Parking Management Center
Traffic Management Center transportation operational strategies Parking Management Center
Traffic Management Center transportation operational strategies Payment Administration Center
Traffic Management Center rail crossing advisories Rail Operations Center
Traffic Management Center traffic information for media Social Media
Traffic Management Center environmental conditions data Surface Transportation Weather Service
Traffic Management Center road network environmental situation data Surface Transportation Weather Service
Traffic Management Center traffic operator data Traffic Operations Personnel
Traffic Management Center dynamic bus lane status Transit Management Center
Traffic Management Center incident information Transit Management Center
Traffic Management Center road network conditions Transit Management Center
Traffic Management Center traffic control priority status Transit Management Center
Traffic Management Center traffic image meta data Transit Management Center
Traffic Management Center traffic images Transit Management Center
Traffic Management Center transportation operational strategies Transit Management Center
Traffic Management Center arriving train information Transportation Information Center
Traffic Management Center automated lane control data Transportation Information Center
Traffic Management Center emergency traffic control information Transportation Information Center
Traffic Management Center incident information for public Transportation Information Center
Traffic Management Center intersection status Transportation Information Center
Traffic Management Center lane closure information Transportation Information Center
Traffic Management Center rail crossing status Transportation Information Center
Traffic Management Center reduced speed warning info Transportation Information Center
Traffic Management Center restricted lanes information Transportation Information Center
Traffic Management Center reversible lane status Transportation Information Center
Traffic Management Center road network conditions Transportation Information Center
Traffic Management Center speed management information Transportation Information Center
Traffic Management Center speed monitoring information Transportation Information Center
Traffic Management Center traffic control information Transportation Information Center
Traffic Management Center traffic control priority status Transportation Information Center
Traffic Management Center traffic image meta data Transportation Information Center
Traffic Management Center traffic images Transportation Information Center
Traffic Management Center transportation operational strategies Transportation Information Center
Traffic Management Center vehicle situation data parameters Transportation Information Center
Traffic Management Center wrong way vehicle notification Transportation Information Center
Traffic Management Center environmental conditions data Weather Service System
Traffic Management Center road network environmental situation data Weather Service System
Traffic Operations Personnel traffic operator input Traffic Management Center
Transit Management Center dynamic bus lane request Traffic Management Center
Transit Management Center emergency transit schedule information Traffic Management Center
Transit Management Center traffic control priority request Traffic Management Center
Transit Management Center transit probe data Traffic Management Center
Transit Management Center transit system data Traffic Management Center
Transportation Information Center emergency traffic control request Traffic Management Center
Transportation Information Center fare and price information Traffic Management Center
Transportation Information Center logged vehicle routes Traffic Management Center
Transportation Information Center personal signal service request Traffic Management Center
Transportation Information Center road network environmental situation data Traffic Management Center
Transportation Information Center road network traffic situation data Traffic Management Center
Transportation Information Center traffic control priority request Traffic Management Center
Transportation Information Center vehicle environmental data Traffic Management Center
Transportation Information Center vehicle situation data Traffic Management Center
Vehicle Operations and Service Center emissions situation data Traffic Management Center
Vehicle Operations and Service Center vehicle situation data Traffic Management Center
Weather Service System environmental conditions data status Traffic Management Center
Weather Service System qualified environmental conditions data Traffic Management Center
Weather Service System weather information Traffic Management Center
Wireless Communications Provider System comm-derived travel performance data Traffic Management Center

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Low Moderate High MC08: Maintenance and Construction Activity Coordination
Class 5 Low Moderate High MC08.1: Maintenance and Construction Activity Coordination Implementation
Class 5 High High High PS01: Emergency Call-Taking and Dispatch
Class 5 High High High PS01.2: Public Safety Dispatch and Routing Implementation
Class 5 High High High PS06: Incident Scene Pre-Arrival Staging Guidance for Emergency Responders
Class 5 High High High PS06.1: Incident Scene Pre-Arrival Staging Guidance for Emergency Responders Implementation
Class 5 High High High PS09: Transportation Infrastructure Protection
Class 5 Moderate Moderate High PS09.1: Transportation Infrastructure Security and Safety Monitoring Implementation
Class 5 High High High PS09.2: Barrier and Safeguard Systems Connected ITS Implementation
Class 5 High High High PS10: Wide-Area Alert
Class 5 High High High PS10.1: Wide Area Alert Implementation
Class 5 High High High PS11: Early Warning System
Class 5 High High High PS11.1: Early Warning System Implementation
Class 5 High High High PS12: Disaster Response and Recovery
Class 5 High High High PS12.1: Disaster Response and Recovery Implementation
Class 5 High High High PS13: Evacuation and Reentry Management
Class 5 High High High PS13.1: Evacuation and Reentry Management Implementation
Class 5 High High High TM09: Integrated Decision Support and Demand Management
Class 5 High High High TM09.1: Integrated Decision Support and Demand Management Implementation
Class 5 Moderate High High TM14: Advanced Railroad Grade Crossing
Class 5 Moderate High High TM14.1: Wide Area Wireless Implementation
Class 5 Moderate High High TM14.2: C-ITS Communications Implementation
Class 5 High High High TM24: Tunnel Management
Class 5 High High High TM24.1: Wide Area Wireless Communications Implementation
Class 5 High High High TM24.2: C-ITS Communications Implementation
Class 5 Moderate High High VS11: Oversize Vehicle Warning
Class 5 Moderate High High VS11.1: Infrastructure Only Implementation
Class 5 Moderate High High VS11.2: Wide Area Wireless-General Advisories Implementation
Class 5 Moderate High High VS11.3: Wide Area Wireless-Vehicle-Specific Advisories Implementation
Class 5 Moderate High High VS11.4: C-ITS Communications Vehicle-Specific Advisories Implementation
Class 5 Moderate High High WX03: Spot Weather Impact Warning
Class 5 Moderate High High WX03.1: Wide Area Wireless Communications Implementation
Class 5 Moderate High High WX03.2: C-ITS Communications Implementation
Class 4 High High Moderate DM01: ITS Data Warehouse
Class 4 High High Moderate DM01.1: Traffic Data Mart Implementation
Class 4 High High Moderate DM01.3: Comprehensive Transportation Data Warehouse Implementation
Class 4 High High Moderate PS07: Incident Scene Safety Monitoring
Class 4 High High Moderate PS07.1: Sensor-Based Safety Monitoring Implementation
Class 4 High High Moderate PS07.2: C-ITS Based Safety Monitoring Implementation
Class 4 High Moderate Moderate PS08: Roadway Service Patrols
Class 4 High Moderate Moderate PS08.1: Roadway Service Patrols Implementation
Class 4 High Moderate Moderate PT02: Transit Fixed-Route Operations
Class 4 High Moderate Moderate PT02.1: Transit Fixed-Route Operations Implementation
Class 4 High Moderate Moderate PT03: Dynamic Transit Operations
Class 4 High Moderate Moderate PT03.1: Dynamic Transit Operations Implementation
Class 4 High High Moderate TI04: Trip Planning and Payment
Class 4 High High Moderate TI04.1: Trip Planning and Payment Implementation
Class 4 High High Moderate TM07: Regional Traffic Management
Class 4 High High Moderate TM07.1: Regional Traffic Management Implementation
Class 4 High High Moderate TM08: Traffic Incident Management System
Class 4 High High Moderate TM08.1: Traffic Incident Management Implementation
Class 4 High High Moderate TM08.2: Event Management Implementation
Class 3 Moderate High Moderate CF06: Freight Signal Priority
Class 3 Moderate High Moderate CF06.1: Traditional Field Control Implementation
Class 3 Moderate High Moderate CF06.2: Traditional TMC Control Implementation
Class 3 Moderate High Moderate CF06.3: Center Control Implementation
Class 3 Moderate High Moderate CF06.4: C-ITS Field Control Implementation
Class 3 Moderate High Moderate CF06.5: C-ITS Center Control Implementation
Class 3 Not Applicable High Moderate CF06.6: Wide Area Wireless Implementation
Class 3 Moderate High Low CF06.7: MEC Supported Implementation
Class 3 Moderate High Moderate MC11: Maintenance and Construction Signal Priority
Class 3 Moderate High Moderate MC11.1: Traditional Field Control Implementation
Class 3 Moderate High Moderate MC11.2: Traditional TMC Control Implementation
Class 3 Moderate High Moderate MC11.3: Center Control Implementation
Class 3 Moderate High Moderate MC11.4: C-ITS Field Control Implementation
Class 3 Moderate High Moderate MC11.5: C-ITS Center Control Implementation
Class 3 Moderate High Moderate MC12: One-Way Convoy Driving
Class 3 Moderate High Moderate MC12.1: One-Way Convoy Driving Implementation
Class 3 Moderate High Moderate PS03: Emergency Vehicle Preemption
Class 3 Moderate High Moderate PS03.1: Traditional Field Control Implementation
Class 3 Moderate High Moderate PS03.2: Traditional TMC Control Implementation
Class 3 Moderate High Moderate PS03.3: Center Control Implementation
Class 3 Moderate High Moderate PS03.4: C-ITS Field Control Implementation
Class 3 Moderate High Moderate PS03.5: C-ITS Center Control Implementation
Class 3 Moderate High Moderate PT09: Transit Signal Priority
Class 3 Moderate High Moderate PT09.1: Traditional Field Control Implementation
Class 3 Moderate High Moderate PT09.2: Traditional TMC Control Implementation
Class 3 Moderate High Moderate PT09.3: Center Control Implementation
Class 3 Moderate High Moderate PT09.4: C-ITS Field Control Implementation
Class 3 Moderate High Moderate PT09.5: C-ITS Center Control Implementation
Class 3 Not Applicable High Moderate PT09.6: Wide Area Wireless Implementation
Class 3 Moderate High Moderate PT09.8: Light Rail Signal Priority Implementation
Class 3 Moderate High Moderate PT10: Intermittent Bus Lanes
Class 3 Moderate High Moderate PT10.1: Wide Area Wireless Implementation
Class 3 Moderate High Moderate PT10.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate ST02: Eco-Traffic Signal Timing
Class 3 Moderate High Moderate ST02.1: Infrastructure-Based Monitoring Implementation
Class 3 Moderate High Moderate ST02.2: Wide Area Wireless Implementation
Class 3 Moderate High Moderate ST02.3: C-ITS Communications Implementation
Class 3 Moderate High Moderate ST03: Eco-Traffic Metering
Class 3 Moderate High Moderate ST03.1: Infrastructure Sensor Based Implementation
Class 3 Moderate High Moderate ST03.2: Wide Area Wireless Implementation
Class 3 Moderate High Moderate ST03.3: C-ITS Communications Implementation
Class 3 Moderate High Moderate ST06: HOV/HOT Lane Management
Class 3 Moderate High Moderate ST06.1: HOV Lanes Implementation
Class 3 Moderate High Moderate ST06.2: C-ITS Supported HOV Lanes Implementation
Class 3 Moderate High Moderate ST06.3: HOT Lanes Implementation
Class 3 Moderate High Moderate ST06.4: C-ITS Supported HOT Lanes Implementation
Class 3 Moderate High Moderate ST07: Eco-Lanes Management
Class 3 Moderate High Moderate ST07.1: Wide Area Wireless Implementation
Class 3 Moderate High Moderate ST07.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate ST08: Eco-Approach and Departure at Signalized Intersections
Class 3 Moderate High Moderate ST08.1: Wide Area Wireless Implementation
Class 3 Moderate High Moderate ST08.2: C-ITS Short Range Communications Implementation
Class 3 Moderate High Moderate ST10: Low Emissions Zone Management
Class 3 Moderate High Moderate ST10.1: Infrastructure-Sensor Supported Implementation
Class 3 Moderate High Moderate ST10.2: C-ITS Supported Implementation
Class 3 Moderate High Moderate TM03: Traffic Signal Control
Class 3 Moderate High Moderate TM03.1: Pre-Timed (Fixed Time) Control Implementation
Class 3 Moderate High Moderate TM03.2: Fully Traffic Responsive Implementation
Class 3 Moderate High Moderate TM03.3: Field Master Controlled Implementation
Class 3 Moderate High Moderate TM04: Connected Vehicle Traffic Signal System
Class 3 Moderate High Moderate TM04.1: Pre-Timed (Fixed Time) Control Implementation
Class 3 Moderate High Moderate TM04.2: Fully Traffic Responsive Implementation
Class 3 Moderate High Moderate TM04.3: Field Master Controlled Implementation
Class 3 Moderate High Moderate TM04.4: Wide Area Wireless Implementation
Class 3 Moderate High Moderate TM05: Traffic Metering
Class 3 Moderate High Moderate TM05.1: Traffic Metering Implementation
Class 3 Moderate High Moderate TM12: Dynamic Roadway Warning
Class 3 Moderate High Moderate TM12.1: Dynamic Roadway Warning Implementation
Class 3 Moderate High Moderate TM13: Standard Railroad Grade Crossing
Class 3 Moderate High Moderate TM13.1: Standard Railroad Grade Crossing Implementation
Class 3 Moderate High Moderate TM15: Railroad Operations Coordination
Class 3 Moderate High Moderate TM15.1: Railroad Operations Coordination Implementation
Class 3 Moderate High Moderate TM16: Reversible Lane Management
Class 3 Moderate High Moderate TM16.1: Wide Area Wireless Implementation
Class 3 Moderate High Moderate TM16.2: C-ITS Communication Implementation
Class 3 Moderate High Moderate TM17: Speed Warning and Enforcement
Class 3 Moderate High Moderate TM18: Drawbridge Management
Class 3 Moderate High Moderate TM18.1: Drawbridge Management Implementation
Class 3 Moderate High Moderate TM19: Roadway Closure Management
Class 3 Moderate High Moderate TM19.1: Wide Area Wireless Implementation
Class 3 Moderate High Moderate TM19.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate TM20: Variable Speed Limits
Class 3 Moderate High Moderate TM20.1: Variable Speed Limits Implementation
Class 3 Moderate High Moderate TM21: Speed Harmonization
Class 3 Moderate High Moderate TM21.1: Wide Area Wireless Implementation
Class 3 Moderate High Moderate TM21.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate TM22: Dynamic Lane Management and Shoulder Use
Class 3 Moderate High Moderate TM22.1: Wide Area Wireless Communications Implementation
Class 3 Moderate High Moderate TM22.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate VS05: Curve Speed Warning
Class 3 Moderate High Moderate VS05.1: Traditional Roadside Speed Warning Implementation
Class 3 Moderate High Moderate VS05.2: Wide Area Wireless Communications Implementation
Class 3 Moderate High Moderate VS05.3: C-ITS Communications Implementation
Class 3 Moderate High Moderate VS06: Stop Sign Gap Assist
Class 3 Moderate High Moderate VS06.1: Stop Sign Gap Assist Implementation
Class 3 Moderate High Moderate VS07: Road Weather Motorist Alert and Warning
Class 3 Moderate High Moderate VS07.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate VS08: Queue Warning
Class 3 Moderate High Moderate VS08.1: Traditional ITS Queue Warning Implementation
Class 3 Moderate High Moderate VS08.3: C-ITS Queue Warning Implementation
Class 3 Moderate High Moderate VS09: Reduced Speed Zone Warning / Lane Closure
Class 3 Moderate High Moderate VS09.1: Traditional Reduced Speed Warning Implementation
Class 3 Moderate High Moderate VS09.2: WAW Reduced Speed Warning Implementation
Class 3 Moderate High Moderate VS09.3: C-ITS Reduced Speed Warning Implementation
Class 3 Moderate High Moderate VS10: Restricted Lane Warnings
Class 3 Moderate High Moderate VS10.1: Traditional Restricted Lane Warning Implementation
Class 3 Moderate High Moderate VS10.2: WAW Restricted Lane Warning Implementation
Class 3 Moderate High Moderate VS10.3: C-ITS Restricted Lane Warning Implementation
Class 3 Moderate High Moderate VS12: Vulnerable Road User Safety
Class 3 Moderate High Moderate VS12.1: Wide Area Wireless Communications Implementation
Class 3 Moderate High Moderate VS13: Intersection Safety Warning and Collision Avoidance
Class 3 Moderate High Moderate VS13.1: Wide Area Wireless Communications Implementation
Class 3 Moderate High Moderate VS13.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate VS15: Infrastructure Enhanced Cooperative Adaptive Cruise Control
Class 3 Moderate High Moderate VS15.1: Wide Area Wireless Communications Implementation
Class 3 Moderate High Moderate VS15.2: C-ITS Communications Implementation
Class 3 Moderate High Moderate VS17: Automated Vehicle Operations
Class 3 Moderate High Moderate VS17.1: Wide Area Wireless Communications Implementation
Class 3 Moderate High Moderate VS17.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate CF05: Commercial Vehicle Parking
Class 2 Moderate Moderate Moderate CF05.2: En-Route Parking Information Implementation
Class 2 Moderate Moderate Moderate CF10: Road Weather Information for Freight Carriers
Class 2 Moderate Moderate Moderate CF10.1: WAW Environmental Data Collection Implementation
Class 2 Moderate Moderate Moderate CF10.2: C-ITS Environmental Data Collection Implementation
Class 2 Moderate Moderate Moderate MC04: Winter Maintenance
Class 2 Moderate Moderate Moderate MC04.1: Winter Maintenance Implementation
Class 2 Moderate Moderate Moderate MC06: Work Zone Management
Class 2 Moderate Moderate Moderate MC06.1: Wide Area Wireless Implementation
Class 2 Moderate Moderate Moderate MC06.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate PM01: Parking Space Management
Class 2 Moderate Moderate Moderate PM01.1: Infrastructure-Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM01.2: C-ITS Based Monitoring Implementation
Class 2 Moderate Moderate Moderate PM04: Regional Parking Management
Class 2 Moderate Moderate Moderate PM04.1: Regional Parking Management Implementation
Class 2 Moderate Moderate Moderate ST01: Emissions Monitoring
Class 2 Moderate Moderate Moderate ST01.1: Infrastructure-Based Monitoring Implementation
Class 2 Moderate Moderate Moderate ST01.2: Vehicle-Based Monitoring and Reporting Implementation
Class 2 Moderate Moderate Moderate ST04: Roadside Lighting
Class 2 Moderate Moderate Moderate ST04.1: Infrastructure-Sensor Based Implementation
Class 2 Moderate Moderate Moderate ST04.2: Wide Area Wireless Implementation
Class 2 Moderate Moderate Moderate ST04.3: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate TI07: In-Vehicle Signage
Class 2 Moderate Moderate Moderate TI07.1: Wide Area Wireless Implementation
Class 2 Moderate Moderate Moderate TI07.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate TM01: Infrastructure-Based Traffic Surveillance
Class 2 Moderate Moderate Moderate TM01.1: Detector-Based Surveillance Implementation
Class 2 Moderate Moderate Moderate TM01.2: Video Monitoring Implementation
Class 2 Moderate Moderate Moderate TM01.3: Bluetooth Signature Monitoring Implementation
Class 2 Moderate Moderate Moderate TM02: Vehicle-Based Traffic Surveillance
Class 2 Moderate Moderate Moderate TM02.1: Wide Area Wireless Communications Implementation
Class 2 Moderate Moderate Moderate TM02.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate TM06: Traffic Information Dissemination
Class 2 Moderate Moderate Moderate TM06.1: Dynamic Message Signs Implementation
Class 2 Moderate Moderate Moderate TM06.2: Advisory Radio Implementation
Class 2 Moderate Moderate Moderate TM25: Wrong Way Vehicle Detection and Warning
Class 2 Moderate Moderate Moderate TM25.1: Wide Area Wireless Communications Implementation
Class 2 Moderate Moderate Moderate TM25.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate TM26: Signal Enforcement
Class 2 Moderate Moderate Moderate TM26.1: Signal Enforcement Implementation
Class 2 Moderate Moderate Moderate VS07.1: Wide Area Wireless Communications Implementation
Class 2 Moderate Moderate Moderate VS08.2: WAW Queue Warning Implementation
Class 2 Moderate Moderate Low VS12.2: C-ITS Communications Implementation
Class 2 Moderate Moderate Moderate WX01: Weather Data Collection
Class 2 Moderate Moderate Moderate WX01.1: Environmental Sensor Stations Implementation
Class 2 Moderate Moderate Moderate WX01.3: C-ITS Vehicle Reported Implementation
Class 2 Moderate Moderate Moderate WX04: Roadway Micro-Prediction
Class 2 Moderate Moderate Moderate WX04.1: Roadway Micro-Prediction Implementation
Class 1 Low Moderate Moderate CF04: CV Administrative Processes
Class 1 Low Moderate Moderate CF04.1: CV Administrative Processes Implementation
Class 1 Low Moderate Moderate CF09: Freight-Specific Dynamic Travel Planning
Class 1 Low Moderate Moderate CF09.1: Freight-Specific Dynamic Travel Planning Implementation
Class 1 Low Moderate Low DM02: Performance Monitoring
Class 1 Low Moderate Moderate PS14: Disaster Traveler Information
Class 1 Low Moderate Moderate PS14.1: Disaster Traveler Information Implementation
Class 1 Low Low Low PT01: Transit Vehicle Tracking
Class 1 Low Low Low PT01.1: Transit Vehicle Tracking Implementation
Class 1 Low Low Low PT14: Multi-modal Coordination
Class 1 Low Low Low PT14.1: Multi-modal Coordination Implementation
Class 1 Low Moderate Moderate PT17: Transit Connection Protection
Class 1 Low Moderate Moderate PT17.1: Transit Connection Protection Implementation
Class 1 Low Moderate Moderate PT18: Low Speed Automated Driving for Predefined Routes
Class 1 Low Moderate Moderate TI01: Broadcast Traveler Information
Class 1 Low Moderate Moderate TI01.1: Wide Area Broadcast Implementation
Class 1 Low Moderate Moderate TI01.2: C-ITS Local Broadcast Implementation
Class 1 Low Moderate Moderate TI02: Personalized Traveler Information
Class 1 Low Moderate Moderate TI02.1: Personalized Traveler Information Implementation
Class 1 Low Moderate Moderate TI03: En-Route Guidance
Class 1 Low Moderate Moderate TI03.1: En-Route Guidance Implementation
Class 1 Low Low Low TM10: Electronic Toll Collection
Class 1 Low Low Low TM10.1: Electronic Toll Collection Implementation
Class 1 Not Applicable Low Low TM23: Border Management Systems
Class 1 Not Applicable Low Low TM23.1: Wide Area Wireless Communications Implementation
Class 1 Not Applicable Low Low TM23.2: C-ITS Communications Implementation
Class 1 Low Moderate Moderate VS18: Vehicle Remote Operations
Class 1 Low Moderate Moderate WX01.2: Maint and Constr Vehicle Reported Implementation
Class 1 Low Low Moderate WX02: Weather Information Processing and Distribution
Class 1 Low Low Moderate WX02.1: Weather Information Processing and Distribution Implementation



This interfaces diagram had many interfaces and so was broken up into a Subsystem and Terminator interfaces diagram.

Subsystem Interfaces Diagram

Interfaces diagram


Terminator Interfaces Diagram

Interfaces diagram

Standards

The following table lists the standards associated with the physical object itself (as opposed to standards associated with an interface). For standards related to interfaces, see the specific information flow triple pages.

NameTitle
NEMA TS 8 Cyber and Physical Security Cyber and Physical Security for Intelligent Transportation Systems
