'Event Promoter System' represents Special Event Sponsors that have knowledge of events that may impact travel on roadways or other modal means. Examples of special event sponsors include sporting events, conventions, motorcades/parades, and public/political events. These promoters interface to the ITS to provide event information such as date, time, estimated duration, location, and any other information pertinent to traffic movement in the surrounding area.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Emergency Management Center	event confirmation	Event Promoter System
Emissions Management Center	low emissions zone operations information	Event Promoter System
Event Promoter System	event plans	Emergency Management Center
Event Promoter System	event plans	Emissions Management Center
Event Promoter System	event plans	Parking Management Center
Event Promoter System	event plans	Traffic Management Center
Event Promoter System	event plans	Transit Management Center
Event Promoter System	event information	Transportation Information Center
Traffic Management Center	event confirmation	Event Promoter System
Traffic Management Center	transportation operational strategies	Event Promoter System
Transit Management Center	event transit service plans	Event Promoter System

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 3	Moderate	High	Moderate	PM04: Regional Parking Management
Class 3	Moderate	High	Moderate	PT14: Multi-modal Coordination
Class 3	Moderate	High	Moderate	ST10: Low Emissions Zone Management
Class 3	Moderate	High	Moderate	TI01: Broadcast Traveler Information
Class 3	Moderate	High	Moderate	TI01.1: Wide Area Broadcast
Class 3	Moderate	High	Moderate	TI01.2: C-ITS Local Broadcast
Class 3	Moderate	High	Moderate	TI02: Personalized Traveler Information
Class 3	Moderate	High	Moderate	TM08: Traffic Incident Management System
Class 3	Moderate	High	Moderate	TM09: Integrated Decision Support and Demand Management

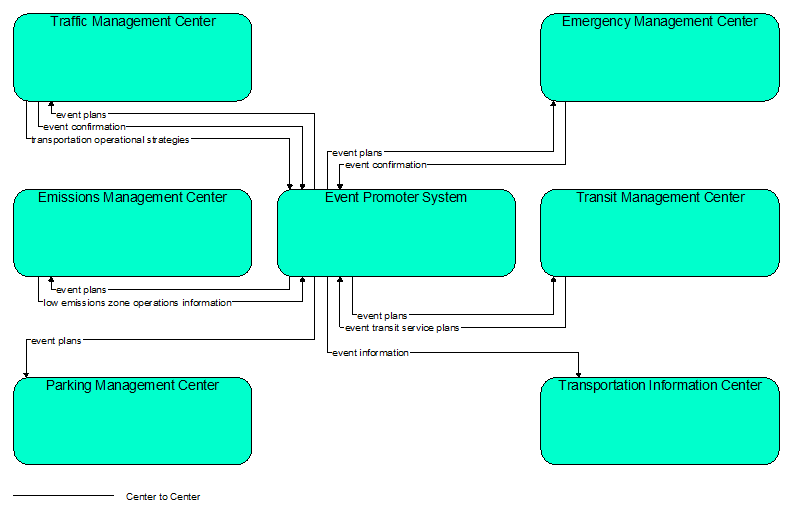

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
