DM02: Performance Monitoring

The Performance Monitoring service package uses information collected from detectors and sensors, connected vehicles, and operational data feeds from centers to support performance monitoring and other uses of historical data including transportation planning, condition monitoring, safety analyses, and research. The information may be performance metrics from various operational centers. The information may also be probe data information obtained from vehicles in the network to determine network performance measures such as speed and travel times, or it may be information collected from the vehicles and processed by the infrastructure, e.g. environmental data and infrastructure conditions monitoring data. Additional data are collected including accident data, road condition data, road closures and other operational decisions to provide context for measured transportation performance and additional safety and mobility-related measures. More complex performance measures may be derived from the collected data.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements
Implementations

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Archived Data System Developer	Archived Data System	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Archived Data System Developer	Archived Data User System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Government Reporting Systems Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Other Archived Data Systems Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data User System Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data User System Developer	Archived Data User System	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Government Reporting Systems Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Government Reporting Systems Developer	Government Reporting Systems	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Other Archived Data Systems Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Other Archived Data Systems Developer	Other Archived Data Systems	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Archived Data System Installer	Archived Data System	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Archived Data System Owner	Archived Data System Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Archived Data System Owner	Archived Data System Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Archived Data User System Installer	Archived Data User System	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Archived Data User System Owner	Archived Data User System Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Archived Data User System Owner	Archived Data User System Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Government Reporting Systems Installer	Government Reporting Systems	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Government Reporting Systems Owner	Government Reporting Systems Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Government Reporting Systems Owner	Government Reporting Systems Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Other Archived Data Systems Installer	Other Archived Data Systems	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Other Archived Data Systems Owner	Other Archived Data Systems Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Other Archived Data Systems Owner	Other Archived Data Systems Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Archived Data Administrator	Archived Data System	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Archived Data System Maintainer	Archived Data System	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Archived Data System Manager	Archived Data Administrator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Archived Data System Manager	Archived Data System	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Archived Data System Owner	Archived Data System Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Archived Data System Owner	Archived Data System Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Archived Data System Owner	Archived Data User System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Archived Data User System Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Archived Data User System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Archived Data User System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	Government Reporting Systems Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Government Reporting Systems Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Government Reporting Systems Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Government Reporting Systems User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	Other Archived Data Systems Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Other Archived Data Systems Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Other Archived Data Systems Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Other Archived Data Systems User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Supplier	Archived Data System Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Archived Data User System Maintainer	Archived Data User System	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Archived Data User System Manager	Archived Data User System	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Archived Data User System Manager	Archived Data User System Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Archived Data User System Operator	Archived Data User System	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Archived Data User System Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data User System Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data User System Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data User System Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data User System Owner	Archived Data User System Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Archived Data User System Owner	Archived Data User System Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Archived Data User System Supplier	Archived Data User System Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Government Reporting Systems Maintainer	Government Reporting Systems	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Government Reporting Systems Manager	Government Reporting Systems	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Government Reporting Systems Manager	Government Reporting Systems Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Government Reporting Systems Operator	Government Reporting Systems	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Government Reporting Systems Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Government Reporting Systems Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Government Reporting Systems Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Government Reporting Systems Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Government Reporting Systems Owner	Government Reporting Systems Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Government Reporting Systems Owner	Government Reporting Systems Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Government Reporting Systems Supplier	Government Reporting Systems Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Other Archived Data Systems Maintainer	Other Archived Data Systems	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Other Archived Data Systems Manager	Other Archived Data Systems	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Other Archived Data Systems Manager	Other Archived Data Systems Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Other Archived Data Systems Operator	Other Archived Data Systems	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Other Archived Data Systems Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Other Archived Data Systems Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Other Archived Data Systems Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Other Archived Data Systems Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Other Archived Data Systems Owner	Other Archived Data Systems Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Other Archived Data Systems Owner	Other Archived Data Systems Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Other Archived Data Systems Supplier	Other Archived Data Systems Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Archived Data System	Archive Data Repository	8.1	Get Archive Data
		8.2	Manage Archive
		8.3	Manage Archive Data Administrator Interface
		8.4	Coordinate Archives
		8.5	Process Archived Data User System Requests
		8.7	Process On Demand Archive Requests
	Archive Government Reporting	8.8	Prepare Government Reporting Inputs
	Archive On-Line Analysis and Mining	8.6	Analyze Archive
	Archive Situation Data Archival	8.1	Get Archive Data
	Archive Situation Data Archival	8.9	Manage Roadside Data Collection
ITS Roadway Equipment	Roadway Data Collection	1.1.1.4	Manage Data Collection and Monitoring
Maint and Constr Management Center	MCM Data Collection	9.2.7	Manage M&C Archive Data
Traffic Management Center	TMC Data Collection	1.1.4.4	Manage Traffic Archive Data
Transit Management Center	Transit Center Data Collection	4.2.3	Manage Transit Archive Data
Transportation Information Center	TIC Operations Data Collection	6.9	Manage Traveler Info Archive Data

Physical

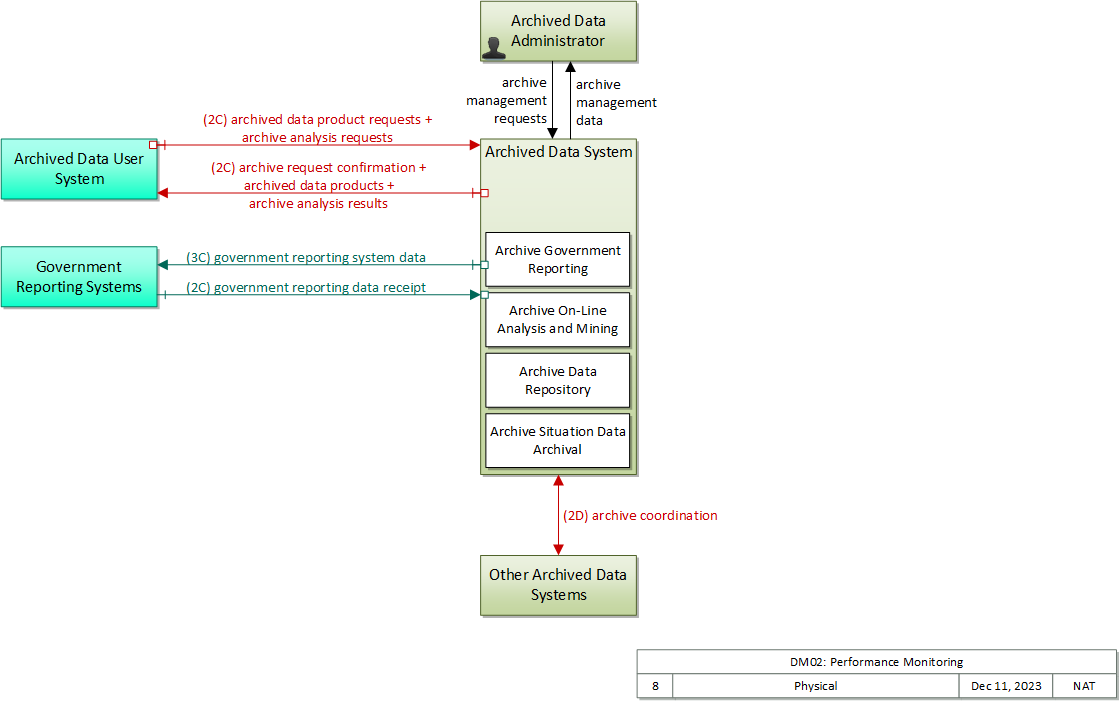

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Archived Data Administrator	Support	'Archived Data Administrator' represents the human operator who provides overall data management, administration, and monitoring duties for the ITS data archive. Unlike the manager of the operational databases, the archive data administrator's role is focused on the archive and covers areas such as establishing user authentication controls, monitoring data quality, and initiating data import requests.
Archived Data System	Support	The 'Archived Data System' collects, archives, manages, and distributes data generated from ITS sources for use in transportation administration, policy evaluation, safety, planning, performance monitoring, program assessment, operations, and research applications. The data received is formatted and tagged with attributes that define the data source, conditions under which it was collected, data transformations, and other information (i.e. meta data) necessary to interpret the data. The archive can fuse ITS generated data with data from non-ITS sources and other archives to generate information products utilizing data from multiple functional areas, modes, and jurisdictions. The archive prepares data products that can serve as inputs to federal, state, and local data reporting systems. The 'Archived Data System' may reside within an operational center and provide focused access to a particular agency's data archives. Alternatively, it may operate as a distinct center that collects data from multiple agencies and sources and provides a general data warehouse service.
Archived Data User System	Center	'Archived Data User System' represents the systems users employ to access archived data. The general interface provided allows a broad range of users (e.g. planners, researchers, analysts, operators) and their systems (e.g. databases, models, analytical tools, user interface devices) to acquire data and analyses results from the archive.
Government Reporting Systems	Center	'Government Reporting Systems' represents the system and associated personnel that prepare the inputs to support the various local, state, and federal government transportation data reporting requirements (e.g. Highway Performance Monitoring System, Fatality Analysis Reporting System) using data collected by ITS systems. It represents a system interface that provides access to the archived data relevant to these reports. In most cases, this system will combine data collected from ITS archives with data from non-ITS sources to assemble the required information.
ITS Roadway Equipment	Field	'ITS Roadway Equipment' represents the ITS equipment that is distributed on and along the roadway that monitors and controls traffic and monitors and manages the roadway. This physical object includes traffic detectors, environmental sensors, traffic signals, highway advisory radios, dynamic message signs, CCTV cameras and video image processing systems, grade crossing warning systems, and ramp metering systems. Lane management systems and barrier systems that control access to transportation infrastructure such as roadways, bridges and tunnels are also included. This object also provides environmental monitoring including sensors that measure road conditions, surface weather, and vehicle emissions. Work zone systems including work zone surveillance, traffic control, driver warning, and work crew safety systems are also included.
Maint and Constr Management Center	Center	The 'Maint and Constr Management Center' monitors and manages roadway infrastructure construction and maintenance activities. Representing both public agencies and private contractors that provide these functions, this physical object manages fleets of maintenance, construction, or special service vehicles (e.g., snow and ice control equipment). The physical object receives a wide range of status information from these vehicles and performs vehicle dispatch, routing, and resource management for the vehicle fleets and associated equipment. The physical object participates in incident response by deploying maintenance and construction resources to an incident scene, in coordination with other center physical objects. The physical object manages equipment at the roadside, including environmental sensors and automated systems that monitor and mitigate adverse road and surface weather conditions. It manages the repair and maintenance of both non-ITS and ITS equipment including the traffic controllers, detectors, dynamic message signs, signals, and other equipment associated with the roadway infrastructure. Weather information is collected and fused with other data sources and used to support advanced decision support systems. The physical object remotely monitors and manages ITS capabilities in work zones, gathering, storing, and disseminating work zone information to other systems. It manages traffic in the vicinity of the work zone and advises drivers of work zone status (either directly at the roadside or through an interface with the Transportation Information Center or Traffic Management Center physical objects.) Construction and maintenance activities are tracked and coordinated with other systems, improving the quality and accuracy of information available regarding closures and other roadway construction and maintenance activities.
Other Archived Data Systems	Support	'Other Archived Data Systems' represents distributed archived data systems whose data can be accessed and shared with a local archive. The interface with the Archived Data System allows data from multiple archives to be accessed on demand or imported and consolidated into a single repository.
Traffic Management Center	Center	The 'Traffic Management Center' monitors and controls traffic and the road network. It represents centers that manage a broad range of transportation facilities including freeway systems, rural and suburban highway systems, and urban and suburban traffic control systems. It communicates with ITS Roadway Equipment and Connected Vehicle Roadside Equipment (RSE) to monitor and manage traffic flow and monitor the condition of the roadway, surrounding environmental conditions, and field equipment status. It manages traffic and transportation resources to support allied agencies in responding to, and recovering from, incidents ranging from minor traffic incidents through major disasters.
Transit Management Center	Center	The 'Transit Management Center' manages transit vehicle fleets and coordinates with other modes and transportation services. It provides operations, maintenance, customer information, planning and management functions for the transit property. It spans distinct central dispatch and garage management systems and supports the spectrum of fixed route, flexible route, paratransit services, transit rail, and bus rapid transit (BRT) service. The physical object's interfaces support communication between transit departments and with other operating entities such as emergency response services and traffic management systems.
Transportation Information Center	Center	The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.

Includes Functional Objects:

Functional Object	Description	Physical Object
Archive Data Repository	'Archive Data Repository' collects data and data catalogs from one or more data sources and stores the data in a focused repository that is suited to a particular set of ITS data users. It includes capabilities for performing quality checks on the incoming data, error notification, anonymization as needed, and archive to archive coordination. It includes the capability to define a data registry that allows registration of data identifiers or data definitions for interoperable use throughout a region. It supports a broad range of implementations, ranging from simple data marts that collect a focused set of data and serve a particular user community to large-scale data warehouses that collect, integrate, and summarize transportation data from multiple sources and serve a broad array of users within a region. Repositories may be established to support operations planning, performance monitoring and management, and policy and investment decisions. Repositories may provide visualization outputs (e.g. dashboards) for use by the Archive Data User System.	Archived Data System
Archive Government Reporting	'Archive Government Reporting' selects and formats data residing in an ITS archive to facilitate local, state, and federal government data reporting requirements. It provides transportation system statistics and performance measures in required formats to support investment and policy decisions.	Archived Data System
Archive On-Line Analysis and Mining	'Archive On-Line Analysis and Mining' provides advanced data analysis, summarization, and mining features that facilitate discovery of information, patterns, and correlations in large data sets. Multidimensional analysis, selective summarization and expansion of data details, and many other advanced analysis services may be offered. Complex performance measures that are derived from multiple data sources may also be produced.	Archived Data System
Archive Situation Data Archival	'Archive Situation Data Archival' collects and archives traffic, roadway, and environmental information for use in off-line planning, research, and analysis. It controls and collects information directly from equipment at the roadside, reflecting the deployment of traffic detectors that are used primarily for traffic monitoring and planning purposes, rather than for traffic management. It also collects situation data from connected vehicles. The data collected, quality checks performed, and aggregation strategies are defined to support transportation system performance monitoring and management.	Archived Data System
MCM Data Collection	'MCM Data Collection' collects and stores maintenance and construction information that is collected in the course of operations by the Maintenance and Construction Management Center. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.	Maint and Constr Management Center
Roadway Data Collection	'Roadway Data Collection' collects traffic, road, and environmental conditions information for use in transportation planning, research, and other off-line applications where data quality and completeness take precedence over real-time performance. It includes the sensors, supporting roadside infrastructure, and communications equipment that collects and transfers information to a center for archival.	ITS Roadway Equipment
TIC Operations Data Collection	'TIC Operations Data Collection' collects and stores information that is collected about the transportation information service including data on the number of clients serviced and the services that were provided. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.	Transportation Information Center
TMC Data Collection	'TMC Data Collection' collects and stores information that is created in the course of traffic operations performed by the Traffic Management Center. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.	Traffic Management Center
Transit Center Data Collection	'Transit Center Data Collection' collects and stores transit information that is collected in the course of transit operations performed by the Transit Management Center. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.	Transit Management Center

Includes Information Flows:

Information Flow	Description
archive analysis requests	A user request that initiates data mining, analytical processing, aggregation or summarization, report formulation, or other advanced processing and analysis of archived data. The request also includes information that is used to identify and authenticate the user and support electronic payment requirements, if any.
archive analysis results	Processed information products, supporting meta data, and any associated transaction information resulting from data mining, analytical processing, aggregation or summarization, report formulation, or other on-line processing and analysis of archived data.
archive coordination	Catalog data, meta data, published data, and other information exchanged between archives to support data synchronization and satisfy user data requests.
archive management data	Presentation of information to the administrator to support the management of an ITS archive including database reports on the condition and quality of the archived data, status of the import and collection process, reports that monitor archive usage, and any special requests that require direct action by the administrator (e.g., requests for access to new data sources).
archive management requests	User input from the administrator including commands, requests, and queries that support data collection, administration, and management of an ITS data archive.
archive request confirmation	Confirmation that an archive request has been received and processed with information on the disposition of the request.
archived data product requests	A user-specified request for archived data products (i.e., data, meta data, or data catalogs). The request also includes information that is used to identify and authenticate the user and support electronic payment requirements, if any.
archived data products	Raw or processed data, meta data, data catalogs and other data products provided to a user system upon request. The response may also include any associated transaction information.
government reporting data receipt	The acknowledgement of satisfactory receipt of information used as input to government data systems or a report identifying problems or issues with the data submittal.
government reporting system data	Information provided by an ITS archive, formatted as appropriate, that can be used as input to government data reporting systems.
performance metrics	Data that indicates how well the transportation system is performing. Performance metrics are tracked over time to monitor progress towards operations objectives and identify needs and deficiencies to be addressed.
roadway performance data	Roadway data from sensors and intersection equipment used to define the performance of the roadway and intersections.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal
D. Increase the accessibility and mobility of people and for freight;	Reduce congestion
F. Enhance the integration and connectivity of the transportation system, across and between modes, for people and freight;	Enhance integration and connectivity
G. Promote efficient system management and operation;	Improve efficiency
J. Enhance travel and tourism.	Support travel and tourism

Associated Objective Categories

Objective Category
Arterial Management: Traffic Monitoring and Data Collection
Integration: Transportation Data Collection
Traveler Information: Data Collection and Sharing on Travel Conditions

Associated Objectives and Performance Measures

Objective	Performance Measure
Enhance planning with better data	Amount of data gathered from ITS enhancements used in infrastructure and operations planning
Enhance planning with better data	Number of planning activities using data from ITS systems
Enhance planning with better data	Years of data in database that is easily searchable and extractable
Field data collection is conducted either through floating car studies or other methods at least once every Y years on major signalized arterials and X years on minor signalized arterials.	Number of field data collection studies performed every Y and X years on major and minor signalized arterials, respectively.
Increase the percent of modes in the region that share their traveler information with other modes in the region to 100 percent by Y year.	Percent of modes in the region that share their traveler information with other modes.
Increase the percent of the transportation system in which travel conditions can be detected remotely via CCTV, speed detectors, etc. to X percent by Y year.	Percent of the transportation system in which travel conditions can be detected remotely via CCTV, speed detectors, etc.
Increase the percent of transportation facilities whose owners share their traveler information with other agencies in the region to X percent by Y year.	Percent of transportation facilities whose owners share their traveler information with other agencies in the region.
X percent of intersections in the region are equipped and operating with traffic signals that enable real-time monitoring and management of traffic flows by year Y.	Percent of intersections in the region equipped and operating with traffic signals that enable real-time monitoring and management of traffic flows.
X percent of major and minor arterials are equipped and operating with arterial link traffic data detection stations (appropriate technology) per Z distance by year Y.	Percent of major and minor arterials equipped and operating with arterial link traffic data detection stations (appropriate technology) per Z distance.
X percent of major and minor arterials are equipped and operating with closed circuit television (CCTV) cameras per Z distance by year Y.	Percent of major and minor arterials equipped and operating with closed circuit television (CCTV) cameras per Z distance.

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement
01	System operators need to be able to store vehicle data, transit data, weather data, freight data and other transportation-related data to support traffic data analysis, transportation network performance monitoring, transportation planning, safety analyses and research.	Archive Data Repository	06	The center shall include capabilities for archive to archive coordination.
		Archive Situation Data Archival	04	The center shall collect vehicle traffic probe data for performance monitoring and analysis.
		Archive Situation Data Archival	05	The center shall be capable of archiving vehicle traffic probe data.
02	System operators need to be able to process vehicle data sourced by themselves and other system operators to support performance monitoring, infrastructure conditions reporting, and environmental monitoring. This supports system operator reporting needs and provides the source data and metrics for government reports.	Archive Government Reporting	01	The center shall provide archive data to federal, state, and local government reporting systems.
			02	The center shall respond to requests for government report data.
			03	The center shall provide the capability to format data suitable for input into government reports.
			04	The center shall provide the applicable meta-data for any ITS archived data to satisfy government reporting system requests. Meta-data may include attributes that describe the source and quality of the data and the conditions surrounding the collection of the data.
		Archive On-Line Analysis and Mining	02	The center shall provide the capability to perform activities such as data mining, data fusion, summarizations, aggregations, and recreation from archive data. This may include multidimensional analysis, selective summarization and expansion of data details, and many other advanced analysis services.
			05	The center shall be capable of processing vehicle probe data into transportation network performance measures.
			06	The center shall be capable of processing vehicle probe data to support infrastructure conditions monitoring performed by Archived Data User Systems including maintenance and construction management centers.
			07	The center shall be capable of processing vehicle probe data to determine roadway environmental conditions for non operational uses such as maintenance planning and research.

Related Sources

Document Name	Version	Publication Date
SAE J3067- Candidate Improvements to Dedicated Short Range Communications (DSRC) Message Set Dictionary (SAE J2735)Using Systems Engineering Methods		8/15/2014

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Archived Data System	High	High	High	Class 5
Archived Data User System	High	High	Moderate	Class 4
Government Reporting Systems	Low	High	Low	Class 3
ITS Roadway Equipment	Low	Moderate	Low	Class 1
Maint and Constr Management Center	Low	Moderate	Low	Class 1
Other Archived Data Systems	Moderate	High	High	Class 5
Traffic Management Center	Low	Moderate	Low	Class 1
Transit Management Center	Low	Moderate	Low	Class 1
Transportation Information Center	Low	Moderate	Low	Class 1

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Archived Data Administrator	Archived Data System	archive management requests	Moderate	Moderate	Moderate
Archived Data Administrator	Archived Data System	archive management requests	Human readable information intended for the administrator only. No PII, mostly performance data, but observation provides information that should not be viewable outside the operating agency. Compromise allows a third party to potentially manipulate the archive.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.
Archived Data System	Archived Data Administrator	archive management data	Moderate	Moderate	Moderate
Archived Data System	Archived Data Administrator	archive management data	Human readable information intended for the administrator only. No PII, mostly performance data, but observation provides information that should not be viewable outside the operating agency. Compromise allows a third party to potentially manipulate the archive.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.
Archived Data System	Archived Data User System	archive analysis results	High	High	Low
Archived Data System	Archived Data User System	archive analysis results	Data may include sensitive information which should not be casually viewable. As many requests could be quite large, the cost of compromise will be corresponding ly high.	Since the whole point of an archived data request is some sort of data analysis, the contents of that data must be intact or the effort is wasted. Such requests can be for very large data sets, the effective cost of which is high.	While the data sets are large, requests should be infrequent, and can be managed with interruptions in service.
Archived Data System	Archived Data User System	archive request confirmation	Low	Moderate	Moderate
Archived Data System	Archived Data User System	archive request confirmation	Status response should not have any sensitive information.	Response needs to be correct or the originator might choose an alternate mechanism or take other action to investigate.	Response needs to arrive or originator might take other action.
Archived Data System	Archived Data User System	archived data products	High	High	Low
Archived Data System	Archived Data User System	archived data products	Data may include sensitive information which should not be casually viewable. As many requests could be quite large, the cost of compromise will be corresponding ly high.	Since the whole point of an archived data request is some sort of data analysis, the contents of that data must be intact or the effort is wasted. Such requests can be for very large data sets, the effective cost of which is high.	While the data sets are large, requests should be infrequent, and can be managed with interruptions in service.
Archived Data System	Archived Data User System	performance metrics	Low	Moderate	Low
Archived Data System	Archived Data User System	performance metrics	Contains information characterizing the performance of some aspect(s) of the transportation system; not typically competetive, will include no PII. Might in some circumstances be slightly sensitive, but there's no clear case where observation of this information by a third party would cause significant impact.	Decisions may be made regarding this information; if the information were incorrect, suboptimal decisions may be made.	Much depends on how integrated the performance information is to traffic management decision-making. If integral, this could be MODERATE. Generally though, the transportation system should be able to function reasonably with occasional outages.
Archived Data System	Government Reporting Systems	government reporting system data	Low	High	Low
Archived Data System	Government Reporting Systems	government reporting system data	Data to be used as the basis for published reports probably does not need obfuscation. The cost of exposing this data is minimal, as it presumably should be publicly accessible through some means.	Given that the data will be used to produce public reports upon which policy may be enacted, its accuracy is critically important, as any misrepresentation could lead to public distrust or decisions based on incorrect data.	Should not often be sent, so intermittent connectivity should be sufficient.
Archived Data System	Other Archived Data Systems	archive coordination	Moderate	High	High
Archived Data System	Other Archived Data Systems	archive coordination	Archive coordination may involve substantial meta data that indicates how users are using archived data systems, and may include queries that betray intent. Observation of this information provides a third party with intelligence about system users that should not be observable.	Incorrect coordination could lead to substantial performance challenges for the archive systems, degrading overall performance which affects all users. Depending what the archive is used for, this might be reduced to MODERATE	Without this flow, archive usage that spans multiple systems will be impossible, making archive requests unusable. Depending on what the archive is used for, this might be reduced to MODERATE.
Archived Data System	Other Archived Data Systems	performance metrics	Low	Moderate	Low
Archived Data System	Other Archived Data Systems	performance metrics	Contains information characterizing the performance of some aspect(s) of the transportation system; not typically competetive, will include no PII. Might in some circumstances be slightly sensitive, but there's no clear case where observation of this information by a third party would cause significant impact.	Decisions may be made regarding this information; if the information were incorrect, suboptimal decisions may be made.	Much depends on how integrated the performance information is to traffic management decision-making. If integral, this could be MODERATE. Generally though, the transportation system should be able to function reasonably with occasional outages.
Archived Data User System	Archived Data System	archive analysis requests	Moderate	Moderate	Low
Archived Data User System	Archived Data System	archive analysis requests	User login information must be kept confidential. Depending on the sensitivity of the archive data and resulting utiltity of access, this may be HIGH.	An incorrect data request will be incovenient, resulting in error or useless responses, but not catastrophic.	Not a real time service, so intermittent availability should suffice.
Archived Data User System	Archived Data System	archived data product requests	Moderate	Moderate	Low
Archived Data User System	Archived Data System	archived data product requests	User login information must be kept confidential. Depending on the sensitivity of the archive data and resulting utiltity of access, this may be HIGH.	An incorrect data request will be incovenient, resulting in error or useless responses, but not catastrophic.	Not a real time service, so intermittent availability should suffice.
Government Reporting Systems	Archived Data System	government reporting data receipt	Low	High	Low
Government Reporting Systems	Archived Data System	government reporting data receipt	Data to be used as the basis for published reports probably does not need obfuscation. The cost of exposing this data is minimal, as it presumably should be publicly accessible through some means.	Integrity must be managed to the same degree as the originating data or the completion of data provision is in jeopardy. That has been assessed as HIGH, so this must be as well.	Intermittent in tandem with the data that prompts this response; needs to be equal to that flow.
ITS Roadway Equipment	Archived Data System	roadway performance data	Low	Moderate	Low
ITS Roadway Equipment	Archived Data System	roadway performance data	Should eventually be public, and regardless it is unlikely that sharing this data will cause any harm.	Could be used to make traffic management and personnel decisions, so some guarantee the data at the destination is what the sender intended is warranted. Still, this flow is a candidate for LOW if the range for integrity is opened up to include it.	Unlikely that the lack of this flow will radically change outcomes.
Maint and Constr Management Center	Archived Data System	performance metrics	Low	Moderate	Low
Maint and Constr Management Center	Archived Data System	performance metrics	Contains information characterizing the performance of some aspect(s) of the transportation system; not typically competetive, will include no PII. Might in some circumstances be slightly sensitive, but there's no clear case where observation of this information by a third party would cause significant impact.	Decisions may be made regarding this information; if the information were incorrect, suboptimal decisions may be made.	Much depends on how integrated the performance information is to traffic management decision-making. If integral, this could be MODERATE. Generally though, the transportation system should be able to function reasonably with occasional outages.
Other Archived Data Systems	Archived Data System	archive coordination	Moderate	High	High
Other Archived Data Systems	Archived Data System	archive coordination	Archive coordination may involve substantial meta data that indicates how users are using archived data systems, and may include queries that betray intent. Observation of this information provides a third party with intelligence about system users that should not be observable.	Incorrect coordination could lead to substantial performance challenges for the archive systems, degrading overall performance which affects all users. Depending what the archive is used for, this might be reduced to MODERATE	Without this flow, archive usage that spans multiple systems will be impossible, making archive requests unusable. Depending on what the archive is used for, this might be reduced to MODERATE.
Other Archived Data Systems	Archived Data System	performance metrics	Low	Moderate	Low
Other Archived Data Systems	Archived Data System	performance metrics	Contains information characterizing the performance of some aspect(s) of the transportation system; not typically competetive, will include no PII. Might in some circumstances be slightly sensitive, but there's no clear case where observation of this information by a third party would cause significant impact.	Decisions may be made regarding this information; if the information were incorrect, suboptimal decisions may be made.	Much depends on how integrated the performance information is to traffic management decision-making. If integral, this could be MODERATE. Generally though, the transportation system should be able to function reasonably with occasional outages.
Traffic Management Center	Archived Data System	performance metrics	Low	Moderate	Low
Traffic Management Center	Archived Data System	performance metrics	Contains information characterizing the performance of some aspect(s) of the transportation system; not typically competetive, will include no PII. Might in some circumstances be slightly sensitive, but there's no clear case where observation of this information by a third party would cause significant impact.	Decisions may be made regarding this information; if the information were incorrect, suboptimal decisions may be made.	Much depends on how integrated the performance information is to traffic management decision-making. If integral, this could be MODERATE. Generally though, the transportation system should be able to function reasonably with occasional outages.
Transit Management Center	Archived Data System	performance metrics	Low	Moderate	Low
Transit Management Center	Archived Data System	performance metrics	Contains information characterizing the performance of some aspect(s) of the transportation system; not typically competetive, will include no PII. Might in some circumstances be slightly sensitive, but there's no clear case where observation of this information by a third party would cause significant impact.	Decisions may be made regarding this information; if the information were incorrect, suboptimal decisions may be made.	Much depends on how integrated the performance information is to traffic management decision-making. If integral, this could be MODERATE. Generally though, the transportation system should be able to function reasonably with occasional outages.
Transportation Information Center	Archived Data System	performance metrics	Low	Moderate	Low
Transportation Information Center	Archived Data System	performance metrics	Contains information characterizing the performance of some aspect(s) of the transportation system; not typically competetive, will include no PII. Might in some circumstances be slightly sensitive, but there's no clear case where observation of this information by a third party would cause significant impact.	Decisions may be made regarding this information; if the information were incorrect, suboptimal decisions may be made.	Much depends on how integrated the performance information is to traffic management decision-making. If integral, this could be MODERATE. Generally though, the transportation system should be able to function reasonably with occasional outages.

Standards

The following table lists the standards associated with physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

Name	Title	Physical Object
ITE 5301 ATC ITS Cabinet	Intelligent Transportation System Standard Specification for Roadside Cabinets	ITS Roadway Equipment
NEMA TS 8 Cyber and Physical Security	Cyber and Physical Security for Intelligent Transportation Systems	Archived Data System
NEMA TS 8 Cyber and Physical Security		ITS Roadway Equipment

System Requirements

System Requirement		Need
001	The system shall include capabilities for archive to archive coordination.	01	System operators need to be able to store vehicle data, transit data, weather data, freight data and other transportation-related data to support traffic data analysis, transportation network performance monitoring, transportation planning, safety analyses and research.
002	The system shall provide archive data to federal, state, and local government reporting systems.	02	System operators need to be able to process vehicle data sourced by themselves and other system operators to support performance monitoring, infrastructure conditions reporting, and environmental monitoring. This supports system operator reporting needs and provides the source data and metrics for government reports.
003	The system shall respond to requests for government report data.	02	System operators need to be able to process vehicle data sourced by themselves and other system operators to support performance monitoring, infrastructure conditions reporting, and environmental monitoring. This supports system operator reporting needs and provides the source data and metrics for government reports.
004	The system shall provide the capability to format data suitable for input into government reports.	02	System operators need to be able to process vehicle data sourced by themselves and other system operators to support performance monitoring, infrastructure conditions reporting, and environmental monitoring. This supports system operator reporting needs and provides the source data and metrics for government reports.
005	The system shall provide the applicable meta-data for any ITS archived data to satisfy government reporting system requests. Meta-data may include attributes that describe the source and quality of the data and the conditions surrounding the collection of the data.	02	System operators need to be able to process vehicle data sourced by themselves and other system operators to support performance monitoring, infrastructure conditions reporting, and environmental monitoring. This supports system operator reporting needs and provides the source data and metrics for government reports.
006	The system shall provide the capability to perform activities such as data mining, data fusion, summarizations, aggregations, and recreation from archive data. This may include multidimensional analysis, selective summarization and expansion of data details, and many other advanced analysis services.	02	System operators need to be able to process vehicle data sourced by themselves and other system operators to support performance monitoring, infrastructure conditions reporting, and environmental monitoring. This supports system operator reporting needs and provides the source data and metrics for government reports.
007	The system shall process vehicle probe data into transportation network performance measures.	02	System operators need to be able to process vehicle data sourced by themselves and other system operators to support performance monitoring, infrastructure conditions reporting, and environmental monitoring. This supports system operator reporting needs and provides the source data and metrics for government reports.
008	The system shall process vehicle probe data to support infrastructure conditions monitoring performed by Archived Data User Systems including maintenance and construction management centers.	02	System operators need to be able to process vehicle data sourced by themselves and other system operators to support performance monitoring, infrastructure conditions reporting, and environmental monitoring. This supports system operator reporting needs and provides the source data and metrics for government reports.
009	The system shall process vehicle probe data to determine roadway environmental conditions for non operational uses such as maintenance planning and research.	02	System operators need to be able to process vehicle data sourced by themselves and other system operators to support performance monitoring, infrastructure conditions reporting, and environmental monitoring. This supports system operator reporting needs and provides the source data and metrics for government reports.
010	The system shall collect vehicle traffic probe data for performance monitoring and analysis.	01	System operators need to be able to store vehicle data, transit data, weather data, freight data and other transportation-related data to support traffic data analysis, transportation network performance monitoring, transportation planning, safety analyses and research.
011	The system shall archive vehicle traffic probe data.	01	System operators need to be able to store vehicle data, transit data, weather data, freight data and other transportation-related data to support traffic data analysis, transportation network performance monitoring, transportation planning, safety analyses and research.

Implementations

DM02.1 Performance Monitoring Implementation

Display: Implementation legend
