Other Archived Data Systems

Overview
Triples
Security
Interfaces Diagram
Standards

Overview

'Other Archived Data Systems' represents distributed archived data systems whose data can be accessed and shared with a local archive. The interface with the Archived Data System allows data from multiple archives to be accessed on demand or imported and consolidated into a single repository.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Archived Data System	archive coordination	Other Archived Data Systems
Archived Data System	performance metrics	Other Archived Data Systems
Other Archived Data Systems	archive coordination	Archived Data System
Other Archived Data Systems	performance metrics	Archived Data System

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 5	Moderate	High	High	DM01: ITS Data Warehouse
Class 5	Moderate	High	High	DM01.1: Traffic Data Mart Implementation
Class 5	Moderate	High	High	DM01.2: Public Transportation Data Mart Implementation
Class 5	Moderate	High	High	DM01.3: Comprehensive Transportation Data Warehouse Implementation
Class 5	Moderate	High	High	DM01.4: Distributed Data Warehouse Implementation
Class 5	Moderate	High	High	DM02: Performance Monitoring
Class 5	Moderate	High	High	DM02.1: Performance Monitoring Implementation

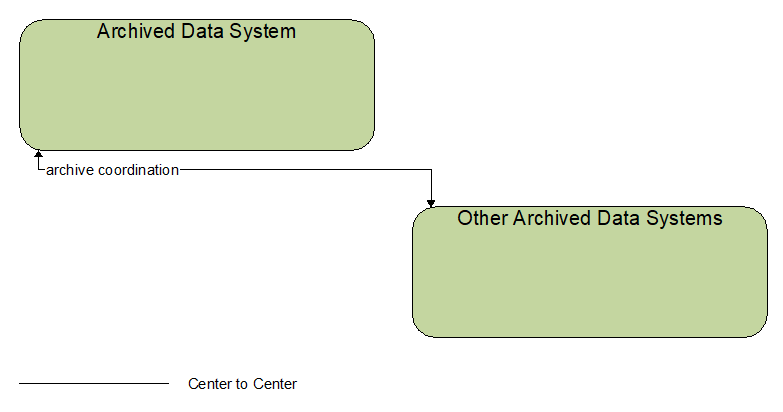

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
