Overview

'Archived Data User System' represents the systems users employ to access archived data. The general interface provided allows a broad range of users (e.g. planners, researchers, analysts, operators) and their systems (e.g. databases, models, analytical tools, user interface devices) to acquire data and analyses results from the archive.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Archived Data System	archive analysis results	Archived Data User System
Archived Data System	archive request confirmation	Archived Data User System
Archived Data System	archived data products	Archived Data User System
Archived Data User System	archive analysis requests	Archived Data System
Archived Data User System	archived data product requests	Archived Data System

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 4	High	High	Low	DM01: ITS Data Warehouse
Class 4	High	High	Low	DM01.1: Traffic Data Mart
Class 4	High	High	Low	DM01.2: Public Transportation Data Mart
Class 4	High	High	Low	DM01.3: Comprehensive Transportation Data Warehouse
Class 4	High	High	Low	DM01.4: Distributed Data Warehouse
Class 4	High	High	Moderate	DM02: Performance Monitoring
Class 4	High	High	Moderate	DM02.1: Automated Traffic Signal Performance Measures (ATSPM)

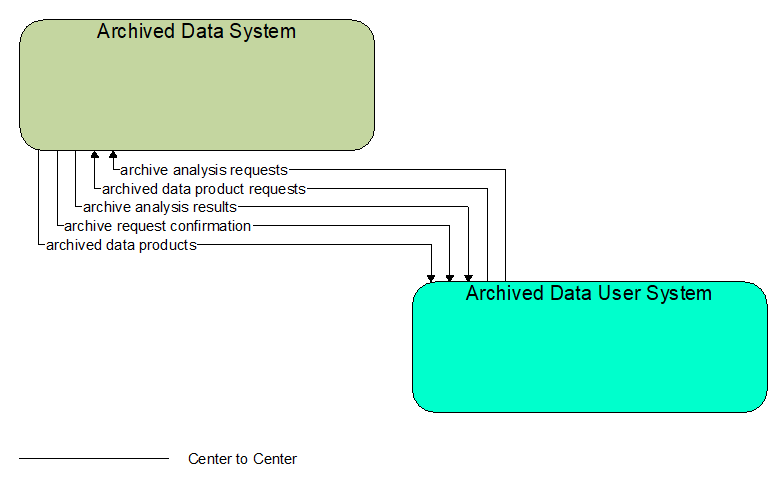

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
