Other Traffic Management Centers

Overview
Triples
Security
Interfaces Diagram
Standards

Overview

Representing another Traffic Management Center, 'Other Traffic Management Centers' is intended to provide a source and destination for information exchange between peer (e.g. inter-regional) traffic management functions. It enables traffic management activities to be coordinated across different jurisdictional areas.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Other Traffic Management Centers	device control request	Traffic Management Center
Other Traffic Management Centers	device data	Traffic Management Center
Other Traffic Management Centers	device status	Traffic Management Center
Other Traffic Management Centers	emergency traffic coordination	Traffic Management Center
Other Traffic Management Centers	incident information	Traffic Management Center
Other Traffic Management Centers	road network conditions	Traffic Management Center
Other Traffic Management Centers	traffic image meta data	Traffic Management Center
Other Traffic Management Centers	traffic images	Traffic Management Center
Other Traffic Management Centers	transportation operational strategies	Traffic Management Center
Traffic Management Center	device control request	Other Traffic Management Centers
Traffic Management Center	device data	Other Traffic Management Centers
Traffic Management Center	device status	Other Traffic Management Centers
Traffic Management Center	emergency traffic coordination	Other Traffic Management Centers
Traffic Management Center	incident information	Other Traffic Management Centers
Traffic Management Center	road network conditions	Other Traffic Management Centers
Traffic Management Center	traffic image meta data	Other Traffic Management Centers
Traffic Management Center	traffic images	Other Traffic Management Centers
Traffic Management Center	transportation operational strategies	Other Traffic Management Centers

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 5	Moderate	High	High	PS12: Disaster Response and Recovery
Class 5	Moderate	High	High	PS13: Evacuation and Reentry Management
Class 4	High	High	Moderate	TM07: Regional Traffic Management
Class 4	High	High	Moderate	TM08: Traffic Incident Management System
Class 4	High	High	Moderate	TM09: Integrated Decision Support and Demand Management
Class 3	Moderate	High	Moderate	TM22: Dynamic Lane Management and Shoulder Use
Class 1	Low	Moderate	Moderate	ST07: Eco-Lanes Management
Class 1	Low	Moderate	Moderate	TM24: Tunnel Management
Class 1	Low	Moderate	Moderate	VS08: Queue Warning
Class 1	Low	Moderate	Moderate	VS08.1: Traditional ITS Queue Warning
Class 1	Low	Moderate	Moderate	VS08.2: WAW Queue Warning
Class 1	Low	Moderate	Moderate	VS08.3: C-ITS Queue Warning

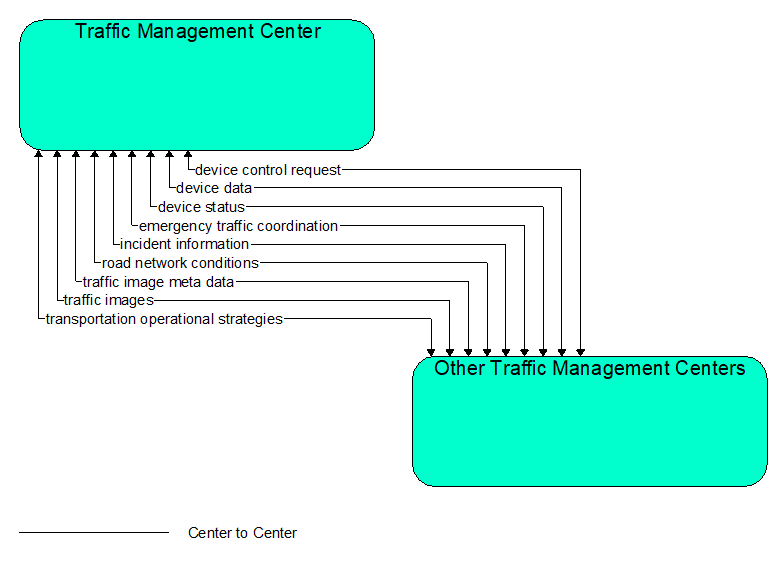

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
