Kind: Terminator

Class: Center

Type: System

Media

Overview

'Media' represents the information systems that provide traffic reports, travel conditions, and other transportation-related news services to the traveling public through radio, TV, and other media. Traffic and travel advisory information that are collected by ITS are provided to this object. It is also a source for traffic flow information, incident and special event information, and other events that may have implications for the transportation system.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.



This physical object is included in the following Service Packages:

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class Confidentiality Integrity Availability Service Package
Class 5 Low Low High MC08: Maintenance and Construction Activity Coordination
Class 1 Low Low Low MC04: Winter Maintenance
Class 1 Low Low Moderate MC06: Work Zone Management
Class 1 Low Low Moderate PS14: Disaster Traveler Information
Class 1 Low Low Moderate PT05: Transit Security
Class 1 Low Low Moderate PT08: Transit Traveler Information
Class 1 Not Applicable Low Low ST01: Emissions Monitoring
Class 1 Low Low Moderate TI01: Broadcast Traveler Information
Class 1 Low Low Moderate TI01.1: Wide Area Broadcast
Class 1 Low Low Moderate TI01.2: C-ITS Local Broadcast
Class 1 Low Low Moderate TI02: Personalized Traveler Information
Class 1 Low Low Moderate TM06: Traffic Information Dissemination
Class 1 Low Low Moderate TM06.1: Dynamic Message Signs
Class 1 Low Low Moderate TM06.2: Advisory Radio
Class 1 Low Moderate Moderate TM08: Traffic Incident Management System
Class 1 Low Low Low WX02: Weather Information Processing and Distribution

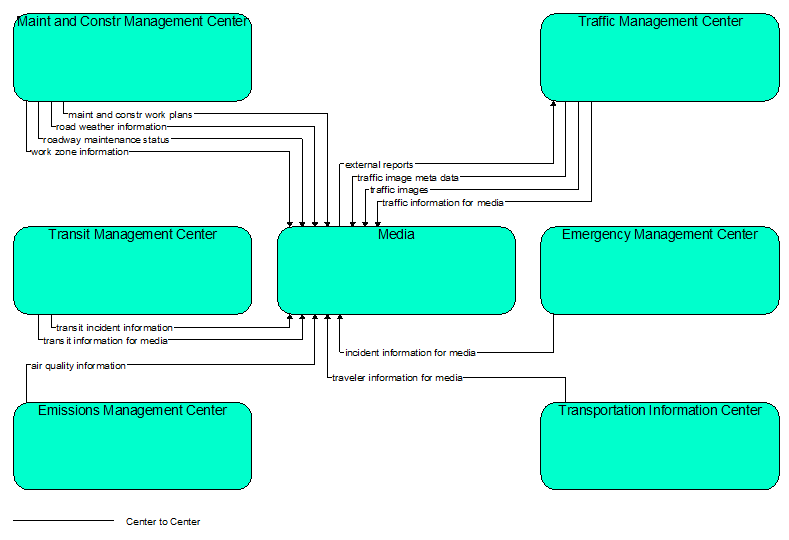

Interfaces Diagram

Interfaces diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
