PT16: Route ID for the Visually Impaired

This service package assists visually impaired travelers to identify the appropriate transit vehicle and route to their intended destination. It provides information from transit stop/station infrastructure to visually impaired travelers portable devices that can be converted to audible information regarding the appropriate transit vehicle and route. It also allows the visually impaired traveler to query the portable device to identify route options.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise
Functional

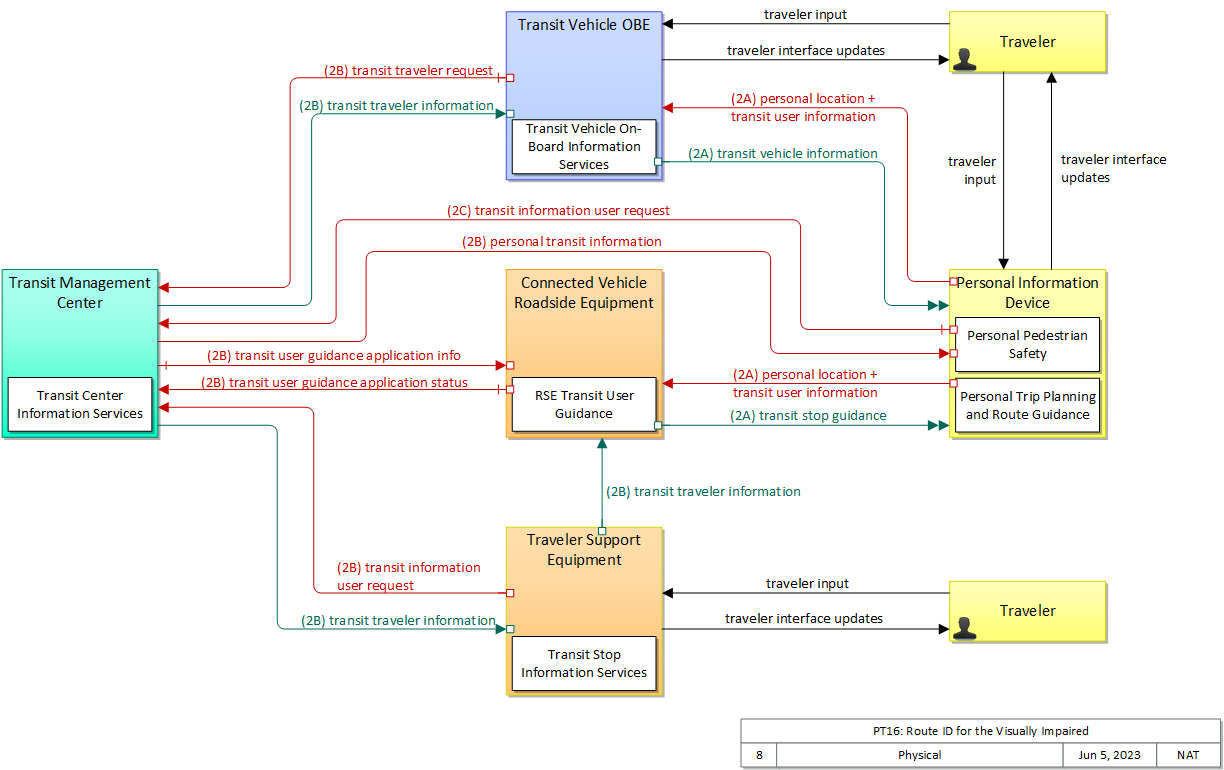

Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements
Implementations

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Connected Vehicle Roadside Equipment Developer	Connected Vehicle Roadside Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Connected Vehicle Roadside Equipment Developer	Personal Information Device Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Connected Vehicle Roadside Equipment Developer	Transit Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Multi-Access Edge Computing Developer	Multi-Access Edge Computing	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Multi-Access Edge Computing Developer	Personal Information Device Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Multi-Access Edge Computing Developer	Transit Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Personal Information Device Developer	Connected Vehicle Roadside Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Personal Information Device Developer	Multi-Access Edge Computing Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Personal Information Device Developer	Personal Information Device	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Personal Information Device Developer	Transit Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Personal Information Device Developer	Transit Vehicle OBE Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Personal Information Device Developer	Transportation Information Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Management Center Developer	Connected Vehicle Roadside Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Management Center Developer	Multi-Access Edge Computing Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Management Center Developer	Personal Information Device Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Management Center Developer	Transit Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Transit Management Center Developer	Transit Vehicle OBE Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Management Center Developer	Transportation Information Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Management Center Developer	Traveler Support Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Vehicle OBE Developer	Personal Information Device Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Vehicle OBE Developer	Transit Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Vehicle OBE Developer	Transit Vehicle OBE	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Transportation Information Center Developer	Personal Information Device Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transportation Information Center Developer	Transportation Information Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Traveler Support Equipment Developer	Connected Vehicle Roadside Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Traveler Support Equipment Developer	Multi-Access Edge Computing Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Traveler Support Equipment Developer	Transit Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Traveler Support Equipment Developer	Traveler Support Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Connected Vehicle Roadside Equipment Installer	Connected Vehicle Roadside Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Connected Vehicle Roadside Equipment Owner	Connected Vehicle Roadside Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Connected Vehicle Roadside Equipment Owner	Connected Vehicle Roadside Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Multi-Access Edge Computing Installer	Multi-Access Edge Computing	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Multi-Access Edge Computing Owner	Multi-Access Edge Computing Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Multi-Access Edge Computing Owner	Multi-Access Edge Computing Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Personal Information Device Installer	Personal Information Device	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Personal Information Device Owner	Personal Information Device Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Personal Information Device Owner	Personal Information Device Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transit Management Center Installer	Transit Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transit Management Center Owner	Transit Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transit Management Center Owner	Transit Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transit Vehicle OBE Installer	Transit Vehicle OBE	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transit Vehicle OBE Owner	Transit Vehicle OBE Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transit Vehicle OBE Owner	Transit Vehicle OBE Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transportation Information Center Installer	Transportation Information Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transportation Information Center Owner	Transportation Information Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transportation Information Center Owner	Transportation Information Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Traveler Support Equipment Installer	Traveler Support Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Traveler Support Equipment Owner	Traveler Support Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Traveler Support Equipment Owner	Traveler Support Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Connected Vehicle Roadside Equipment Maintainer	Connected Vehicle Roadside Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Connected Vehicle Roadside Equipment Manager	Connected Vehicle Roadside Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Connected Vehicle Roadside Equipment Manager	Connected Vehicle Roadside Equipment Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Connected Vehicle Roadside Equipment Operator	Connected Vehicle Roadside Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Connected Vehicle Roadside Equipment Owner	Connected Vehicle Roadside Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Connected Vehicle Roadside Equipment Owner	Connected Vehicle Roadside Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Connected Vehicle Roadside Equipment Owner	Personal Information Device Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Connected Vehicle Roadside Equipment Owner	Personal Information Device Owner	Expectation of Information Provision (hide) An expectation where one party believes another party will provide it information whenever such information is likely relevant to the recipient.
Connected Vehicle Roadside Equipment Owner	Personal Information Device User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Connected Vehicle Roadside Equipment Owner	Transit Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Connected Vehicle Roadside Equipment Owner	Transit Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Connected Vehicle Roadside Equipment Owner	Transit Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Connected Vehicle Roadside Equipment Owner	Transit Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Connected Vehicle Roadside Equipment Owner	Traveler	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Connected Vehicle Roadside Equipment Supplier	Connected Vehicle Roadside Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Multi-Access Edge Computing Maintainer	Multi-Access Edge Computing	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Multi-Access Edge Computing Manager	Multi-Access Edge Computing	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Multi-Access Edge Computing Manager	Multi-Access Edge Computing Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Multi-Access Edge Computing Operator	Multi-Access Edge Computing	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Multi-Access Edge Computing Owner	Multi-Access Edge Computing Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Multi-Access Edge Computing Owner	Multi-Access Edge Computing Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Multi-Access Edge Computing Owner	Personal Information Device Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Multi-Access Edge Computing Owner	Personal Information Device Owner	Expectation of Information Provision (hide) An expectation where one party believes another party will provide it information whenever such information is likely relevant to the recipient.
Multi-Access Edge Computing Owner	Personal Information Device User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Multi-Access Edge Computing Owner	Transit Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Multi-Access Edge Computing Owner	Transit Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Multi-Access Edge Computing Owner	Transit Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Multi-Access Edge Computing Owner	Transit Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Multi-Access Edge Computing Owner	Traveler	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Multi-Access Edge Computing Supplier	Multi-Access Edge Computing Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Personal Information Device Maintainer	Personal Information Device	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Personal Information Device Manager	Personal Information Device	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Personal Information Device Manager	Traveler	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Personal Information Device Owner	Connected Vehicle Roadside Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Personal Information Device Owner	Connected Vehicle Roadside Equipment Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Personal Information Device Owner	Connected Vehicle Roadside Equipment Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Personal Information Device Owner	Connected Vehicle Roadside Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Personal Information Device Owner	Multi-Access Edge Computing Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Personal Information Device Owner	Multi-Access Edge Computing Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Personal Information Device Owner	Multi-Access Edge Computing Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Personal Information Device Owner	Multi-Access Edge Computing User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Personal Information Device Owner	Personal Information Device Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Personal Information Device Owner	Personal Information Device Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Personal Information Device Owner	TIC Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Personal Information Device Owner	Transit Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Personal Information Device Owner	Transit Management Center Owner	Information Exchange and Action Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. This also includes a specification for action that shall, should or may be taken by one party in response to this information.
Personal Information Device Owner	Transit Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Personal Information Device Owner	Transit Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Personal Information Device Owner	Transit Vehicle OBE Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Personal Information Device Owner	Transit Vehicle OBE Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Personal Information Device Owner	Transit Vehicle OBE Owner	Information Exchange and Action Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. This also includes a specification for action that shall, should or may be taken by one party in response to this information.
Personal Information Device Owner	Transit Vehicle OBE User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Personal Information Device Owner	Transit Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Personal Information Device Owner	Transportation Information Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Personal Information Device Owner	Transportation Information Center Owner	Information Exchange and Action Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. This also includes a specification for action that shall, should or may be taken by one party in response to this information.
Personal Information Device Owner	Transportation Information Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Personal Information Device Supplier	Personal Information Device Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
TIC Operator	Transportation Information Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transit Management Center Maintainer	Transit Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transit Management Center Manager	Transit Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transit Management Center Manager	Transit Operations Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transit Management Center Owner	Connected Vehicle Roadside Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Connected Vehicle Roadside Equipment Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Management Center Owner	Connected Vehicle Roadside Equipment Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transit Management Center Owner	Connected Vehicle Roadside Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Owner	Multi-Access Edge Computing Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Multi-Access Edge Computing Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Management Center Owner	Multi-Access Edge Computing Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transit Management Center Owner	Multi-Access Edge Computing User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Owner	Personal Information Device Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Personal Information Device Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transit Management Center Owner	Personal Information Device User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Owner	TIC Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Management Center Owner	Transit Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transit Management Center Owner	Transit Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transit Management Center Owner	Transit Vehicle OBE Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Transit Vehicle OBE Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transit Management Center Owner	Transit Vehicle OBE User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Owner	Transit Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Management Center Owner	Transportation Information Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Transportation Information Center Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Transit Management Center Owner	Transportation Information Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Owner	Traveler	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Management Center Owner	Traveler Support Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Traveler Support Equipment Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transit Management Center Owner	Traveler Support Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Supplier	Transit Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Transit Operations Personnel	Transit Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transit Vehicle OBE Maintainer	Transit Vehicle OBE	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transit Vehicle OBE Manager	Transit Vehicle OBE	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transit Vehicle OBE Manager	Transit Vehicle Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transit Vehicle OBE Owner	Personal Information Device Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Vehicle OBE Owner	Personal Information Device Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Transit Vehicle OBE Owner	Personal Information Device User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Vehicle OBE Owner	Transit Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Vehicle OBE Owner	Transit Management Center Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Transit Vehicle OBE Owner	Transit Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transit Vehicle OBE Owner	Transit Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Vehicle OBE Owner	Transit Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Vehicle OBE Owner	Transit Vehicle OBE Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transit Vehicle OBE Owner	Transit Vehicle OBE Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transit Vehicle OBE Owner	Traveler	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Vehicle OBE Owner	Traveler	Vehicle Operating Agreement (hide) An agreement whereupon the controller of a vehicle grants another entity permission and rights to operate the vehicle.
Transit Vehicle OBE Supplier	Transit Vehicle OBE Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Transit Vehicle Operator	Transit Vehicle OBE	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transportation Information Center Maintainer	Transportation Information Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transportation Information Center Manager	TIC Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transportation Information Center Manager	Transportation Information Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transportation Information Center Owner	Personal Information Device Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transportation Information Center Owner	Personal Information Device Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transportation Information Center Owner	Personal Information Device User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transportation Information Center Owner	Transportation Information Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transportation Information Center Owner	Transportation Information Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transportation Information Center Owner	Traveler	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transportation Information Center Supplier	Transportation Information Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Traveler	Personal Information Device	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Traveler	Traveler Support Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Traveler Support Equipment Maintainer	Traveler Support Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Traveler Support Equipment Manager	Traveler	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Traveler Support Equipment Manager	Traveler Support Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Traveler Support Equipment Owner	Connected Vehicle Roadside Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traveler Support Equipment Owner	Connected Vehicle Roadside Equipment Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Traveler Support Equipment Owner	Connected Vehicle Roadside Equipment Owner	Information Exchange and Action Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. This also includes a specification for action that shall, should or may be taken by one party in response to this information.
Traveler Support Equipment Owner	Connected Vehicle Roadside Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traveler Support Equipment Owner	Multi-Access Edge Computing Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traveler Support Equipment Owner	Multi-Access Edge Computing Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Traveler Support Equipment Owner	Multi-Access Edge Computing Owner	Information Exchange and Action Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. This also includes a specification for action that shall, should or may be taken by one party in response to this information.
Traveler Support Equipment Owner	Multi-Access Edge Computing User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traveler Support Equipment Owner	Transit Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traveler Support Equipment Owner	Transit Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Traveler Support Equipment Owner	Transit Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traveler Support Equipment Owner	Transit Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Traveler Support Equipment Owner	Traveler Support Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Traveler Support Equipment Owner	Traveler Support Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Traveler Support Equipment Supplier	Traveler Support Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Connected Vehicle Roadside Equipment	RSE Transit User Guidance	1.1.1.6	Collect Vehicle Roadside Safety Data
Connected Vehicle Roadside Equipment	RSE Transit User Guidance	4.7.3	Provide Transit Traveler Roadside Interface
Personal Information Device	Personal Pedestrian Safety	6.8.1.3	Process Personal Portable Device Location Data
		6.8.2.3	Monitor Pedestrian Safety Status
		6.8.2.4	Provide Pedestrian Personal Interface
		6.8.3.3	Provide Traveler Personal Interface
		6.8.3.6	Provide Personal Safety Messages
	Personal Trip Planning and Route Guidance	6.8.1.1.1	Determine Personal Portable Device Guidance Method
		6.8.1.1.2	Provide Personal Portable Device Dynamic Guidance
		6.8.1.1.3	Provide Personal Portable Device Autonomous Guidance
		6.8.1.2	Provide Personal Portable Device Guidance Interface
		6.8.3.1	Get Traveler Personal Request
		6.8.3.2	Provide Traveler with Personal Travel Information
		6.8.3.3	Provide Traveler Personal Interface
		6.8.3.5	Provide Traveler Transit Services Interface
		7.5.3	Provide Personal Payment Device Interface
Transit Management Center	Transit Center Information Services	4.2.1.3	Produce Transit Service Data for External Use
		4.2.1.6	Produce Transit Service Data for Manage Transit Use
		4.2.1.7	Provide Interface for Other Transit Management Data
Transit Vehicle OBE	Transit Vehicle On-Board Information Services	4.1.1	Process On-Board Systems Data
		4.1.2	Determine Transit Vehicle Service Status
		4.1.7	Provide Transit Advisory Interface on Vehicle
		4.6.2	Determine Traveler Needs on Vehicle
Traveler Support Equipment	Transit Stop Information Services	4.7.1	Provide Traveler Roadside & Vehicle Data Interface
		4.7.2.1	Detect Traveler at Roadside
		4.7.2.5	Provide Traveler Roadside Fare Interface
		4.7.2.7	Provide Transit Roadside Passenger Data
		6.3.2	Inform Traveler

Physical

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Connected Vehicle Roadside Equipment	Field	'Connected Vehicle Roadside Equipment' (CV RSE) represents the Connected Vehicle roadside devices (i.e., Roadside Units (RSUs)) equipped with short range wireless (SRW) communications technology, as well as any other supporting equipment that leverage the RSU and are not described by other objects (e.g., a local roadside processor). CVRSE are used to send messages to, and receive messages from, nearby vehicles and personal devices equipped with compatible communications technology. Communications with adjacent field equipment and back office centers that monitor and control the RSE are also supported. This device operates from a fixed position and may be permanently deployed or a portable device that is located temporarily in the vicinity of a traffic incident, road construction, or a special event. It includes a processor, data storage, and communications capabilities that support secure communications with passing vehicles, other field equipment, and centers.
Personal Information Device	Personal	The 'Personal Information Device' provides the capability for travelers to receive formatted traveler information wherever they are. Capabilities include traveler information, trip planning, and route guidance. Frequently a smart phone, the Personal Information Device provides travelers with the capability to receive route planning and other personally focused transportation services from the infrastructure in the field, at home, at work, or while en-route. Personal Information Devices may operate independently or may be linked with vehicle on-board equipment. This subsystem also supports safety related services with the capability to broadcast safety messages and initiate a distress signal or request for help.
Transit Management Center	Center	The 'Transit Management Center' manages transit vehicle fleets and coordinates with other modes and transportation services. It provides operations, maintenance, customer information, planning and management functions for the transit property. It spans distinct central dispatch and garage management systems and supports the spectrum of fixed route, flexible route, paratransit services, transit rail, and bus rapid transit (BRT) service. The physical object's interfaces support communication between transit departments and with other operating entities such as emergency response services and traffic management systems.
Transit Vehicle OBE	Vehicle	The 'Transit Vehicle On-Board Equipment' (OBE) resides in a transit vehicle and provides the sensory, processing, storage, and communications functions necessary to support safe and efficient movement of passengers. The types of transit vehicles containing this physical object include buses, paratransit vehicles, light rail vehicles, other vehicles designed to carry passengers, and supervisory vehicles. It collects ridership levels and supports electronic fare collection. It supports a traffic signal prioritization function that communicates with the roadside physical object to improve on-schedule performance. Automated vehicle location enhances the information available to the transit operator enabling more efficient operations. On-board sensors support transit vehicle maintenance. The physical object supports on-board security and safety monitoring. This monitoring includes transit user or vehicle operator activated alarms (silent or audible), as well as surveillance and sensor equipment. The surveillance equipment includes video (e.g. CCTV cameras), audio systems and/or event recorder systems. It also furnishes travelers with real-time travel information, continuously updated schedules, transfer options, routes, and fares. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including transit vehicles. The Transit Vehicle OBE supplements these general capabilities with capabilities that are specific to transit vehicles.
Transportation Information Center	Center	The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.
Traveler	Personal	The 'Traveler' represents any individual who uses transportation services. The interfaces to the traveler provide general pre-trip and en-route information supporting trip planning, personal guidance, and requests for assistance in an emergency that are relevant to all transportation system users. It also represents users of a public transportation system and addresses interfaces these users have within a transit vehicle or at transit facilities such as roadside stops and transit centers.
Traveler Support Equipment	Field	'Traveler Support Equipment' provides access to traveler information at transit stations, transit stops, other fixed sites along travel routes (e.g., rest stops, merchant locations), and major trip generation locations such as special event centers, hotels, office complexes, amusement parks, and theaters. Traveler information access points include kiosks and informational displays supporting varied levels of interaction and information access. At transit stops this might be simple displays providing schedule information and imminent arrival signals. This may be extended to include multi-modal information including traffic conditions and transit schedules to support mode and route selection at major trip generation sites. Personalized route planning and route guidance information can also be provided based on criteria supplied by the traveler. It also supports service enrollment and electronic payment of transit fares. In addition to the traveler information provision, it also enhances security in public areas by supporting traveler activated silent alarms.

Includes Functional Objects:

Functional Object	Description	Physical Object
Personal Pedestrian Safety	'Personal Pedestrian Safety' improves pedestrian, cyclist, and other vulnerable road user safety by providing personal location information to the infrastructure that can be used to avoid collisions involving vulnerable road users. It may also alert the vulnerable road user of unsafe conditions, augmenting or extending information provided by signals and signs. The information provided and the user interface delivery mechanism (visual, audible, or haptic) can also be tailored to the needs of the user that is carrying or wearing the device that hosts the application.	Personal Information Device
Personal Trip Planning and Route Guidance	'Personal Trip Planning and Route Guidance' provides a personalized trip plan to the traveler. The trip plan is calculated based on preferences and constraints supplied by the traveler and provided to the traveler for confirmation. Coordination may continue during the trip so that the route plan can be modified to account for new information. Many equipment configurations are possible including systems that provide a basic trip plan to the traveler as well as more sophisticated systems that can provide transition by transition guidance to the traveler along a multi-modal route with transfers. Devices represented by this functional object include desktop computers at home, work, or at major trip generation sites, plus personal devices such as tablets and smart phones.	Personal Information Device
RSE Transit User Guidance	'RSE Transit User Guidance' uses short range communications to provide terminal or stop-specific guidance to transit user devices that assists users in finding the right stop and the right bus. Optionally, this object can collect the transit user location and planned itinerary so that tailored guidance can be provided.	Connected Vehicle Roadside Equipment
TIC Transit User Guidance	'TIC Transit User Guidance' uses wireless communications to provide terminal or stop-specific guidance to transit user devices that assists users in finding the right stop and the right bus. Optionally, this object can collect the transit user location and planned itinerary so that tailored guidance can be provided.	Transportation Information Center
Transit Center Information Services	'Transit Center Information Services' collects the latest available information for a transit service and makes it available to transit customers and to Transportation Information Centers for further distribution. Customers are provided information at transit stops and other public transportation areas before they embark and on-board the transit vehicle once they are en route. Information provided can include the latest available information on transit routes, schedules, transfer options, fares, real-time schedule adherence, current incidents, weather conditions, yellow pages, and special events. In addition to general service information, tailored information (e.g., itineraries) are provided to individual transit users.	Transit Management Center
Transit Stop Information Services	'Transit Stop Information Services' furnishes transit users with real-time travel-related information at transit stops, multi-modal transfer points, and other public transportation areas. It provides transit users with information on transit routes, schedules, transfer options, available services, fares, and real-time schedule adherence. In addition to tailored information for individual transit users, it supports general annunciation and/or display of imminent arrival information and other information of general interest to transit users.	Traveler Support Equipment
Transit Vehicle On-Board Information Services	'Transit Vehicle On-board Information Services' furnishes en route transit users with real-time travel-related information on-board a transit vehicle. Current information that can be provided to transit users includes transit routes, schedules, transfer options, fares, real-time schedule adherence, current incidents, weather conditions, non-motorized transportation services, and special events are provided. In addition to tailored information for individual transit users, it also supports general annunciation and/or display of general schedule information, imminent arrival information, and other information of general interest to transit users.	Transit Vehicle OBE

Includes Information Flows:

Information Flow	Description
personal location	The current location (latitude, longitude, and elevation) reported by the personal information or safety device
personal transit information	General and personalized transit information for a particular fixed route, flexible route, or paratransit system.
transit information user request	Request for special transit routing, real-time schedule information, and availability information.
transit schedule adherence information	Dynamic transit schedule adherence and transit vehicle location information.
transit stop guidance	Information sent from bus stop infrastructure to portable devices that includes stop-specific bus schedules and routes.
transit stop locations	The current geographic location and dimensions of transit stops. This flow may also include the road geometry in the vicinity of the stops as needed to support transit vehicle safety applications when arriving at or departing from stops.
transit traveler information	Transit information prepared to support transit users and other travelers. It contains transit schedules, real-time arrival information, fare schedules, alerts and advisories, and general transit service information.
transit traveler request	Request by a Transit traveler to summon assistance, request transit information, or request any other transit services.
transit user guidance application info	Transit user guidance application information including current transit traveler information and associated parameters and thresholds that control the delivery of this information. This flow also supports remote control of the application so the application can be taken offline, reset, or restarted.
transit user guidance application status	Transit user guidance application status reported by the RSE. This includes current operational state and status of the RSE and a record of system operation.
transit user information	Information about individual transit users boarding a transit vehicle, used to track a user's progress on a scheduled transit trip.
transit vehicle information	Information about the transit vehicle route and stops, including current location along the route and next stop.
traveler input	User input from a traveler to summon assistance, request travel information, make a reservation, or request any other traveler service.
traveler interface updates	Visual or audio information (e.g., routes, messages, guidance, emergency information) that is provided to the traveler.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal
B. Increase the safety of the transportation system for motorized and nonmotorized users;	Reduce fatalities and injuries
C. Increase the security of the transportation system for motorized and nonmotorized users;	Improve security
D. Increase the accessibility and mobility of people and for freight;	Reduce congestion
J. Enhance travel and tourism.	Support travel and tourism

Associated Objective Categories

Objective Category
System Options: Modal Options for Individuals with Disabilities
Transit Operations and Management: Customer Service
Transit Operations and Management: Safety

Associated Objectives and Performance Measures

Objective	Performance Measure
Decrease by X percent on an annual basis the number of complaints per 1,000 boarding passengers.	Complaint rate.
Increase customer service ratings by X percent in Y years.	Customer satisfaction rating
Increase personal safety ratings by X percent within Y years.	Personal safety and customer service ratings.
Increase the availability of transit to individuals with disabilities by X percent by year Y.	The percent of individuals with disabilities that can access transit.
Increase the percent of intersections with ADA (Americans with Disabilities Act) provisions to X percent by year Y.	The percent of intersections with ADA provisions.
Increase the percent of transit stops with ADA (Americans with Disabilities Act) provisions to X percent by year Y.	The percent of transit stops with ADA provisions.

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement
01	Transit Operations needs to know the location and destination of the visually impaired traveler in order to identify the correct route and stop information to provide to the traveler via their personal device.	Personal Pedestrian Safety	01	The personal information device shall provide the current location (latitude, longitude, and elevation) of the non-motorized travelers.
		Personal Pedestrian Safety	03	The personal traveler interface shall provide traveler location information to transit vehicles.
		RSE Transit User Guidance	03	The field element shall collect information about individual transit users boarding a transit vehicle. This information can be used to track a user's progress on a scheduled transit trip and can contain indication of special needs of the traveler, such as that they are visually impaired.
		Transit Center Information Services	09	The center shall receive trip requests from travelers, including those who are visually impaired which include the current location of the traveler.
		Transit Vehicle On-Board Information Services	03	The transit vehicle shall support input and output forms that are suitable for travelers with physical disabilities.
02	Transit Operations needs to be able to provide transit vehicle route and stop information to the traveler via their personal device.	Personal Pedestrian Safety	04	The personal traveler interface shall provide to a transit vehicle the traveler's intent to board the transit vehicle including the transit station/stop at which the traveler would like to board.
			06	The personal traveler interface shall provide the traveler with an indication that an approaching transit vehicle is the one they want to board based on their input trip itinerary.
			07	The personal traveler interface shall provide the traveler with an indication that a nearby transit vehicle is preparing to leave a station or stop.
		Personal Trip Planning and Route Guidance	04	The personal traveler interface shall present personal trip planning information to the traveler in audible or visual forms consistent with a personal device, and suitable for travelers with hearing and vision physical disabilities.
		RSE Transit User Guidance	01	The field element shall provide stop-specific transit schedules and routes information to personal traveler devices.
		Transit Center Information Services	10	The center shall provide route and station/stop information to travelers, including those who are visually impaired, based on their trip requests.
03	Transit Operations needs to provide bus arrival information at the stop to support visually impaired travelers.	Personal Pedestrian Safety	05	The personal traveler interface shall provide the traveler with warnings about approaching vehicles.
		Personal Pedestrian Safety	06	The personal traveler interface shall provide the traveler with an indication that an approaching transit vehicle is the one they want to board based on their input trip itinerary.
		Transit Stop Information Services	04	The public interface for travelers shall present information to the traveler in a form suitable for travelers with physical disabilities including travelers who are visually impaired.

Related Sources

Document Name	Version	Publication Date
ConOps for Transit Connected Vehicle	Draft	3/31/2012
FHWA-JPO-21-860 - Phase 1 Concept of Operations (ConOps) – Buffalo NY ITS4US Deployment Project	Final	7/14/2021

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Connected Vehicle Roadside Equipment	Moderate	Moderate	Moderate	Class 2
Personal Information Device	Moderate	High	Moderate	Class 3
Transit Management Center	Moderate	Moderate	Moderate	Class 2
Transit Vehicle OBE	Moderate	Moderate	Moderate	Class 2
Transportation Information Center
Traveler Support Equipment	Moderate	Moderate	Moderate	Class 2

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Connected Vehicle Roadside Equipment	Personal Information Device	transit stop guidance	Not Applicable	Moderate	Moderate
Connected Vehicle Roadside Equipment	Personal Information Device	transit stop guidance	This data is broadcast and intended for general consumption.	False information here could play havoc with an individual's schedule and cause inconvenience to users of transit services that received incorrect information.	This data should be available through other means, but it will be more convenient if available. Depending on the implementation and other dissemination methods, this may be LOW.
Connected Vehicle Roadside Equipment	Transit Management Center	transit user guidance application status	Moderate	Moderate	Low
Connected Vehicle Roadside Equipment	Transit Management Center	transit user guidance application status	This information could be of interest to a malicious individual who is attempting to determine the best way to accomplish a crime. As such it would be best to not make it easily accessible.	If this is compromised, it could send unnecessary maintenance workers, or cause the appearance of excessive traffic violations, leading to further unnecessary investigation.	A delay in reporting this may cause a delay in necessary maintenance, but (a) this is not time-critical and (b) there are other channels for reporting malfunctioning. Additionally, there is a message received notification, which means that RSE can ensure that all intersection safety issues are delivered.
Personal Information Device	Connected Vehicle Roadside Equipment	personal location	Not Applicable	High	Moderate
Personal Information Device	Connected Vehicle Roadside Equipment	personal location	This data is intentionally transmitted to everyone via a broadcast. It can also be determined via other visual indicators.	An incorrect location message could lead to a false warning or lack of warning. A lack of warning can have obvious catastrophic consequences, while a false warning could lead to users ignoring warnings due to perceived inaccuracy. Given that this triple may apply to highly dynamic environments (such as work zones), its accuracy is paramount, and thus if sent, must have HIGH integrity.	There are other visual indicators about the geofenced areas. PID users in dynamic environments (incident and work zones) should know when they are leaving a geofenced area. As long as they remain in the geofenced area, this information is not as necessary. Not all pedestrians will carry a personal information device, and the system should be able to operate without this information.
Personal Information Device	Connected Vehicle Roadside Equipment	transit user information	Moderate	Moderate	Moderate
Personal Information Device	Connected Vehicle Roadside Equipment	transit user information	May contain the PII of the originator, which should be readable only by the intended recepient lest the originator's privacy be violated. If the implementation does not provide traveler identity, this may be reduced to LOW.	If this is compromised or corrupted, the user's needs may not be properly communicated or met. If this is forged, the transit provider may provide unnecessary services.	If this is not available, the user may not receive transit services offered, and as with other transit services may ceases using the system. While the immediate impact is LOW, long term impact is MODERATE due to user confidence issues.
Personal Information Device	Transit Management Center	transit information user request	Moderate	Moderate	Moderate
Personal Information Device	Transit Management Center	transit information user request	Contains a personalized request by an individual traveler, so should not be readable by anyone except the intended recipient.	If corrupted this would result in failed connection protection. If modified intentionally would cause either failed protection or unnecessary protection. In any case these affect the efficacy and efficiency of the transit system, but the scope of the effects are limited, thus MODERATE and not HIGH.	If unavailable that transit connection protection will not function. Given the scope of the application, this affects only those riders requiring protection, which should be limited scope, thus MODERATE and not HIGH.
Personal Information Device	Transit Vehicle OBE	personal location	Not Applicable	High	Moderate
Personal Information Device	Transit Vehicle OBE	personal location	This data is intentionally transmitted to everyone via a broadcast. It can also be determined via other visual indicators.	An incorrect location message could lead to a false warning or lack of warning. A lack of warning can have obvious catastrophic consequences, while a false warning could lead to users ignoring warnings due to perceived inaccuracy. Given that this triple may apply to highly dynamic environments (such as work zones), its accuracy is paramount, and thus if sent, must have HIGH integrity.	There are other visual indicators about the geofenced areas. PID users in dynamic environments (incident and work zones) should know when they are leaving a geofenced area. As long as they remain in the geofenced area, this information is not as necessary. Not all pedestrians will carry a personal information device, and the system should be able to operate without this information.
Personal Information Device	Transit Vehicle OBE	transit user information	Moderate	Moderate	Moderate
Personal Information Device	Transit Vehicle OBE	transit user information	May contain the PII of the originator, which should be readable only by the intended recepient lest the originator's privacy be violated. If the implementation does not provide traveler identity, this may be reduced to LOW.	If this is compromised or corrupted, the user's needs may not be properly communicated or met. If this is forged, the transit provider may provide unnecessary services.	If this is not available, the user may not receive transit services offered, and as with other transit services may ceases using the system. While the immediate impact is LOW, long term impact is MODERATE due to user confidence issues.
Personal Information Device	Traveler	traveler interface updates	Not Applicable	Moderate	Moderate
Personal Information Device	Traveler	traveler interface updates	Personalized data that includes directions and guidance for an individual, but eventually evident anyway.	Should be accurate as the Traveler will be relying on this information for routing and related choices. Lack of accuracy will result in lack of confidence from the traveler as well as an unsatisfactory trip, leading to a negative feedback spiral.	Users expect their devices to work. If information is not presented to the operator, the relevant applications simply won't be used.
Transit Management Center	Connected Vehicle Roadside Equipment	transit user guidance application info	Moderate	Moderate	Low
Transit Management Center	Connected Vehicle Roadside Equipment	transit user guidance application info	This information could be of interest to a malicious individual who is attempting to determine the best way to accomplish a crime. As such it would be best to not make it easily accessible.	If this is compromised, it could send unnecessary maintenance workers, or cause the appearance of excessive traffic violations, leading to further unnecessary investigation.	A delay in reporting this may cause a delay in necessary maintenance, but (a) this is not time-critical and (b) there are other channels for reporting malfunctioning. Additionally, there is a message received notification, which means that RSE can ensure that all intersection safety issues are delivered.
Transit Management Center	Personal Information Device	personal transit information	Moderate	Moderate	Moderate
Transit Management Center	Personal Information Device	personal transit information	Contains a personalized reponse to an individual traveler, so should not be readable by anyone except that traveler.	If incorrect, the traveler may believe they have to make other plans, which is a significant inconvenience to them, but affects a limited scope so MODERATE not HIGH.	If unavailable, the traveler may make other plans, which is a significant inconvenience to them, but affects a limited scope so MODERATE not HIGH.
Transit Management Center	Transit Vehicle OBE	transit traveler information	Low	Moderate	Moderate
Transit Management Center	Transit Vehicle OBE	transit traveler information	This information is not sensitive. It is generally made public, to support transit system functionality.	Accuracy of this data is important for decision making purposes. Corruption of this data could lead to revenue loss and confusion.	Does not happen often, but when this information is needed its use is imminent. Consequently the flow needs to be reliable for those limited times.
Transit Management Center	Transportation Information Center	transit schedule adherence information	Low	Moderate	Moderate
Transit Management Center	Transportation Information Center	transit schedule adherence information	Eventually intended for public consumption, so no need to obfuscate.	While accuracy of this data is important for decision making purposes, applications should be able to function without it. Thus MODERATE generally.	While accuracy of this data is important for decision making purposes, applications should be able to cfunction without it. Thus MODERATE generally.
Transit Management Center	Traveler Support Equipment	transit traveler information	Low	Moderate	Moderate
Transit Management Center	Traveler Support Equipment	transit traveler information	This information is not sensitive. It is generally made public, to support transit system functionality.	Accuracy of this data is important for decision making purposes. Corruption of this data could lead to revenue loss and confusion.	Does not happen often, but when this information is needed its use is imminent. Consequently the flow needs to be reliable for those limited times.
Transit Vehicle OBE	Personal Information Device	transit vehicle information	Low	Moderate	Moderate
Transit Vehicle OBE	Personal Information Device	transit vehicle information	Data is intended for public use.	General transit schedule information, as well as more specific "next stop" and similar information should be prompt and correct or users will lose confidence and not use the system. Also inconvenienced by the lack of correct and timely information. Impact is localized and limited however, so MODERATE and not HIGH.	General transit schedule information, as well as more specific "next stop" and similar information should be prompt and correct or users will lose confidence and not use the system. Also inconvenienced by the lack of correct and timely information. Impact is localized and limited however, so MODERATE and not HIGH.
Transit Vehicle OBE	Transit Management Center	transit traveler request	Moderate	Moderate	Moderate
Transit Vehicle OBE	Transit Management Center	transit traveler request	May contain the PII of the originator, which should be readable only by the intended recepient lest the originator's privacy be violated. If the implementation does not provide traveler identity, this may be reduced to LOW.	If this is compromised or corrupted, the user's needs may not be properly communicated or met. If this is forged, the transit provider may provide unnecessary services.	If this is not available, the user may not receive transit services offered, and as with other transit services may ceases using the system. While the immediate impact is LOW, long term impact is MODERATE due to user confidence issues.
Transit Vehicle OBE	Traveler	traveler interface updates	Not Applicable	Moderate	Moderate
Transit Vehicle OBE	Traveler	traveler interface updates	This data is informing the vehicle of operational information that is relevant to the operation of the vehicle. It should not contain anything sensitive, and does not matter if another person can observe it.	Should be accurate as the Traveler will be relying on this information for routing and related choices. Lack of accuracy will result in lack of confidence from the traveler as well as an unsatisfactory trip, leading to a negative feedback spiral.	Users expect their devices to work. If information is not presented to the operator, the relevant applications simply won't be used.
Traveler	Personal Information Device	traveler input	Not Applicable	Moderate	Low
Traveler	Personal Information Device	traveler input	This data is informing the vehicle of operational information that is relevant to the operation of the vehicle. It should not contain anything sensitive, and does not matter if another person can observe it.	While public, information must be correct or travelers may make incorrect decisions with regard to their travel plans.	Information is available through other means, though depending on the location this might not always be the case, in which case this would be MODERATE.
Traveler	Transit Vehicle OBE	traveler input	Not Applicable	Moderate	Low
Traveler	Transit Vehicle OBE	traveler input	This data is informing the vehicle of operational information that is relevant to the operation of the vehicle. It should not contain anything sensitive, and does not matter if another person can observe it.	While public, information must be correct or travelers may make incorrect decisions with regard to their travel plans.	Information is available through other means, though depending on the location this might not always be the case, in which case this would be MODERATE.
Traveler	Traveler Support Equipment	traveler input	Not Applicable	Moderate	Low
Traveler	Traveler Support Equipment	traveler input	Publicly available information, while not directly observable, is intended for widespread distribution	While public, information must be correct or travelers may make incorrect decisions with regard to their travel plans.	Information is available through other means, though depending on the location this might not always be the case, in which case this would be MODERATE.
Traveler Support Equipment	Connected Vehicle Roadside Equipment	transit traveler information	Low	Moderate	Moderate
Traveler Support Equipment	Connected Vehicle Roadside Equipment	transit traveler information	This information is not sensitive. It is generally made public, to support transit system functionality.	Accuracy of this data is important for decision making purposes. Corruption of this data could lead to revenue loss and confusion.	Does not happen often, but when this information is needed its use is imminent. Consequently the flow needs to be reliable for those limited times.
Traveler Support Equipment	Transit Management Center	transit information user request	Moderate	Moderate	Moderate
Traveler Support Equipment	Transit Management Center	transit information user request	Contains a personalized request by an individual traveler, so should not be readable by anyone except the intended recipient.	If corrupted this would result in failed connection protection. If modified intentionally would cause either failed protection or unnecessary protection. In any case these affect the efficacy and efficiency of the transit system, but the scope of the effects are limited, thus MODERATE and not HIGH.	If unavailable that transit connection protection will not function. Given the scope of the application, this affects only those riders requiring protection, which should be limited scope, thus MODERATE and not HIGH.
Traveler Support Equipment	Traveler	traveler interface updates	Not Applicable	Moderate	Moderate
Traveler Support Equipment	Traveler	traveler interface updates	Publicly available information, while not directly observable, is intended for widespread distribution	Should be accurate as the Traveler will be relying on this information for routing and related choices. Lack of accuracy will result in lack of confidence from the traveler as well as an unsatisfactory trip, leading to a negative feedback spiral.	Users expect their devices to work. If information is not presented to the operator, the relevant applications simply won't be used.

Standards

The following table lists the standards associated with physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

Name	Title	Physical Object
CTI 4001 RSU	Roadside Unit (RSU) Standard	Connected Vehicle Roadside Equipment

System Requirements

System Requirement		Need
001	The system shall receive trip requests from travelers, including those who are visually impaired which include the current location of the traveler.	01	Transit Operations needs to know the location and destination of the visually impaired traveler in order to identify the correct route and stop information to provide to the traveler via their personal device.
002	The system shall provide route and station/stop information to travelers, including those who are visually impaired, based on their trip requests.	02	Transit Operations needs to be able to provide transit vehicle route and stop information to the traveler via their personal device.
003	The system shall provide stop-specific transit schedules and routes information to personal traveler devices.	02	Transit Operations needs to be able to provide transit vehicle route and stop information to the traveler via their personal device.
004	The system shall collect information about individual transit users boarding a transit vehicle. This information can be used to track a user's progress on a scheduled transit trip and can contain indication of special needs of the traveler, such as that they are visually impaired.	01	Transit Operations needs to know the location and destination of the visually impaired traveler in order to identify the correct route and stop information to provide to the traveler via their personal device.
005	The system shall present information to the traveler in a form suitable for travelers with physical disabilities including travelers who are visually impaired.	03	Transit Operations needs to provide bus arrival information at the stop to support visually impaired travelers.
006	The system shall provide the current location (latitude, longitude, and elevation) of the non-motorized travelers.	01	Transit Operations needs to know the location and destination of the visually impaired traveler in order to identify the correct route and stop information to provide to the traveler via their personal device.
007	The system shall provide traveler location information to transit vehicles.	01	Transit Operations needs to know the location and destination of the visually impaired traveler in order to identify the correct route and stop information to provide to the traveler via their personal device.
008	The system shall provide to a transit vehicle the traveler's intent to board the transit vehicle including the transit station/stop at which the traveler would like to board.	02	Transit Operations needs to be able to provide transit vehicle route and stop information to the traveler via their personal device.
009	The system shall provide the traveler with warnings about approaching vehicles.	03	Transit Operations needs to provide bus arrival information at the stop to support visually impaired travelers.
010	The system shall provide the traveler with an indication that an approaching transit vehicle is the one they want to board based on their input trip itinerary.	02	Transit Operations needs to be able to provide transit vehicle route and stop information to the traveler via their personal device.
010		03	Transit Operations needs to provide bus arrival information at the stop to support visually impaired travelers.
011	The system shall provide the traveler with an indication that a nearby transit vehicle is preparing to leave a station or stop.	02	Transit Operations needs to be able to provide transit vehicle route and stop information to the traveler via their personal device.
012	The system shall present personal trip planning information to the traveler in audible or visual forms consistent with a personal device, and suitable for travelers with hearing and vision physical disabilities.	02	Transit Operations needs to be able to provide transit vehicle route and stop information to the traveler via their personal device.
013	The system shall support input and output forms that are suitable for travelers with physical disabilities.	01	Transit Operations needs to know the location and destination of the visually impaired traveler in order to identify the correct route and stop information to provide to the traveler via their personal device.
