Overview

The 'Position Corrections Source' represents the external source of land-based position corrections that augment satellite-provided (e.g., GPS) positioning data.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

SU05: Location and Time

Triples

Source	Flow	Destination
Position Corrections Source	position corrections	Connected Vehicle Roadside Equipment
Position Corrections Source	position corrections	Multi-Access Edge Computing
Position Corrections Source	position corrections	Personal
Position Corrections Source	position corrections	Vehicle

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 5	Not Applicable	High	High	SU05: Location and Time
Class 5	Not Applicable	High	High	SU05.2: Position Correction Implementation

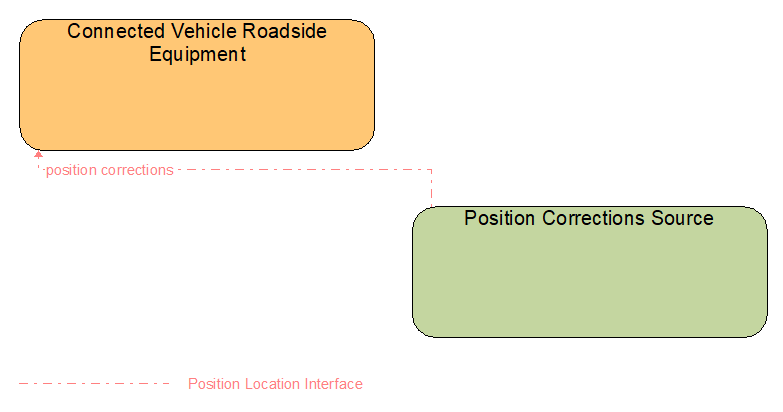

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. Go to the "Triples" tab, select one of the Flow names, then go to the Communications Solutions tab and review the Communications solutions and their associated standards for the interfaces of this physical object.
