CF05.1: Pre-Trip Parking Planning

Provides parking information to commercial vehicle operators pre-trip to support trip planning, offering parking reservations as an option.

Relevant Regions:

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Commercial Vehicle OBE Developer	Commercial Vehicle OBE	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Commercial Vehicle OBE Developer	Transportation Information Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Fleet and Freight Management Center Developer	Fleet and Freight Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Fleet and Freight Management Center Developer	Transportation Information Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Parking Area Equipment Developer	Parking Area Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Parking Area Equipment Developer	Parking Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Parking Management Center Developer	Parking Area Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Parking Management Center Developer	Parking Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Parking Management Center Developer	Transportation Information Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Personal Information Device Developer	Personal Information Device	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Transportation Information Center Developer	Commercial Vehicle OBE Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transportation Information Center Developer	Fleet and Freight Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transportation Information Center Developer	Parking Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transportation Information Center Developer	Personal Information Device Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transportation Information Center Developer	Transportation Information Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Commercial Vehicle OBE Installer	Commercial Vehicle OBE	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Commercial Vehicle OBE Owner	Commercial Vehicle OBE Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Commercial Vehicle OBE Owner	Commercial Vehicle OBE Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Fleet and Freight Management Center Installer	Fleet and Freight Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Fleet and Freight Management Center Owner	Fleet and Freight Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Fleet and Freight Management Center Owner	Fleet and Freight Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Parking Area Equipment Installer	Parking Area Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Parking Area Equipment Owner	Parking Area Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Parking Area Equipment Owner	Parking Area Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Parking Management Center Installer	Parking Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Parking Management Center Owner	Parking Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Parking Management Center Owner	Parking Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Personal Information Device Installer	Personal Information Device	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Personal Information Device Owner	Personal Information Device Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Personal Information Device Owner	Personal Information Device Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transportation Information Center Installer	Transportation Information Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transportation Information Center Owner	Transportation Information Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transportation Information Center Owner	Transportation Information Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Commercial Vehicle Driver	Commercial Vehicle OBE	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Commercial Vehicle OBE Maintainer	Commercial Vehicle OBE	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Commercial Vehicle OBE Manager	Commercial Vehicle Driver	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Commercial Vehicle OBE Manager	Commercial Vehicle OBE	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Commercial Vehicle OBE Owner	Commercial Vehicle OBE Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Commercial Vehicle OBE Owner	Commercial Vehicle OBE Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Commercial Vehicle OBE Owner	TIC Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Commercial Vehicle OBE Owner	Transportation Information Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Commercial Vehicle OBE Owner	Transportation Information Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Commercial Vehicle OBE Owner	Transportation Information Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Commercial Vehicle OBE Supplier	Commercial Vehicle OBE Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Fleet and Freight Management Center Maintainer	Fleet and Freight Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Fleet and Freight Management Center Manager	Fleet and Freight Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Fleet and Freight Management Center Manager	Fleet-Freight Manager	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Fleet and Freight Management Center Owner	Fleet and Freight Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Fleet and Freight Management Center Owner	Fleet and Freight Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Fleet and Freight Management Center Owner	TIC Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Fleet and Freight Management Center Owner	Transportation Information Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Fleet and Freight Management Center Owner	Transportation Information Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Fleet and Freight Management Center Owner	Transportation Information Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Fleet and Freight Management Center Supplier	Fleet and Freight Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Fleet-Freight Manager	Fleet and Freight Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Maint and Constr Field Personnel	Personal Information Device	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Parking Area Equipment Maintainer	Parking Area Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Parking Area Equipment Manager	Parking Area Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Parking Area Equipment Manager	Parking Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Parking Area Equipment Owner	Parking Area Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Parking Area Equipment Owner	Parking Area Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Parking Area Equipment Owner	Parking Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Parking Area Equipment Owner	Parking Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Parking Area Equipment Owner	Parking Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Parking Area Equipment Owner	Parking Manager	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Area Equipment Supplier	Parking Area Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Parking Management Center Maintainer	Parking Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Parking Management Center Manager	Parking Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Parking Management Center Manager	Parking Manager	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Parking Management Center Owner	Parking Area Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Parking Management Center Owner	Parking Area Equipment Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Parking Management Center Owner	Parking Area Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Parking Management Center Owner	Parking Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Parking Management Center Owner	Parking Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Parking Management Center Owner	Parking Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Management Center Owner	TIC Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Management Center Owner	Transportation Information Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Parking Management Center Owner	Transportation Information Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Parking Management Center Owner	Transportation Information Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Parking Management Center Supplier	Parking Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Parking Manager	Parking Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Parking Operator	Parking Area Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Personal Information Device Maintainer	Personal Information Device	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Personal Information Device Manager	Maint and Constr Field Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Personal Information Device Manager	Personal Information Device	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Personal Information Device Owner	Personal Information Device Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Personal Information Device Owner	Personal Information Device Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Personal Information Device Supplier	Personal Information Device Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
TIC Operator	Transportation Information Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transportation Information Center Maintainer	Transportation Information Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transportation Information Center Manager	TIC Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transportation Information Center Manager	Transportation Information Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transportation Information Center Owner	Commercial Vehicle Driver	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transportation Information Center Owner	Commercial Vehicle OBE Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transportation Information Center Owner	Commercial Vehicle OBE Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transportation Information Center Owner	Commercial Vehicle OBE User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transportation Information Center Owner	Fleet and Freight Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transportation Information Center Owner	Fleet and Freight Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transportation Information Center Owner	Fleet and Freight Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transportation Information Center Owner	Fleet-Freight Manager	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transportation Information Center Owner	Maint and Constr Field Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transportation Information Center Owner	Parking Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transportation Information Center Owner	Parking Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transportation Information Center Owner	Parking Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transportation Information Center Owner	Parking Manager	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transportation Information Center Owner	Personal Information Device Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transportation Information Center Owner	Personal Information Device Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Transportation Information Center Owner	Personal Information Device User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transportation Information Center Owner	Transportation Information Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transportation Information Center Owner	Transportation Information Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transportation Information Center Supplier	Transportation Information Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Commercial Vehicle OBE	CV On-Board Travel Information	2.2.5	Provide Commercial Vehicle Driver Interface for Traveler Information
Fleet and Freight Management Center	Freight Administration and Management	2.1.1.2	Manage Commercial Vehicle Routes
		2.1.1.4	Provide HAZMAT Incident Support
		2.1.1.5	Manage Commercial Vehicle Fleet Map Data
		2.1.1.6	Monitor Commercial Vehicle Route
		2.1.1.7	Monitor Assignment Identities
		2.1.3	Provide Fleet Manager Commercial Vehicle Communications
		2.1.5	Manage Driver Instruction Store
		2.1.6	Manage Commercial Vehicle Incidents
		2.1.7	Schedule Commercial Vehicle Servicing
		2.6.1	Provide Commercial Vehicle Manager Tag Data Interface
		2.7.1	Manage Freight Incidents
		2.7.2	Monitor Freight Equipment Route
		2.7.3	Manage Freight Equipment Fleet
		2.7.4	Manage Freight Equipment Maintenance
		2.7.5	Process Freight Integrity Data
		2.7.6	Provide Freight Manager Interface
		2.7.7	Provide Shipper Booking Interface
Parking Area Equipment	Parking Area Management	1.2.5.13	Manage Commercial Vehicle Parking
		1.2.5.3	Provide Parking Lot Operator Interface
		1.2.5.6	Detect Vehicles in Parking Lot
		1.2.5.7	Output Parking Lot Information to Drivers
Parking Management Center	Parking Coordination	1.2.5.1	Provide Parking Lot Static Data
		1.2.5.11	Provide Parking Manager Interface
		1.2.5.12	Manage Loading Zone Use
		1.2.5.2	Coordinate Other Parking Data
		1.2.5.4	Determine Dynamic Parking Lot State
		7.2.1.9	Manage Parking Lot Reservations
Personal Information Device	Personal Interactive Traveler Information	6.8.1.1.1	Determine Personal Portable Device Guidance Method
		6.8.1.1.2	Provide Personal Portable Device Dynamic Guidance
		6.8.3.1	Get Traveler Personal Request
		6.8.3.2	Provide Traveler with Personal Travel Information
		6.8.3.3	Provide Traveler Personal Interface
		6.8.3.4	Update Traveler Personal Display Map Data
		6.8.3.5	Provide Traveler Transit Services Interface
		6.8.3.6	Provide Personal Safety Messages
		6.8.3.7	Manage Traveler Personal Social Media Interface
		7.5.3	Provide Personal Payment Device Interface
		7.6.6.3	Provide Road Use Charging Services Personal Interface
Transportation Information Center	TIC Interactive Traveler Information	6.10	Manage Traveler Profiles
		6.2.1	Collect Misc Traveler Information
		6.5.2	Provide Interactive Data Interface
		7.4.1.2	Process Travel Services Provider Payments
		7.4.1.3	Process Driver Map Update Payments
		7.4.1.4	Process Traveler Map Update Payments
		7.4.1.6	Process Traveler Trip and Other Services Payments
		7.4.1.7	Process Traveler Rideshare Payments

Physical

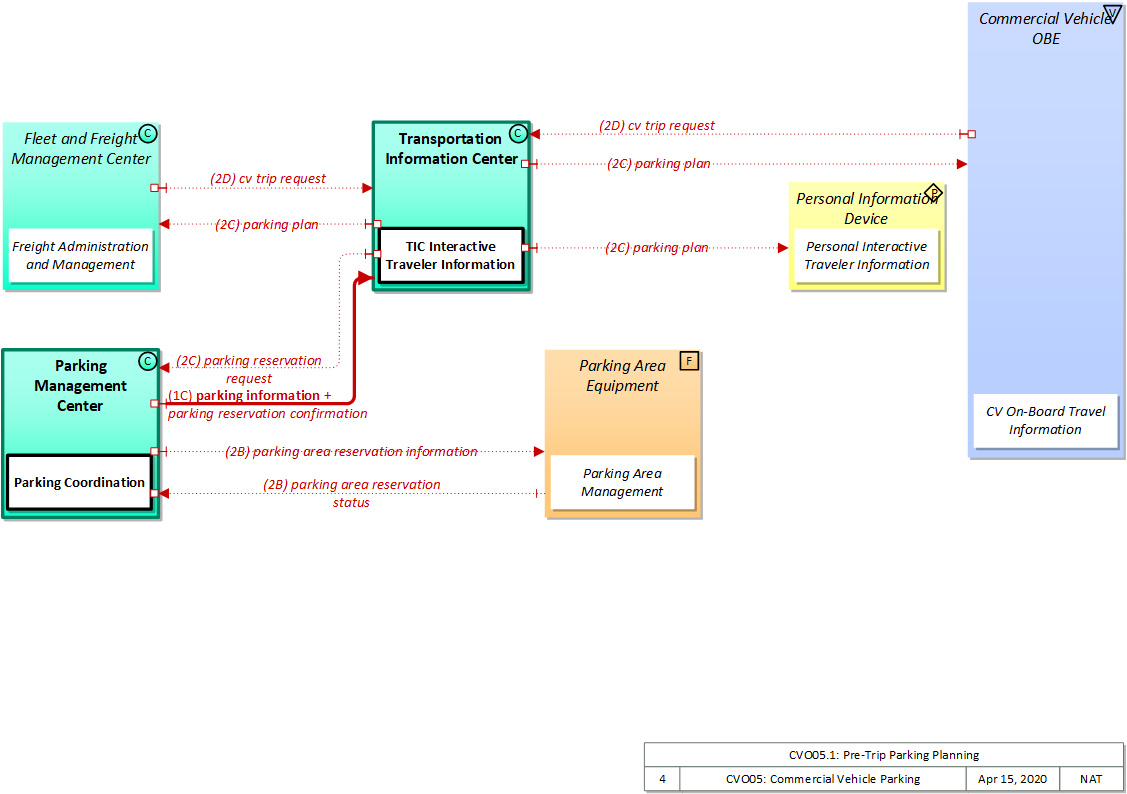

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Commercial Vehicle OBE	Vehicle	The Commercial Vehicle On-Board Equipment (OBE) resides in a commercial vehicle and provides the sensory, processing, storage, and communications functions necessary to support safe and efficient commercial vehicle operations. It provides two-way communications between the commercial vehicle drivers, their fleet managers, attached freight equipment, and roadside officials. A separate 'Vehicle OBE' physical object supports vehicle safety and driver information capabilities that apply to all vehicles, including commercial vehicles. The Commercial Vehicle OBE supplements these general ITS capabilities with capabilities that are specific to commercial vehicles.
Fleet and Freight Management Center	Center	The 'Fleet and Freight Management Center' provides the capability for commercial drivers and fleet-freight managers to receive real-time routing information and access databases containing vehicle and/or freight equipment locations as well as carrier, vehicle, freight equipment and driver information. The 'Fleet and Freight Management Center' also provides the capability for fleet managers to monitor the safety and security of their commercial vehicle drivers and fleet.
Parking Area Equipment	Field	'Parking Area Equipment' provides electronic monitoring and management of parking facilities. It supports an I2V link to the Vehicle that allows electronic collection of parking fees and monitors and controls parking meters that support conventional parking fee collection. It also includes the instrumentation, signs, and other infrastructure that monitors parking lot usage and provides local information about parking availability and other general parking information. The two primary approaches to monitoring parking area usage are sensing vehicles within parking spots or counting vehicles as they come in and as they leave the area. This portion of the functionality must be located in the parking area where it can monitor, classify, and share information with customers and their vehicles. See also the separate 'Parking Management Center' physical object that may be located in a back office, remote from the parking area, which interfaces with the financial infrastructure and broadly disseminates parking information to other operational centers in the region.
Parking Management Center	Center	The 'Parking Management Center' manages one or more parking lots by providing configuration and control of field infrastructure, user account management and interfaces with financial systems to manage payment. This p-object takes the back office portion of the Parking Management System's functionality as it was defined in ARC-IT 8.3 and prior.
Personal Information Device	Personal	The 'Personal Information Device' provides the capability for travelers to receive formatted traveler information wherever they are. Capabilities include traveler information, trip planning, and route guidance. Frequently a smart phone, the Personal Information Device provides travelers with the capability to receive route planning and other personally focused transportation services from the infrastructure in the field, at home, at work, or while en-route. Personal Information Devices may operate independently or may be linked with vehicle on-board equipment. This subsystem also supports safety related services with the capability to broadcast safety messages and initiate a distress signal or request for help.
Transportation Information Center	Center	The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.

Includes Functional Objects:

Functional Object	Description	Physical Object
CV On-Board Travel Information	'CV On-Board Travel Information' provides the capabilities to receive commercial vehicle specific travel and parking information from centers and provide the information to the commercial vehicle driver. This functional object also provides the ability for the commercial vehicle driver to request a parking reservation.	Commercial Vehicle OBE
Freight Administration and Management	'Freight Administration and Management' manages the movement of freight from source to destination. It interfaces to intermodal customers to setup and schedule transportation and coordinates with intermodal terminals and freight consolidation stations to coordinate the shipment. It coordinates with the appropriate government agencies to expedite the movement of trucks, their drivers, and their cargo across international borders. The application monitors the status of the freight and freight equipment (container, trailer, or chassis) and monitors freight location and compares it against the planned route.	Fleet and Freight Management Center
Parking Area Management	'Parking Area Management' detects and classifies vehicles at parking facility entrances, exits, and other designated locations within the facility. Current parking availability is monitored and used to inform drivers through dynamic message signs/displays so that vehicles are efficiently routed to available spaces. Parking facility information, including current parking rates and directions to entrances and available exits, is also provided to drivers.	Parking Area Equipment
Parking Coordination	'Parking Coordination' supports communication and coordination between equipped parking facilities and also supports regional coordination between parking facilities and traffic management systems. Coordination with traffic management supports local traffic control coordination in and around the parking facility and broader regional coordination. It also shares information with transit management systems and information providers to support multimodal travel planning, including parking reservations capabilities. Information including current parking availability, system status, and operating strategies are shared to enable local parking facility management that supports regional transportation strategies.	Parking Management Center
Personal Interactive Traveler Information	'Personal Interactive Traveler Information' provides traffic information, road conditions, transit information, yellow pages (traveler services) information, special event information, and other traveler information that is specifically tailored based on the traveler's request and/or previously submitted traveler profile information. It also supports interactive services that support enrollment, account management, and payments for transportation services. The interactive traveler information capability is provided by personal devices including personal computers and personal portable devices such as smart phones.	Personal Information Device
TIC Interactive Traveler Information	'TIC Interactive Traveler Information' disseminates personalized traveler information including traffic and road conditions, transit information, parking information, maintenance and construction information, multimodal information, event information, and weather information. Tailored information is provided based on the traveler's request in this interactive service.	Transportation Information Center

Includes Information Flows:

Information Flow	Description
cv trip request	Request for commercial vehicle trip planning services that identifies the trip origin, destination(s), timing, preferences, and constraints. The request may also include the requestor's location or a request for parking reservations associated with the trip. The trip request also covers requests to revise a previously planned trip and interim updates that are provided as the trip is interactively planned.
parking area reservation information	Area-specific parking reservations that identify the reservation dates, estimated time of arrival and departure, space requirements, and identification of the vehicle that will be parked.
parking area reservation status	Reservation status provided by the parking area that identifies all current, pending, and future reservations and the parking area's capacity for additional reservations.
parking information	General parking information and status, including current parking availability, parking pricing, and parking space availability information, including features like number and type of electric charging spots.
parking plan	A tailored parking plan for a particular trip and traveler's vehicle. The plan identifies the parking facility and parking space information for the trip and includes the cost for parking.
parking reservation confirmation	Confirmation for parking reservation.
parking reservation request	Reservation request for parking including special requests and needs such as disabled space access, electric vehicle charging, etc.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal

Associated Objective Categories

Objective Category

Associated Objectives and Performance Measures

Objective	Performance Measure

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement

Related Sources

Document Name	Version	Publication Date
None

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Commercial Vehicle OBE
Fleet and Freight Management Center
Parking Area Equipment
Parking Management Center
Personal Information Device
Transportation Information Center

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Commercial Vehicle OBE	Transportation Information Center	cv trip request	Moderate	Moderate	Low
Commercial Vehicle OBE	Transportation Information Center	cv trip request	Predictive of commercial vehicle location, includes PII, so should be obfuscated.	The trip plan will affect the CV driver's overall trip (including parking) and so should be correct so as to not negatively affect performance or schedule.	If this is not available the driver's trip may be more difficult or inconvenient. Depending on the importance of parking coordination and redundancies built into the service (because of multiple triples able to provide this information) this may be MODERATE or LOW.
Fleet and Freight Management Center	Transportation Information Center	cv trip request	Moderate	Moderate	Low
Fleet and Freight Management Center	Transportation Information Center	cv trip request	Predictive of commercial vehicle location, includes PII, so should be obfuscated.	The trip plan will affect the CV driver's overall trip (including parking) and so should be correct so as to not negatively affect performance or schedule.	If this is not available the driver's trip may be more difficult or inconvenient. Depending on the importance of parking coordination and redundancies built into the service (because of multiple triples able to provide this information) this may be MODERATE or LOW.
Parking Area Equipment	Parking Management Center	parking area reservation status	Moderate	Moderate	Moderate
Parking Area Equipment	Parking Management Center	parking area reservation status	Since this may include the identification of a specific vehicle or many vehicles, should be protected from observation.	If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor.	If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor.
Parking Management Center	Parking Area Equipment	parking area reservation information	Moderate	Moderate	Moderate
Parking Management Center	Parking Area Equipment	parking area reservation information	Since this may include the identification of a specific vehicle, should be protected from observation.	If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor.	If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor.
Parking Management Center	Transportation Information Center	parking information	Moderate	Moderate	Moderate
Parking Management Center	Transportation Information Center	parking information	Does not include PII, but does include usage information for a managed facility that implies a number of vehicles. While this is observable information, it could be considered competitive, and regardless is accessible without being physically present, which is its own barrier.	Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken.	Most likely not a frequently updated flow. Typically MODERATE for applications with a high degree of commercial vehicle parking, but could be LOW otherwise.
Parking Management Center	Transportation Information Center	parking reservation confirmation	Moderate	Moderate	Moderate
Parking Management Center	Transportation Information Center	parking reservation confirmation	Might not have direct PII, but may include a pseudonym.	If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor.	If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor.
Transportation Information Center	Commercial Vehicle OBE	parking plan	Moderate	Moderate	Moderate
Transportation Information Center	Commercial Vehicle OBE	parking plan	Contains information dedicated to a particular user, so should be obfuscated to prevent determination of PII. May also incude payment information.	The parking plan will affect the user's interaction with the parking system, and notably can include payment information. If any of this is incorrect, the traveler will be adversely affected. If this is hacked, a traveler may be able to use the system for free.	This flow is critical to organized and pre-planned parking services. If the flow doesn't work, the application doesn't work.
Transportation Information Center	Fleet and Freight Management Center	parking plan	Moderate	Moderate	Moderate
Transportation Information Center	Fleet and Freight Management Center	parking plan	Contains information dedicated to a particular user, so should be obfuscated to prevent determination of PII. May also incude payment information.	The parking plan will affect the user's interaction with the parking system, and notably can include payment information. If any of this is incorrect, the traveler will be adversely affected. If this is hacked, a traveler may be able to use the system for free.	This flow is critical to organized and pre-planned parking services. If the flow doesn't work, the application doesn't work.
Transportation Information Center	Parking Management Center	parking reservation request	Moderate	Moderate	Moderate
Transportation Information Center	Parking Management Center	parking reservation request	Might not have direct PII, but may include a pseudonym.	If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor.	If unavailable, corrupted or modified, could lead to the lack of parking assignment, inconveniencing the parking requestor.
Transportation Information Center	Personal Information Device	parking plan	Moderate	Moderate	Moderate
Transportation Information Center	Personal Information Device	parking plan	Contains information dedicated to a particular user, so should be obfuscated to prevent determination of PII. May also incude payment information.	The parking plan will affect the user's interaction with the parking system, and notably can include payment information. If any of this is incorrect, the traveler will be adversely affected. If this is hacked, a traveler may be able to use the system for free.	This flow is critical to organized and pre-planned parking services. If the flow doesn't work, the application doesn't work.

Standards

Currently, there are no standards associated with the physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

System Requirements

No System Requirements
