Parent Service Package: CF12
< < CF11.1 : CF12.1 : CF13.1 > >

CF12.1: HAZMAT Management Implementation

This 'implementation' is a holistic view of the CVO11 service package, including all Physical Objects, Functional Objects, and Triples associated with the service package. It distinguishes between items that are fundamental to the service and items that are optional. Your specific implementation is likely to include the fundamental items and selected optional items, based on your specific project requirements.

Relevant Regions:

Enterprise

Development Stage Roles and Relationships

Installation Stage Roles and Relationships

Operations and Maintenance Stage Roles and Relationships
(hide)

Source Destination Role/Relationship
Commercial Vehicle DriverCommercial Vehicle OBE Operates
Commercial Vehicle OBE MaintainerCommercial Vehicle OBE Maintains
Commercial Vehicle OBE ManagerCommercial Vehicle Driver System Usage Agreement
Commercial Vehicle OBE ManagerCommercial Vehicle OBE Manages
Commercial Vehicle OBE OwnerCommercial Vehicle OBE Maintainer System Maintenance Agreement
Commercial Vehicle OBE OwnerCommercial Vehicle OBE Manager Operations Agreement
Commercial Vehicle OBE OwnerEmergency Management Center Maintainer Maintenance Data Exchange Agreement
Commercial Vehicle OBE OwnerEmergency Management Center Owner Information Provision Agreement
Commercial Vehicle OBE OwnerEmergency Management Center User Service Usage Agreement
Commercial Vehicle OBE OwnerEmergency Personnel Application Usage Agreement
Commercial Vehicle OBE OwnerFleet and Freight Management Center Maintainer Maintenance Data Exchange Agreement
Commercial Vehicle OBE OwnerFleet and Freight Management Center Owner Information Exchange Agreement
Commercial Vehicle OBE OwnerFleet and Freight Management Center User Service Usage Agreement
Commercial Vehicle OBE OwnerFleet-Freight Manager Application Usage Agreement
Commercial Vehicle OBE SupplierCommercial Vehicle OBE Owner Warranty
Emergency Management Center MaintainerEmergency Management Center Maintains
Emergency Management Center ManagerEmergency Management Center Manages
Emergency Management Center ManagerEmergency Personnel System Usage Agreement
Emergency Management Center OwnerEmergency Management Center Maintainer System Maintenance Agreement
Emergency Management Center OwnerEmergency Management Center Manager Operations Agreement
Emergency Management Center OwnerFleet and Freight Management Center Maintainer Maintenance Data Exchange Agreement
Emergency Management Center OwnerFleet and Freight Management Center Owner Information Exchange Agreement
Emergency Management Center OwnerFleet and Freight Management Center User Service Usage Agreement
Emergency Management Center OwnerFleet-Freight Manager Application Usage Agreement
Emergency Management Center SupplierEmergency Management Center Owner Warranty
Emergency PersonnelEmergency Management Center Operates
Fleet and Freight Management Center MaintainerFleet and Freight Management Center Maintains
Fleet and Freight Management Center ManagerFleet and Freight Management Center Manages
Fleet and Freight Management Center ManagerFleet-Freight Manager System Usage Agreement
Fleet and Freight Management Center OwnerCommercial Vehicle Driver Application Usage Agreement
Fleet and Freight Management Center OwnerCommercial Vehicle OBE Maintainer Maintenance Data Exchange Agreement
Fleet and Freight Management Center OwnerCommercial Vehicle OBE Owner Information Exchange Agreement
Fleet and Freight Management Center OwnerCommercial Vehicle OBE User Service Usage Agreement
Fleet and Freight Management Center OwnerEmergency Management Center Maintainer Maintenance Data Exchange Agreement
Fleet and Freight Management Center OwnerEmergency Management Center Owner Information Exchange Agreement
Fleet and Freight Management Center OwnerEmergency Management Center User Service Usage Agreement
Fleet and Freight Management Center OwnerEmergency Personnel Application Usage Agreement
Fleet and Freight Management Center OwnerFleet and Freight Management Center Maintainer System Maintenance Agreement
Fleet and Freight Management Center OwnerFleet and Freight Management Center Manager Operations Agreement
Fleet and Freight Management Center SupplierFleet and Freight Management Center Owner Warranty
Fleet-Freight ManagerFleet and Freight Management Center Operates
Freight Equipment MaintainerFreight Equipment Maintains
Freight Equipment ManagerFreight Equipment Manages
Freight Equipment ManagerFreight Equipment Operator System Usage Agreement
Freight Equipment OperatorFreight Equipment Operates
Freight Equipment OwnerCommercial Vehicle Driver Application Usage Agreement
Freight Equipment OwnerCommercial Vehicle Driver Vehicle Operating Agreement
Freight Equipment OwnerCommercial Vehicle OBE Maintainer Maintenance Data Exchange Agreement
Freight Equipment OwnerCommercial Vehicle OBE Owner Expectation of Data Provision
Freight Equipment OwnerCommercial Vehicle OBE User Service Usage Agreement
Freight Equipment OwnerFleet and Freight Management Center Maintainer Maintenance Data Exchange Agreement
Freight Equipment OwnerFleet and Freight Management Center Owner Information Provision Agreement
Freight Equipment OwnerFleet and Freight Management Center User Service Usage Agreement
Freight Equipment OwnerFleet-Freight Manager Application Usage Agreement
Freight Equipment OwnerFreight Equipment Maintainer System Maintenance Agreement
Freight Equipment OwnerFreight Equipment Manager Operations Agreement
Freight Equipment SupplierFreight Equipment Owner Warranty

Functional

This service package includes the following Functional View PSpecs:

Physical Object Functional Object PSpec Number PSpec Name
Commercial Vehicle OBE CV On-Board Cargo Monitoring 2.4.2 Collect On-board Commercial Vehicle Sensor Data
2.4.3 Analyze Commercial Vehicle On-board Data
2.4.4 Provide Commercial Vehicle Driver Interface
2.4.7 Manage CV On-board Data
2.6.4 Provide Lock Tag Data Interface
2.8.3.1 Provide Driver Interface for Intermodal Freight Dispatch
Emergency Management Center Emergency Commercial Vehicle Response 5.1.1.1 Coordinate Emergency Inputs
5.1.1.2 Identify Commercial Vehicle Emergencies
Fleet and Freight Management Center Freight Administration and Management 2.1.1.2 Manage Commercial Vehicle Routes
2.1.1.4 Provide HAZMAT Incident Support
2.1.1.5 Manage Commercial Vehicle Fleet Map Data
2.1.1.6 Monitor Commercial Vehicle Route
2.1.1.7 Monitor Assignment Identities
2.1.3 Provide Fleet Manager Commercial Vehicle Communications
2.1.5 Manage Driver Instruction Store
2.1.6 Manage Commercial Vehicle Incidents
2.1.7 Schedule Commercial Vehicle Servicing
2.6.1 Provide Commercial Vehicle Manager Tag Data Interface
2.7.1 Manage Freight Incidents
2.7.2 Monitor Freight Equipment Route
2.7.3 Manage Freight Equipment Fleet
2.7.4 Manage Freight Equipment Maintenance
2.7.5 Process Freight Integrity Data
2.7.6 Provide Freight Manager Interface
2.7.7 Provide Shipper Booking Interface
Freight Equipment Freight Equipment Monitoring 2.8.3.4 Determine Freight Equipment Status
2.8.3.5 Provide Freight Equipment Status
2.8.3.6 Manage Border Inspection Interface

Physical

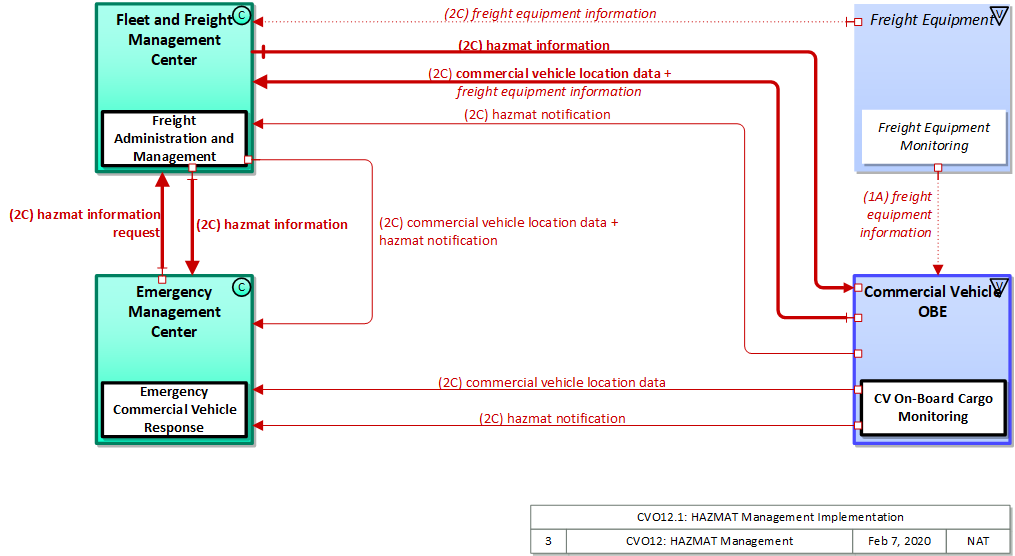

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram


Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object Class Description
Commercial Vehicle OBE Vehicle The Commercial Vehicle On-Board Equipment (OBE) resides in a commercial vehicle and provides the sensory, processing, storage, and communications functions necessary to support safe and efficient commercial vehicle operations. It provides two-way communications between the commercial vehicle drivers, their fleet managers, attached freight equipment, and roadside officials. A separate 'Vehicle OBE' physical object supports vehicle safety and driver information capabilities that apply to all vehicles, including commercial vehicles. The Commercial Vehicle OBE supplements these general ITS capabilities with capabilities that are specific to commercial vehicles.
Emergency Management Center Center The 'Emergency Management Center' represents systems that support incident management, disaster response and evacuation, security monitoring, and other security and public safety-oriented ITS applications. It includes the functions associated with fixed and mobile public safety communications centers including public safety call taker and dispatch centers operated by police (including transit police), fire, and emergency medical services. It includes the functions associated with Emergency Operations Centers that are activated at local, regional, state, and federal levels for emergencies and the portable and transportable systems that support Incident Command System operations at an incident. This Center also represents systems associated with towing and recovery, freeway service patrols, HAZMAT response teams, and mayday service providers. It manages sensor and surveillance equipment used to enhance transportation security of the roadway infrastructure (including bridges, tunnels, interchanges, and other key roadway segments) and the public transportation system (including transit vehicles, public areas such as transit stops and stations, facilities such as transit yards, and transit infrastructure such as rail, bridges, tunnels, or bus guideways). It provides security/surveillance services to improve traveler security in public areas not a part of the public transportation system. It monitors alerts, advisories, and other threat information and prepares for and responds to identified emergencies. It coordinates emergency response involving multiple agencies with peer centers. It stores, coordinates, and utilizes emergency response and evacuation plans to facilitate this coordinated response. Emergency situation information including damage assessments, response status, evacuation information, and resource information are shared The Emergency Management Center also provides a focal point for coordination of the emergency and evacuation information that is provided to the traveling public, including wide-area alerts when immediate public notification is warranted. It tracks and manages emergency vehicle fleets using real-time road network status and routing information from the other centers to aid in selecting the emergency vehicle(s) and routes, and works with other relevant centers to tailor traffic control to support emergency vehicle ingress and egress, implementation of special traffic restrictions and closures, evacuation traffic control plans, and other special strategies that adapt the transportation system to better meet the unique demands of an emergency.
Fleet and Freight Management Center Center The 'Fleet and Freight Management Center' provides the capability for commercial drivers and fleet-freight managers to receive real-time routing information and access databases containing vehicle and/or freight equipment locations as well as carrier, vehicle, freight equipment and driver information. The 'Fleet and Freight Management Center' also provides the capability for fleet managers to monitor the safety and security of their commercial vehicle drivers and fleet.
Freight Equipment Vehicle 'Freight Equipment' represents a freight container, intermodal chassis, or trailer and provides sensory, processing, storage, and communications functions necessary to support safe, secure and efficient freight operations. It provides equipment safety data and status and can alert the appropriate systems of an incident, breach, or tamper event. It also provides accurate position information to support in-transit visibility of freight equipment.

Includes Functional Objects:

Functional Object Description Physical Object
CV On-Board Cargo Monitoring 'CV On-Board Cargo Monitoring' monitors the location and status of the commercial vehicle and its cargo. It sends the collected data to appropriate centers and roadside facilities, including emergency management in the case of HAZMAT incidents. Depending on the nature of the cargo, it may include sensors that measure temperature, pressure, load leveling, acceleration, and other attributes of the cargo. Commercial Vehicle OBE
Emergency Commercial Vehicle Response 'Emergency Commercial Vehicle Response' identifies and initiates a response to commercial vehicle and freight equipment related emergencies. These emergencies may include incidents involving hazardous materials as well as the detection of non-permitted transport of security sensitive hazmat. It identifies the location of the vehicle, the nature of the incident, the route information, and information concerning the freight itself. The information supports the determination of the response and identifies the responding agencies to notify. Emergency Management Center
Freight Administration and Management 'Freight Administration and Management' manages the movement of freight from source to destination. It interfaces to intermodal customers to setup and schedule transportation and coordinates with intermodal terminals and freight consolidation stations to coordinate the shipment. It coordinates with the appropriate government agencies to expedite the movement of trucks, their drivers, and their cargo across international borders. The application monitors the status of the freight and freight equipment (container, trailer, or chassis) and monitors freight location and compares it against the planned route. Fleet and Freight Management Center
Freight Equipment Monitoring 'Freight Equipment Monitoring' includes the on-board devices used to monitor intermodal freight equipment. These devices provide freight equipment location and status of the freight, container, or chassis equipment. Freight Equipment

Includes Information Flows:

Information Flow Description
commercial vehicle location data Current vehicle location and related operational conditions data provided by a commercial vehicle.
freight equipment information Container, trailer, or chassis information regarding identity, type, location, brake wear data, mileage, seal #, seal type, door open/close status, chassis bare/covered status, tethered / untethered status, temperature, humidity, power, battery levels, brake wear data, and bill of lading/information regarding the cargo/content.
hazmat information Information about a particular hazmat load including nature of the load and unloading instructions. May also include hazmat vehicle route and route update information.
hazmat information request Request for information about a particular hazmat load.
hazmat notification Information provided to emergency response organizations regarding a hazmat load including when cargo sensors detect an issue with the load such as a release of hazardous material. This information will include sensor information, vehicle identification, and carrier identification.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor Goal

Associated Objective Categories

Objective Category

Associated Objectives and Performance Measures

Objective Performance Measure


Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need Functional Object Requirement

Related Sources

Document Name Version Publication Date
None


Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object Confidentiality Integrity Availability Security Class
Commercial Vehicle OBE
Emergency Management Center
Fleet and Freight Management Center
Freight Equipment



In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source Destination Information Flow Confidentiality Integrity Availability
Basis Basis Basis
Commercial Vehicle OBE Emergency Management Center commercial vehicle location data Moderate Moderate Moderate
If observed, could be used by a criminal in the performance of a crime related to a commercial vehicle. May include PII, or pseudonomous information associated with PII. Applications relying on this data will not function properly if the data is incorrect, so it must be protected commensurate to the value of the application. Applications relying on this data will not function properly if the data is incorrect, so it must be protected commensurate to the value of the application. Location data is dynamic, so probably needs to be updated frequently.
Commercial Vehicle OBE Emergency Management Center hazmat notification Moderate High High
Includes PII which should be protected. If not practical to protect, a simpler message without the PII should be distributed. Hazmat spill notification has a time-critical and life-saving and property saving component. Hazmat spill notification has a time-critical and life-saving and property saving component. Set HIGH because the potential consequences are very severe.
Commercial Vehicle OBE Fleet and Freight Management Center commercial vehicle location data Moderate Moderate Moderate
If observed, could be used by a criminal in the performance of a crime related to a commercial vehicle. May include PII, or pseudonomous information associated with PII. Applications relying on this data will not function properly if the data is incorrect, so it must be protected commensurate to the value of the application. Applications relying on this data will not function properly if the data is incorrect, so it must be protected commensurate to the value of the application. Location data is dynamic, so probably needs to be updated frequently.
Commercial Vehicle OBE Fleet and Freight Management Center freight equipment information Moderate Moderate Moderate
Will include proprietary and/or competitive information that should be disclosed only when necessary and to those with a need for the information. Information must be accurate in order to be properly acted upon in support of screening or commercial vehicle safety processes. Information must be timely in order to be properly acted upon in support of screening or commercial vehicle safety processes, though some of the information contained has alternative delivery mechanisms.
Commercial Vehicle OBE Fleet and Freight Management Center hazmat notification High High High
This information could be of interest to a malicious individual who is attempting to determine the best way to accomplish a crime. Since hazardous material is by nature very dangerous, access to the routing, and load nature information could lead to a dangerous event. As such this information needs to be well protected. If this is compromised, the EMC may not react properly to a hazmat incident, and thus assign inappropriate assets (too many, wrong type, not enough), leading to a longer or more damaging incident. A delay in reporting this may cause a delay in getting the appropriate assets to the incident, or an over-commitment of assets. While the EMC may react to avoid the former by committing more assets than may be necessary, this in turn will create risk by making those assets unavailable to respond to incidents where they are truly needed. Such delays may be catastrophic for hazmat incidents.
Emergency Management Center Fleet and Freight Management Center hazmat information request Moderate Moderate Moderate
Related to the contents of a load, which implies the business a particular operator or even driver is doing. This is competitive and may include PII. If the request is malformed or corrupted then the response data descirbing the HAZMAT load will not be provided or be incorrect. If the request is not received then the management of HAZMAT operations will be compromised. Availability may be LOW if this type of request is quite rare, but given the potential impacts of HAZMAT incidents this should probably always be at least MODERATE.
Fleet and Freight Management Center Commercial Vehicle OBE hazmat information High High High
This information could be of interest to a malicious individual who is attempting to determine the best way to accomplish a crime. Since hazardous material is by nature very dangerous, access to the routing, and load nature information could lead to a dangerous event. As such this information needs to be well protected. If this is compromised, the EMC may not react properly to a hazmat incident, and thus assign inappropriate assets (too many, wrong type, not enough), leading to a longer or more damaging incident. A delay in reporting this may cause a delay in getting the appropriate assets to the incident, or an over-commitment of assets. While the EMC may react to avoid the former by committing more assets than may be necessary, this in turn will create risk by making those assets unavailable to respond to incidents where they are truly needed. Such delays may be catastrophic for hazmat incidents.
Fleet and Freight Management Center Emergency Management Center commercial vehicle location data Moderate Moderate Moderate
If observed, could be used by a criminal in the performance of a crime related to a commercial vehicle. May include PII, or pseudonomous information associated with PII. Applications relying on this data will not function properly if the data is incorrect, so it must be protected commensurate to the value of the application. Applications relying on this data will not function properly if the data is incorrect, so it must be protected commensurate to the value of the application. Location data is dynamic, so probably needs to be updated frequently.
Fleet and Freight Management Center Emergency Management Center hazmat information High High High
This information could be of interest to a malicious individual who is attempting to determine the best way to accomplish a crime. Since hazardous material is by nature very dangerous, access to the routing, and load nature information could lead to a dangerous event. As such this information needs to be well protected. If this is compromised, the EMC may not react properly to a hazmat incident, and thus assign inappropriate assets (too many, wrong type, not enough), leading to a longer or more damaging incident. A delay in reporting this may cause a delay in getting the appropriate assets to the incident, or an over-commitment of assets. While the EMC may react to avoid the former by committing more assets than may be necessary, this in turn will create risk by making those assets unavailable to respond to incidents where they are truly needed. Such delays may be catastrophic for hazmat incidents.
Fleet and Freight Management Center Emergency Management Center hazmat notification High High High
This information could be of interest to a malicious individual who is attempting to determine the best way to accomplish a crime. Since hazardous material is by nature very dangerous, access to the routing, and load nature information could lead to a dangerous event. As such this information needs to be well protected. If this is compromised, the EMC may not react properly to a hazmat incident, and thus assign inappropriate assets (too many, wrong type, not enough), leading to a longer or more damaging incident. A delay in reporting this may cause a delay in getting the appropriate assets to the incident, or an over-commitment of assets. While the EMC may react to avoid the former by committing more assets than may be necessary, this in turn will create risk by making those assets unavailable to respond to incidents where they are truly needed. Such delays may be catastrophic for hazmat incidents.
Freight Equipment Commercial Vehicle OBE freight equipment information Moderate Moderate Moderate
Cargo status information, though internal to the vehicle, should probably be protected as part of a sound defense-in-depth strategy against malicious hacking. Freight Vehicle to CV OBE is considered on-board when the vehicle and freight are mated, so the same logic holds. Cargo status information, though internal to the vehicle, should probably be protected as part of a sound defense-in-depth strategy against malicious hacking. Freight Vehicle to CV OBE is considered on-board when the vehicle and freight are mated, so the same logic holds. On-board data exchanges, should be at least MODERATE so that on-board systems can fulfill their functions. Freight Vehicle to CV OBE is considered on-board when the vehicle and freight are mated, so the same logic holds.
Freight Equipment Fleet and Freight Management Center freight equipment information Moderate Moderate Moderate
Will include proprietary and/or competitive information that should be disclosed only when necessary and to those with a need for the information. Information must be accurate in order to be properly acted upon in support of screening or commercial vehicle safety processes. Information must be timely in order to be properly acted upon in support of screening or commercial vehicle safety processes, though some of the information contained has alternative delivery mechanisms.

Standards

Currently, there are no standards associated with the physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.





System Requirements

No System Requirements
