PS08.1: Roadway Service Patrols Implementation

This 'implementation' is a holistic view of the PS08 service package, including all Physical Objects, Functional Objects, and Triples associated with the service package. It distinguishes between items that are fundamental to the service and items that are optional. Your specific implementation is likely to include the fundamental items and selected optional items, based on your specific project requirements.

Relevant Regions:

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Emergency Management Center Developer	Emergency Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Emergency Vehicle OBE Developer	Emergency Vehicle OBE	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Emergency Vehicle OBE Developer	Traffic Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Maint and Constr Management Center Developer	Maint and Constr Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Traffic Management Center Developer	Emergency Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Traffic Management Center Developer	Emergency Vehicle OBE Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Traffic Management Center Developer	Maint and Constr Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Traffic Management Center Developer	Traffic Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Traffic Management Center Developer	Transportation Information Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transportation Information Center Developer	Transportation Information Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Emergency Management Center Installer	Emergency Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Emergency Management Center Owner	Emergency Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Emergency Management Center Owner	Emergency Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Emergency Vehicle OBE Installer	Emergency Vehicle OBE	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Emergency Vehicle OBE Owner	Emergency Vehicle OBE Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Emergency Vehicle OBE Owner	Emergency Vehicle OBE Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Maint and Constr Management Center Installer	Maint and Constr Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Maint and Constr Management Center Owner	Maint and Constr Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Maint and Constr Management Center Owner	Maint and Constr Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Traffic Management Center Installer	Traffic Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Traffic Management Center Owner	Traffic Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Traffic Management Center Owner	Traffic Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transportation Information Center Installer	Transportation Information Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transportation Information Center Owner	Transportation Information Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transportation Information Center Owner	Transportation Information Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Emergency Management Center Maintainer	Emergency Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Emergency Management Center Manager	Emergency Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Emergency Management Center Manager	Emergency Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Emergency Management Center Owner	Emergency Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Emergency Management Center Owner	Emergency Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Emergency Management Center Supplier	Emergency Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Emergency Personnel	Emergency Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Emergency Personnel	Emergency Vehicle OBE	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Emergency Vehicle OBE Maintainer	Emergency Vehicle OBE	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Emergency Vehicle OBE Manager	Emergency Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Emergency Vehicle OBE Manager	Emergency Vehicle OBE	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Emergency Vehicle OBE Owner	Emergency Vehicle OBE Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Emergency Vehicle OBE Owner	Emergency Vehicle OBE Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Emergency Vehicle OBE Owner	Traffic Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Emergency Vehicle OBE Owner	Traffic Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Emergency Vehicle OBE Owner	Traffic Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Emergency Vehicle OBE Owner	Traffic Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Emergency Vehicle OBE Supplier	Emergency Vehicle OBE Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Maint and Constr Center Personnel	Maint and Constr Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Maint and Constr Management Center Maintainer	Maint and Constr Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Maint and Constr Management Center Manager	Maint and Constr Center Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Maint and Constr Management Center Manager	Maint and Constr Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Maint and Constr Management Center Owner	Maint and Constr Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Maint and Constr Management Center Owner	Maint and Constr Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Maint and Constr Management Center Supplier	Maint and Constr Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
TIC Operator	Transportation Information Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Traffic Management Center Maintainer	Traffic Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Traffic Management Center Manager	Traffic Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Traffic Management Center Manager	Traffic Operations Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Traffic Management Center Owner	Emergency Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traffic Management Center Owner	Emergency Management Center Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Traffic Management Center Owner	Emergency Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traffic Management Center Owner	Emergency Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Traffic Management Center Owner	Emergency Vehicle OBE Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traffic Management Center Owner	Emergency Vehicle OBE Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Traffic Management Center Owner	Emergency Vehicle OBE User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traffic Management Center Owner	Maint and Constr Center Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Traffic Management Center Owner	Maint and Constr Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traffic Management Center Owner	Maint and Constr Management Center Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Traffic Management Center Owner	Maint and Constr Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traffic Management Center Owner	TIC Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Traffic Management Center Owner	Traffic Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Traffic Management Center Owner	Traffic Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Traffic Management Center Owner	Transportation Information Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traffic Management Center Owner	Transportation Information Center Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Traffic Management Center Owner	Transportation Information Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traffic Management Center Supplier	Traffic Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Traffic Operations Personnel	Traffic Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transportation Information Center Maintainer	Transportation Information Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transportation Information Center Manager	TIC Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transportation Information Center Manager	Transportation Information Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transportation Information Center Owner	Transportation Information Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transportation Information Center Owner	Transportation Information Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transportation Information Center Supplier	Transportation Information Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Emergency Vehicle OBE	EV Service Patrol Vehicle Operations	5.3.3	Provide Emergency Vehicle Location
Emergency Vehicle OBE	EV Service Patrol Vehicle Operations	5.3.5	Provide Emergency Personnel Interface
Traffic Management Center	TMC Service Patrol Management	1.3.3.2.1	Dispatch Service Patrol Vehicles
		1.3.3.2.2	Assess Service Patrol Response Status
		1.3.3.2.3	Maintain Service Patrol Vehicle Status
		1.3.4.2	Provide Traffic Operations Personnel Incident Interface

Physical

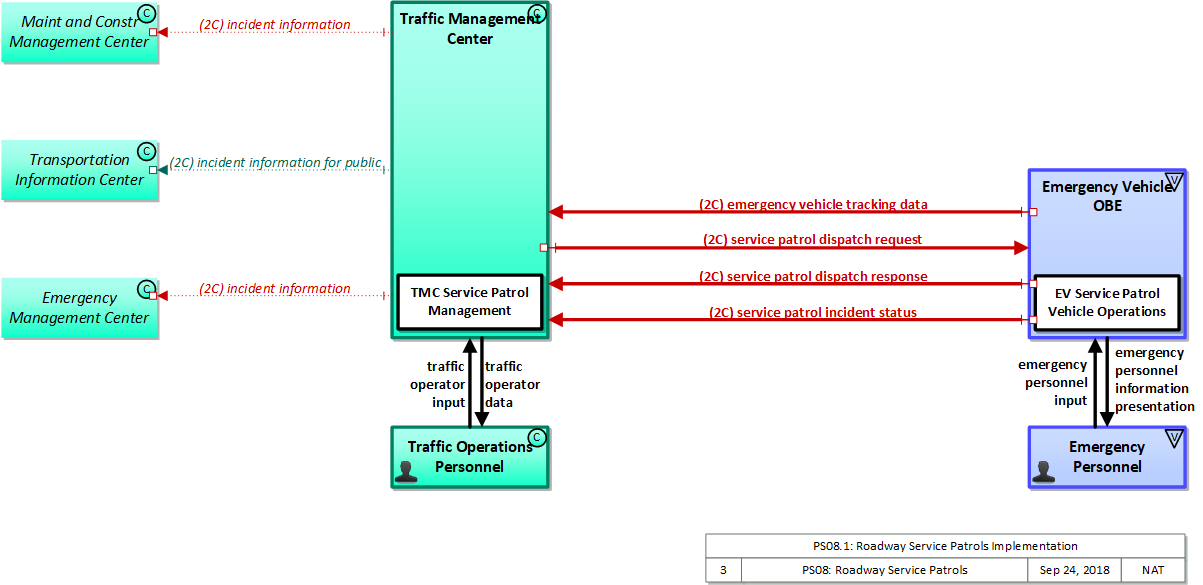

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Emergency Management Center	Center	The 'Emergency Management Center' represents systems that support incident management, disaster response and evacuation, security monitoring, and other security and public safety-oriented ITS applications. It includes the functions associated with fixed and mobile public safety communications centers including public safety call taker and dispatch centers operated by police (including transit police), fire, and emergency medical services. It includes the functions associated with Emergency Operations Centers that are activated at local, regional, state, and federal levels for emergencies and the portable and transportable systems that support Incident Command System operations at an incident. This Center also represents systems associated with towing and recovery, freeway service patrols, HAZMAT response teams, and mayday service providers. It manages sensor and surveillance equipment used to enhance transportation security of the roadway infrastructure (including bridges, tunnels, interchanges, and other key roadway segments) and the public transportation system (including transit vehicles, public areas such as transit stops and stations, facilities such as transit yards, and transit infrastructure such as rail, bridges, tunnels, or bus guideways). It provides security/surveillance services to improve traveler security in public areas not a part of the public transportation system. It monitors alerts, advisories, and other threat information and prepares for and responds to identified emergencies. It coordinates emergency response involving multiple agencies with peer centers. It stores, coordinates, and utilizes emergency response and evacuation plans to facilitate this coordinated response. Emergency situation information including damage assessments, response status, evacuation information, and resource information are shared The Emergency Management Center also provides a focal point for coordination of the emergency and evacuation information that is provided to the traveling public, including wide-area alerts when immediate public notification is warranted. It tracks and manages emergency vehicle fleets using real-time road network status and routing information from the other centers to aid in selecting the emergency vehicle(s) and routes, and works with other relevant centers to tailor traffic control to support emergency vehicle ingress and egress, implementation of special traffic restrictions and closures, evacuation traffic control plans, and other special strategies that adapt the transportation system to better meet the unique demands of an emergency.
Emergency Personnel	Vehicle	'Emergency Personnel' represents personnel that are responsible for police, fire, emergency medical services, towing, service patrols, and other special response team (e.g., hazardous material clean-up) activities at an incident site. These personnel are associated with the Emergency Vehicle during dispatch to the incident site, but often work independently of the Emergency Vehicle while providing their incident response services.
Emergency Vehicle OBE	Vehicle	The 'Emergency Vehicle On-Board Equipment' (OBE) resides in an emergency vehicle and provides the processing, storage, and communications functions that support public safety-related connected vehicle applications. It represents a range of vehicles including those operated by police, fire, and emergency medical services. In addition, it represents other incident response vehicles including towing and recovery vehicles and freeway service patrols. It includes two-way communications to support coordinated response to emergencies. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including emergency vehicles. The Emergency Vehicle OBE supplements these general capabilities with capabilities that are specific to emergency vehicles.
Maint and Constr Management Center	Center	The 'Maint and Constr Management Center' monitors and manages roadway infrastructure construction and maintenance activities. Representing both public agencies and private contractors that provide these functions, this physical object manages fleets of maintenance, construction, or special service vehicles (e.g., snow and ice control equipment). The physical object receives a wide range of status information from these vehicles and performs vehicle dispatch, routing, and resource management for the vehicle fleets and associated equipment. The physical object participates in incident response by deploying maintenance and construction resources to an incident scene, in coordination with other center physical objects. The physical object manages equipment at the roadside, including environmental sensors and automated systems that monitor and mitigate adverse road and surface weather conditions. It manages the repair and maintenance of both non-ITS and ITS equipment including the traffic controllers, detectors, dynamic message signs, signals, and other equipment associated with the roadway infrastructure. Weather information is collected and fused with other data sources and used to support advanced decision support systems. The physical object remotely monitors and manages ITS capabilities in work zones, gathering, storing, and disseminating work zone information to other systems. It manages traffic in the vicinity of the work zone and advises drivers of work zone status (either directly at the roadside or through an interface with the Transportation Information Center or Traffic Management Center physical objects.) Construction and maintenance activities are tracked and coordinated with other systems, improving the quality and accuracy of information available regarding closures and other roadway construction and maintenance activities.
Traffic Management Center	Center	The 'Traffic Management Center' monitors and controls traffic and the road network. It represents centers that manage a broad range of transportation facilities including freeway systems, rural and suburban highway systems, and urban and suburban traffic control systems. It communicates with ITS Roadway Equipment and Connected Vehicle Roadside Equipment (RSE) to monitor and manage traffic flow and monitor the condition of the roadway, surrounding environmental conditions, and field equipment status. It manages traffic and transportation resources to support allied agencies in responding to, and recovering from, incidents ranging from minor traffic incidents through major disasters.
Traffic Operations Personnel	Center	'Traffic Operations Personnel' represents the people that operate a traffic management center. These personnel interact with traffic control systems, traffic surveillance systems, incident management systems, work zone management systems, and travel demand management systems. They provide operator data and command inputs to direct system operations to varying degrees depending on the type of system and the deployment scenario.
Transportation Information Center	Center	The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.

Includes Functional Objects:

Functional Object	Description	Physical Object
EV Service Patrol Vehicle Operations	'EV Service Patrol Vehicle Operations' provides on-board processing and communications to service patrol vehicles that reduce response times and improve safety of responding personnel. It supports service patrol vehicle dispatch and provides incident information back to the dispatching center.	Emergency Vehicle OBE
TMC Service Patrol Management	'TMC Service Patrol Management' supports dispatch and communication with service patrol vehicles that monitor roads to aid motorists, offering rapid response to minor incidents.	Traffic Management Center

Includes Information Flows:

Information Flow	Description
emergency personnel information presentation	Presentation of information to emergency personnel in the field including dispatch information, incident information, current road network conditions, device status, and other supporting information.
emergency personnel input	User input from emergency personnel in the field including dispatch coordination, incident status information, and remote device control requests.
emergency vehicle tracking data	The current location and operating status of the emergency vehicle.
incident information	Notification of existence of incident and expected severity, location, time and nature of incident. As additional information is gathered and the incident evolves, updated incident information is provided. Incidents include any event that impacts transportation system operation ranging from routine incidents (e.g., disabled vehicle at the side of the road) through large-scale natural or human-caused disasters that involve loss of life, injuries, extensive property damage, and multi-jurisdictional response. This also includes special events, closures, and other planned events that may impact the transportation system.
incident information for public	Report of current desensitized incident information prepared for public dissemination.
service patrol dispatch request	Service patrol dispatch instructions including incident location and available information concerning the incident.
service patrol dispatch response	Request for additional dispatch information and provision of en route status.
service patrol incident status	Information gathered at the incident site by a service patrol vehicle that more completely characterizes the incident, the services provided, and clearance status.
traffic operator data	Presentation of traffic operations data to the operator including traffic conditions, current operating status of field equipment, maintenance activity status, incident status, video images, security alerts, emergency response plan updates and other information. This data keeps the operator appraised of current road network status, provides feedback to the operator as traffic control actions are implemented, provides transportation security inputs, and supports review of historical data and preparation for future traffic operations activities.
traffic operator input	User input from traffic operations personnel including requests for information, configuration changes, commands to adjust current traffic control strategies (e.g., adjust signal timing plans, change DMS messages), and other traffic operations data entry.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal

Associated Objective Categories

Objective Category

Associated Objectives and Performance Measures

Objective	Performance Measure

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement

Related Sources

Document Name	Version	Publication Date
None

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Emergency Management Center
Emergency Vehicle OBE
Maint and Constr Management Center
Traffic Management Center
Transportation Information Center

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Emergency Personnel	Emergency Vehicle OBE	emergency personnel input	Moderate	Moderate	Moderate
Emergency Personnel	Emergency Vehicle OBE	emergency personnel input	Some of the information, such as incident status information, is sensitive, and should be protected.	The system must know that these requests came from actual Emergency Personal. Additionally, incorrect information here may lead to the system responding incorrectly to the incident	These messages are important for the system to operate properly. Additionally, the system must know if messages are not received so that it can act accordingly.
Emergency Vehicle OBE	Emergency Personnel	emergency personnel information presentation	Moderate	Moderate	Moderate
Emergency Vehicle OBE	Emergency Personnel	emergency personnel information presentation	Some of this information, such as incident information, is sensitive and should be protected.	This information could affect how the Emergency Personnel respond to the event, and should be as accurate as possible.	This information needs to be available for the Emergency Personnel in order for them to respond accurately to the system. If they do not acknowledge this information, dispatch needs to know, so they can attempt to contact the Emergency Personnel via another channel, such as radio.
Emergency Vehicle OBE	Traffic Management Center	emergency vehicle tracking data	Moderate	Moderate	Moderate
Emergency Vehicle OBE	Traffic Management Center	emergency vehicle tracking data	Emergency Vehicles give obvious visual and audio indicators about their location and operating status. Knowing the location of every single emergency vehicle within a city could be extremely useful information to a criminal. Additionally, although this is observable data, it is transmitted on a regional level, which means that someone who is able to intercept it would be able to read the location of all emergency vehicles, not just the ones they could directly observed. A sufficiently motivated criminal can however get this information by other means.	Incorrect data here could lead to incorrect decisions being made about the closure of lanes, or incorrect information being shared with the emergency vehicles. There should be other indicators that would contradict incorrect information transmitted here.	This information may be used to determine which emergency vehicle is dispatched, and having this information available could lead to a quicker response from the emergency vehicle. However, the system would still be able to operate properly if only most messages make it through.
Emergency Vehicle OBE	Traffic Management Center	service patrol dispatch response	Moderate	Moderate	Moderate
Emergency Vehicle OBE	Traffic Management Center	service patrol dispatch response	Suggests routing of the receiving emergency vehicle and severity of the incident, which could be used by an attacker who wished to harm that vehicle or harm something/someone in an area the vehicle vacates.	Inaccurate or corrupted information here could lead to an inappropriate response, compromising the purpose of the request.	Unavailability of this flow will negatively affect the response to the incident, locally compromising mobility and possibly safety.
Emergency Vehicle OBE	Traffic Management Center	service patrol incident status	Moderate	Moderate	Moderate
Emergency Vehicle OBE	Traffic Management Center	service patrol incident status	Specifically describes the conditions of an incident, which may include PII-related information, or at least information of a sensitive nature for severe incidents, which should be protected from viewing to protect the privacy of those involved.	Inaccurate or corrupted or unavailable information here could lead to an inappropriate incident management action, which while not likely to impact safety-related actions (which would be carried out by Emergency-related actors), but which could impact mobility.	Inaccurate or corrupted or unavailable information here could lead to an inappropriate incident management action, which while not likely to impact safety-related actions (which would be carried out by Emergency-related actors), but which could impact mobility.
Traffic Management Center	Emergency Management Center	incident information	High	Moderate	Moderate
Traffic Management Center	Emergency Management Center	incident information	This data contains all of the information regarding the incident. This could include personal information regarding persons involved in the incident. It could also include sensitive information regarding special events or closures.	Minor discrepancies in this data should not have a catastrophic effect, but it should be reasonably controlled and accurate.	A few missed messages should not have a significant effect. However, most messages should make it through and the TMC should be able to know if the EMC has received a message.
Traffic Management Center	Emergency Vehicle OBE	service patrol dispatch request	Moderate	Moderate	Moderate
Traffic Management Center	Emergency Vehicle OBE	service patrol dispatch request	Suggests routing of the receiving emergency vehicle and severity of the incident, which could be used by an attacker who wished to harm that vehicle or harm something/someone in an area the vehicle vacates.	Inaccurate or corrupted information here could lead to an inappropriate response, compromising the purpose of the request.	Unavailability of this flow will negatively affect the response to the incident, locally compromising mobility and possibly safety.
Traffic Management Center	Maint and Constr Management Center	incident information	High	Moderate	Moderate
Traffic Management Center	Maint and Constr Management Center	incident information	This data contains all of the information regarding the incident. This could include personal information regarding persons involved in the incident. It could also include sensitive information regarding special events or closures.	Minor discrepancies in this data should not have a catastrophic effect, but it should be reasonably controlled and accurate.	A few missed messages should not have a significant effect. However, most messages should make it through and the TMC should be able to know if the EMC has received a message.
Traffic Management Center	Traffic Operations Personnel	traffic operator data	Moderate	Moderate	Moderate
Traffic Management Center	Traffic Operations Personnel	traffic operator data	Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available.	Information presented to backoffice system operators must be consistent or the operator may perform actions that are not appropriate to the real situation.	The backoffice system operator should have access to system operation. If this interface is down then control is effectively lost, as without feedback from the system the operator has no way of knowing what is the correct action to take.
Traffic Management Center	Transportation Information Center	incident information for public	Low	Moderate	Moderate
Traffic Management Center	Transportation Information Center	incident information for public	Generally, center-originating flows destined for a TIC don't contain any personal or confidential information, and are eventually intended for some kind of public consumption.	Incident information will be used to make routing and other travel decisions. Corrupted information may have a significant impac t on travel plans and/or road network conditions.	Significant numbers of travelers serve as end users for the information in this flow; lack of availability has a significant effect on their travel decisions.
Traffic Operations Personnel	Traffic Management Center	traffic operator input	Moderate	High	High
Traffic Operations Personnel	Traffic Management Center	traffic operator input	Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.

Standards

Currently, there are no standards associated with the physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

System Requirements

No System Requirements
