DM01.2: Public Transportation Data Mart

Establish a public transportation data repository for a jurisdiction or region that collects public transportation system status and performance over time and makes the data available to agency staff and other data users.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Alternate Mode Transportation Center Developer	Alternate Mode Transportation Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Alternate Mode Transportation Center Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Alternate Mode Transportation Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Archived Data System	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Archived Data System Developer	Archived Data User System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Other Archived Data Systems Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Payment Administration Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Transit Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data User System Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data User System Developer	Archived Data User System	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Other Archived Data Systems Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Other Archived Data Systems Developer	Other Archived Data Systems	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Payment Administration Center Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Payment Administration Center Developer	Payment Administration Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Transit Management Center Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transit Management Center Developer	Transit Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Alternate Mode Transportation Center Installer	Alternate Mode Transportation Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Alternate Mode Transportation Center Owner	Alternate Mode Transportation Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Alternate Mode Transportation Center Owner	Alternate Mode Transportation Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Archived Data System Installer	Archived Data System	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Archived Data System Owner	Archived Data System Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Archived Data System Owner	Archived Data System Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Archived Data User System Installer	Archived Data User System	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Archived Data User System Owner	Archived Data User System Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Archived Data User System Owner	Archived Data User System Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Other Archived Data Systems Installer	Other Archived Data Systems	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Other Archived Data Systems Owner	Other Archived Data Systems Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Other Archived Data Systems Owner	Other Archived Data Systems Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Payment Administration Center Installer	Payment Administration Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Payment Administration Center Owner	Payment Administration Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Payment Administration Center Owner	Payment Administration Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transit Management Center Installer	Transit Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transit Management Center Owner	Transit Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transit Management Center Owner	Transit Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Alternate Mode Transportation Center Maintainer	Alternate Mode Transportation Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Alternate Mode Transportation Center Manager	Alternate Mode Transportation Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Alternate Mode Transportation Center Manager	Alternate Mode Transportation Center Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Alternate Mode Transportation Center Operator	Alternate Mode Transportation Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Alternate Mode Transportation Center Owner	Alternate Mode Transportation Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Alternate Mode Transportation Center Owner	Alternate Mode Transportation Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Alternate Mode Transportation Center Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Alternate Mode Transportation Center Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Alternate Mode Transportation Center Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Alternate Mode Transportation Center Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Alternate Mode Transportation Center Supplier	Alternate Mode Transportation Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Archived Data Administrator	Archived Data System	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Archived Data System Maintainer	Archived Data System	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Archived Data System Manager	Archived Data Administrator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Archived Data System Manager	Archived Data System	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Archived Data System Owner	Alternate Mode Transportation Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Alternate Mode Transportation Center Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Alternate Mode Transportation Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Alternate Mode Transportation Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	Archived Data System Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Archived Data System Owner	Archived Data System Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Archived Data System Owner	Archived Data User System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Archived Data User System Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Archived Data User System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Archived Data User System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	Other Archived Data Systems Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Other Archived Data Systems Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Other Archived Data Systems Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Other Archived Data Systems User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	Payment Administration Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Payment Administration Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Payment Administration Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	Payment Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Transit Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Transit Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Transit Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	Transit Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Supplier	Archived Data System Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Archived Data User System Maintainer	Archived Data User System	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Archived Data User System Manager	Archived Data User System	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Archived Data User System Manager	Archived Data User System Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Archived Data User System Operator	Archived Data User System	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Archived Data User System Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data User System Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data User System Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data User System Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data User System Owner	Archived Data User System Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Archived Data User System Owner	Archived Data User System Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Archived Data User System Supplier	Archived Data User System Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Other Archived Data Systems Maintainer	Other Archived Data Systems	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Other Archived Data Systems Manager	Other Archived Data Systems	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Other Archived Data Systems Manager	Other Archived Data Systems Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Other Archived Data Systems Operator	Other Archived Data Systems	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Other Archived Data Systems Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Other Archived Data Systems Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Other Archived Data Systems Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Other Archived Data Systems Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Other Archived Data Systems Owner	Other Archived Data Systems Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Other Archived Data Systems Owner	Other Archived Data Systems Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Other Archived Data Systems Supplier	Other Archived Data Systems Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Payment Administration Center Maintainer	Payment Administration Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Payment Administration Center Manager	Payment Administration Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Payment Administration Center Manager	Payment Administrator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Payment Administration Center Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Payment Administration Center Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Payment Administration Center Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Payment Administration Center Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Payment Administration Center Owner	Payment Administration Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Payment Administration Center Owner	Payment Administration Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Payment Administration Center Supplier	Payment Administration Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Payment Administrator	Payment Administration Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transit Management Center Maintainer	Transit Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transit Management Center Manager	Transit Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transit Management Center Manager	Transit Operations Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transit Management Center Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transit Management Center Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transit Management Center Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transit Management Center Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transit Management Center Owner	Transit Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transit Management Center Owner	Transit Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transit Management Center Supplier	Transit Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Transit Operations Personnel	Transit Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Archived Data System	Archive Data Repository	8.1	Get Archive Data
		8.2	Manage Archive
		8.3	Manage Archive Data Administrator Interface
		8.4	Coordinate Archives
		8.5	Process Archived Data User System Requests
		8.7	Process On Demand Archive Requests
Payment Administration Center	PAC Data Collection	7.8	Manage Electronic Payment Archive Data
Transit Management Center	Transit Center Data Collection	4.2.3	Manage Transit Archive Data

Physical

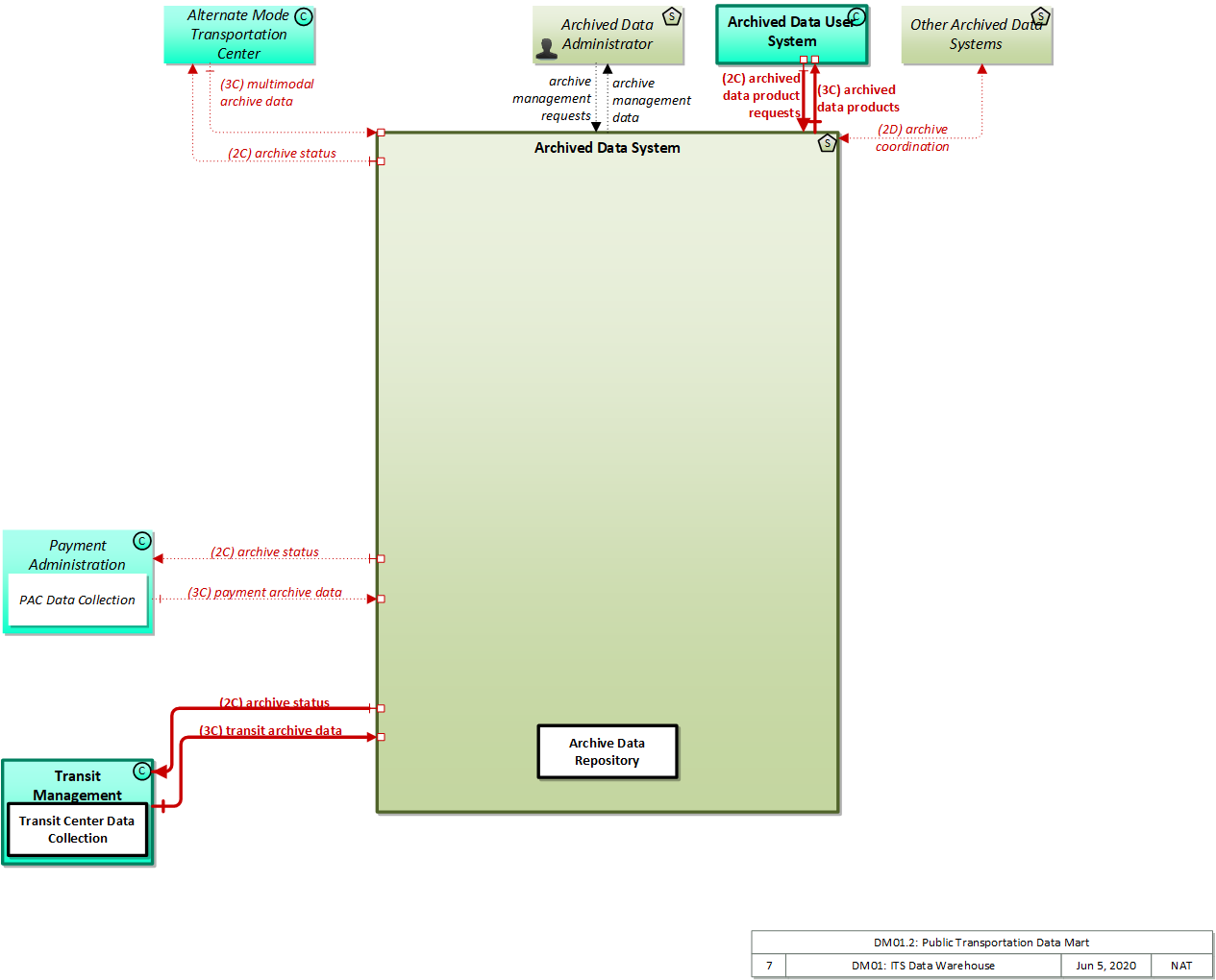

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Alternate Mode Transportation Center	Center	The 'Alternate Mode Transportation Center' provides the interface through which non-ITS transportation systems (e.g., airlines, ferry services, passenger-carrying heavy rail) can exchange data with ITS. This two-way interface enables coordination for efficient movement of people across multiple transportation modes. It also enables the traveler to efficiently plan itineraries which include segments using other modes.
Archived Data Administrator	Support	'Archived Data Administrator' represents the human operator who provides overall data management, administration, and monitoring duties for the ITS data archive. Unlike the manager of the operational databases, the archive data administrator's role is focused on the archive and covers areas such as establishing user authentication controls, monitoring data quality, and initiating data import requests.
Archived Data System	Support	The 'Archived Data System' collects, archives, manages, and distributes data generated from ITS sources for use in transportation administration, policy evaluation, safety, planning, performance monitoring, program assessment, operations, and research applications. The data received is formatted and tagged with attributes that define the data source, conditions under which it was collected, data transformations, and other information (i.e. meta data) necessary to interpret the data. The archive can fuse ITS generated data with data from non-ITS sources and other archives to generate information products utilizing data from multiple functional areas, modes, and jurisdictions. The archive prepares data products that can serve as inputs to federal, state, and local data reporting systems. The 'Archived Data System' may reside within an operational center and provide focused access to a particular agency's data archives. Alternatively, it may operate as a distinct center that collects data from multiple agencies and sources and provides a general data warehouse service.
Archived Data User System	Center	'Archived Data User System' represents the systems users employ to access archived data. The general interface provided allows a broad range of users (e.g. planners, researchers, analysts, operators) and their systems (e.g. databases, models, analytical tools, user interface devices) to acquire data and analyses results from the archive.
Other Archived Data Systems	Support	'Other Archived Data Systems' represents distributed archived data systems whose data can be accessed and shared with a local archive. The interface with the Archived Data System allows data from multiple archives to be accessed on demand or imported and consolidated into a single repository.
Payment Administration Center	Center	The 'Payment Administration Center' provides general payment administration capabilities and supports the electronic transfer of funds from the customer to the transportation system operator or other service provider. Charges can be recorded for tolls, vehicle-mileage charging, congestion charging, or other goods and services. It supports traveler enrollment and collection of both pre-payment and post-payment transportation fees in coordination with the financial infrastructure supporting electronic payment transactions. The system may establish and administer escrow accounts depending on the clearinghouse scheme and the type of payments involved. It may post a transaction to the customer account, generate a bill (for post-payment accounts), debit an escrow account, or interface to a financial infrastructure to debit a customer designated account. It supports communications with the ITS Roadway Payment Equipment to support fee collection operations. As an alternative, a wide-area wireless interface can be used to communicate directly with vehicle equipment. It also sets and administers the pricing structures and may implement road pricing policies in coordination with the Traffic Management Center.
Transit Management Center	Center	The 'Transit Management Center' manages transit vehicle fleets and coordinates with other modes and transportation services. It provides operations, maintenance, customer information, planning and management functions for the transit property. It spans distinct central dispatch and garage management systems and supports the spectrum of fixed route, flexible route, paratransit services, transit rail, and bus rapid transit (BRT) service. The physical object's interfaces support communication between transit departments and with other operating entities such as emergency response services and traffic management systems.

Includes Functional Objects:

Functional Object	Description	Physical Object
Archive Data Repository	'Archive Data Repository' collects data and data catalogs from one or more data sources and stores the data in a focused repository that is suited to a particular set of ITS data users. It includes capabilities for performing quality checks on the incoming data, error notification, anonymization as needed, and archive to archive coordination. It includes the capability to define a data registry that allows registration of data identifiers or data definitions for interoperable use throughout a region. It supports a broad range of implementations, ranging from simple data marts that collect a focused set of data and serve a particular user community to large-scale data warehouses that collect, integrate, and summarize transportation data from multiple sources and serve a broad array of users within a region. Repositories may be established to support operations planning, performance monitoring and management, and policy and investment decisions. Repositories may provide visualization outputs (e.g. dashboards) for use by the Archive Data User System.	Archived Data System
PAC Data Collection	'PAC Data Collection' collects and stores toll, road use, parking, and other payment information that is collected in the course of operations performed by the Payment Administration Center. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.	Payment Administration Center
Transit Center Data Collection	'Transit Center Data Collection' collects and stores transit information that is collected in the course of transit operations performed by the Transit Management Center. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.	Transit Management Center

Includes Information Flows:

Information Flow	Description
archive coordination	Catalog data, meta data, published data, and other information exchanged between archives to support data synchronization and satisfy user data requests.
archive management data	Presentation of information to the administrator to support the management of an ITS archive including database reports on the condition and quality of the archived data, status of the import and collection process, reports that monitor archive usage, and any special requests that require direct action by the administrator (e.g., requests for access to new data sources).
archive management requests	User input from the administrator including commands, requests, and queries that support data collection, administration, and management of an ITS data archive.
archive status	Notification that data provided to an archive contains erroneous, missing, or suspicious data or verification that the data provided appears valid. If an error has been detected, the offending data and the nature of the potential problem are identified.
archived data product requests	A user-specified request for archived data products (i.e., data, meta data, or data catalogs). The request also includes information that is used to identify and authenticate the user and support electronic payment requirements, if any.
archived data products	Raw or processed data, meta data, data catalogs and other data products provided to a user system upon request. The response may also include any associated transaction information.
multimodal archive data	Operational information from alternate passenger transportation modes including air, rail transit, taxis, and ferries. Content may include a catalog of available information, the actual information to be archived, and associated meta data that describes the archived information.
payment archive data	Data indicating roadway payments including toll facility usage and pricing schedules. Content may include a catalog of available information, the actual information to be archived, and associated meta data that describes the archived information.
transit archive data	Data used to describe and monitor transit demand, fares, operations, and system performance. Content may include a catalog of available information, the actual information to be archived, and associated meta data that describes the archived information.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal

Associated Objective Categories

Objective Category

Associated Objectives and Performance Measures

Objective	Performance Measure

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement

Related Sources

Document Name	Version	Publication Date
None

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Alternate Mode Transportation Center	High	High	Moderate	Class 4
Archived Data System	High	High	High	Class 5
Archived Data User System	High	High	Low	Class 4
Other Archived Data Systems	Moderate	High	High	Class 5
Payment Administration Center	High	High	Moderate	Class 4
Transit Management Center	High	High	Moderate	Class 4

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Alternate Mode Transportation Center	Archived Data System	multimodal archive data	Moderate	Moderate	Low
Alternate Mode Transportation Center	Archived Data System	multimodal archive data	While this flow should not include any PII, as any PII in the underlying data should be stripped prior to being sent to an archive, this is not guaranteed. Even if PII is all removed prior, this flow is very large in scope and its compromise to unintended recipients may enable large scale data analysis that compromises personal information through circumstantial, aggregative or other combinatorial analysis.	May include performance information that needs to be timely and correct so that errors may be identified and corrected. Large in scope so any errors effects may be magnified.	Not a real time service, so intermittent availability should suffice.
Archived Data Administrator	Archived Data System	archive management requests	Moderate	Moderate	Moderate
Archived Data Administrator	Archived Data System	archive management requests	Human readable information intended for the administrator only. No PII, mostly performance data, but observation provides information that should not be viewable outside the operating agency. Compromise allows a third party to potentially manipulate the archive.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.
Archived Data System	Alternate Mode Transportation Center	archive status	High	High	Moderate
Archived Data System	Alternate Mode Transportation Center	archive status	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.
Archived Data System	Archived Data Administrator	archive management data	Moderate	Moderate	Moderate
Archived Data System	Archived Data Administrator	archive management data	Human readable information intended for the administrator only. No PII, mostly performance data, but observation provides information that should not be viewable outside the operating agency. Compromise allows a third party to potentially manipulate the archive.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.
Archived Data System	Archived Data User System	archived data products	High	High	Low
Archived Data System	Archived Data User System	archived data products	Data may include sensitive information which should not be casually viewable. As many requests could be quite large, the cost of compromise will be corresponding ly high.	Since the whole point of an archived data request is some sort of data analysis, the contents of that data must be intact or the effort is wasted. Such requests can be for very large data sets, the effective cost of which is high.	While the data sets are large, requests should be infrequent, and can be managed with interruptions in service.
Archived Data System	Other Archived Data Systems	archive coordination	Moderate	High	High
Archived Data System	Other Archived Data Systems	archive coordination	Archive coordination may involve substantial meta data that indicates how users are using archived data systems, and may include queries that betray intent. Observation of this information provides a third party with intelligence about system users that should not be observable.	Incorrect coordination could lead to substantial performance challenges for the archive systems, degrading overall performance which affects all users. Depending what the archive is used for, this might be reduced to MODERATE	Without this flow, archive usage that spans multiple systems will be impossible, making archive requests unusable. Depending on what the archive is used for, this might be reduced to MODERATE.
Archived Data System	Payment Administration Center	archive status	High	High	Moderate
Archived Data System	Payment Administration Center	archive status	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.
Archived Data System	Transit Management Center	archive status	High	High	Moderate
Archived Data System	Transit Management Center	archive status	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.
Archived Data User System	Archived Data System	archived data product requests	Moderate	Moderate	Low
Archived Data User System	Archived Data System	archived data product requests	User login information must be kept confidential. Depending on the sensitivity of the archive data and resulting utiltity of access, this may be HIGH.	An incorrect data request will be incovenient, resulting in error or useless responses, but not catastrophic.	Not a real time service, so intermittent availability should suffice.
Other Archived Data Systems	Archived Data System	archive coordination	Moderate	High	High
Other Archived Data Systems	Archived Data System	archive coordination	Archive coordination may involve substantial meta data that indicates how users are using archived data systems, and may include queries that betray intent. Observation of this information provides a third party with intelligence about system users that should not be observable.	Incorrect coordination could lead to substantial performance challenges for the archive systems, degrading overall performance which affects all users. Depending what the archive is used for, this might be reduced to MODERATE	Without this flow, archive usage that spans multiple systems will be impossible, making archive requests unusable. Depending on what the archive is used for, this might be reduced to MODERATE.
Payment Administration Center	Archived Data System	payment archive data	Moderate	Moderate	Low
Payment Administration Center	Archived Data System	payment archive data	While this flow should not include any PII, as any PII in the underlying data should be stripped prior to being sent to an archive, this is not guaranteed. Even if PII is all removed prior, this flow is very large in scope and its compromise to unintended recipients may enable large scale data analysis that compromises personal information through circumstantial, aggregative or other combinatorial analysis.	May include performance information that needs to be timely and correct so that errors may be identified and corrected. Large in scope so any errors effects may be magnified.	Not a real time service, so intermittent availability should suffice.
Transit Management Center	Archived Data System	transit archive data	Moderate	Moderate	Low
Transit Management Center	Archived Data System	transit archive data	While this flow should not include any PII, as any PII in the underlying data should be stripped prior to being sent to an archive, this is not guaranteed. Even if PII is all removed prior, this flow is very large in scope and its compromise to unintended recipients may enable large scale data analysis that compromises personal information through circumstantial, aggregative or other combinatorial analysis.	May include performance information that needs to be timely and correct so that errors may be identified and corrected. Large in scope so any errors effects may be magnified.	Not a real time service, so intermittent availability should suffice.

Standards

Currently, there are no standards associated with the physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

System Requirements

No System Requirements
