Parent Service Package: DM01
: DM01.1 : DM01.2 > >

DM01.1: Traffic Data Mart

Establish a focused traffic data repository for a jurisdiction or region. This implementation collects traffic data from traffic detectors or connected vehicles. Current traffic control system information (e.g., info on control status, phases and splits, preemptions, ped delays, etc.) can also be included to provide important control context for the traffic data. A focused traffic data repository makes the collected traffic data and traffic control information available to end users and government reporting systems. This implementation represents the traffic data collection capability provided by Automated Traffic Signal Performance Measures (ATSPM) systems. This service package provides only basic reporting. See also DM02 for more advanced query-based performance measure reporting capabilities that can be added.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Archived Data System Developer	Archived Data System	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Archived Data System Developer	Archived Data User System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	ITS Roadway Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Other Archived Data Systems Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Traffic Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data System Developer	Transportation Information Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data User System Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Archived Data User System Developer	Archived Data User System	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Connected Vehicle Roadside Equipment Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Connected Vehicle Roadside Equipment Developer	Connected Vehicle Roadside Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
ITS Roadway Equipment Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
ITS Roadway Equipment Developer	ITS Roadway Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Other Archived Data Systems Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Other Archived Data Systems Developer	Other Archived Data Systems	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Traffic Management Center Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Traffic Management Center Developer	Traffic Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Transportation Information Center Developer	Archived Data System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transportation Information Center Developer	Transportation Information Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Archived Data System Installer	Archived Data System	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Archived Data System Owner	Archived Data System Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Archived Data System Owner	Archived Data System Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Archived Data User System Installer	Archived Data User System	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Archived Data User System Owner	Archived Data User System Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Archived Data User System Owner	Archived Data User System Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Connected Vehicle Roadside Equipment Installer	Connected Vehicle Roadside Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Connected Vehicle Roadside Equipment Owner	Connected Vehicle Roadside Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Connected Vehicle Roadside Equipment Owner	Connected Vehicle Roadside Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
ITS Roadway Equipment Installer	ITS Roadway Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
ITS Roadway Equipment Owner	ITS Roadway Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
ITS Roadway Equipment Owner	ITS Roadway Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Other Archived Data Systems Installer	Other Archived Data Systems	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Other Archived Data Systems Owner	Other Archived Data Systems Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Other Archived Data Systems Owner	Other Archived Data Systems Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Traffic Management Center Installer	Traffic Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Traffic Management Center Owner	Traffic Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Traffic Management Center Owner	Traffic Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transportation Information Center Installer	Transportation Information Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transportation Information Center Owner	Transportation Information Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transportation Information Center Owner	Transportation Information Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Archived Data Administrator	Archived Data System	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Archived Data System Maintainer	Archived Data System	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Archived Data System Manager	Archived Data Administrator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Archived Data System Manager	Archived Data System	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Archived Data System Owner	Archived Data System Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Archived Data System Owner	Archived Data System Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Archived Data System Owner	Archived Data User System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Archived Data User System Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Archived Data User System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Archived Data User System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	ITS Roadway Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	ITS Roadway Equipment Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	ITS Roadway Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	Maint and Constr Field Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Other Archived Data Systems Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Other Archived Data Systems Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Other Archived Data Systems Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Other Archived Data Systems User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	TIC Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Traffic Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Traffic Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Traffic Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Owner	Traffic Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data System Owner	Transportation Information Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data System Owner	Transportation Information Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data System Owner	Transportation Information Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data System Supplier	Archived Data System Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Archived Data User System Maintainer	Archived Data User System	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Archived Data User System Manager	Archived Data User System	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Archived Data User System Manager	Archived Data User System Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Archived Data User System Operator	Archived Data User System	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Archived Data User System Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Archived Data User System Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Archived Data User System Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Archived Data User System Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Archived Data User System Owner	Archived Data User System Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Archived Data User System Owner	Archived Data User System Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Archived Data User System Supplier	Archived Data User System Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Connected Vehicle Roadside Equipment Maintainer	Connected Vehicle Roadside Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Connected Vehicle Roadside Equipment Manager	Connected Vehicle Roadside Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Connected Vehicle Roadside Equipment Manager	Connected Vehicle Roadside Equipment Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Connected Vehicle Roadside Equipment Operator	Connected Vehicle Roadside Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Connected Vehicle Roadside Equipment Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Connected Vehicle Roadside Equipment Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Connected Vehicle Roadside Equipment Owner	Archived Data System Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Connected Vehicle Roadside Equipment Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Connected Vehicle Roadside Equipment Owner	Connected Vehicle Roadside Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Connected Vehicle Roadside Equipment Owner	Connected Vehicle Roadside Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Connected Vehicle Roadside Equipment Supplier	Connected Vehicle Roadside Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
ITS Roadway Equipment Maintainer	ITS Roadway Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
ITS Roadway Equipment Manager	ITS Roadway Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
ITS Roadway Equipment Manager	Maint and Constr Field Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
ITS Roadway Equipment Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
ITS Roadway Equipment Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
ITS Roadway Equipment Owner	Archived Data System Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
ITS Roadway Equipment Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
ITS Roadway Equipment Owner	ITS Roadway Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
ITS Roadway Equipment Owner	ITS Roadway Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
ITS Roadway Equipment Supplier	ITS Roadway Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Maint and Constr Field Personnel	ITS Roadway Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Other Archived Data Systems Maintainer	Other Archived Data Systems	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Other Archived Data Systems Manager	Other Archived Data Systems	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Other Archived Data Systems Manager	Other Archived Data Systems Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Other Archived Data Systems Operator	Other Archived Data Systems	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Other Archived Data Systems Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Other Archived Data Systems Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Other Archived Data Systems Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Other Archived Data Systems Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Other Archived Data Systems Owner	Other Archived Data Systems Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Other Archived Data Systems Owner	Other Archived Data Systems Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Other Archived Data Systems Supplier	Other Archived Data Systems Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
TIC Operator	Transportation Information Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Traffic Management Center Maintainer	Traffic Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Traffic Management Center Manager	Traffic Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Traffic Management Center Manager	Traffic Operations Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Traffic Management Center Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Traffic Management Center Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traffic Management Center Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Traffic Management Center Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traffic Management Center Owner	Traffic Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Traffic Management Center Owner	Traffic Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Traffic Management Center Supplier	Traffic Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Traffic Operations Personnel	Traffic Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transportation Information Center Maintainer	Transportation Information Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transportation Information Center Manager	TIC Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transportation Information Center Manager	Transportation Information Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transportation Information Center Owner	Archived Data Administrator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Transportation Information Center Owner	Archived Data System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Transportation Information Center Owner	Archived Data System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Transportation Information Center Owner	Archived Data System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Transportation Information Center Owner	Transportation Information Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transportation Information Center Owner	Transportation Information Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transportation Information Center Supplier	Transportation Information Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Archived Data System	Archive Data Repository	8.1	Get Archive Data
		8.2	Manage Archive
		8.3	Manage Archive Data Administrator Interface
		8.4	Coordinate Archives
		8.5	Process Archived Data User System Requests
		8.7	Process On Demand Archive Requests
	Archive Situation Data Archival	8.1	Get Archive Data
	Archive Situation Data Archival	8.9	Manage Roadside Data Collection
Connected Vehicle Roadside Equipment	RSE Situation Monitoring	1.1.1.6	Collect Vehicle Roadside Safety Data
		1.1.6	Collect Vehicle Traffic Surveillance Data
		1.1.7	Collect Vehicle Environmental Data
		9.2.3.8	Collect Connected Vehicle Field Equipment Status
ITS Roadway Equipment	Roadway Data Collection	1.1.1.4	Manage Data Collection and Monitoring
Traffic Management Center	TMC Data Collection	1.1.4.4	Manage Traffic Archive Data
Transportation Information Center	TIC Operations Data Collection	6.9	Manage Traveler Info Archive Data

Physical

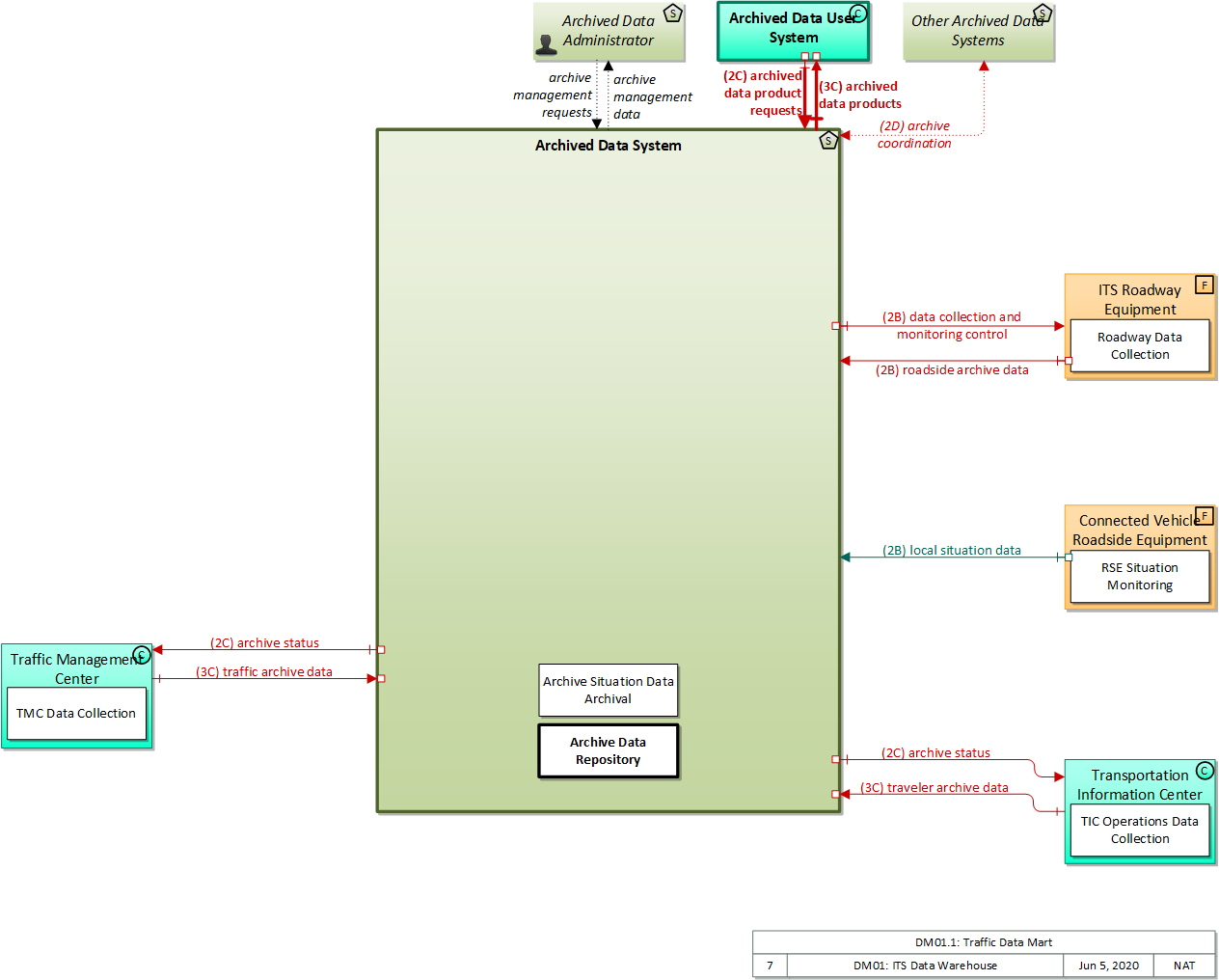

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Archived Data Administrator	Support	'Archived Data Administrator' represents the human operator who provides overall data management, administration, and monitoring duties for the ITS data archive. Unlike the manager of the operational databases, the archive data administrator's role is focused on the archive and covers areas such as establishing user authentication controls, monitoring data quality, and initiating data import requests.
Archived Data System	Support	The 'Archived Data System' collects, archives, manages, and distributes data generated from ITS sources for use in transportation administration, policy evaluation, safety, planning, performance monitoring, program assessment, operations, and research applications. The data received is formatted and tagged with attributes that define the data source, conditions under which it was collected, data transformations, and other information (i.e. meta data) necessary to interpret the data. The archive can fuse ITS generated data with data from non-ITS sources and other archives to generate information products utilizing data from multiple functional areas, modes, and jurisdictions. The archive prepares data products that can serve as inputs to federal, state, and local data reporting systems. The 'Archived Data System' may reside within an operational center and provide focused access to a particular agency's data archives. Alternatively, it may operate as a distinct center that collects data from multiple agencies and sources and provides a general data warehouse service.
Archived Data User System	Center	'Archived Data User System' represents the systems users employ to access archived data. The general interface provided allows a broad range of users (e.g. planners, researchers, analysts, operators) and their systems (e.g. databases, models, analytical tools, user interface devices) to acquire data and analyses results from the archive.
Connected Vehicle Roadside Equipment	Field	'Connected Vehicle Roadside Equipment' (CV RSE) represents the Connected Vehicle roadside devices (i.e., Roadside Units (RSUs)) equipped with short range wireless (SRW) communications technology, as well as any other supporting equipment that leverage the RSU and are not described by other objects (e.g., a local roadside processor). CVRSE are used to send messages to, and receive messages from, nearby vehicles and personal devices equipped with compatible communications technology. Communications with adjacent field equipment and back office centers that monitor and control the RSE are also supported. This device operates from a fixed position and may be permanently deployed or a portable device that is located temporarily in the vicinity of a traffic incident, road construction, or a special event. It includes a processor, data storage, and communications capabilities that support secure communications with passing vehicles, other field equipment, and centers.
ITS Roadway Equipment	Field	'ITS Roadway Equipment' represents the ITS equipment that is distributed on and along the roadway that monitors and controls traffic and monitors and manages the roadway. This physical object includes traffic detectors, environmental sensors, traffic signals, highway advisory radios, dynamic message signs, CCTV cameras and video image processing systems, grade crossing warning systems, and ramp metering systems. Lane management systems and barrier systems that control access to transportation infrastructure such as roadways, bridges and tunnels are also included. This object also provides environmental monitoring including sensors that measure road conditions, surface weather, and vehicle emissions. Work zone systems including work zone surveillance, traffic control, driver warning, and work crew safety systems are also included.
Other Archived Data Systems	Support	'Other Archived Data Systems' represents distributed archived data systems whose data can be accessed and shared with a local archive. The interface with the Archived Data System allows data from multiple archives to be accessed on demand or imported and consolidated into a single repository.
Traffic Management Center	Center	The 'Traffic Management Center' monitors and controls traffic and the road network. It represents centers that manage a broad range of transportation facilities including freeway systems, rural and suburban highway systems, and urban and suburban traffic control systems. It communicates with ITS Roadway Equipment and Connected Vehicle Roadside Equipment (RSE) to monitor and manage traffic flow and monitor the condition of the roadway, surrounding environmental conditions, and field equipment status. It manages traffic and transportation resources to support allied agencies in responding to, and recovering from, incidents ranging from minor traffic incidents through major disasters.
Transportation Information Center	Center	The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.

Includes Functional Objects:

Functional Object	Description	Physical Object
Archive Data Repository	'Archive Data Repository' collects data and data catalogs from one or more data sources and stores the data in a focused repository that is suited to a particular set of ITS data users. It includes capabilities for performing quality checks on the incoming data, error notification, anonymization as needed, and archive to archive coordination. It includes the capability to define a data registry that allows registration of data identifiers or data definitions for interoperable use throughout a region. It supports a broad range of implementations, ranging from simple data marts that collect a focused set of data and serve a particular user community to large-scale data warehouses that collect, integrate, and summarize transportation data from multiple sources and serve a broad array of users within a region. Repositories may be established to support operations planning, performance monitoring and management, and policy and investment decisions. Repositories may provide visualization outputs (e.g. dashboards) for use by the Archive Data User System.	Archived Data System
Archive Situation Data Archival	'Archive Situation Data Archival' collects and archives traffic, roadway, and environmental information for use in off-line planning, research, and analysis. It controls and collects information directly from equipment at the roadside, reflecting the deployment of traffic detectors that are used primarily for traffic monitoring and planning purposes, rather than for traffic management. It also collects situation data from connected vehicles. The data collected, quality checks performed, and aggregation strategies are defined to support transportation system performance monitoring and management.	Archived Data System
Roadway Data Collection	'Roadway Data Collection' collects traffic, road, and environmental conditions information for use in transportation planning, research, and other off-line applications where data quality and completeness take precedence over real-time performance. It includes the sensors, supporting roadside infrastructure, and communications equipment that collects and transfers information to a center for archival.	ITS Roadway Equipment
RSE Situation Monitoring	'RSE Situation Monitoring' is a general functional object that supports collection of traffic, environmental, and emissions data from passing vehicles. The data is collected, filtered, and forwarded based on parameters provided by the back office. Parameters are provided to passing vehicles that are equipped to collect and send situation data to the infrastructure in snapshots. In addition, this object collects current status information from local field devices including intersection status, sensor data, and signage data, providing complete, configurable monitoring of the situation for the local transportation system in the vicinity of the RSE.	Connected Vehicle Roadside Equipment
TIC Operations Data Collection	'TIC Operations Data Collection' collects and stores information that is collected about the transportation information service including data on the number of clients serviced and the services that were provided. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.	Transportation Information Center
TMC Data Collection	'TMC Data Collection' collects and stores information that is created in the course of traffic operations performed by the Traffic Management Center. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.	Traffic Management Center

Includes Information Flows:

Information Flow	Description
archive coordination	Catalog data, meta data, published data, and other information exchanged between archives to support data synchronization and satisfy user data requests.
archive management data	Presentation of information to the administrator to support the management of an ITS archive including database reports on the condition and quality of the archived data, status of the import and collection process, reports that monitor archive usage, and any special requests that require direct action by the administrator (e.g., requests for access to new data sources).
archive management requests	User input from the administrator including commands, requests, and queries that support data collection, administration, and management of an ITS data archive.
archive status	Notification that data provided to an archive contains erroneous, missing, or suspicious data or verification that the data provided appears valid. If an error has been detected, the offending data and the nature of the potential problem are identified.
archived data product requests	A user-specified request for archived data products (i.e., data, meta data, or data catalogs). The request also includes information that is used to identify and authenticate the user and support electronic payment requirements, if any.
archived data products	Raw or processed data, meta data, data catalogs and other data products provided to a user system upon request. The response may also include any associated transaction information.
data collection and monitoring control	Information used to configure and control data collection and monitoring systems.
local situation data	This general flow represents the traffic, environmental, and emissions situation data that is collected from connected vehicles by an RSE, aggregated, filtered, and provided to a back-office center. It also includes data collected from ITS roadway equipment that provides current intersection and road network status for the area proximate to the RSE.
roadside archive data	A broad set of data derived from roadside sensors that includes current traffic conditions, environmental conditions, and any other data that can be directly collected by roadside sensors. This data also indicates the status of the sensors and reports of any identified sensor faults.
traffic archive data	Information describing the use and vehicle composition on transportation facilities and the traffic control strategies employed. Content may include a catalog of available information, the actual information to be archived, and associated meta data that describes the archived information.
traveler archive data	Data associated with traveler information services including service requests, facility usage, rideshare, routing, and traveler payment transaction data. Content may include a catalog of available information, the actual information to be archived, and associated meta data that describes the archived information.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal

Associated Objective Categories

Objective Category

Associated Objectives and Performance Measures

Objective	Performance Measure

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement

Related Sources

Document Name	Version	Publication Date
None

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Archived Data System	High	High	High	Class 5
Archived Data User System	High	High	Low	Class 4
Connected Vehicle Roadside Equipment	Low	Moderate	Low	Class 1
ITS Roadway Equipment	Moderate	Moderate	Low	Class 2
Other Archived Data Systems	Moderate	High	High	Class 5
Traffic Management Center	High	High	Moderate	Class 4
Transportation Information Center	High	High	Moderate	Class 4

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Archived Data Administrator	Archived Data System	archive management requests	Moderate	Moderate	Moderate
Archived Data Administrator	Archived Data System	archive management requests	Human readable information intended for the administrator only. No PII, mostly performance data, but observation provides information that should not be viewable outside the operating agency. Compromise allows a third party to potentially manipulate the archive.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.
Archived Data System	Archived Data Administrator	archive management data	Moderate	Moderate	Moderate
Archived Data System	Archived Data Administrator	archive management data	Human readable information intended for the administrator only. No PII, mostly performance data, but observation provides information that should not be viewable outside the operating agency. Compromise allows a third party to potentially manipulate the archive.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.	System operating characteristics need to be provided in timely and accurate fashion, or inappropriate maintenance activity may take place, costing either system performance or money.
Archived Data System	Archived Data User System	archived data products	High	High	Low
Archived Data System	Archived Data User System	archived data products	Data may include sensitive information which should not be casually viewable. As many requests could be quite large, the cost of compromise will be corresponding ly high.	Since the whole point of an archived data request is some sort of data analysis, the contents of that data must be intact or the effort is wasted. Such requests can be for very large data sets, the effective cost of which is high.	While the data sets are large, requests should be infrequent, and can be managed with interruptions in service.
Archived Data System	ITS Roadway Equipment	data collection and monitoring control	Moderate	Moderate	Low
Archived Data System	ITS Roadway Equipment	data collection and monitoring control	Control flows, even for seemingly innocent devices, should be kept confidential to minimize attack vectors. While an individual installation may not be particularly impacted by a cyberattack of its sensor network, another installation might be severely impacted, and different installations are likely to use similar methods, so compromising one leads to compromising all.	Control flows, even for seemingly innocent devices, should have MODERATE integrity at minimum, just to guarantee that intended control messages are received. Incorrect, corrupted, intercepted and modified control messages can or will result in target field devices not behaving according to operator intent. The severity of this depends on the type of device, which is why some devices are set MODERATE and some HIGH.	Control flow availability is related to the criticality of being able to remotely control the device. For most devices, this is MODERATE. For purely passive devices with no incident relationship, this will be LOW. All devices should have default modes that enable them to operate without backhaul connectivity, so no device warrants a HIGH.
Archived Data System	Other Archived Data Systems	archive coordination	Moderate	High	High
Archived Data System	Other Archived Data Systems	archive coordination	Archive coordination may involve substantial meta data that indicates how users are using archived data systems, and may include queries that betray intent. Observation of this information provides a third party with intelligence about system users that should not be observable.	Incorrect coordination could lead to substantial performance challenges for the archive systems, degrading overall performance which affects all users. Depending what the archive is used for, this might be reduced to MODERATE	Without this flow, archive usage that spans multiple systems will be impossible, making archive requests unusable. Depending on what the archive is used for, this might be reduced to MODERATE.
Archived Data System	Traffic Management Center	archive status	High	High	Moderate
Archived Data System	Traffic Management Center	archive status	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.
Archived Data System	Transportation Information Center	archive status	High	High	Moderate
Archived Data System	Transportation Information Center	archive status	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.	Tied to the 'archive requests' flow, and rated identically as a result.
Archived Data User System	Archived Data System	archived data product requests	Moderate	Moderate	Low
Archived Data User System	Archived Data System	archived data product requests	User login information must be kept confidential. Depending on the sensitivity of the archive data and resulting utiltity of access, this may be HIGH.	An incorrect data request will be incovenient, resulting in error or useless responses, but not catastrophic.	Not a real time service, so intermittent availability should suffice.
Connected Vehicle Roadside Equipment	Archived Data System	local situation data	Low	Moderate	Low
Connected Vehicle Roadside Equipment	Archived Data System	local situation data	Limited impact if someone sees this data. Typically intended for eventual dissemination to the public. This assumes the RSE does not permit the inclusion of source-unique identifiers to the situation data. If such identifiers are included, may raise this to MODERATE.	Situation data will be used for a variety of decision-making purposes, so it should have some error checking, as any corruption could lead to sub-optimal choices. While any given instance of this flow is not critical, the aggregation of all will be significant.	Outage of this flow will deprive the terminus of the information included, but in the big picture this is a comparitively small amount of data with individually limited decision-driving content. If regional or local traffic management strategies depend on this flow, may raise to MODERATE.
ITS Roadway Equipment	Archived Data System	roadside archive data	Moderate	Moderate	Low
ITS Roadway Equipment	Archived Data System	roadside archive data	While this flow should not include any PII, as any PII in the underlying data should be stripped prior to being sent to an archive, this is not guaranteed. Even if PII is all removed prior, this flow is very large in scope and its compromise to unintended recipients may enable large scale data analysis that compromises personal information through circumstantial, aggregative or other combinatorial analysis.	May include performance information that needs to be timely and correct so that errors may be identified and corrected. Large in scope so any errors effects may be magnified.	Not a real time service, so intermittent availability should suffice.
Other Archived Data Systems	Archived Data System	archive coordination	Moderate	High	High
Other Archived Data Systems	Archived Data System	archive coordination	Archive coordination may involve substantial meta data that indicates how users are using archived data systems, and may include queries that betray intent. Observation of this information provides a third party with intelligence about system users that should not be observable.	Incorrect coordination could lead to substantial performance challenges for the archive systems, degrading overall performance which affects all users. Depending what the archive is used for, this might be reduced to MODERATE	Without this flow, archive usage that spans multiple systems will be impossible, making archive requests unusable. Depending on what the archive is used for, this might be reduced to MODERATE.
Traffic Management Center	Archived Data System	traffic archive data	Moderate	Moderate	Low
Traffic Management Center	Archived Data System	traffic archive data	While this flow should not include any PII, as any PII in the underlying data should be stripped prior to being sent to an archive, this is not guaranteed. Even if PII is all removed prior, this flow is very large in scope and its compromise to unintended recipients may enable large scale data analysis that compromises personal information through circumstantial, aggregative or other combinatorial analysis.	May include performance information that needs to be timely and correct so that errors may be identified and corrected. Large in scope so any errors effects may be magnified.	Not a real time service, so intermittent availability should suffice.
Transportation Information Center	Archived Data System	traveler archive data	Moderate	Moderate	Low
Transportation Information Center	Archived Data System	traveler archive data	While this flow should not include any PII, as any PII in the underlying data should be stripped prior to being sent to an archive, this is not guaranteed. Even if PII is all removed prior, this flow is very large in scope and its compromise to unintended recipients may enable large scale data analysis that compromises personal information through circumstantial, aggregative or other combinatorial analysis.	May include performance information that needs to be timely and correct so that errors may be identified and corrected. Large in scope so any errors effects may be magnified.	Not a real time service, so intermittent availability should suffice.Not a real time service, so intermittent availability should suffice.

Standards

The following table lists the standards associated with physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

Name	Title	Physical Object
CTI 4001 RSU	Roadside Unit (RSU) Standard	Connected Vehicle Roadside Equipment
ITE 5301 ATC ITS Cabinet	Intelligent Transportation System Standard Specification for Roadside Cabinets	ITS Roadway Equipment
NEMA TS 8 Cyber and Physical Security	Cyber and Physical Security for Intelligent Transportation Systems	Archived Data System
NEMA TS 8 Cyber and Physical Security		ITS Roadway Equipment

System Requirements

No System Requirements
