TM01.3: Bluetooth Signature Monitoring

The infrastructure includes Bluetooth readers that can identify passing vehicles by their Bluetooth signature and use that information to calculate travel times and other traffic measures.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Basic Vehicle Developer	Basic Vehicle	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Basic Vehicle Developer	ITS Roadway Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
ITS Roadway Equipment Developer	ITS Roadway Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
ITS Roadway Equipment Developer	Other ITS Roadway Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
ITS Roadway Equipment Developer	Traffic Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Other ITS Roadway Equipment Developer	ITS Roadway Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Other ITS Roadway Equipment Developer	Other ITS Roadway Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Traffic Management Center Developer	ITS Roadway Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Traffic Management Center Developer	Traffic Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Traffic Management Center Developer	Transportation Information Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Transportation Information Center Developer	Transportation Information Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Basic Vehicle Installer	Basic Vehicle	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Basic Vehicle Owner	Basic Vehicle Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Basic Vehicle Owner	Basic Vehicle Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
ITS Roadway Equipment Installer	ITS Roadway Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
ITS Roadway Equipment Owner	ITS Roadway Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
ITS Roadway Equipment Owner	ITS Roadway Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Other ITS Roadway Equipment Installer	Other ITS Roadway Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Other ITS Roadway Equipment Owner	Other ITS Roadway Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Other ITS Roadway Equipment Owner	Other ITS Roadway Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Traffic Management Center Installer	Traffic Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Traffic Management Center Owner	Traffic Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Traffic Management Center Owner	Traffic Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Transportation Information Center Installer	Transportation Information Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Transportation Information Center Owner	Transportation Information Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Transportation Information Center Owner	Transportation Information Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Basic Vehicle Maintainer	Basic Vehicle	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Basic Vehicle Manager	Basic Vehicle	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Basic Vehicle Manager	Driver	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Basic Vehicle Owner	Basic Vehicle Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Basic Vehicle Owner	Basic Vehicle Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Basic Vehicle Owner	ITS Roadway Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Basic Vehicle Owner	ITS Roadway Equipment Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Basic Vehicle Owner	ITS Roadway Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Basic Vehicle Owner	Maint and Constr Field Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Basic Vehicle Supplier	Basic Vehicle Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Driver	Basic Vehicle	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
ITS Roadway Equipment Maintainer	ITS Roadway Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
ITS Roadway Equipment Manager	ITS Roadway Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
ITS Roadway Equipment Manager	Maint and Constr Field Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
ITS Roadway Equipment Owner	ITS Roadway Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
ITS Roadway Equipment Owner	ITS Roadway Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
ITS Roadway Equipment Owner	Other ITS Roadway Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
ITS Roadway Equipment Owner	Other ITS Roadway Equipment Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
ITS Roadway Equipment Owner	Other ITS Roadway Equipment Owner	Information Exchange and Action Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. This also includes a specification for action that shall, should or may be taken by one party in response to this information.
ITS Roadway Equipment Owner	Other ITS Roadway Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
ITS Roadway Equipment Owner	Traffic Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
ITS Roadway Equipment Owner	Traffic Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
ITS Roadway Equipment Owner	Traffic Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
ITS Roadway Equipment Owner	Traffic Operations Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
ITS Roadway Equipment Supplier	ITS Roadway Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Maint and Constr Field Personnel	ITS Roadway Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Other ITS Roadway Equipment Maintainer	Other ITS Roadway Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Other ITS Roadway Equipment Manager	Other ITS Roadway Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Other ITS Roadway Equipment Manager	Other ITS Roadway Equipment Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Other ITS Roadway Equipment Operator	Other ITS Roadway Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Other ITS Roadway Equipment Owner	ITS Roadway Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Other ITS Roadway Equipment Owner	ITS Roadway Equipment Owner	Information Exchange and Action Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement. This also includes a specification for action that shall, should or may be taken by one party in response to this information.
Other ITS Roadway Equipment Owner	ITS Roadway Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Other ITS Roadway Equipment Owner	Maint and Constr Field Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Other ITS Roadway Equipment Owner	Other ITS Roadway Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Other ITS Roadway Equipment Owner	Other ITS Roadway Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Other ITS Roadway Equipment Supplier	Other ITS Roadway Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
TIC Operator	Transportation Information Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Traffic Management Center Maintainer	Traffic Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Traffic Management Center Manager	Traffic Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Traffic Management Center Manager	Traffic Operations Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Traffic Management Center Owner	ITS Roadway Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traffic Management Center Owner	ITS Roadway Equipment Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Traffic Management Center Owner	ITS Roadway Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traffic Management Center Owner	Maint and Constr Field Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Traffic Management Center Owner	TIC Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Traffic Management Center Owner	Traffic Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Traffic Management Center Owner	Traffic Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Traffic Management Center Owner	Transportation Information Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Traffic Management Center Owner	Transportation Information Center Owner	Information Provision Agreement (hide) An agreement where one party agrees to provide information to another party. This is a unidirectional agreement.
Traffic Management Center Owner	Transportation Information Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Traffic Management Center Supplier	Traffic Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Traffic Operations Personnel	Traffic Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Transportation Information Center Maintainer	Transportation Information Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Transportation Information Center Manager	TIC Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Transportation Information Center Manager	Transportation Information Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Transportation Information Center Owner	Transportation Information Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Transportation Information Center Owner	Transportation Information Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Transportation Information Center Supplier	Transportation Information Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
ITS Roadway Equipment	Roadway Passive Monitoring	1.1.8	Collect Identifier Data
Traffic Management Center	TMC Basic Surveillance	1.1.2.1	Process Traffic Data for Storage
		1.1.2.2	Process Traffic Data
		1.1.2.3	Update Data Source Static Data
		1.1.2.5	Process Vehicle Situation Data
		1.1.2.8	Process Roadway Environmental Data
		1.1.3	Generate Predictive Traffic Model
		1.1.4.1	Retrieve Traffic Data
		1.1.4.2	Provide Traffic Operations Personnel Traffic Data Interface
		1.1.5	Exchange Data with Other Traffic Centers
		1.2.6.1	Maintain Traffic and Sensor Static Data
		1.2.8	Collect Traffic Field Equipment Fault Data
		1.3.1.1	Analyze Traffic Data for Incidents
		1.3.2.1	Store Possible Incident Data
		1.3.2.5	Provide Current Incidents Store Interface
		1.3.2.6	Manage Traffic Routing
		1.3.4.2	Provide Traffic Operations Personnel Incident Interface
		1.3.4.5	Process Video Data
	TMC Passive Surveillance	1.1.2.1	Process Traffic Data for Storage
		1.1.2.13	Process Vehicle Identifier Data
		1.1.4.2	Provide Traffic Operations Personnel Traffic Data Interface

Physical

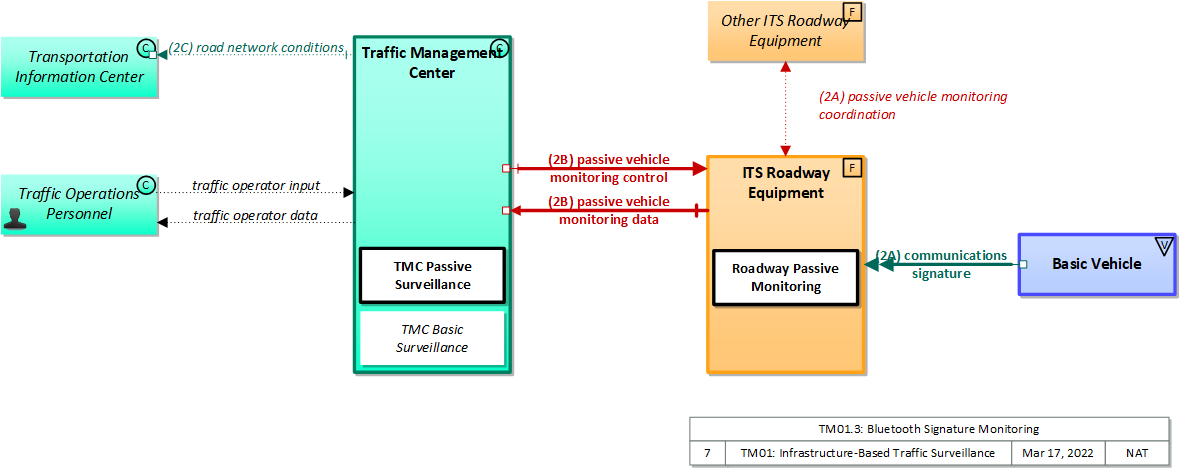

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Basic Vehicle	Vehicle	'Basic Vehicle' represents a complete operating vehicle. It includes the vehicle platform that interfaces with and hosts ITS electronics and all of the driver convenience and entertainment systems, and other non-ITS electronics on-board the vehicle. Interfaces represent both internal on-board interfaces between ITS equipment and other vehicle systems and other passive and active external interfaces or views of the vehicle that support vehicle/traffic monitoring and management. External interfaces may also represent equipment that is carried into the vehicle (e.g., a smartphone that is brought into the vehicle). Internal interfaces are often implemented through a vehicle databus, which is also included in this object. Note that 'Vehicle' represents the general functions and interfaces that are associated with personal automobiles as well as commercial vehicles, emergency vehicles, transit vehicles, and other specialized vehicles.
ITS Roadway Equipment	Field	'ITS Roadway Equipment' represents the ITS equipment that is distributed on and along the roadway that monitors and controls traffic and monitors and manages the roadway. This physical object includes traffic detectors, environmental sensors, traffic signals, highway advisory radios, dynamic message signs, CCTV cameras and video image processing systems, grade crossing warning systems, and ramp metering systems. Lane management systems and barrier systems that control access to transportation infrastructure such as roadways, bridges and tunnels are also included. This object also provides environmental monitoring including sensors that measure road conditions, surface weather, and vehicle emissions. Work zone systems including work zone surveillance, traffic control, driver warning, and work crew safety systems are also included.
Other ITS Roadway Equipment	Field	Representing another set of ITS Roadway Equipment, 'Other ITS Roadway Equipment' supports 'field device' to 'field device' communication and coordination, and provides a source and destination for information that may be exchanged between ITS Roadway Equipment. The interface enables direct coordination between field equipment. Examples include the direct interface between sensors and other roadway devices (e.g., Dynamic Message Signs) and the direct interface between roadway devices (e.g., between a Signal System Master and Signal System Local equipment) or a connection between an arterial signal system master and a ramp meter controller.
Traffic Management Center	Center	The 'Traffic Management Center' monitors and controls traffic and the road network. It represents centers that manage a broad range of transportation facilities including freeway systems, rural and suburban highway systems, and urban and suburban traffic control systems. It communicates with ITS Roadway Equipment and Connected Vehicle Roadside Equipment (RSE) to monitor and manage traffic flow and monitor the condition of the roadway, surrounding environmental conditions, and field equipment status. It manages traffic and transportation resources to support allied agencies in responding to, and recovering from, incidents ranging from minor traffic incidents through major disasters.
Traffic Operations Personnel	Center	'Traffic Operations Personnel' represents the people that operate a traffic management center. These personnel interact with traffic control systems, traffic surveillance systems, incident management systems, work zone management systems, and travel demand management systems. They provide operator data and command inputs to direct system operations to varying degrees depending on the type of system and the deployment scenario.
Transportation Information Center	Center	The 'Transportation Information Center' collects, processes, stores, and disseminates transportation information to system operators and the traveling public. The physical object can play several different roles in an integrated ITS. In one role, the TIC provides a data collection, fusing, and repackaging function, collecting information from transportation system operators and redistributing this information to other system operators in the region and other TICs. In this information redistribution role, the TIC provides a bridge between the various transportation systems that produce the information and the other TICs and their subscribers that use the information. The second role of a TIC is focused on delivery of traveler information to subscribers and the public at large. Information provided includes basic advisories, traffic and road conditions, transit schedule information, yellow pages information, ride matching information, and parking information. The TIC is commonly implemented as a website or a web-based application service, but it represents any traveler information distribution service.

Includes Functional Objects:

Functional Object	Description	Physical Object
Roadway Passive Monitoring	'Roadway Passive Monitoring' monitors passing vehicles for a signature that can be used to recognize the same vehicle at different points in the network and measure travel times. Depending on the implementation and the penetration rate of the technology that is monitored, other point traffic measures may also be inferred by monitoring the number of vehicles within range over time. Today this approach is implemented most commonly using a Bluetooth receiver that passively monitors Bluetooth devices on-board passing vehicles and license plate readers that record the vehicle license plate number, but any widely deployed vehicle communications technology or feature that can be passively monitored to uniquely identify a vehicle could be used.	ITS Roadway Equipment
TMC Basic Surveillance	'TMC Basic Surveillance' remotely monitors and controls traffic sensor systems and surveillance (e.g., CCTV) equipment, and collects, processes and stores the collected traffic data. Current traffic information and other real-time transportation information is also collected from other centers. The collected information is provided to traffic operations personnel and made available to other centers.	Traffic Management Center
TMC Passive Surveillance	'TMC Passive Surveillance' collects time stamped vehicle identities from different detection zones, correlates the identities, and calculates link travel times and derives other traffic measures.	Traffic Management Center

Includes Information Flows:

Information Flow	Description
communications signature	Communications from a device that can be monitored by other devices to uniquely identify the device for a period of time. This flow is typically achieved by passively monitoring lower-layer protocols (e.g., Bluetooth or Wi-Fi pings). Field device signatures can be monitored by mobile devices to support geolocation. Mobile device signatures can be monitored by field devices to monitor system performance (e.g., measure travel times between field device locations).
passive vehicle monitoring control	Control commands used to control detection systems that rely on infrastructure-based identification of individual vehicles to measure travel times and other related measures by identifying the same vehicle at different points in the network. Related technologies include Bluetooth readers and license plate recognition systems.
passive vehicle monitoring coordination	The direct flow of information between field equipment. This includes control commands used to control detection systems that rely on infrastructure-based identification of individual vehicles to measure travel times and other related measures by identifying the same vehicle at different points in the network. Related technologies include Bluetooth readers and license plate recognition systems. The coordination also includes sharing of time stamped identifiers that identify the vehicles that have passed through a detection zone.
passive vehicle monitoring data	Time stamped identifiers that identify the vehicles that have passed through a detection zone.
road network conditions	Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included.
traffic operator data	Presentation of traffic operations data to the operator including traffic conditions, current operating status of field equipment, maintenance activity status, incident status, video images, security alerts, emergency response plan updates and other information. This data keeps the operator appraised of current road network status, provides feedback to the operator as traffic control actions are implemented, provides transportation security inputs, and supports review of historical data and preparation for future traffic operations activities.
traffic operator input	User input from traffic operations personnel including requests for information, configuration changes, commands to adjust current traffic control strategies (e.g., adjust signal timing plans, change DMS messages), and other traffic operations data entry.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal

Associated Objective Categories

Objective Category

Associated Objectives and Performance Measures

Objective	Performance Measure

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement

Related Sources

Document Name	Version	Publication Date
None

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Basic Vehicle	Not Applicable	Moderate	Low	Class 1
ITS Roadway Equipment	Moderate	Moderate	Moderate	Class 2
Other ITS Roadway Equipment	Moderate	Moderate	Low	Class 2
Traffic Management Center	Moderate	Moderate	Moderate	Class 2
Transportation Information Center	Low	Low	Moderate	Class 1

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Basic Vehicle	ITS Roadway Equipment	communications signature	Not Applicable	Moderate	Low
Basic Vehicle	ITS Roadway Equipment	communications signature	Byproduct flow, does contain PII (Bluetooth MAC addresses for example) but already existant and not required.	While the flow here is a byproduct of existing transmissions, if the data contained within is not reliable then the application using this data will generate erroneous results. Integrity is set MODERATE to emphasize to the application developer that they should verify the flows' integrity, or develop methods to minimize integrity's importance, in which case this could be LOW.	This is a by-product flow; taking advantage of existing wireless emissions to measure travel times for example. If this flow is not present then the application might not function, however, the application is not deploying this flow, it already exists.
ITS Roadway Equipment	Other ITS Roadway Equipment	passive vehicle monitoring coordination	Moderate	Moderate	Low
ITS Roadway Equipment	Other ITS Roadway Equipment	passive vehicle monitoring coordination	Any control flow has some confidentiality requirement, as observation of the flow may enable an attacker to analyze and learn how to assume control. MODERATE for most flows as the potential damage is likely contained, though anything that could have a significant safety impact may be assigned HIGH.	Since this directly impacts device control, we consider it the same as a control flow. Control flows, even for seemingly innocent devices, should have MODERATE integrity at minimum, just to guarantee that intended control messages are received. Incorrect, corrupted, intercepted and modified control messages can or will result in target field devices not behaving according to operator intent. The severity of this depends on the type of device, which is why some devices are set MODERATE and some HIGH.	Since this directly impacts device control, we consider it the same as a control flow. Control flow availability is related to the criticality of being able to remotely control the device. For most devices, this is MODERATE. For purely passive devices with no incident relationship, this will be LOW. All devices should have default modes that enable them to operate without backhaul connectivity, so no device warrants a HIGH.
ITS Roadway Equipment	Traffic Management Center	passive vehicle monitoring data	Moderate	Moderate	Moderate
ITS Roadway Equipment	Traffic Management Center	passive vehicle monitoring data	This is likely to include device identifiers or pseudonyms, which if intercepted could be used to track vehicles and PIDs.	This data will be used to determine travel times and other traffic metrics, which in turn will be used to manage traffic and offered to travelers as information for making their own travel decisions.	To be useful this flow needs to be updated reguarly.
Other ITS Roadway Equipment	ITS Roadway Equipment	passive vehicle monitoring coordination	Moderate	Moderate	Low
Other ITS Roadway Equipment	ITS Roadway Equipment	passive vehicle monitoring coordination	Any control flow has some confidentiality requirement, as observation of the flow may enable an attacker to analyze and learn how to assume control. MODERATE for most flows as the potential damage is likely contained, though anything that could have a significant safety impact may be assigned HIGH.	Since this directly impacts device control, we consider it the same as a control flow. Control flows, even for seemingly innocent devices, should have MODERATE integrity at minimum, just to guarantee that intended control messages are received. Incorrect, corrupted, intercepted and modified control messages can or will result in target field devices not behaving according to operator intent. The severity of this depends on the type of device, which is why some devices are set MODERATE and some HIGH.	Since this directly impacts device control, we consider it the same as a control flow. Control flow availability is related to the criticality of being able to remotely control the device. For most devices, this is MODERATE. For purely passive devices with no incident relationship, this will be LOW. All devices should have default modes that enable them to operate without backhaul connectivity, so no device warrants a HIGH.
Traffic Management Center	ITS Roadway Equipment	passive vehicle monitoring control	Moderate	Moderate	Low
Traffic Management Center	ITS Roadway Equipment	passive vehicle monitoring control	Control flows, even for seemingly innocent devices, should be kept confidential to minimize attack vectors. While an individual installation may not be particularly impacted by a cyberattack of its sensor network, another installation might be severely impacted, and different installations are likely to use similar methods, so compromising one leads to compromising all.	Control flows, even for seemingly innocent devices, should have MODERATE integrity at minimum, just to guarantee that intended control messages are received. Incorrect, corrupted, intercepted and modified control messages can or will result in target field devices not behaving according to operator intent. The severity of this depends on the type of device, which is why some devices are set MODERATE and some HIGH.	Control flow availability is related to the criticality of being able to remotely control the device. For most devices, this is MODERATE. For purely passive devices with no incident relationship, this will be LOW. All devices should have default modes that enable them to operate without backhaul connectivity, so no device warrants a HIGH.
Traffic Management Center	Traffic Operations Personnel	traffic operator data	Moderate	Moderate	Moderate
Traffic Management Center	Traffic Operations Personnel	traffic operator data	Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available.	Information presented to backoffice system operators must be consistent or the operator may perform actions that are not appropriate to the real situation.	The backoffice system operator should have access to system operation. If this interface is down then control is effectively lost, as without feedback from the system the operator has no way of knowing what is the correct action to take.
Traffic Management Center	Transportation Information Center	road network conditions	Low	Moderate	Moderate
Traffic Management Center	Transportation Information Center	road network conditions	No harm should come from seeing this data, as it is eventually intended for public consumption.	While accuracy of this data is important for decision making purposes, applications should be able to corroborate the data in many instances. Thus MODERATE generally.	Depends on the application; if mobility decisions that affect large numbers of travelers are made based on this data, then it is MODERATE. In more modest circumstances, it may be LOW.
Traffic Operations Personnel	Traffic Management Center	traffic operator input	Moderate	High	High
Traffic Operations Personnel	Traffic Management Center	traffic operator input	Backoffice operations flows should have minimal protection from casual viewing, as otherwise imposters could gain illicit control or information that should not be generally available.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.

Standards

The following table lists the standards associated with physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

Name	Title	Physical Object
ITE 5301 ATC ITS Cabinet	Intelligent Transportation System Standard Specification for Roadside Cabinets	ITS Roadway Equipment
NEMA TS 8 Cyber and Physical Security	Cyber and Physical Security for Intelligent Transportation Systems	ITS Roadway Equipment
NEMA TS 8 Cyber and Physical Security		Traffic Management Center

System Requirements

No System Requirements
