MC09.1: Sensor-Based Monitoring

This implementation monitors the condition of pavement, bridges, tunnels, associated hardware, and other transportation-related infrastructure (e.g., embedded track, culverts) using both fixed and maintenance vehicle-mounted infrastructure monitoring sensors. Fixed sensors monitor vibration, stress, temperature, continuity, and other parameters and mobile sensors and data logging devices collect information on current infrastructure condition.

Relevant Regions:

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Asset Management System Developer	Asset Management System	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Asset Management System Developer	Maint and Constr Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
ITS Roadway Equipment Developer	ITS Roadway Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
ITS Roadway Equipment Developer	Maint and Constr Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
ITS Roadway Equipment Developer	Maint and Constr Vehicle OBE Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Maint and Constr Management Center Developer	Asset Management System Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Maint and Constr Management Center Developer	ITS Roadway Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Maint and Constr Management Center Developer	Maint and Constr Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Maint and Constr Management Center Developer	Maint and Constr Vehicle OBE Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Maint and Constr Vehicle OBE Developer	ITS Roadway Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Maint and Constr Vehicle OBE Developer	Maint and Constr Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Maint and Constr Vehicle OBE Developer	Maint and Constr Vehicle OBE	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Asset Management System Installer	Asset Management System	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Asset Management System Owner	Asset Management System Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Asset Management System Owner	Asset Management System Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
ITS Roadway Equipment Installer	ITS Roadway Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
ITS Roadway Equipment Owner	ITS Roadway Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
ITS Roadway Equipment Owner	ITS Roadway Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Maint and Constr Management Center Installer	Maint and Constr Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Maint and Constr Management Center Owner	Maint and Constr Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Maint and Constr Management Center Owner	Maint and Constr Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Maint and Constr Vehicle OBE Installer	Maint and Constr Vehicle OBE	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Maint and Constr Vehicle OBE Owner	Maint and Constr Vehicle OBE Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Maint and Constr Vehicle OBE Owner	Maint and Constr Vehicle OBE Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Asset Management System Maintainer	Asset Management System	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Asset Management System Manager	Asset Management System	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Asset Management System Manager	Asset Management System Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Asset Management System Operator	Asset Management System	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Asset Management System Owner	Asset Management System Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Asset Management System Owner	Asset Management System Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Asset Management System Owner	Maint and Constr Center Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Asset Management System Owner	Maint and Constr Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Asset Management System Owner	Maint and Constr Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Asset Management System Owner	Maint and Constr Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Asset Management System Supplier	Asset Management System Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
ITS Roadway Equipment Maintainer	ITS Roadway Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
ITS Roadway Equipment Manager	ITS Roadway Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
ITS Roadway Equipment Manager	Maint and Constr Field Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
ITS Roadway Equipment Owner	ITS Roadway Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
ITS Roadway Equipment Owner	ITS Roadway Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
ITS Roadway Equipment Owner	Maint and Constr Center Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
ITS Roadway Equipment Owner	Maint and Constr Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
ITS Roadway Equipment Owner	Maint and Constr Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
ITS Roadway Equipment Owner	Maint and Constr Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
ITS Roadway Equipment Owner	Maint and Constr Vehicle OBE Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
ITS Roadway Equipment Owner	Maint and Constr Vehicle OBE Owner	Expectation of Information Provision (hide) An expectation where one party believes another party will provide it information whenever such information is likely relevant to the recipient.
ITS Roadway Equipment Owner	Maint and Constr Vehicle OBE User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
ITS Roadway Equipment Owner	Maint and Constr Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
ITS Roadway Equipment Supplier	ITS Roadway Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Maint and Constr Center Personnel	Maint and Constr Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Maint and Constr Field Personnel	ITS Roadway Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Maint and Constr Management Center Maintainer	Maint and Constr Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Maint and Constr Management Center Manager	Maint and Constr Center Personnel	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Maint and Constr Management Center Manager	Maint and Constr Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Maint and Constr Management Center Owner	Asset Management System Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Maint and Constr Management Center Owner	Asset Management System Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Maint and Constr Management Center Owner	Asset Management System Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Maint and Constr Management Center Owner	Asset Management System User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Maint and Constr Management Center Owner	ITS Roadway Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Maint and Constr Management Center Owner	ITS Roadway Equipment Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Maint and Constr Management Center Owner	ITS Roadway Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Maint and Constr Management Center Owner	Maint and Constr Field Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Maint and Constr Management Center Owner	Maint and Constr Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Maint and Constr Management Center Owner	Maint and Constr Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Maint and Constr Management Center Owner	Maint and Constr Vehicle OBE Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Maint and Constr Management Center Owner	Maint and Constr Vehicle OBE Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Maint and Constr Management Center Owner	Maint and Constr Vehicle OBE User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Maint and Constr Management Center Owner	Maint and Constr Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Maint and Constr Management Center Supplier	Maint and Constr Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Maint and Constr Vehicle OBE Maintainer	Maint and Constr Vehicle OBE	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Maint and Constr Vehicle OBE Manager	Maint and Constr Vehicle OBE	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Maint and Constr Vehicle OBE Manager	Maint and Constr Vehicle Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Maint and Constr Vehicle OBE Owner	ITS Roadway Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Maint and Constr Vehicle OBE Owner	ITS Roadway Equipment Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Maint and Constr Vehicle OBE Owner	ITS Roadway Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Maint and Constr Vehicle OBE Owner	Maint and Constr Center Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Maint and Constr Vehicle OBE Owner	Maint and Constr Field Personnel	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Maint and Constr Vehicle OBE Owner	Maint and Constr Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Maint and Constr Vehicle OBE Owner	Maint and Constr Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Maint and Constr Vehicle OBE Owner	Maint and Constr Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Maint and Constr Vehicle OBE Owner	Maint and Constr Vehicle OBE Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Maint and Constr Vehicle OBE Owner	Maint and Constr Vehicle OBE Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Maint and Constr Vehicle OBE Supplier	Maint and Constr Vehicle OBE Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Maint and Constr Vehicle Operator	Maint and Constr Vehicle OBE	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
ITS Roadway Equipment	Roadway Infrastructure Monitoring	1.1.1.2	Collect Infrastructure Sensor Data
Maint and Constr Management Center	MCM Infrastructure Monitoring	9.2.3.7	Process Environmental Probe Data for Maintenance
		9.2.5	Provide M&C Center Personnel Interface for Maint
		9.2.6.3	Operate Infrastructure Monitoring Devices
		9.2.6.4	Collect Infrastructure Data
Maint and Constr Vehicle OBE	MCV Infrastructure Monitoring	9.1.1	Manage M&C Systems On-Board

Physical

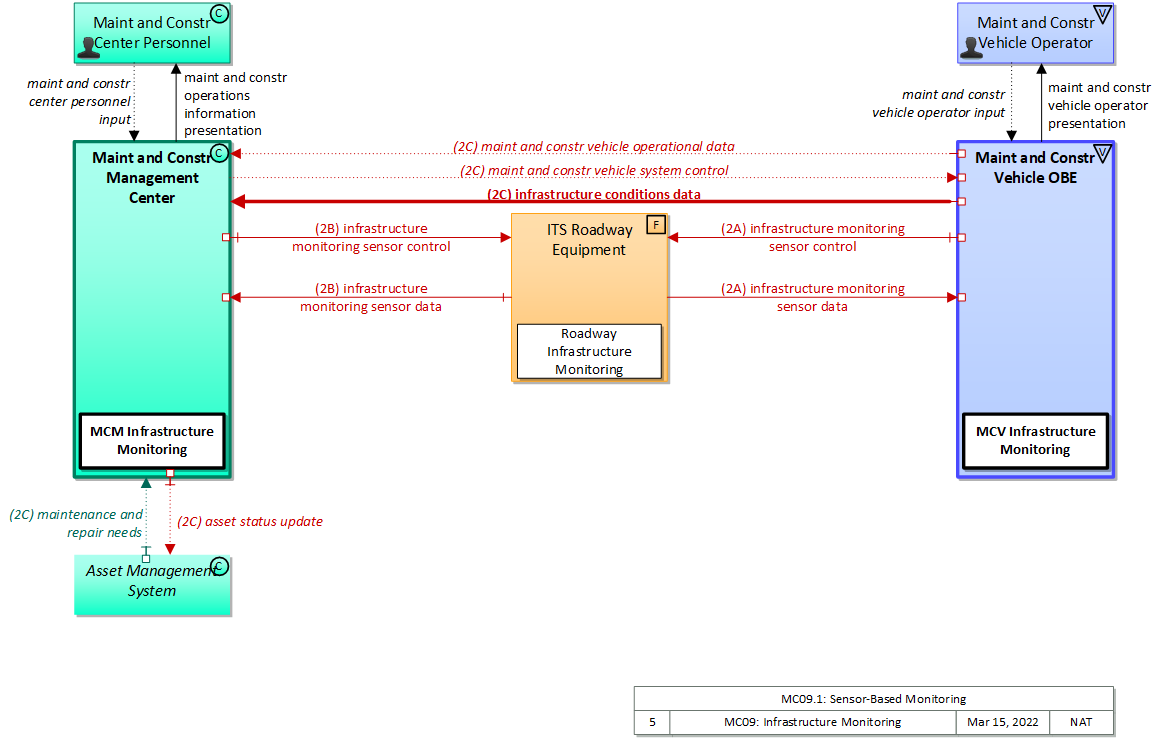

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Asset Management System	Center	'Asset Management System' represents the systems that support decision-making for maintenance, upgrade, and operation of physical transportation assets. Asset management integrates and includes the pavement management systems, bridge management systems, and other systems that inventory and manage the highway infrastructure and other transportation-related assets. The types of assets that are inventoried and managed will vary, and may include the maintenance and construction vehicles and equipment as well as "soft" assets such as human resources and software. Asset management systems monitor the condition, performance, and availability of the infrastructure and evaluate and prioritize alternative reconstruction, rehabilitation, and maintenance strategies.
ITS Roadway Equipment	Field	'ITS Roadway Equipment' represents the ITS equipment that is distributed on and along the roadway that monitors and controls traffic and monitors and manages the roadway. This physical object includes traffic detectors, environmental sensors, traffic signals, highway advisory radios, dynamic message signs, CCTV cameras and video image processing systems, grade crossing warning systems, and ramp metering systems. Lane management systems and barrier systems that control access to transportation infrastructure such as roadways, bridges and tunnels are also included. This object also provides environmental monitoring including sensors that measure road conditions, surface weather, and vehicle emissions. Work zone systems including work zone surveillance, traffic control, driver warning, and work crew safety systems are also included.
Maint and Constr Center Personnel	Center	The people that directly interface with a Maintenance and Construction Management Center. These personnel interact with fleet dispatch and management systems, road maintenance systems, incident management systems, work plan scheduling systems, and work zone management systems. They provide operator data and command inputs to direct system operations to varying degrees depending on the type of system and the deployment scenario.
Maint and Constr Management Center	Center	The 'Maint and Constr Management Center' monitors and manages roadway infrastructure construction and maintenance activities. Representing both public agencies and private contractors that provide these functions, this physical object manages fleets of maintenance, construction, or special service vehicles (e.g., snow and ice control equipment). The physical object receives a wide range of status information from these vehicles and performs vehicle dispatch, routing, and resource management for the vehicle fleets and associated equipment. The physical object participates in incident response by deploying maintenance and construction resources to an incident scene, in coordination with other center physical objects. The physical object manages equipment at the roadside, including environmental sensors and automated systems that monitor and mitigate adverse road and surface weather conditions. It manages the repair and maintenance of both non-ITS and ITS equipment including the traffic controllers, detectors, dynamic message signs, signals, and other equipment associated with the roadway infrastructure. Weather information is collected and fused with other data sources and used to support advanced decision support systems. The physical object remotely monitors and manages ITS capabilities in work zones, gathering, storing, and disseminating work zone information to other systems. It manages traffic in the vicinity of the work zone and advises drivers of work zone status (either directly at the roadside or through an interface with the Transportation Information Center or Traffic Management Center physical objects.) Construction and maintenance activities are tracked and coordinated with other systems, improving the quality and accuracy of information available regarding closures and other roadway construction and maintenance activities.
Maint and Constr Vehicle OBE	Vehicle	The 'Maint and Constr Vehicle OBE' resides in a maintenance, construction, or other specialized service vehicle or equipment and provides the processing, storage, and communications functions necessary to support highway maintenance and construction. All types of maintenance and construction vehicles are covered, including heavy equipment, supervisory vehicles, unmanned remote controlled field maintenance robots, and sensory platforms that may be wheeled or low altitude aerial vehicles (e.g. drones, balloons). The MCV OBE provides two-way communications between drivers/operators and dispatchers and maintains and communicates current location and status information. A wide range of operational status is monitored, measured, and made available, depending on the specific type of vehicle or equipment. A snow plow for example, would monitor whether the plow is up or down and material usage information. The Maint and Constr Vehicle OBE may also contain capabilities to monitor vehicle systems to support maintenance of the vehicle itself. A separate 'Vehicle OBE' physical object supports the general vehicle safety and driver information capabilities that apply to all vehicles, including maintenance and construction vehicles. The Maint and Constr Vehicle OBE supplements these general capabilities with capabilities that are specific to maintenance and construction vehicles.
Maint and Constr Vehicle Operator	Vehicle	The operator of maintenance, construction, or other specialized service vehicles or equipment. Represents the maintenance and construction vehicle operators. The operator provides input specific to maintenance and construction vehicle operations, including the status of maintenance actions. Information provided to the operator includes dispatch requests and maintenance and construction actions to be performed.

Includes Functional Objects:

Functional Object	Description	Physical Object
MCM Infrastructure Monitoring	'MCM Infrastructure Monitoring' monitors the condition of pavement, bridges, tunnels, associated hardware, and other transportation-related infrastructure (e.g., culverts). It monitors the infrastructure, collecting data from both fixed and vehicle-based sensors. In addition to specialized infrastructure monitoring sensors, it also monitors the broader population of equipped vehicles for vertical acceleration data and other situation data that may be used to determine current pavement condition.	Maint and Constr Management Center
MCV Infrastructure Monitoring	'MCV Infrastructure Monitoring' monitors the condition of pavement, bridges, tunnels, associated hardware, and other transportation-related infrastructure (e.g., culverts). It includes vehicle-based sensors that directly monitor the infrastructure, communications that allow roadway-based infrastructure monitoring sensors to be controlled and read, and data communications that allows collected infrastructure condition information to be reported back to a center.	Maint and Constr Vehicle OBE
Roadway Infrastructure Monitoring	'Roadway Infrastructure Monitoring' monitors the condition of pavement, bridges, tunnels, associated hardware, and other transportation-related infrastructure (e.g., culverts). It includes sensors that monitor the infrastructure and the communications necessary to report this data to a center or vehicle-based maintenance system.	ITS Roadway Equipment

Includes Information Flows:

Information Flow	Description
asset status update	Changes to status of pavement, bridges, signs and other assets resulting from maintenance or construction activities or infrastructure monitoring. The updates may include changes in installation information, materials information, vendor/contractor information, condition, and current maintenance status. In addition to infrastructure asset updates, the information provided may also include status of the maintenance and construction support assets, including vehicle and equipment utilization and repair records.
infrastructure conditions data	Current condition of pavement, bridges, culverts, signs, and other roadway infrastructure as measured by on-board sensors or read from infrastructure-based sensors. The data may include raw data or images (e.g., photo logs) that indicate the current status of the infrastructure.
infrastructure monitoring sensor control	Data used to configure and control infrastructure monitoring sensors.
infrastructure monitoring sensor data	Data read from infrastructure-based sensors that monitor the condition or integrity of transportation infrastructure including bridges, tunnels, interchanges, pavement, culverts, signs, transit rail or guideway, and other roadway infrastructure. Includes sensor data and the operational status of the sensors.
maint and constr center personnel input	User input from maintenance and construction center personnel including routing information, scheduling data, dispatch instructions, device configuration and control, resource allocations, alerts, incident and emergency response plan coordination.
maint and constr operations information presentation	Presentation of maintenance and construction operations information to center personnel. This information includes maintenance resource status (vehicles, equipment, and personnel), work schedule information, work status, road and weather conditions, traffic information, incident information and associated resource requests, security alerts, emergency response plans and a range of other information that supports efficient maintenance and construction operations and planning.
maint and constr vehicle operational data	Data that describes the maintenance and construction activity performed by the vehicle. Operational data includes materials usage (amount stored and current application rate), operational state of the maintenance equipment (e.g., blade up/down, spreader pattern), vehicle safety status, and other measures associated with the operation of a maintenance, construction, or other special purpose vehicle. Operational data may include basic operational status of the vehicle equipment or a more precise record of the work performed (e.g., application of crack sealant with precise locations and application characteristics).
maint and constr vehicle operator input	User input from field personnel including current maintenance and construction status information as well as on-board device control.
maint and constr vehicle operator presentation	Information presented to maintenance and construction field personnel including vehicle routing and traffic information, road restrictions, environmental information, decision support information, maintenance schedules, dispatch instructions, maintenance personnel assignments, vehicle maintenance information, work zone status information, and corrective actions.
maint and constr vehicle system control	Configure and control data that supports remote control of on-board maintenance and construction vehicle systems and field equipment that is remotely controlled by the vehicle. For example, the data can be used to adjust material application rates and spread patterns.
maintenance and repair needs	Recommended strategies and schedules for maintenance of the transportation infrastructure.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal

Associated Objective Categories

Objective Category

Associated Objectives and Performance Measures

Objective	Performance Measure

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement

Related Sources

Document Name	Version	Publication Date
None

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Asset Management System
ITS Roadway Equipment
Maint and Constr Management Center
Maint and Constr Vehicle OBE

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Asset Management System	Maint and Constr Management Center	maintenance and repair needs	Low	Moderate	Moderate
Asset Management System	Maint and Constr Management Center	maintenance and repair needs	Transportation system status information is observable information.	If this data is incorrect or unavailable then maintenance transportation maintenance actions may not be properly taken address system problems, resulting in lower overall transportation system performance and in some cases an increased safety risk for users of the affected infrastructure.	If this data is incorrect or unavailable then maintenance transportation maintenance actions may not be properly taken address system problems, resulting in lower overall transportation system performance and in some cases an increased safety risk for users of the affected infrastructure.
ITS Roadway Equipment	Maint and Constr Management Center	infrastructure monitoring sensor data	High	Moderate	Moderate
ITS Roadway Equipment	Maint and Constr Management Center	infrastructure monitoring sensor data	Includes asset status and security-related monitoring both of which if available to a hostile third party would be useful in developing targets and inflicting damage. May be MODERATE if little such data is available or assets and potential impact is limited.	Real-time monitoring of transportation asset data should be accurate and timely to protect the monitored assets. Given that the destintation of this flow cannot act directly, it is difficult to justify HIGH, unless 'infrastructure situation data' does not exist.	As this flow includes data that reflects the condition of transportation assets, and can be used to infer the safety of use of those assets, loss of this flow means loss of asset safety monitoring, which has a potentially significant impact.
ITS Roadway Equipment	Maint and Constr Vehicle OBE	infrastructure monitoring sensor data	High	Moderate	Moderate
ITS Roadway Equipment	Maint and Constr Vehicle OBE	infrastructure monitoring sensor data	Includes asset status and security-related monitoring both of which if available to a hostile third party would be useful in developing targets and inflicting damage. May be MODERATE if little such data is available or assets and potential impact is limited.	Real-time monitoring of transportation asset data should be accurate and timely to protect the monitored assets. Given that the destintation of this flow cannot act directly, it is difficult to justify HIGH, unless 'infrastructure situation data' does not exist.	As this flow includes data that reflects the condition of transportation assets, and can be used to infer the safety of use of those assets, loss of this flow means loss of asset safety monitoring, which has a potentially significant impact.
Maint and Constr Center Personnel	Maint and Constr Management Center	maint and constr center personnel input	High	High	High
Maint and Constr Center Personnel	Maint and Constr Management Center	maint and constr center personnel input	Direct interactions between personnel and systems in a backoffice environment are effectively protected by physical means, so long as the interaction is in a dedicated facility. If this interaction is virtual (i.e. ,the MCMC is not directly in front of the MCMC Personnel, like in a cloud-based system) then the user's input requires some degree of obfuscation depending on sensitivity of information. Given that this could include information about compromised or ineffectual systems, including security systems, the potential for damage is high. Thus, HIGH.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.	Backoffice operations flows should generally be correct and available as these are the primary interface between operators and system.
Maint and Constr Management Center	Asset Management System	asset status update	Moderate	Moderate	Low
Maint and Constr Management Center	Asset Management System	asset status update	Linked to the asset inventory, so the same concerns with this flow as that one, namely that when placed in one spot becomes a "one stop shop" for a nefarious person looking for infrastructure targets. Given the narrow focus of this flow it might be LOW, except that it infers information about specific targets.	Infrastructure information should be correct or maintenance assets may be inappropriately assigned.	While this changes more than other asset flows, the impact should still be minimal.
Maint and Constr Management Center	ITS Roadway Equipment	infrastructure monitoring sensor control	Moderate	High	Low
Maint and Constr Management Center	ITS Roadway Equipment	infrastructure monitoring sensor control	Control flows, even for seemingly innocent devices, should be kept confidential to minimize attack vectors. While an individual installation may not be particularly impacted by a cyberattack of its sensor network, another installation might be severely impacted, and different installations are likely to use similar methods, so compromising one leads to compromising all. DISC: NYC believes this to be low: "This information is directly observable."	Control flows, even for seemingly innocent devices, should have MODERATE integrity at minimum, just to guarantee that intended control messages are received. Incorrect, corrupted, intercepted and modified control messages can or will result in target field devices not behaving according to operator intent. The severity of this depends on the type of device, which is why some devices are set MODERATE and some HIGH. From NYC: The information sent from TMC directly affect the ITS-RE speed “announcement”.	Control flow availability is related to the criticality of being able to remotely control the device. For most devices, this is MODERATE. For purely passive devices with no incident relationship, this will be LOW. All devices should have default modes that enable them to operate without backhaul connectivity, so no device warrants a HIGH.. From NYC: The ITS-RE can work accordingly or in fail-safe if information is not available.
Maint and Constr Management Center	Maint and Constr Center Personnel	maint and constr operations information presentation	Not Applicable	Moderate	Moderate
Maint and Constr Management Center	Maint and Constr Center Personnel	maint and constr operations information presentation	System maintenance flows should have some protection from casual viewing, as otherwise imposters could gain illicit control over field equipment	Information presented to backoffice system operators must be consistent or the operator may perform actions that are not appropriate to the real situation.	The backoffice system operator should have access to system operation. If this interface is down then control is effectively lost, as without feedback from the system the operator has no way of knowing what is the correct action to take.
Maint and Constr Management Center	Maint and Constr Vehicle OBE	maint and constr vehicle system control	Moderate	High	Moderate
Maint and Constr Management Center	Maint and Constr Vehicle OBE	maint and constr vehicle system control	Control flows, even for seemingly innocent devices, should be kept confidential to minimize attack vectors. While an individual installation may not be particularly impacted by a cyberattack of its sensor network, another installation might be severely impacted, and different installations are likely to use similar methods, so compromising one leads to compromising all.	Control flows, even for seemingly innocent devices, should have MODERATE integrity at minimum, just to guarantee that intended control messages are received. Incorrect, corrupted, intercepted and modified control messages can or will result in target field devices not behaving according to operator intent. The severity of this depends on the type of device, which is why some devices are set MODERATE and some HIGH.	There should be multiple mechanisms for this information to arrive at the end recipient. If this is the only mechanism, should be raised to MODERATE.
Maint and Constr Vehicle OBE	ITS Roadway Equipment	infrastructure monitoring sensor control	Moderate	High	Low
Maint and Constr Vehicle OBE	ITS Roadway Equipment	infrastructure monitoring sensor control	Control flows, even for seemingly innocent devices, should be kept confidential to minimize attack vectors. While an individual installation may not be particularly impacted by a cyberattack of its sensor network, another installation might be severely impacted, and different installations are likely to use similar methods, so compromising one leads to compromising all. DISC: NYC believes this to be low: "This information is directly observable."	Control flows, even for seemingly innocent devices, should have MODERATE integrity at minimum, just to guarantee that intended control messages are received. Incorrect, corrupted, intercepted and modified control messages can or will result in target field devices not behaving according to operator intent. The severity of this depends on the type of device, which is why some devices are set MODERATE and some HIGH. From NYC: The information sent from TMC directly affect the ITS-RE speed “announcement”.	Control flow availability is related to the criticality of being able to remotely control the device. For most devices, this is MODERATE. For purely passive devices with no incident relationship, this will be LOW. All devices should have default modes that enable them to operate without backhaul connectivity, so no device warrants a HIGH.. From NYC: The ITS-RE can work accordingly or in fail-safe if information is not available.
Maint and Constr Vehicle OBE	Maint and Constr Management Center	infrastructure conditions data	Moderate	Moderate	Moderate
Maint and Constr Vehicle OBE	Maint and Constr Management Center	infrastructure conditions data	Infrastructure sensor data may or may not be sensitive. Performance of sensors should be limited to maintenance personnel in case someone with hostile intent would monitor this data looking for particular conditions. This is a tenous leap in need for confidentiality; depending on the potential for conditions that can be sensed that might be abused for damage, this might be reduced to LOW.	Sensor status, sensor data should have some degree of confidence, or decisions attached to this data may be erroneous.	Assessment of MODERATE assumes sensors identifying conditions that move actions on the part of the M&CMC. For instance, icing, or radical changes in atmospheric condistions suggestion traffic management or road maintenance challenges.
Maint and Constr Vehicle OBE	Maint and Constr Management Center	maint and constr vehicle operational data	Moderate	Moderate	Moderate
Maint and Constr Vehicle OBE	Maint and Constr Management Center	maint and constr vehicle operational data	Contains information indicating the activity of the maintenance vehicle, which if public could be used against the vehicle or the infrastructure, depending on the hostile party's intent.	Status information needs to be timely and correct or the dispatcher may issue additional instructions, costing time and money.	Status information needs to be timely and correct or the dispatcher may issue additional instructions, costing time and money.
Maint and Constr Vehicle OBE	Maint and Constr Vehicle Operator	maint and constr vehicle operator presentation	Moderate	High	High
Maint and Constr Vehicle OBE	Maint and Constr Vehicle Operator	maint and constr vehicle operator presentation	System maintenance flows should have some protection from casual viewing, as otherwise imposters could gain illicit control over the MCV.	System maintenance flows are the primary interface between field personnel and field equipment, and must present accurate data or inappropriate maintenance actions may be taken.	System maintenance flows are the primary interface between field personnel and field equipment, and must present accurate data or inappropriate maintenance actions may be taken.
Maint and Constr Vehicle Operator	Maint and Constr Vehicle OBE	maint and constr vehicle operator input	Not Applicable	Moderate	High
Maint and Constr Vehicle Operator	Maint and Constr Vehicle OBE	maint and constr vehicle operator input	Observation of control or status information is unlikely to have any value to a third party; actions of field personnel should be observable anyway.	Any driver/operator interaction with vehicle systems needs some assurance of correctness; corruption of this information could lead to unexpected vehicle behavior which poses a limited safety risk.	Without direct local control of vehicle systems the vehicle is essentially uncontrolled.

Standards

The following table lists the standards associated with physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

Name	Title	Physical Object
ITE 5301 ATC ITS Cabinet	Intelligent Transportation System Standard Specification for Roadside Cabinets	ITS Roadway Equipment
NEMA TS 8 Cyber and Physical Security	Cyber and Physical Security for Intelligent Transportation Systems	ITS Roadway Equipment
NEMA TS 8 Cyber and Physical Security		Maint and Constr Management Center

System Requirements

No System Requirements
