Parent Service Package: PM07
< < PM07.3 : PM07.4 : PS01.1 > >

PM07.4: Automated Valet Parking Implementation

A valet uses remote automation commands to park a vehicle left by the driver in a designated valet spot that is identified by the parking operator. Valet operations entails remote control of multiple valet-parked vehicles to make optimum use of available valet parking spaces and reduce delay for drivers picking up their vehicles.

Relevant Regions: Australia, Canada, European Union, and United States

Enterprise
Functional
Physical
Goals and Objectives
Needs and Requirements
Sources
Security
Standards
System Requirements

Enterprise

Development Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Basic Vehicle Developer	Basic Vehicle	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Basic Vehicle Developer	Vehicle Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Parking Area Equipment Developer	Parking Area Equipment	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Parking Area Equipment Developer	Parking Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Parking Area Equipment Developer	Vehicle Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Parking Management Center Developer	Parking Area Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Parking Management Center Developer	Parking Management Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Parking Management Center Developer	Vehicle Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Parking Management Center Developer	Vehicle Operations and Service Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Vehicle Developer	Basic Vehicle Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Vehicle Developer	Parking Area Equipment Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Vehicle Developer	Parking Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Vehicle Developer	Vehicle	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.
Vehicle Developer	Vehicle Operations and Service Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Vehicle Operations and Service Center Developer	Parking Management Center Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Vehicle Operations and Service Center Developer	Vehicle Developer	Application Interface Specification (hide) The definition of an interface between two application components that operate on two distinct pieces of hardware. The Application Interface Specification is specific to the application in question.
Vehicle Operations and Service Center Developer	Vehicle Operations and Service Center	Develops (hide) An Enterprise creates the target Resource or Document. The Enterprise that engineers a traffic signal controller (ITS Roadway Equipment), or designs a vehicle (Basic Vehicle) or authors a technical standard will have the Develops role.

Installation Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Basic Vehicle Installer	Basic Vehicle	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Basic Vehicle Owner	Basic Vehicle Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Basic Vehicle Owner	Basic Vehicle Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Parking Area Equipment Installer	Parking Area Equipment	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Parking Area Equipment Owner	Parking Area Equipment Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Parking Area Equipment Owner	Parking Area Equipment Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Parking Management Center Installer	Parking Management Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Parking Management Center Owner	Parking Management Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Parking Management Center Owner	Parking Management Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Vehicle Installer	Vehicle	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Vehicle Operations and Service Center Installer	Vehicle Operations and Service Center	Installs (hide) An Enterprise performs the initial delivery, integration and configuration of the target Resource. This might be a system integrator, a state DOT Enterprise performing its own installation, or a device supplier that performs on-site installation.
Vehicle Operations and Service Center Owner	Vehicle Operations and Service Center Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Vehicle Operations and Service Center Owner	Vehicle Operations and Service Center Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.
Vehicle Owner	Vehicle Installer	Installation Agreement (hide) An agreement whereupon one party installs a system on behalf of a second party.
Vehicle Owner	Vehicle Verifier	Verification Agreement (hide) An agreement for one party to verify that a system owned by the second party operates according to the system's design.

Operations and Maintenance Stage Roles and Relationships
(hide)

Source	Destination	Role/Relationship
Basic Vehicle Maintainer	Basic Vehicle	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Basic Vehicle Manager	Basic Vehicle	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Basic Vehicle Manager	Driver	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Basic Vehicle Owner	Basic Vehicle Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Basic Vehicle Owner	Basic Vehicle Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Basic Vehicle Owner	Driver	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Basic Vehicle Owner	Driver	Vehicle Operating Agreement (hide) An agreement whereupon the controller of a vehicle grants another entity permission and rights to operate the vehicle.
Basic Vehicle Owner	Remote Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Basic Vehicle Owner	Remote Vehicle Operator	Vehicle Operating Agreement (hide) An agreement whereupon the controller of a vehicle grants another entity permission and rights to operate the vehicle.
Basic Vehicle Owner	Vehicle Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Basic Vehicle Owner	Vehicle Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Basic Vehicle Owner	Vehicle User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Basic Vehicle Supplier	Basic Vehicle Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Driver	Basic Vehicle	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Driver	Roadway Owner	Expectation of Roadway Condition Management (hide) An expectation whereby one party expects the other to maintain the condition of the roadway environment to a level sufficient for the trusting partner to operate safely.
Driver	Vehicle	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Parking Area Equipment Maintainer	Parking Area Equipment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Parking Area Equipment Manager	Parking Area Equipment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Parking Area Equipment Manager	Parking Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Parking Area Equipment Owner	Driver	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Area Equipment Owner	Parking Area Equipment Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Parking Area Equipment Owner	Parking Area Equipment Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Parking Area Equipment Owner	Parking Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Parking Area Equipment Owner	Parking Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Parking Area Equipment Owner	Parking Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Parking Area Equipment Owner	Parking Manager	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Area Equipment Owner	Remote Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Area Equipment Owner	Vehicle Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Parking Area Equipment Owner	Vehicle Owner	Expectation of Information Provision (hide) An expectation where one party believes another party will provide it information whenever such information is likely relevant to the recipient.
Parking Area Equipment Owner	Vehicle User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Parking Area Equipment Supplier	Parking Area Equipment Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Parking Management Center Maintainer	Parking Management Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Parking Management Center Manager	Parking Management Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Parking Management Center Manager	Parking Manager	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Parking Management Center Owner	Driver	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Management Center Owner	Parking Area Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Parking Management Center Owner	Parking Area Equipment Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Parking Management Center Owner	Parking Area Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Parking Management Center Owner	Parking Management Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Parking Management Center Owner	Parking Management Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Parking Management Center Owner	Parking Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Management Center Owner	Remote Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Management Center Owner	Vehicle Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Parking Management Center Owner	Vehicle Operations and Service Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Parking Management Center Owner	Vehicle Operations and Service Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Parking Management Center Owner	Vehicle Operations and Service Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Parking Management Center Owner	Vehicle Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Parking Management Center Owner	Vehicle Service Center Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Parking Management Center Owner	Vehicle User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Parking Management Center Supplier	Parking Management Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Parking Manager	Parking Management Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Parking Operator	Parking Area Equipment	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Remote Vehicle Operator	Vehicle	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Roadway Maintainer	Roadway Environment	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Roadway Manager	Roadway Environment	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Roadway Owner	Roadway Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Roadway Owner	Roadway Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Vehicle Maintainer	Vehicle	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Vehicle Manager	Driver	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Vehicle Manager	Remote Vehicle Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Vehicle Manager	Vehicle	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Vehicle Operations and Service Center Maintainer	Vehicle Operations and Service Center	Maintains (hide) An Enterprise administers the hardware and software that comprise the target Resource. The entity that takes the ‘maintains’ role typically is delegated authority by the entity with the “Owns” or "Manages" roles, depending on the environment. The maintainer interacts with the target Resource so as to keep that Resource in the Operational state.
Vehicle Operations and Service Center Manager	Vehicle Operations and Service Center	Manages (hide) The Enterprise that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This authority is typically delegated by the Enterprise with the "Owns" role, and commonly accomplished by delegation to Human E-Objects with the "operates", "installs" or "maintains" roles, depending on the context.
Vehicle Operations and Service Center Manager	Vehicle Service Center Operator	System Usage Agreement (hide) An agreement granting operational use of a system to a Human with the operates role responsible for management of the system.
Vehicle Operations and Service Center Owner	Driver	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Vehicle Operations and Service Center Owner	Parking Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Vehicle Operations and Service Center Owner	Parking Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Vehicle Operations and Service Center Owner	Parking Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Vehicle Operations and Service Center Owner	Parking Manager	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Vehicle Operations and Service Center Owner	Remote Vehicle Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Vehicle Operations and Service Center Owner	Vehicle Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Vehicle Operations and Service Center Owner	Vehicle Operations and Service Center Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Vehicle Operations and Service Center Owner	Vehicle Operations and Service Center Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Vehicle Operations and Service Center Owner	Vehicle Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Vehicle Operations and Service Center Owner	Vehicle User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Vehicle Operations and Service Center Supplier	Vehicle Operations and Service Center Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.
Vehicle Owner	Basic Vehicle Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Vehicle Owner	Basic Vehicle Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Vehicle Owner	Basic Vehicle User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Vehicle Owner	Driver	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Vehicle Owner	Driver	Vehicle Operating Agreement (hide) An agreement whereupon the controller of a vehicle grants another entity permission and rights to operate the vehicle.
Vehicle Owner	Parking Area Equipment Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Vehicle Owner	Parking Area Equipment Owner	Expectation of Data Provision (hide) An expectation where one party believes another party will provide data on a regular and recurring basis, and that that data will be useful to the receiver in the context of the receiver's application. This thus includes some expectation of data fields, timeliness, quality, precision and similar qualities of data.
Vehicle Owner	Parking Area Equipment User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Vehicle Owner	Parking Management Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Vehicle Owner	Parking Management Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Vehicle Owner	Parking Management Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Vehicle Owner	Parking Manager	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Vehicle Owner	Parking Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Vehicle Owner	Vehicle Maintainer	System Maintenance Agreement (hide) An agreement for one party to maintain the operational status of a system on behalf of the party with ownership control of the system.
Vehicle Owner	Vehicle Manager	Operations Agreement (hide) An agreement where one entity agrees to operate a device or application on behalf of another, device/application controlling entity.
Vehicle Owner	Vehicle Operations and Service Center Maintainer	Maintenance Data Exchange Agreement (hide) An agreement that states one entity will provide data related to maintenance of an application component to the other entity.
Vehicle Owner	Vehicle Operations and Service Center Owner	Information Exchange Agreement (hide) An agreement to exchange information, which may include data or control information; the exact information to be exchanged may vary from agreement to agreement.
Vehicle Owner	Vehicle Operations and Service Center User	Service Usage Agreement (hide) An agreement between the provider of a service and a user. Stipulates the terms and conditions of service usage.
Vehicle Owner	Vehicle Service Center Operator	Application Usage Agreement (hide) An agreement in which one entity that controls an application component's use gives the other entity the necessary tools and permission to operate that application or application component.
Vehicle Service Center Operator	Vehicle Operations and Service Center	Operates (hide) A Human that is accountable for performing actions with a Resource, typically in support of one of the key operations-related roles (operates, installs, maintains). This is the person at the console or behind the wheel.
Vehicle Supplier	Vehicle Owner	Warranty (hide) A guarantee or promise made by one entity to another, that provides assurance of the functionality and performance of a subsystem.

Functional

This service package includes the following Functional View PSpecs:

Physical Object	Functional Object	PSpec Number	PSpec Name
Parking Area Equipment	Parking Area Management	1.2.5.13	Manage Commercial Vehicle Parking
		1.2.5.3	Provide Parking Lot Operator Interface
		1.2.5.6	Detect Vehicles in Parking Lot
		1.2.5.7	Output Parking Lot Information to Drivers
Parking Management Center	Parking Management	1.2.5.1	Provide Parking Lot Static Data
Parking Management Center	Parking Management	1.2.5.4	Determine Dynamic Parking Lot State
Vehicle	Vehicle Control Automation	3.2.3.3	Process Data for Vehicle Actuators
		3.2.3.4.1	Provide Servo Control
		3.2.3.4.2	Provide Vehicle Control Data Interface

Physical

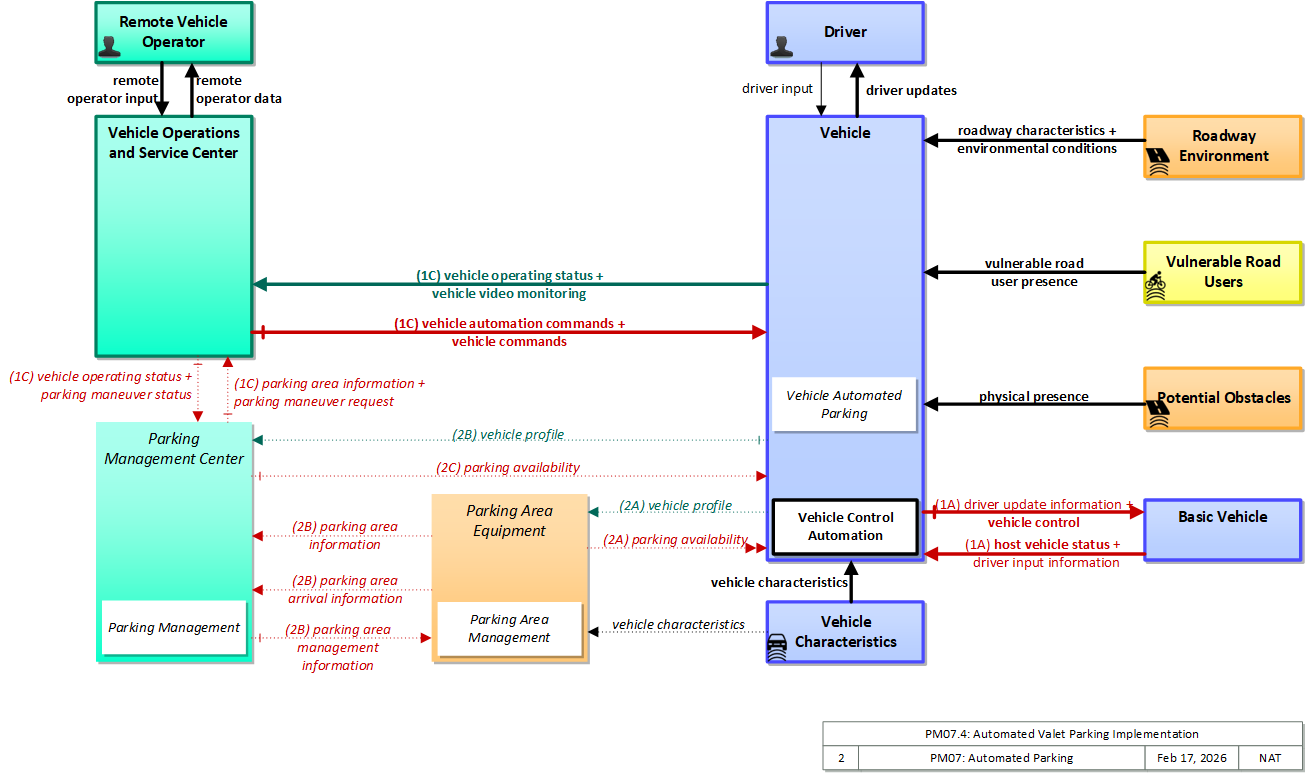

The physical diagram can be viewed in SVG or PNG format and the current format is SVG.
SVG Diagram
PNG Diagram

Display Legend in SVG or PNG

Includes Physical Objects:

Physical Object	Class	Description
Basic Vehicle	Vehicle	'Basic Vehicle' represents a complete operating vehicle. It includes the vehicle platform that interfaces with and hosts ITS electronics and all of the driver convenience and entertainment systems, and other non-ITS electronics on-board the vehicle. Interfaces represent both internal on-board interfaces between ITS equipment and other vehicle systems and other passive and active external interfaces or views of the vehicle that support vehicle/traffic monitoring and management. External interfaces may also represent equipment that is carried into the vehicle (e.g., a smartphone that is brought into the vehicle). Internal interfaces are often implemented through a vehicle databus, which is also included in this object. Note that 'Vehicle' represents the general functions and interfaces that are associated with personal automobiles as well as commercial vehicles, emergency vehicles, transit vehicles, and other specialized vehicles.
Driver	Vehicle	The 'Driver' represents the person that operates a vehicle on the roadway. Included are operators of private, transit, commercial, and emergency vehicles where the interactions are not particular to the type of vehicle (e.g., interactions supporting vehicle safety applications). The Driver originates driver requests and receives driver information that reflects the interactions which might be useful to all drivers, regardless of vehicle classification. Information and interactions which are unique to drivers of a specific vehicle type (e.g., fleet interactions with transit, commercial, or emergency vehicle drivers) are covered by separate objects.
Parking Area Equipment	Field	'Parking Area Equipment' provides electronic monitoring and management of parking facilities. It supports an I2V link to the Vehicle that allows electronic collection of parking fees and monitors and controls parking meters that support conventional parking fee collection. It also includes the instrumentation, signs, and other infrastructure that monitors parking lot usage and provides local information about parking availability and other general parking information. The two primary approaches to monitoring parking area usage are sensing vehicles within parking spots or counting vehicles as they come in and as they leave the area. This portion of the functionality must be located in the parking area where it can monitor, classify, and share information with customers and their vehicles. See also the separate 'Parking Management Center' physical object that may be located in a back office, remote from the parking area, which interfaces with the financial infrastructure and broadly disseminates parking information to other operational centers in the region.
Parking Management Center	Center	The 'Parking Management Center' manages one or more parking lots by providing configuration and control of field infrastructure, user account management and interfaces with financial systems to manage payment. This p-object takes the back office portion of the Parking Management System's functionality as it was defined in ARC-IT 8.3 and prior.
Potential Obstacles	Field	'Potential Obstacles' represents any object that possesses the potential of being sensed and struck and thus also possesses physical attributes. Potential Obstacles include roadside obstructions, debris, animals, infrastructure elements (barrels, cones, barriers, etc.) or any other element that is in a potential path of the vehicle. Note that roadside objects and pieces of equipment that can become obstacles in a vehicle’s path can include materials, coatings, or labels (e.g., barcodes) that will improve the performance of the vehicle-based sensors that must detect and avoid these obstacles. See also 'Vulnerable Road Users' that more specifically represents the physical properties of shared users of the roadway that must also be detected.
Remote Vehicle Operator	Center	The 'Remote Vehicle Operator' represents the person or people that support remote vehicle control, monitoring the controlled vehicle and it's surrounding environment and providing control commands for use by the automated driving system in the remote vehicle.
Roadway Environment	Field	'Roadway Environment' represents the physical condition and geometry of the road surface, markings, signs, and other objects on or near the road surface. It also represents the environmental conditions immediately surrounding the roadway. The roadway environment must be sensed and interpreted to support automated vehicle services. Surrounding conditions may include fog, ice, snow, rain, wind, etc. which will influence the way in which a vehicle can be safely operated on the roadway. The roadway environment must be monitored to enable corrective action and information dissemination regarding roadway conditions which may adversely affect travel. Infrastructure owner/operators can improve the roadway environment to improve the performance and accuracy of vehicle-based sensors that must sense and interpret this environment. Improvements could include changes in the shape, size, design, and materials used in signs, pavement markings, and other road features.
Vehicle	Vehicle	This 'Vehicle' physical object is used to model core capabilities that are common to more than one type of Vehicle. It provides the vehicle-based general sensory, processing, storage, and communications functions that support efficient, safe, and convenient travel. Many of these capabilities (e.g., see the Vehicle Safety service packages) apply to all vehicle types including personal vehicles (including motorcycles), commercial vehicles, emergency vehicles, transit vehicles, and maintenance vehicles. From this perspective, the Vehicle includes the common interfaces and functions that apply to all motorized vehicles. The radio(s) supporting V2V and V2I communications are a key component of the Vehicle. Both one-way and two-way communications options support a spectrum of information services from basic broadcast to advanced personalized information services. Advanced sensors, processors, enhanced driver interfaces, and actuators complement the driver information services so that, in addition to making informed mode and route selections, the driver travels these routes in a safer and more consistent manner. This physical object supports all six levels of driving automation as defined in SAE J3016. Initial collision avoidance functions provide 'vigilant co-pilot' driver warning capabilities. More advanced functions assume limited control of the vehicle to maintain lane position and safe headways. In the most advanced implementations, this Physical Object supports full automation of all aspects of the driving task, aided by communications with other vehicles in the vicinity and in coordination with supporting infrastructure subsystems.
Vehicle Characteristics	Vehicle	'Vehicle Characteristics' represents the external view of individual vehicles of any class from cars and light trucks up to large commercial vehicles and down to micromobility vehicles (MMVs). It includes vehicle physical characteristics such as height, width, length, weight, and other properties (e.g., magnetic properties, number of axles, occupants, emissions) of individual vehicles that can be sensed and measured or classified. This physical object represents the physical properties of vehicles that can be sensed by vehicle-based or infrastructure-based sensors to support vehicle automation and traffic sensor systems. The analog properties provided by this terminator represent the sensor inputs that are used to detect and assess vehicle(s) within the sensor's range to support safe AV operation and/or responsive and safe traffic management.
Vehicle Operations and Service Center	Center	'Vehicle Operations and Service Center' (VOSC) represents centers that provide telematics services to vehicles using wide-area (e.g. cellular) communications, including traveler information, emergency services, vehicle diagnostics, over-the-air software updates, vehicle maintenance information and warnings, remote vehicle operation, and provision of service options for these vehicles. See also 'Transportation Information Center' that provides traveler information, trip planning, and routing services and 'Emergency Management Center' that provides call-taking and emergency response services that may also be implemented by a VOSC.
Vulnerable Road Users	Personal	'Vulnerable Road Users' represents any roadway user not in a motorized vehicle capable of operating at the posted speed for the roadway in question, and also any roadway user in a vehicle not designed to encase (and thus protect) its occupants. This includes pedestrians, cyclists, wheelchair users, two-wheeled scooter micromobility users, as well as powered scooters and motorcycles. Note that this terminator represents the physical properties of vulnerable road users and their conveyance that may be sensed to support safe vehicle automation and traffic management in mixed mode applications where a variety of road users share the right-of-way. See also 'Pedestrian' and 'MMV User' Physical Objects that represent the human interface to these vulnerable road users.

Includes Functional Objects:

Functional Object	Description	Physical Object
Center Vehicle Teleoperation	'Center Vehicle Teleoperation' provides communications, command and control capabilities sufficient for an operator in a remote location to monitor the performance of and control vehicles operating in the transportation environment.	Center
Parking Area Management	'Parking Area Management' detects and classifies vehicles at parking facility entrances, exits, and other designated locations within the facility. Current parking availability is monitored and used to inform drivers through dynamic message signs/displays so that vehicles are efficiently routed to available spaces. Parking facility information, including current parking rates and directions to entrances and available exits, is also provided to drivers.	Parking Area Equipment
Parking Management	'Parking Management' monitors parking area operations for one or more parking areas, monitoring current operational status including current parking occupancy and rates supporting back office operations.	Parking Management Center
Vehicle Automated Parking	'Vehicle Automated Parking' provides the capability for a vehicle to park itself, when commanded by the driver.	Vehicle
Vehicle Control Automation	'Vehicle Control Automation' provides lateral and/or longitudinal control of a vehicle to allow 'hands off' and/or 'feet off' driving, automating the steering, accelerator, and brake control functions. It builds on the sensors included in 'Vehicle Safety Monitoring' and 'Vehicle Control Warning', receives warnings from 'Vehicle Intersection Movement', and uses the information about the area surrounding the vehicle to safely control the vehicle. It covers the range of incremental control capabilities from driver assistance systems that take over steering or acceleration/deceleration in limited scenarios with direct monitoring by the driver to full automation where all aspects of driving are automated under all roadway and environmental conditions, including providing, receiving, and acting on cooperation-related messaging.	Vehicle
Vehicle Teleoperation	'Vehicle Teleoperation' receives control commands from a remote center or device and relays valid, authentic commands to the automated driving system for execution. It provides status of the vehicle and surrounding environment back to the remote operator.	Vehicle

Includes Information Flows:

Information Flow	Description
driver input	Driver input to the vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands.
driver input information	Driver input received from the driver-vehicle interface equipment via the vehicle bus. It includes configuration data, settings and preferences, interactive requests, and control commands for the connected vehicle on-board equipment.
driver update information	Information provided to the driver-vehicle interface to inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment. The flow includes the information to be presented to the driver and associated metadata that supports processing, prioritization, and presentation by the DVI as visual displays, audible information and warnings, and/or haptic feedback.
driver updates	Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment.
environmental conditions	Current road conditions (e.g., surface temperature, subsurface temperature, moisture, icing, treatment status) and surface weather conditions (e.g., air temperature, wind speed, precipitation, visibility) that are measured by environmental sensors.
host vehicle status	Information provided to the ITS on-board equipment from other systems on the vehicle platform. This includes the current status of the powertrain, steering, and braking systems, and status of other safety and convenience systems. In implementations where GPS is not integrated into the Vehicle On-Board Equipment, the host vehicle is also the source for data describing the vehicle's location in three dimensions (latitude, longitude, elevation) and accurate time that can be used for time synchronization across the ITS environment.
parking area arrival information	Detailed arrival information within a parking area and area entrances available for transit use.
parking area information	Current status for the parking area. This includes information on general parking area status (operating hours, open entrances and exits, entrance queue status, parking operator information, current parking occupancy and availability).
parking area management information	Parameters that support management of a parking area. Hours of operation, parking rules and regulations, parking operator (attendant) information, etc.
parking availability	Information on available parking. This flow identifies available spaces with associated information about parking restrictions and location for each available space. Specifically includes information on parking for commercial vehicles, coaches/buses, and cars - and likely also motorcycles, electric vehicle plugins, etc.
parking maneuver request	Request to move a vehicle to a designated parking spot, an intermediate staging area, or a pickup location. The request identifies the vehicle, the starting location, destination location, and information about the recommended route.
parking maneuver status	Current status of the vehicle during a parking maneuver, including the vehicle's location in three dimensions, heading, speed, acceleration, and braking status.
physical presence	Detection of an obstacle. Obstacle could include animals, incident management and construction elements such as cones, barrels and barriers, internal structures such as pillars and poles, rocks in roadway, etc.
remote operator data	Presentation of status of a remote controlled vehicle and its surrouding environment. This data keeps the operator appraised of current vehicle status and provides feedback to the operator as control commands are provided. It also supports review of historical data and preparation for future service activities.
remote operator input	User input from the remote vehicle operator including requests for information, configuration changes, remote vehicle control actions, and other operations data entry related to remote vehicle operation.
roadway characteristics	Detectable or measurable road characteristics such as friction coefficient and general surface conditions, road geometry, signs and indicators (e.g., speed limits, parking availability) and markings, etc. These characteristics are monitored or measured by ITS sensors and used to support advanced vehicle safety, parking, turning and lane change maneuvers and road maintenance capabilities.
vehicle automation commands	Direction to an automated driving system to perform vehicle control actions
vehicle characteristics	The physical or visible characteristics of individual vehicles that can be used to detect, classify, and monitor vehicles and imaged to uniquely identify vehicles and characterize their performance (e.g., speed, occupants, emissions).
vehicle commands	System-level control commands issued to vehicle equipment such as reset and remote diagnostics.
vehicle control	Control commands issued to vehicle actuators that control steering, throttle, and braking and other related commands that support safe transition between manual and automated vehicle control. This flow can also deploy restraints and other safety systems when a collision is unavoidable.
vehicle operating status	Information describing the operational state of a vehicle, including a range of potential information such as vehicle kinematics, occupancy and environmental conditions.
vehicle profile	Information about a vehicle such as vehicle make and model, fuel type, engine type, size and weight, vehicle performance and level of control automation, average emissions, average fuel consumption, passenger occupancy, or other data that can be used to classify vehicle eligibility for access to specific lanes, road segments, or regions or participation in cooperative vehicle control applications.
vehicle video monitoring	Real-time images of the area inside or around the vehicle providing the information.
vulnerable road user presence	Detection of pedestrians, cyclists, and other vulnerable road users. This detection is based on physical characteristics of the user and their conveyance, which may be enhanced by design and materials that facilitate sensor-based detection and tracking of vulnerable road users.

Goals and Objectives

Associated Planning Factors and Goals

Planning Factor	Goal
D. Increase the accessibility and mobility of people and for freight;	Reduce congestion
F. Enhance the integration and connectivity of the transportation system, across and between modes, for people and freight;	Enhance integration and connectivity
G. Promote efficient system management and operation;	Improve efficiency
J. Enhance travel and tourism.	Support travel and tourism

Associated Objective Categories

Objective Category
Special Event Management: Parking Management
Special Event Management: Use of Technology
System Efficiency: Trip Connectivity
Travel Demand Management: Parking Management

Associated Objectives and Performance Measures

Objective	Performance Measure
Biannually increase preferred parking spaces for carpool/vanpool participants within downtown, at special events, and among major employers by X percent within Y years.	Number of preferred parking spaces for carpool/vanpool participants.
Decrease the time spent clearing special event venue parking lots of vehicles by X percent in Y years following each event.	Percent decrease in time to clear parking lots.
Enhance parking facility services and management	Number of parking facilities with advanced parking information to customers
Enhance parking facility services and management	Number of parking facilities with automated occupancy counting and space management
Enhance parking facility services and management	Number of parking facilities with coordinated availability information
Enhance parking facility services and management	Number of parking facilities with coordinated electronic payment systems
Enhance parking facility services and management	Number of parking facilities with electronic fee collection
Enhance parking facility services and management	Number parking facilities with electronic fee collection
Implement parking pricing for X communities every Y years.	Number of communities with priced parking stalls.
Implement shared parking for X communities every Y years.	Number of communities with shared parking.
Implement special event traffic signal timing plans at X percent of major special events each year beginning in year Y.	Percent of major special events each year in which a special event traffic signal timing plan was implemented.
Increase on-street parking restrictions on X percent of widely used routes during special events in Y years.	Percent of routes widely used during planned special events with on-street parking restrictions.
Increase park-and-ride lot capacity by X percent over Y years.	Capacity of park & ride lots.
Increase the number of residents/commuters receiving information on parking pricing and availability within Y years.	Number of residents/commuters receiving information on parking pricing and availability.
Increase the number of special events that use shared parking facilities (e.g., parking lots of nearby businesses or organizations) by X percent in Y years.	Number of special events that use shared parking facilities.
Increase the percent of major special events using ITS-related assets (e.g., roadside cameras, dynamic message signs, vehicle speed detectors) to detect and manage special event entry/exit bottlenecks and incidents by X percent in Y years.	Percent of special events using ITS-related assets to detect and manage incidents/bottlenecks at entry/exit routes of the events.
Increase the use of flexible pricing mechanisms near special event locations on X percent of parking spaces in Y years.	Percent of parking spaces near special event locations that use flexible pricing mechanisms.
Install parking meters along X corridors by year Y in the urban core/transit supportive areas.	Number of corridors in urban core/transit supportive areas with parking meters.
Reduce cost of transfer fees paid by X percent by year Y.	Average cost of transfers.
Reduce door-to-door trip time by X percent by year Y.	Average door-to-door trip time.

Since the mapping between objectives and service packages is not always straight-forward and often situation-dependent, these mappings should only be used as a starting point. Users should do their own analysis to identify the best service packages for their region.

Needs and Requirements

Need		Functional Object	Requirement
01	Drivers need to be able to direct their vehicles to park autonomously.	Parking Area Management	02	The parking element shall maintain dynamic parking lot information including current state of the lot, occupancy, arrival rates, and departure rates.
			03	The parking element shall determine and maintain the number and availability of parking spaces.
			04	The parking element shall share information with a traffic management center to identify queues at entrances, exits that should be used, and other information that supports coordinated local traffic control in and around the parking facility.
			07	The parking element shall provide precise parking egress/ingress location information to Centers.
			08	The parking element shall provide precise parking space location information to Centers.
		Parking Management	02	The center shall monitor the status of vehicles autonomously operating in its facilities.
		Vehicle Automated Parking	04	The vehicle shall receive parking availability information from nearby parking equipment.
			05	The vehicle shall receive parking availability information from a remote center.
			06	The vehicle shall provide profile information including its dimensions and parking requirements to the remote parking center.
			07	The vehicle shall provide profile information including its dimensions and parking requirements to nearby parking equipment.
		Vehicle Control Automation	01	The vehicle shall monitor the area behind and in front of the vehicle to determine the proximity of other objects to the vehicle.
			02	The vehicle shall monitor the area to the sides of the vehicle to determine the proximity of other objects to the vehicle to determine if a control adjustment is needed.
			03	The vehicle shall evaluate the likelihood of a collision between two vehicles or a vehicle and another objects, based on the proximity and vectors of other objects relative to the vehicle and the current speed and direction of the vehicle.
			05	The Vehicle shall provide its location with lane-level accuracy to on-board control automation applications.
			08	The vehicle shall provide an interface through which a vehicle driver can initiate, monitor and terminate automatic control of the vehicle.
			09	The vehicle shall send appropriate control actions to the vehicle's steering actuators.
			10	The vehicle shall present vehicle control information to the driver in audible or visual forms without impairing the driver's ability to control the vehicle in a safe manner.
			17	The vehicle shall send appropriate control actions to the vehicle's speed control systems (e.g., throttle, brakes).
02	Remote Vehicle Operators need to be able to control and monitor automated vehicles.	Center Vehicle Teleoperation	01	The center shall provide control commands to a remote vehicle.
			02	The center shall receive vehicle status information from the remote vehicle.
			03	The center shall provide the remote vehicle operator with an interface that includes remote vehicle status information.
			04	The center shall provide the remote vehicle operator with an interface that allows the remote vehicle operator to provide control commands to the remote vehicle.
		Parking Area Management	02	The parking element shall maintain dynamic parking lot information including current state of the lot, occupancy, arrival rates, and departure rates.
			03	The parking element shall determine and maintain the number and availability of parking spaces.
			07	The parking element shall provide precise parking egress/ingress location information to Centers.
			08	The parking element shall provide precise parking space location information to Centers.
		Vehicle Control Automation	09	The vehicle shall send appropriate control actions to the vehicle's steering actuators.
		Vehicle Control Automation	17	The vehicle shall send appropriate control actions to the vehicle's speed control systems (e.g., throttle, brakes).
		Vehicle Teleoperation	01	The vehicle shall receive control commands from a remote center.
			02	The vehicle shall authenticate and relay valid control commands to the appropriate automated driving function.
			03	The vehicle shall provide vehicle status information to the remote controlling system.
03	Travelers need to be able to summon their personal vehicles from parking environments.	Center Vehicle Teleoperation	01	The center shall provide control commands to a remote vehicle.
			02	The center shall receive vehicle status information from the remote vehicle.
			03	The center shall provide the remote vehicle operator with an interface that includes remote vehicle status information.
			04	The center shall provide the remote vehicle operator with an interface that allows the remote vehicle operator to provide control commands to the remote vehicle.
			05	The center shall receive summons requests from personal devices.
			06	The center shall provide authenticated summons request information to the remote vehicle operator.
		Vehicle Automated Parking	01	The vehicle shall receive summons requests from personal devices.
			02	The vehicle shall provide parking summons information including pickup location to driving automation systems.
			03	The vehicle shall transit from its parking space to the summons pickup location using on-board automation to control the vehicle.
		Vehicle Control Automation	09	The vehicle shall send appropriate control actions to the vehicle's steering actuators.
		Vehicle Control Automation	17	The vehicle shall send appropriate control actions to the vehicle's speed control systems (e.g., throttle, brakes).
		Vehicle Teleoperation	01	The vehicle shall receive control commands from a remote center.
			02	The vehicle shall authenticate and relay valid control commands to the appropriate automated driving function.
			03	The vehicle shall provide vehicle status information to the remote controlling system.
04	Drivers need to be made aware of and able to override teleoperation of the vehicle they are operating.	Vehicle Control Automation	10	The vehicle shall present vehicle control information to the driver in audible or visual forms without impairing the driver's ability to control the vehicle in a safe manner.
04		Vehicle Teleoperation	04	The vehicle shall not respond to remote teleoperation commands when being controlled by the driver.
05	Drivers need to be able to identify parking suitable for the vehicle they are operating.	Parking Area Management	04	The parking element shall share information with a traffic management center to identify queues at entrances, exits that should be used, and other information that supports coordinated local traffic control in and around the parking facility.
		Parking Management	03	The center shall receive vehicle profile information from vehicles.
		Parking Management	04	The center shall provide locations of parking spaces suitable for vehicles to vehicles that provide profile information.
		Vehicle Automated Parking	04	The vehicle shall receive parking availability information from nearby parking equipment.
			05	The vehicle shall receive parking availability information from a remote center.
			06	The vehicle shall provide profile information including its dimensions and parking requirements to the remote parking center.
			07	The vehicle shall provide profile information including its dimensions and parking requirements to nearby parking equipment.

Related Sources

Document Name	Version	Publication Date
None

Security

In order to participate in this service package, each physical object should meet or exceed the following security levels.

Physical Object Security
Physical Object	Confidentiality	Integrity	Availability	Security Class
Basic Vehicle
Parking Area Equipment	Moderate	Moderate	Moderate	Class 2
Parking Management Center	Moderate	Moderate	Moderate	Class 2
Potential Obstacles
Roadway Environment	Not Applicable	Low	Low	Class 1
Vehicle	Moderate	High	Moderate	Class 3
Vehicle Characteristics
Vehicle Operations and Service Center
Vulnerable Road Users

In order to participate in this service package, each information flow triple should meet or exceed the following security levels.

Information Flow Security
Source	Destination	Information Flow	Confidentiality	Integrity	Availability
Source	Destination	Information Flow	Basis	Basis	Basis
Basic Vehicle	Vehicle	driver input information	Moderate	High	High
Basic Vehicle	Vehicle	driver input information	Internal vehicle flow that if reverse engineered could enable third party vehicle control. Largely a competitive question, could be set LOW if manufacturer and operator are not concerned with this type of compromise.	Includes vehicle control commands, which must be timely and accurate to support safe vehicle operation.	Includes vehicle control commands, which must be timely and accurate to support safe vehicle operation.
Basic Vehicle	Vehicle	host vehicle status	Low	Moderate	High
Basic Vehicle	Vehicle	host vehicle status	Unlikely that this includes any information that could be used against the originator.	This can be MODERATE or HIGH, depending on the application: This is used later on to determine whether a vehicle is likely going to violate a red light or infringe a work zone. This needs to be correct in order for the application to work correctly.	Since this monitors the health and safety of the vehicle and that information is eventually reported to the driver, it should be available at all times as it directly affects vehicle and operator safety.
Driver	Vehicle	driver input	Moderate	High	High
Driver	Vehicle	driver input	Data included in this flow may include origin and destination information, which should be protected from other's viewing as it may compromise the driver's privacy.	Commands from from the driver to the vehicle must be correct or the vehicle may behave in an unpredictable and possibly unsafe manner	Commands must always be able to be given or the driver has no control.
Parking Area Equipment	Parking Management Center	parking area arrival information	Moderate	Moderate	Low
Parking Area Equipment	Parking Management Center	parking area arrival information	Does not include PII, but does include usage information for a managed facility that implies a number of vehicles. While this is observable information, it could be considered competitive, and regardless is accessible without being physically present, which is its own barrier.	Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken.	Most likely not a frequently updated flow. If application context requires frequent update this could be MODERATE.
Parking Area Equipment	Parking Management Center	parking area information	Moderate	Moderate	Low
Parking Area Equipment	Parking Management Center	parking area information	Does not include PII, but does include usage information for a managed facility that implies a number of vehicles. While this is observable information, it could be considered competitive, and regardless is accessible without being physically present, which is its own barrier.	Generally transportation coordination information should be correct between source and destination, or inappropriate actions may be taken.	While useful, there is no signficant impact if this flow is not available.
Parking Area Equipment	Vehicle	parking availability	Not Applicable	Moderate	Moderate
Parking Area Equipment	Vehicle	parking availability	Intended for local public use, no need to obfuscate.	This data is used for trip planning for all types of vehicles. Failure to receive this information, or incorrect or fraudelent information, will negatively impact the trip for recipients of such data.	This data is used for trip planning for all types of vehicles. Failure to receive this information, or incorrect or fraudelent information, will negatively impact the trip for recipients of such data.
Parking Management Center	Parking Area Equipment	parking area management information	Moderate	Moderate	Low
Parking Management Center	Parking Area Equipment	parking area management information	This information could be of interest to a malicious individual who is attempting to determine the best way to accomplish a crime. As such it would be best to not make it easily accessible.	If this is compromised, it could send unnecessary maintenance workers, or cause the appearance of excessive traffic violations, leading to further unnecessary investigation.	A delay in reporting this may cause a delay in necessary maintenance, but (a) this is not time-critical and (b) there are other channels for reporting malfunctioning. Additionally, there is a message received notification, which means that RSE can ensure that all intersection safety issues are delivered.
Parking Management Center	Vehicle	parking availability	Not Applicable	Moderate	Moderate
Parking Management Center	Vehicle	parking availability	Intended for local public use, no need to obfuscate.	This data is used for trip planning for all types of vehicles. Failure to receive this information, or incorrect or fraudelent information, will negatively impact the trip for recipients of such data.	This data is used for trip planning for all types of vehicles. Failure to receive this information, or incorrect or fraudelent information, will negatively impact the trip for recipients of such data.
Potential Obstacles	Vehicle	physical presence
Potential Obstacles	Vehicle	physical presence
Roadway Environment	Vehicle	environmental conditions	Not Applicable	Low	Low
Roadway Environment	Vehicle	environmental conditions	Sensor-based information flows by definition have no confidentiality concerns.	While typically security concerns related to sensing ignored, if considered this would be LOW, as the obfuscation or failure of any given environmental sensor is likely to be overcome by the mass of data necessary to draw environmental concluisions.	While typically security concerns related to sensing ignored, if considered this would be LOW, as the obfuscation or failure of any given environmental sensor is likely to be overcome by the mass of data necessary to draw environmental concluisions.
Roadway Environment	Vehicle	roadway characteristics	Not Applicable	Low	Low
Roadway Environment	Vehicle	roadway characteristics	Sensor-based information flows by definition have no confidentiality concerns.	While typically security concerns related to sensing ignored, if considered this would be LOW, as the obfuscation or failure of any given environmental sensor is likely to be overcome by the mass of data necessary to draw environmental concluisions.	While typically security concerns related to sensing ignored, if considered this would be LOW, as the obfuscation or failure of any given environmental sensor is likely to be overcome by the mass of data necessary to draw environmental concluisions.
Vehicle	Basic Vehicle	driver update information	Low	Moderate	Moderate
Vehicle	Basic Vehicle	driver update information	This information is all presented to the vehicle operator. Encrypting this information may make it harder to reverse engineer vehicle systems, and may defeat criminal tracking tools when the vehicle has already been compromised. Unless those scenarios are of concern to the operator or manufacturer, this can safely be set LOW.	Any information presented to the operator of a vehicle should be both accurate and timely. By definition this includes safety information, but given that the driver has other means of learning about most threats, it seems difficult to justify HIGH. If HIGH is warranted, it should apply to both availability and integrity.	Any information presented to the operator of a vehicle should be both accurate and timely. By definition this includes safety information, but given that the driver has other means of learning about most threats, it seems difficult to justify HIGH. If HIGH is warranted, it should apply to both availability and integrity.
Vehicle	Basic Vehicle	vehicle control	Moderate	High	High
Vehicle	Basic Vehicle	vehicle control	Internal vehicle flow that if reverse engineered could enable third party vehicle control. Largely a competitive question, could be set LOW if manufacturer and operator are not concerned with this type of compromise.	Includes vehicle control commands, which must be timely and accurate to support safe vehicle operation.	Includes vehicle control commands, which must be timely and accurate to support safe vehicle operation.
Vehicle	Driver	driver updates	Not Applicable	Moderate	Moderate
Vehicle	Driver	driver updates	This data is informing the driver about the safety of a nearby area. It should not contain anything sensitive, and does not matter if another person can observe it.	This is the information that is presented to the driver. If they receive incorrect information, they may act in an unsafe manner. However, there are other indicators that would alert them to any hazards, such as an oncoming vehicle or crossing safety lights.	If this information is not made available to the driver, then the system has not operated correctly.
Vehicle	Parking Area Equipment	vehicle profile	Low	High	Moderate
Vehicle	Parking Area Equipment	vehicle profile	Includes no PII and probably includes information that could be observed, so no need for obfuscation.	As this information will be used to determine the vehicle's ability to access services or be charged usage fees, it must be correct and not easily forgeable.	This flow enables various services; if the flow is not available the vehicle may not be able to use those services, and also may be charged incorrectly.
Vehicle	Parking Management Center	vehicle profile	Low	High	Moderate
Vehicle	Parking Management Center	vehicle profile	Includes no PII and probably includes information that could be observed, so no need for obfuscation.	As this information will be used to determine the vehicle's ability to access services or be charged usage fees, it must be correct and not easily forgeable.	This flow enables various services; if the flow is not available the vehicle may not be able to use those services, and also may be charged incorrectly.
Vehicle Characteristics	Parking Area Equipment	vehicle characteristics
Vehicle Characteristics	Parking Area Equipment	vehicle characteristics
Vehicle Characteristics	Vehicle	vehicle characteristics
Vehicle Characteristics	Vehicle	vehicle characteristics
Vulnerable Road Users	Vehicle	vulnerable road user presence
Vulnerable Road Users	Vehicle	vulnerable road user presence

Standards

The following table lists the standards associated with physical objects in this service package. For standards related to interfaces, see the specific information flow triple pages. These pages can be accessed directly from the SVG diagram(s) located on the Physical tab, by clicking on each information flow line on the diagram.

Name	Title	Known Issues	Physical Object
ISO 24100 Probe Vehicle Data Protection	Intelligent transport systems -- Basic principles for personal data protection in probe vehicle information services		Vehicle Operations and Service Center
ISO/SAE PAS 22736 Automation Taxonomy	Taxonomy and Definitions for Terms Related to Driving Automation Systems for On-Road Motor Vehicles		Vehicle
SAE J3016 Automation Taxonomy	Taxonomy and Definitions for Terms Related to Driving Automation Systems for On-Road Motor Vehicles		Vehicle
SAE J3251 CDA Pedestrian Collision Avoidance	Cooperative Driving Automation (CDA) Feature: Perception Status Sharing for Occluded Pedestrian Collision Avoidance		Vehicle
SAE J3316 CDA Reference Architecture		Draft not available (Critical): under development	Vehicle
SAE J3361 Antenna requirements	V2X Antenna Coverage and Test Requirements for US FHWA Class 1 and Class 3-13 Class Vehicles	Draft not available (Critical): under development	Vehicle
SAE J5001 OBU Standard	Onboard Unit Standard for Connected Vehicles	Draft not available (Critical): under development	Vehicle

System Requirements

No System Requirements
